BetaFPV BT2.0 Connectors (5 Male & 5 Female)

Description

BT2.0 Connector – the most significant revolution in 1S Tiny Whoop Drone.

Not sure if it’s worth switching to BT2.0? Check more from Joshua Bardwell‘video- Proof that the BT2.0 connector is better than PH 2.0.

• BT2.0 connector decreased internal resistance of connector effectively by upgrading the crimped pins to banana connector and increasing the cross-sectional area of banana connector.
• With these connectors, it can support 9A continuous current and 15A burst, while the PH2.0 connector supports 4.5A continuous current.
• By solving the problem of voltage sag, the discharge of the 300mAh 1S BT2.0 lipo becomes more efficient. Pilots can enjoy more flight time without disturbance of low voltage warning.
• Compared with the PH2.0 crimped pins, BT2.0 connector is more durable which can discharge more currents in the same capacity and provide far more power. You can get 2mins flight time in full throttle on Meteor65 if you use our BT2.0 300mah 1S Battery.

SPECIFICATION

• Size: Male Connector – 6.0*4.2*10.5mm / Female Connector – 6.0*4.2*8.3mm
• Weight: Male Connector- 0.34g/PCS / Female Connector – 0.24g/PCS
• Note: The terminal molded case identifies the positive and negative poles, and must be welded according to the instructions.

PACKAGE

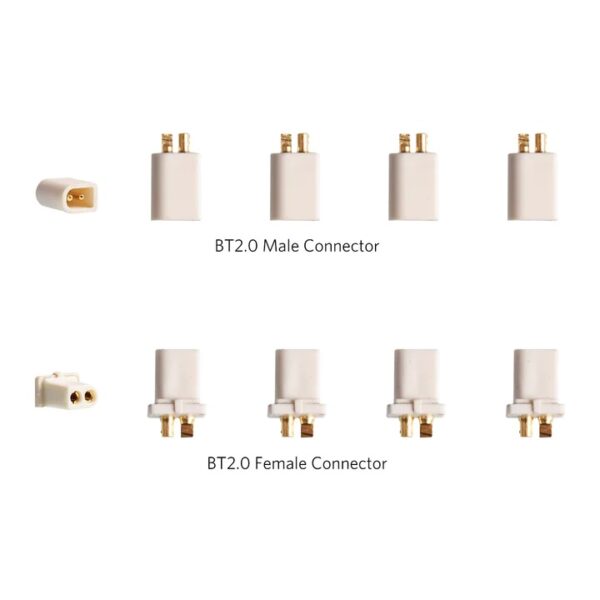

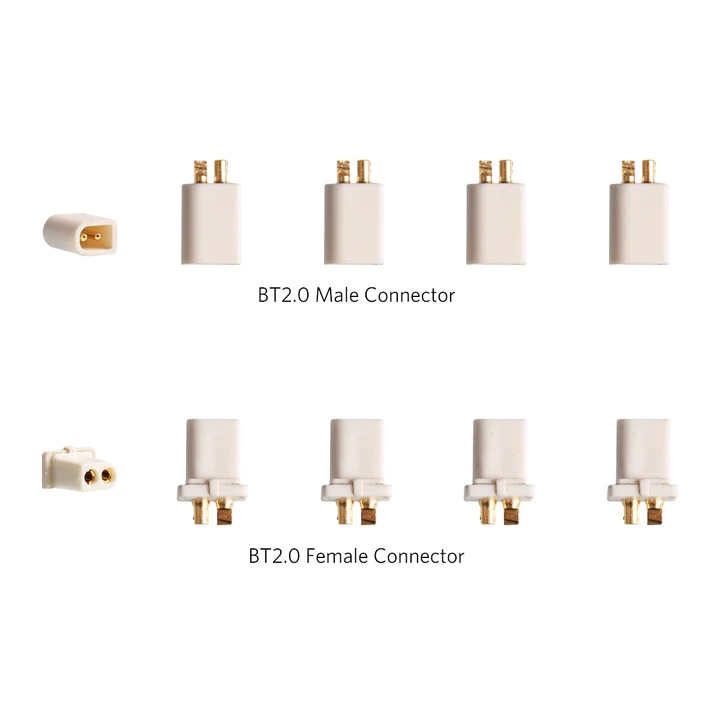

• 5* BT2.0 Female Connector & 5 * BT2.0 Male Connector
