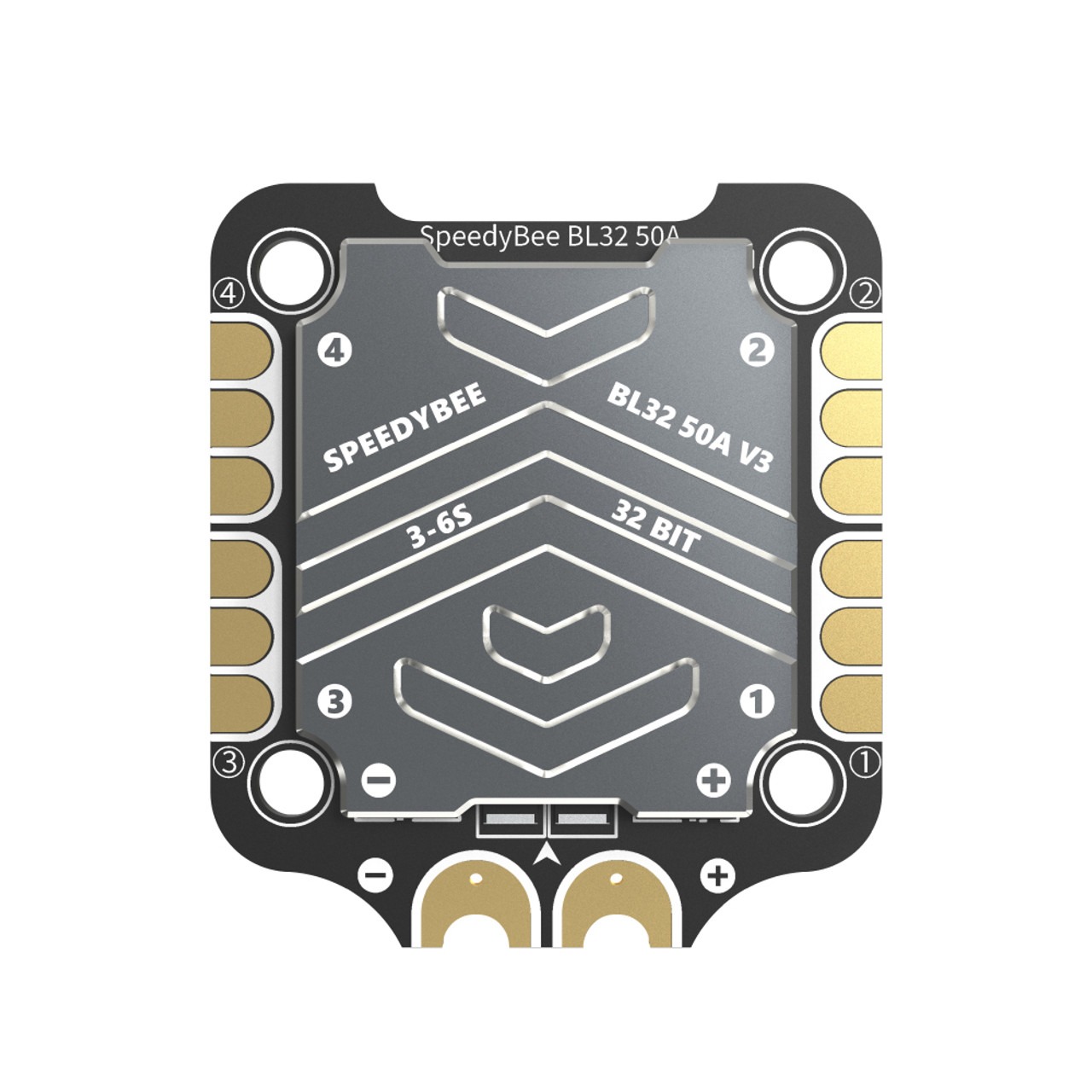

SpeedyBee BL32 F4 128kHz 50A 4-in-1 ESC 30×30

An F4 128K BL_32 ESC that does it all! SpeedyBee has catered for Racers and Freestyle Pilots alike!

$124.99

In Stock at KiwiQuads

Ships from our Tauranga warehouse
SKU: 1638 Category:

Description

An F4 128K BL_32 ESC that does it all! SpeedyBee has catered for Racers and Freestyle Pilots alike!

Specifications

  • Product Name SpeedyBee BL32 50A 4-in-1 ESC
  • Firmware SpeedyBee BL32 50A
  • Configurator Download Link http://github.com/bitdump/BLHeli/releases
  • Continuous Current 50A * 4
  • Burst Current 55A(5seconds)
  • TVS Protective diode Yes
  • Heat Sink Yes

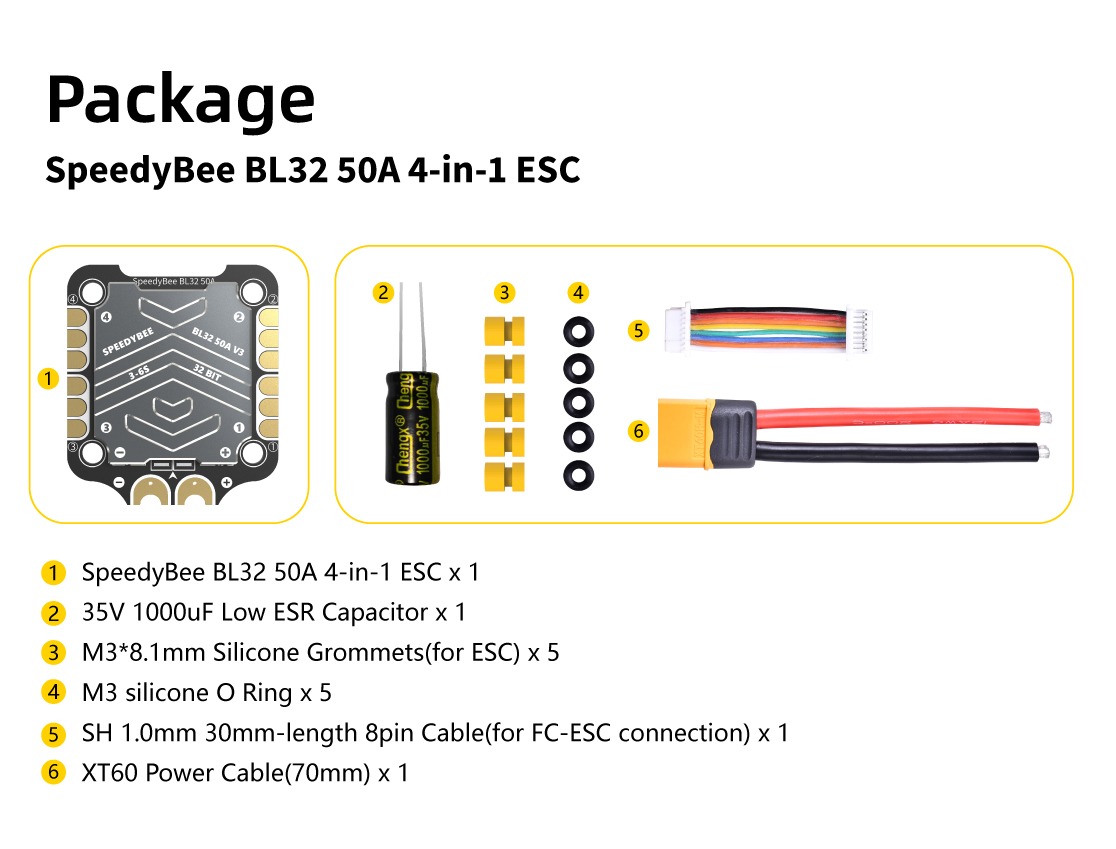

  • External Capacitor 1000uF Low ESR Capacitor(In the package)
  • ESC Protocol DSHOT300/600
  • PWM Frequency Range 16KHz-128KHz
  • Power Input 3-6S LiPo
  • Power Output VBAT
  • Current Sensor Support (Scale=490 Offset=0)
  • ESC Telemetry supported
  • Mounting 30.5 x 30.5mm( 4mm hole diameter)
  • Dimension 45.6(L) * 40(W) * 8.8mm(H)
  • Weight 19.2g with heat sink
