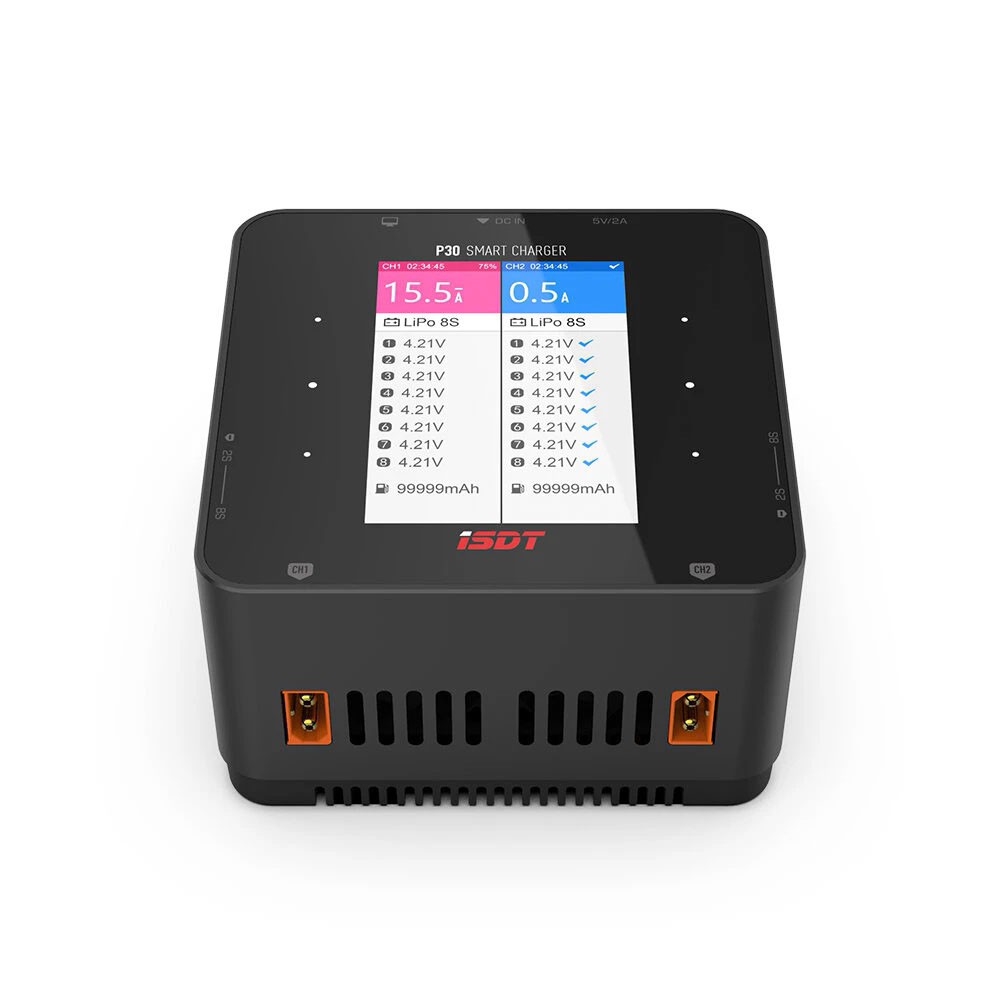

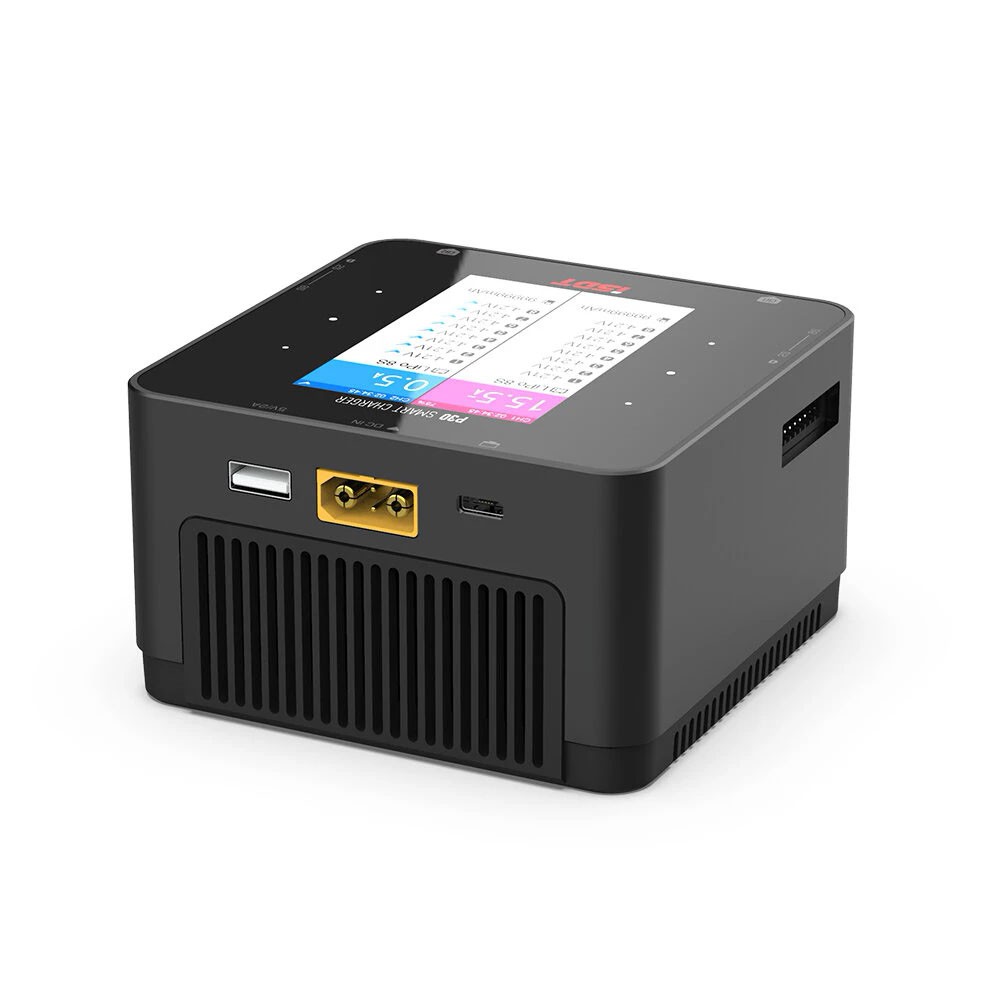

ISDT P30 1500W 50A 1-8S Dual Port Smart Charger

Description

The iSDT P30 1500W 50A 8S Dual Channel Smart Charger features Bluetooth BattGo control, a smart built-in high-speed processor, maximum parallel charging power up to 1500W, wireless OTA upgrade with APP support, and many other cool features!

The highlight of iSDT P30 Dual Port 1500W 8S 50A Charger

• High Power Dual Channel Output 1000W 30A in single-channel charging mode
• Synchronous Parallel charging up to 1500W and 50A
• Aluminum Housing
• 3.5” High-Resolution IPS screen
• Sample Touch Swipe Interface
• OTA software upgrade keeping the charger always update
• Bluetooth control

Features

High Power Synchronous Dual Channel, with Smart Charging.

• A smart high-speed processor delivers parameter interfere to each port.
• Hassle-free with a maximum charging power up to 1000W for each port.
• Choose ISDT, Powered by Innovation.

Synchronous Parallel charging.

• Built-in High-Speed Processor Synchronous Balance two-channel charging.
• Maximum Parallel Charging power up to 1500W.
• P30 deliver charging current range from 30A ~ 50A.

High-Quality Lightweight Magnesium Alloy shell.

• Anodized magnesium alloy shell.
• Premium high gloss thin lines finishing by edge’s chamfering process.
• A unique appearance featuring a high-efficiency heat dissipation design.

3.5-inch High resolution IPS screen.

• The screen provides a 320 x 480 resolution.
• Displays detailed information including current, capacity, internal resistance, and more.

New Air Convection Design for Effective cooling.

• The internal structure improves the heat dissipation channel rate.
• The internal structure improves the heat dissipation channel rate.
• Greatly improve heat dissipation.

P30 supports Bluetooth Connect Function and Mobile Operations.

• Wireless OTA upgrade with APP support.
• Preset charging tasks are available. Simply One-button charging, Hassle-Free.

Powerful Performance built-in compact size.

• Seeking Ultimate Power ratio with Perfect Balance.
• Constantly pursue perfection with innovation inspire our customer.

Specifications

• Input voltage: DC 10~34V
• Output voltage: DC 1~34V
• Max. input current: 60A
• Charging current: 0.2~30A x2
• Discharging current: 0.2~3.0A x2
• Balance current: 1.5A/Cell Max
• Max. discharging power: 30W x2
• Max. discharging power: Single channel Max. 1000W; Whole model Max. 1500W
• Abnormal voltage alarm: support
• Incorrect cell count setting alarm: support
• Supported battery types and cell count: LiFe, Lilon, LiPo 1~8S, LiHv 1-7S, Pb 1-12S, NiMH, Cd 1-16S
• Output interface: XT60i（XT60 compatible）
• Input interface:: XT90i（XT90 compatible）
• Display: 3.5’’ 320×480 IPS LCD
• Working temperature: 0~40℃
• Storage temperature: -20℃~60℃
• Dimension: 110x110x65mm
• Weight: 730g

Includes

• iSDT P30 1500W 50A 8S Dual Port Smart Charger

Please note all ISDT chargers no longer support BattGo due to the technology being sold.
