iFlight Albatross V2 Antenna 60mm (LHCP RP-SMA)

Description

Note: iFlight refer to 60mm also as 90mm in some listings

The iFlight Albatross V2 Antenna 60mm (LHCP RP-SMA) redefines FPV performance with its rugged hexagonal design and ultrasonic welding technology. Engineered for unmatched durability and lightweight reliability, it features right-angle fixation for secure mounting and enhanced antenna gain for stable transmission. Perfectly optimized for DJI Digital FPV, this upgraded antenna ensures consistent performance, minimal signal loss, and seamless compatibility. Experience the pinnacle of innovation with the Albatross V2—built to elevate your FPV adventures.

Features:

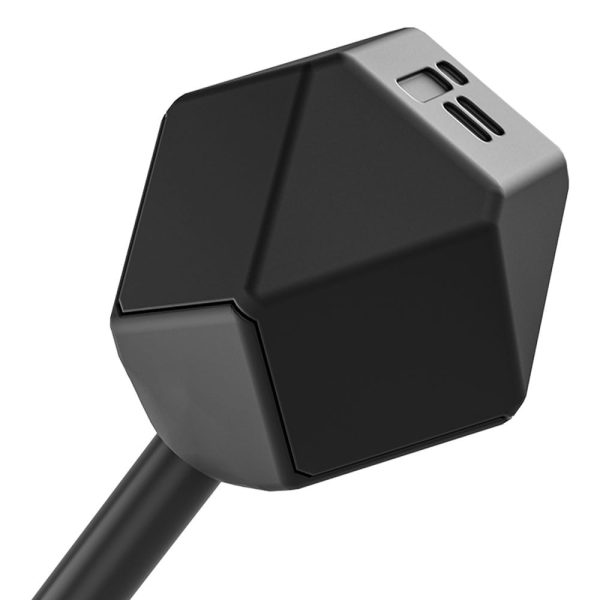

• A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
• Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
• Achieves higher consistency in antenna gain, thereby improving device performance and stability.

Specifications:

• Model: Albatross 5.8GHz RHCP SMA/RP-SMA FPV Antenna
• Interface: RHCP SMA
• Frequency range: 5.3GHz-6GHz
• Max Gain: 2.65dBi (5695MHz)
• MIN Gain: 2.06dBi (5362MHz)
• AVG Gain: 2.4dBi
• MAX VSWR: 1.76（5917MHz）
• MIN VSWR: 1.46（5621MHz）
• AVG VSWR: 1.75
• MAX radiation efficiency: 86%（5436MHz）
• MIN  radiation efficiency: 76%（5917MHz）
• AVG radiation efficiency: 83%
• Polarization: RHCP
• Cross polarization suppression: -25dB
• Axial Ratio：≤3
• Cable: RG141
• Weight: 7g
• Size: Total length: 90mm(±2mm), cable length:60mm

Package Includes:

• 1 x iFlight Albatross V2 Antenna 60mm (LHCP RP-SMA)
