GepRC Cinelog35 V2 Frame Kit

Description

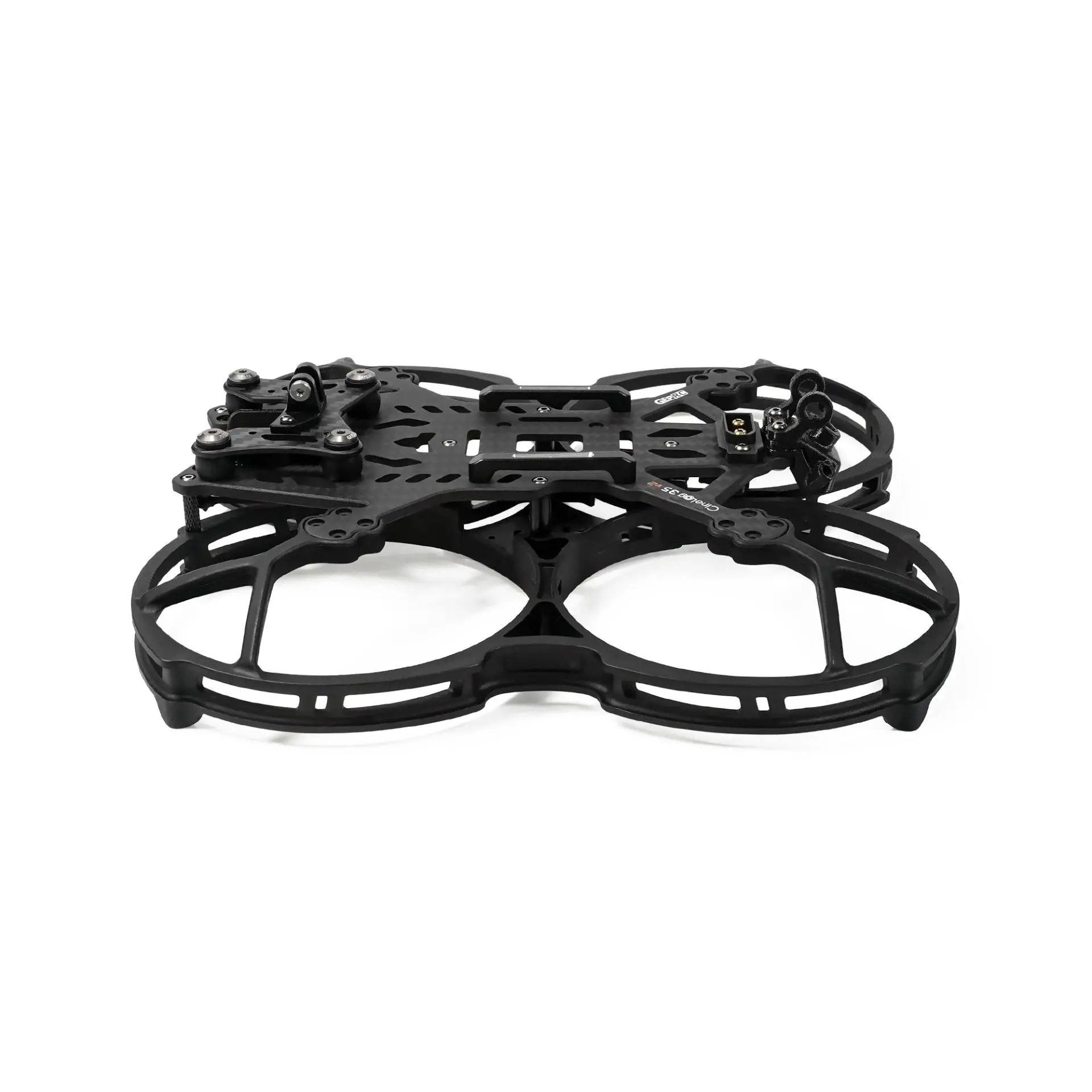

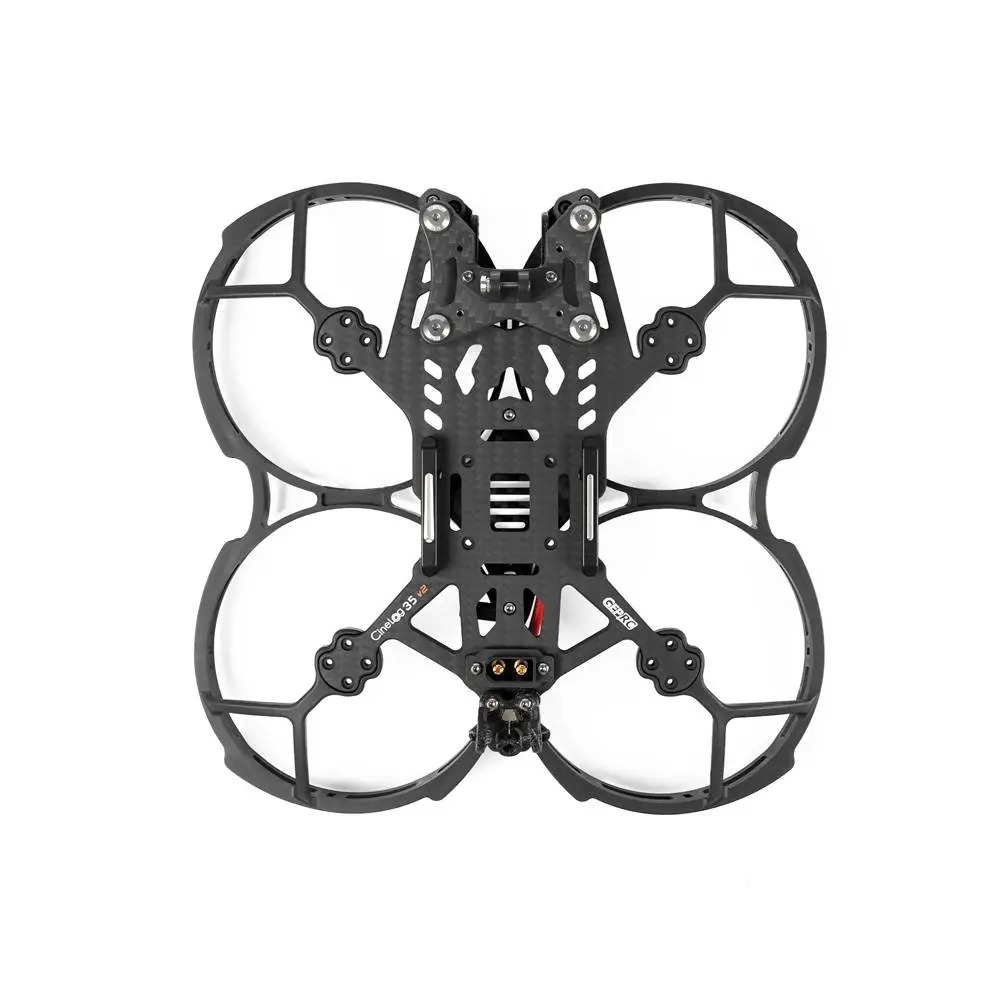

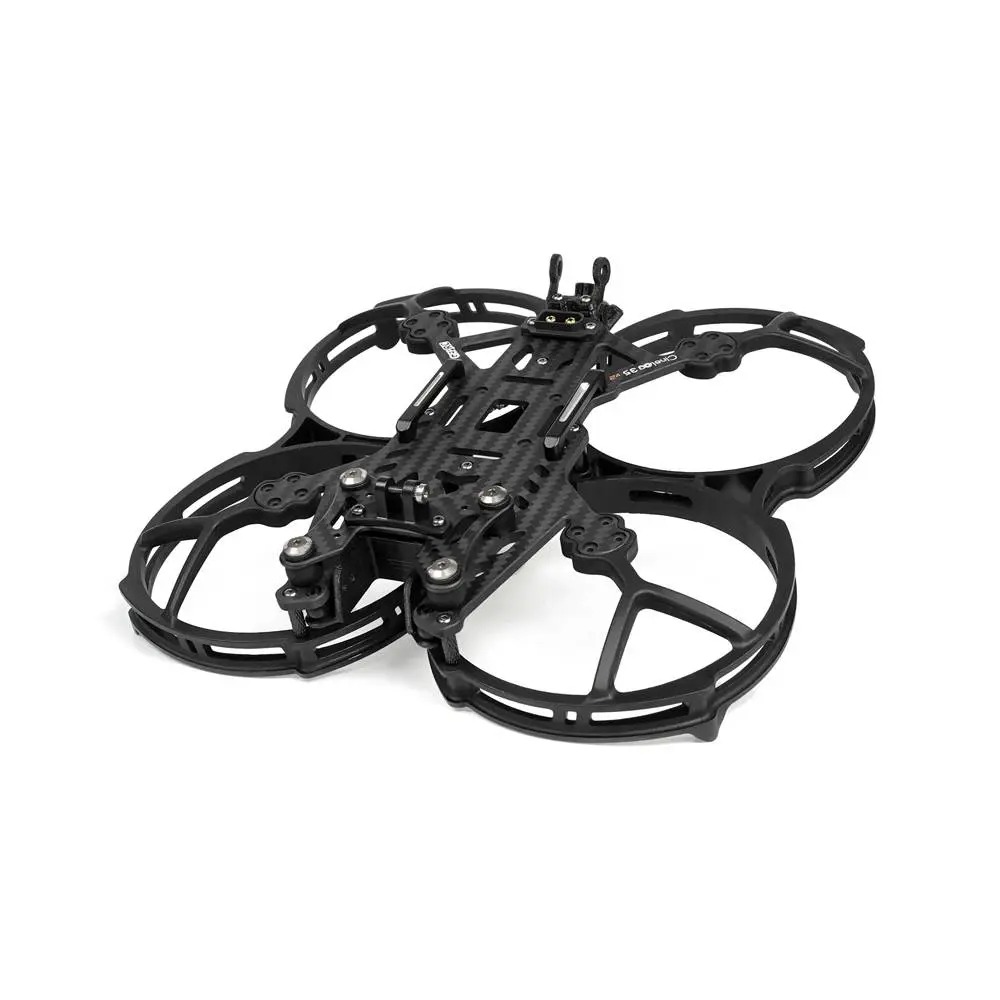

The CineLog 35 V2 features a main carbon plate and injection protection frame with an increased 7075 aluminum column for structural strengthening. The battery mounting uses a tie with 7075 aluminum parts fixed, and the power XT60E1-M plug is integrated with the carbon plate for convenient application. The protective frame adds a memory card and USB port for easy data reading. This is a 3.5-inch cinematic FPV frame that integrates cinematic, freestyle, leisure, and safety to meet the user’s requirements for flying and filming various scenes indoors and outdoors.

Specification

• Model: GEP-CL35 V2
• Motor to Motor: 142mm
• Top Plate: 2mm
• Bottom Plate: 1.5mm
• Arm Plate: 3.5mm
• FC Mounting Hole: 25.5mm x 25.5mm
• VTX Mouning Hole : 20mm x 20mm/25mm x 25mm
• Motor Mounting Hole: 12mm x 12mm
• Camera Installation Space: 20mm
• Propeller Guard Internal Diameter: 95mm
• Suitable Propeller Size: 3.5 inch propeller
• Weight: 133.7g

Feature

• Prop guard for O3 Air Unit adds storage card and USB port for easy data reading.
• Innovative camera shock-absorbing structure to fix the issue of lens IMU resonance and achieve the optimal anti-shake effect.
• Battery installation method using a strap with 7075 aluminum parts fixed, solid and stable.
• Power cable using XT60E1-M plug and carbon plate integrated design, user-friendly.
• Injection molding prop guard is tough and impact-resistant, and the connection between the frame and the carbon plate is strengthened with aluminum columns.

Package Includes:

Carbon Plate

• 1 X Main carbon plate 3.0mm
• 1 X Top Plate 2.0mm
• 1 X Bottom plate 1.5mm

Screw Kits

• 2 X Battery strap fixed aluminum parts
• 2 X 7075 mesh aluminum column M2*11.5*4
• 4 X 7075 mesh aluminum column M2*25*3.3
• 4 X Custom half crescent head screws M3*15
• 6 X Cup head screw M2*18
• 2 X Round head screws M2*16
• 4 X Round head screws with pad M2*4
• 4 X Round head screws M2*5.5
• 30 X Round head screws M2*7
• 14 X Round head screws M2*12
• 16 X Round head screws M2*8
• 6 X Round head screws M1.6*8
• 4 X Round head screws M2*6
• 6 X Round head screws M2.5*6
• 1 X Chamfered Hexagon Socket Screws M5x28
• 4 X Press Rivet Nuts M3
• 4 X self-tightening nuts M2
• 18 X Iron nuts M2
• 1 X Flange Nut M5
• 12 X Press Rivet Nut_Brass Color M2*1.9-OD4.9

3D Printed Parts

• 1 X Camera mount 2 holes
• 1 X Camera mount 4 holes
• 1 X Receiver mount
• 1 X T-shaped antenna mount
• 1 X VTX antenna mount
• 1 X Capacitor mount
• 1 X Power plug printed parts
• 1 X GP Camera base mount

Injection Molded Parts

• 1 X Injection molded prop guard
• 4 X Vibration dampening rubber for FC M2*6
• 6 X Camera vibration dampening rubber
• 4 X Camera gimbal shock absorbing rubber ring M3*10.5*10.25

Other Accessories

• 1 X Power XT60E1-M plug with cable
• 4 X Motor hub M7*15mm
• 3 X 5.8G VTX extension cable 80mm
• 7 X Heatshrink tube
• 1 X Naked GP Camera base mount( 1 X base mount, 2 X round head M2*12, 2 X press rivet nut M2)
• 4 X BEC pads
• 2 X Battery non-slip pads for Cinelog 35 v2
• 2 X Receiver Antenna Stick 100mm
• 1 X Battery strap M20*250
• 1 X Battery strap M20*220
• 1 X L-shaped screwdriver 1.5MM
• 1 X L-shaped screwdriver 2.0MM
• 1 X L-shaped screwdriver 3.0MM
• 1 X M5 wrench
• 1 X Keychain
• 1 X Guide for Quick Start
• 2 X GEPRC Stickers
• 1 X Service card
• 1 X Packaging box
• 1 X User manual
• 1 X Promotion Card
