FlyFishRC OSPREY 5.8G LHCP Cyan FPV Antenna (UFL/IPEX)
by FlyFishRC
Experience unmatched signal clarity, maximum efficiency, and robust durability with this ultra-lightweight, precision-engineered FPV antenna.
$13.99
In Stock at KiwiQuads
Ships from our Tauranga warehouse
SKU: temp166
Categories: Antennas, FPV Equipment, Video Antennas
Description

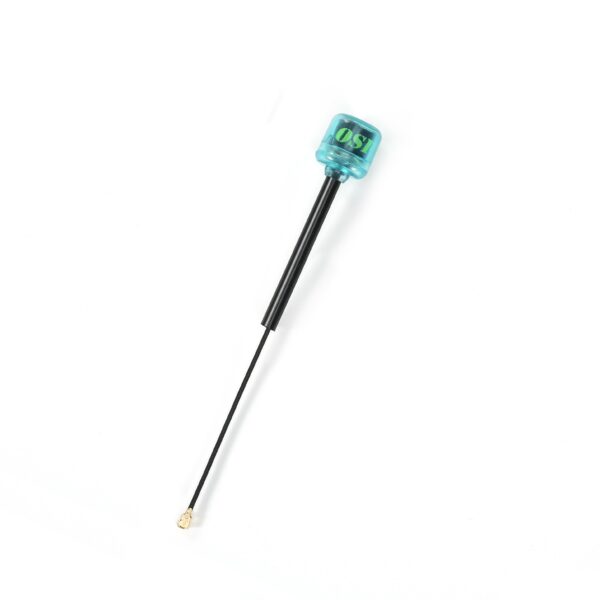

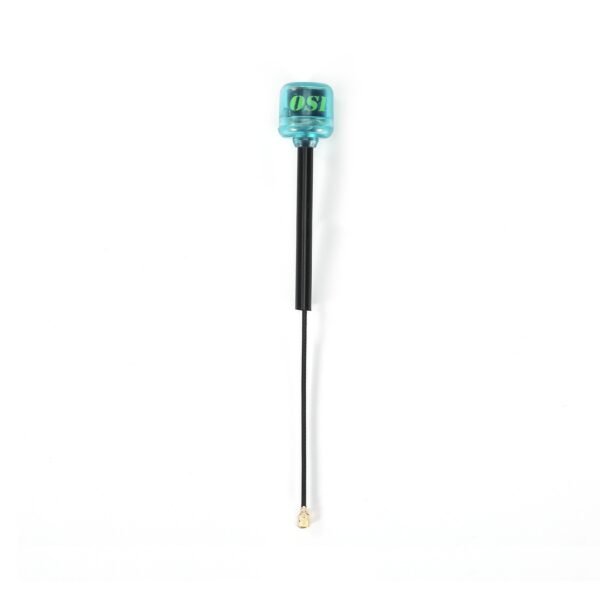

The FlyFishRC OSPREY 5.8G LHCP Cyan FPV Antenna delivers exceptional signal clarity and range in an ultra-lightweight, impact-resistant design. Engineered with a 4-leaf construction, 99% radiation efficiency, and a compact profile, it ensures superb performance even in the toughest environments. With a gain of up to 2.82dBi and a unique hybrid network, this antenna redefines FPV reliability—making it a must-have for serious pilots who demand excellence.
Specifications
- Gain: 2.82dBi
- Frequency: 5.8GHz
- V.S.W.R: ≤1.2:1
- Radiation Efficiency: 99%
- Polarization: LHCP
- Connector: UFL (IPEX 1)
- Dimensions (Head): 14.1mm diameter × 14mm height
- Length: 104mm
- Cable: Protection tube RG1.13 coax
- Weight: 2.8g
Package Includes
- 1 x FlyFishRC OSPREY 5.8G LHCP Cyan FPV Antenna (UFL/IPEX)
Additional information
Brand | |
---|---|
Antenna Polarisation | LHCP |
