Radiomaster – AG01 MINI CNC Hall Gimbals for TX12 and Zorro (Pair)
by RadioMaster
5.00 out of 5
(4 customer reviews)
From the aviation-grade aluminum construction, non-contact hall sensors, and pre-installed Sticky360 Mini Gimbal Sticks, be prepared to revolutionize your compact radio experience!
$184.99
or 6 weekly interest free payments of NZD $30.83 with
In Stock at KiwiQuads
Ships from our Tauranga warehouse
SKU: 1574
Categories: RC Radios, Radio Accessories
Description

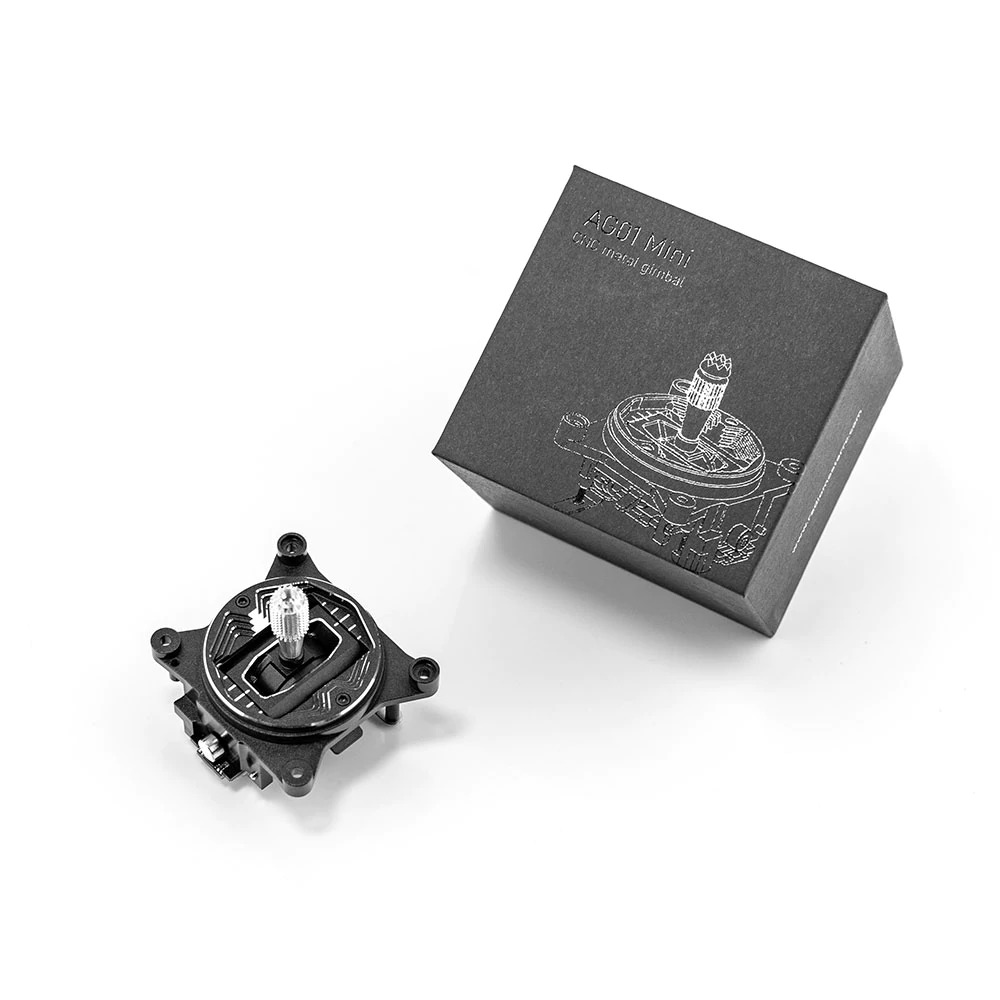

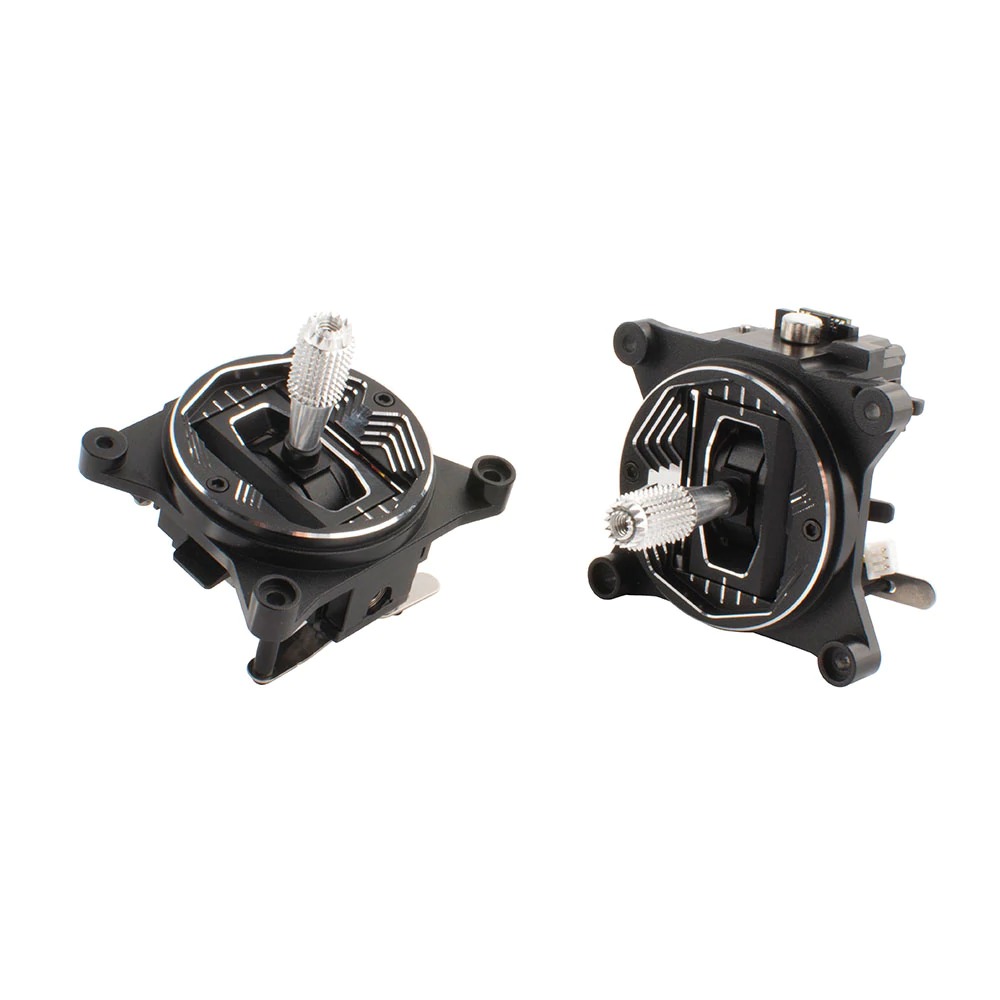

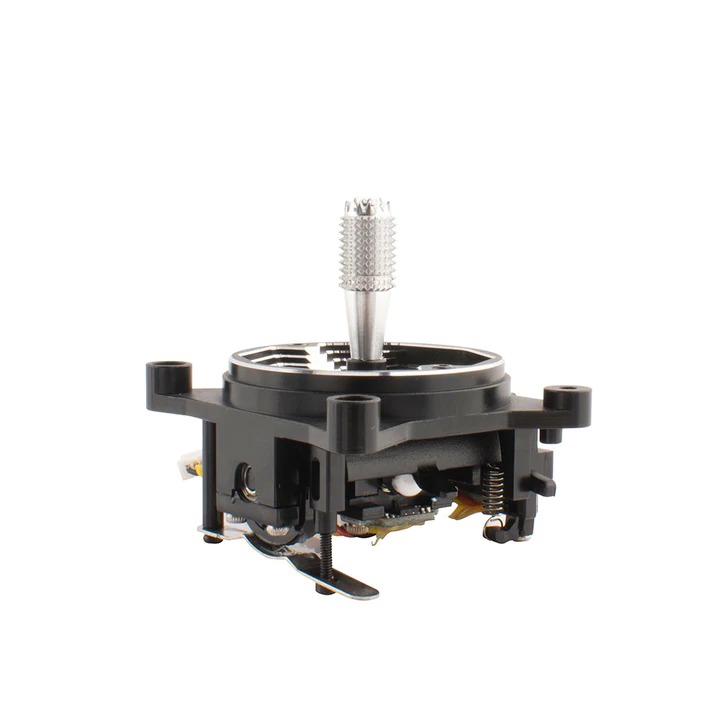

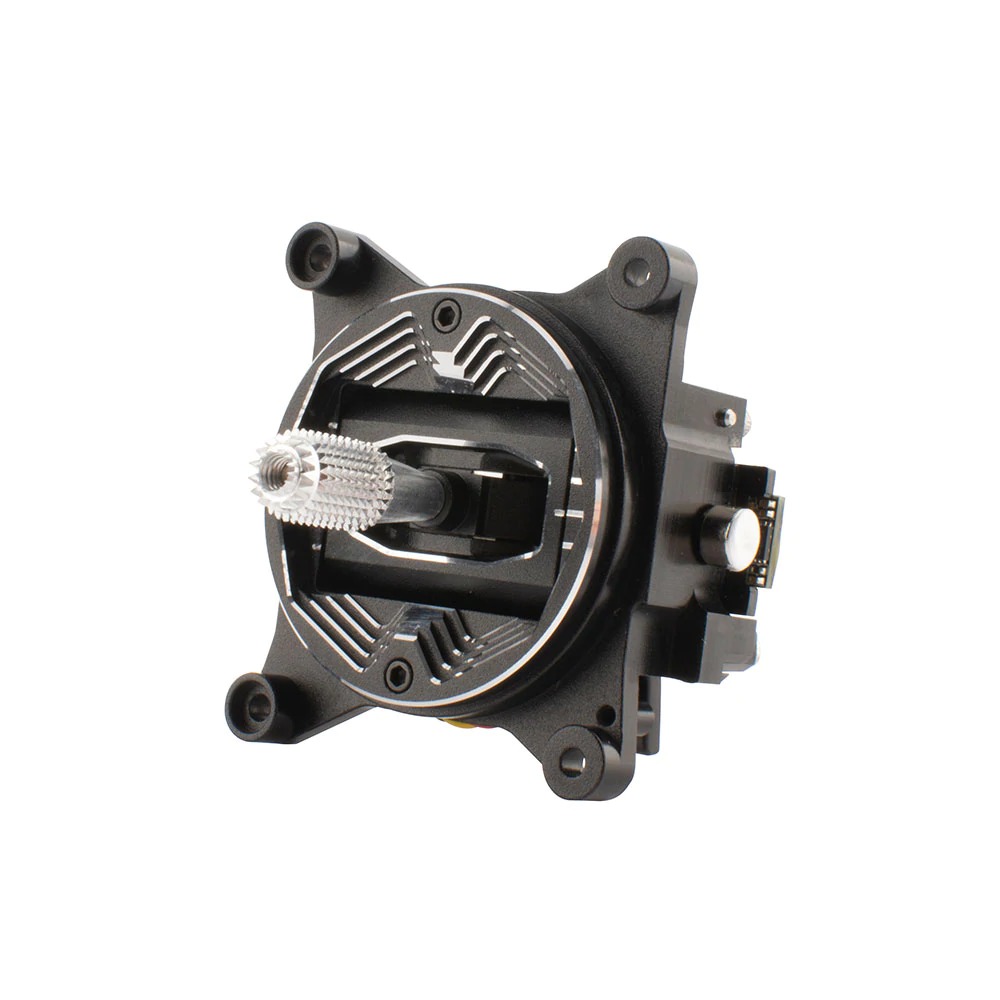

The long-awaited AG01 Mini is finally here! Custom designed for the RadioMaster Zorro and TX12, these gimbals allow for unparalleled precision and stick feel. From the aviation-grade aluminum construction, non-contact hall sensors, and pre-installed Sticky360 Mini Gimbal Sticks, be prepared to revolutionize your compact radio experience!
Key Features
- Made with CNC processed aviation grade aluminum.
- Sticky360 Mini Gimbal Sticks as standard.

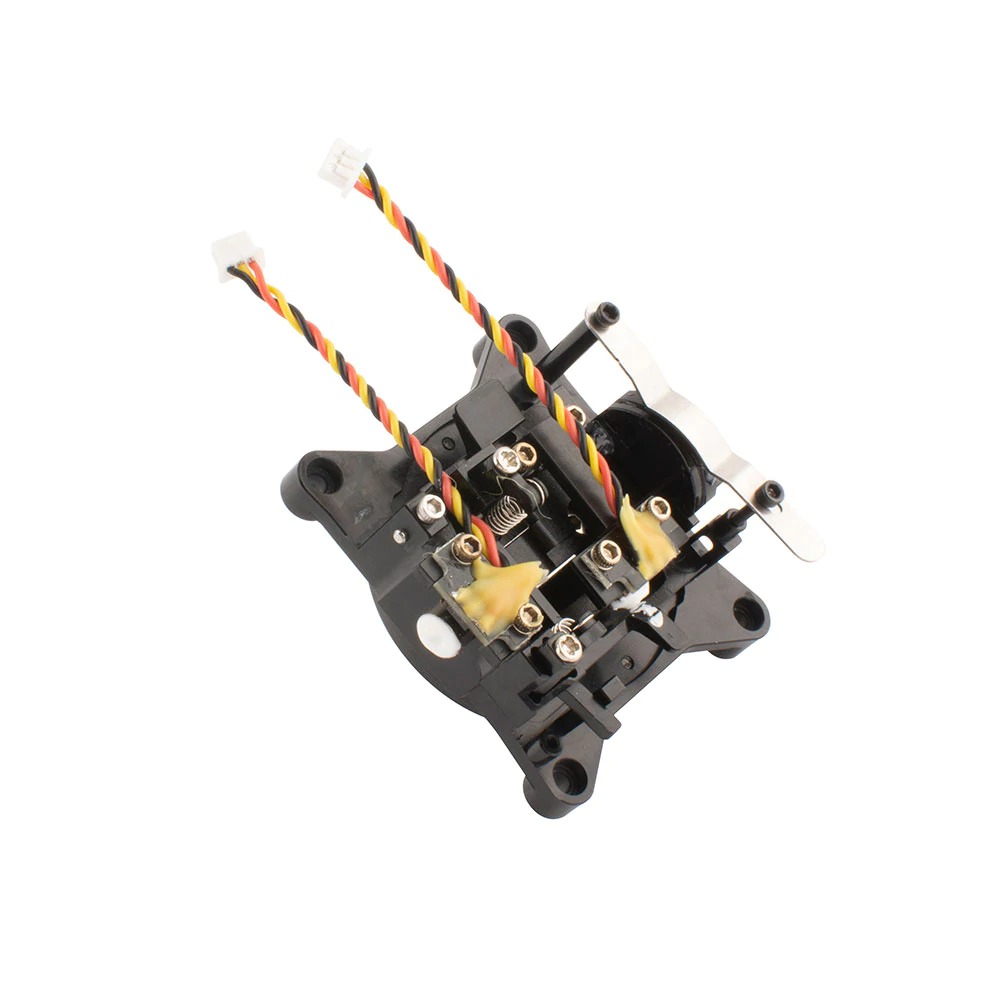

- Non contact hall sensors for accurate control inputs and precise centering.
- Quad precision bearings for unparalleled stick feel.
- Adjustable vertical travel angle (Min. 38°, Max. 54°).
- Custom designed for RadioMaster Zorro & TX12.
Specifications
- Name: AG01 Mini CNC Hall Gimbal
- Sensor type: Hall Sensor
- Working voltage: DC 3.3V
- Linearity: Real-time (No delay)
- Adjustable vertical travel range: 38°—54°
- Self-centering adjustment: Yes
- Easy mode adjustment
- Adjustable tension & ratchet: Yes
- Quad bearing: Yes
- Temperature range: -20°C-85°C
- Size: 49*42*48mm
- Weight: 42g(±0.3g)
Includes
- 2 * AG01 Mini Hall CNC Gimbal
- 2 * Hex tool
- 8 * Installation screw
- 2 * Spare normal tension spring
- 2 * Throttle tension screw
Additional information
Brand |
---|
4 reviews for Radiomaster – AG01 MINI CNC Hall Gimbals for TX12 and Zorro (Pair)
Only logged in customers who have purchased this product may leave a review.
Related products
-
HappyModel 2.4GHz EP1 Dual TCXO True Diversity ExpressLRS Receiver
5.00 out of 5(7) $44.99In stockAdd to cart -
RadioMaster WT01 Wireless Trainer Adapter for TX16S
$39.99In stockAdd to cart -
RadioMaster Carry Case for TX12 Mark II
5.00 out of 5(4) $39.99In stockAdd to cart -
Jumper T-lite Nano Module adapter for Crossfire ExpressLRS
5.00 out of 5(2) $9.99In stockAdd to cart -
RadioMaster Zorro Radio Controller 2.4GHz
5.00 out of 5(17) $239.99In stockSelect options -
TBS Tango 2 and Mambo Replacement PRO Folding Gimbal V2
5.00 out of 5(1) $55.99In stockAdd to cart
Explore more from RadioMaster
-
RadioMaster Boxer Spare Switch Set
4.00 out of 5(1) $11.99In stockAdd to cart -
RadioMaster Boxer MAX Radio with AG01 Gimbals (ExpressLRS)
5.00 out of 5(1) $519.99In stockSelect options -
RadioMaster Pocket Coloured Transparent Cases (4 Colours)
$32.99In stockSelect options -
RadioMaster Pocket Radio (4 Options)
5.00 out of 5(6) $124.99 – $139.99Out of stockSelect options -
RadioMaster Boxer Transparent Shell Set
$31.99In stockAdd to cart -
RadioMaster TX16S Mark II Max Radio Controller (Joshua Bardwell Edition)
5.00 out of 5(1) $529.99Out of stockRead more
Other RC Radios you might like
-
RadioMaster Neck Strap Padded Cover (Red/Black)
5.00 out of 5(1) $19.99In stockSelect options -
TBS Crossfire Nano Diversity Receiver
5.00 out of 5(3) $109.99Out of stockRead more -
BetaFPV Micro to Nano Module Adapter
$17.99In stockAdd to cart -
Sale!
TBS Tracer/Crossfire Nano TX internals to the Micro Kit
$8.99$4.99In stockAdd to cart -
SpeedyBee 8GB Class10 High-Speed MicroSD card for Blackbox Radios
5.00 out of 5(2) $9.99In stockAdd to cart -
Jumper T-lite Nano Module adapter for Crossfire ExpressLRS
5.00 out of 5(2) $9.99In stockAdd to cart
Other Radio Accessories you might like
-
RadioMaster Trainer Cable Set for TX16S / TX12 / T8
$18.99In stockAdd to cart -
Radiomaster TX16S Replacement 18650 Battery Tray
5.00 out of 5(2) $9.99In stockAdd to cart -
TBS Gimbal Lube Sensation and Intimacy
5.00 out of 5(2) $9.99In stockAdd to cart -

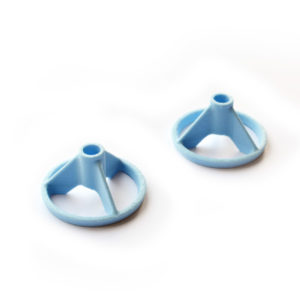

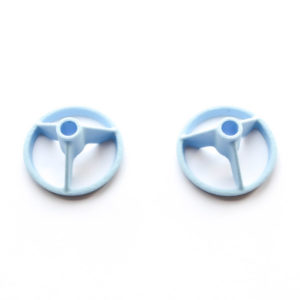

RadioMaster TX16S Gimbal Stick Protectors
5.00 out of 5(5) $9.99Out of stockRead more -
RadioMaster TX16S Face Plate Set
5.00 out of 5(2) $35.99Out of stockRead more -
RadioMaster 2.4GHz Moxon Directional Antenna
5.00 out of 5(3) $29.99In stockAdd to cart
Nathan C. (verified owner) –
Really nice small versions of the AG01 for the Zorro. Bit of a difficult install vs the TX16s as you need to remove the main board of the Zorro. Also these are interchangeable gimbles which is nice, you don’t have to worry about left and right.
David T. (verified owner) –
Had centering issues with my standard tx12 gimbals, rather than order standard replacements or a new TX i opted to replace with AG01s. The result has been astounding, these are hands down the best gimbals i have ever experienced.
Alan Shearing (verified owner) –
Radiomaster – AG01 MINI CNC Hall Gimbals upgrade for my Jumper T- Light V2 . Excellent quality and vastly improved stick feel and sensitivity, smooth as !. If anybody is interested there is an excellent video on YouTube how to up grade ( aigilea ) .
Extremely quick post and well packed .
Thanks kiwi Quads .
Marc C. (verified owner) –
So good! and include Sticky Thumbsticks – will go onto my TX12 MK2
