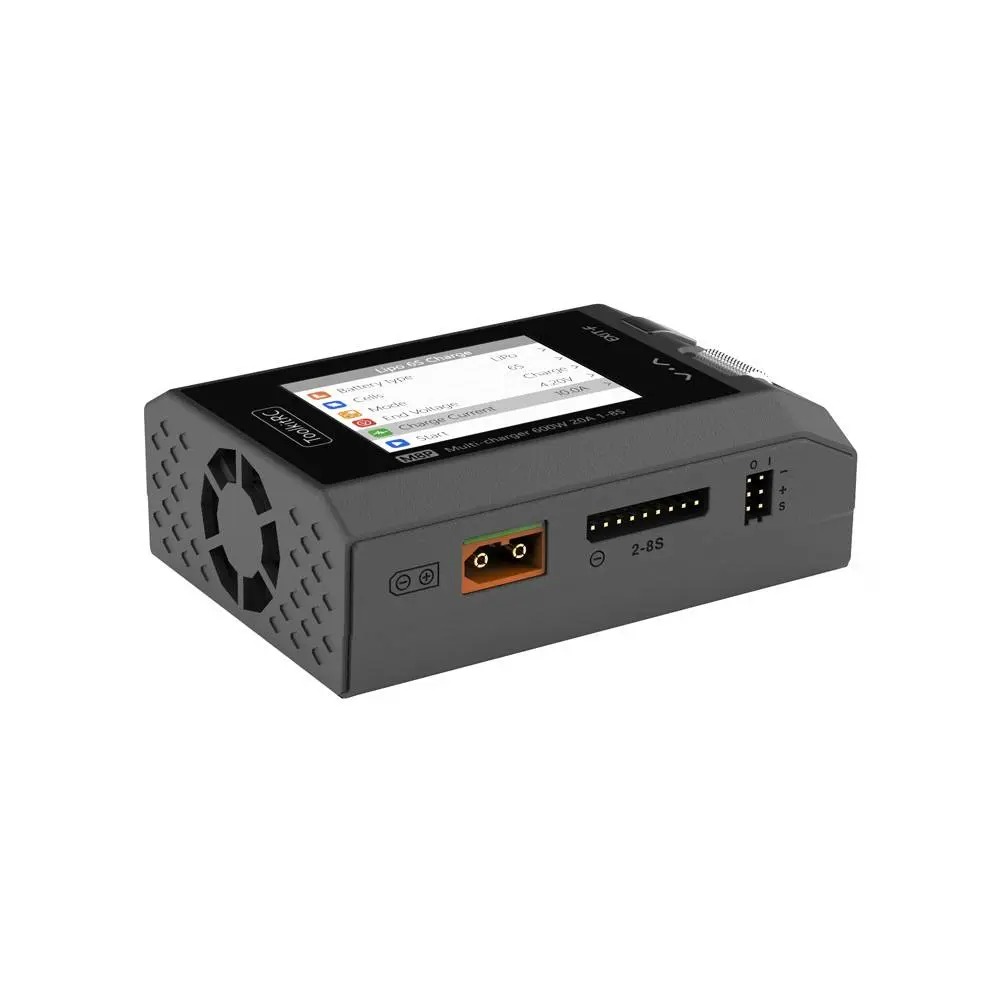

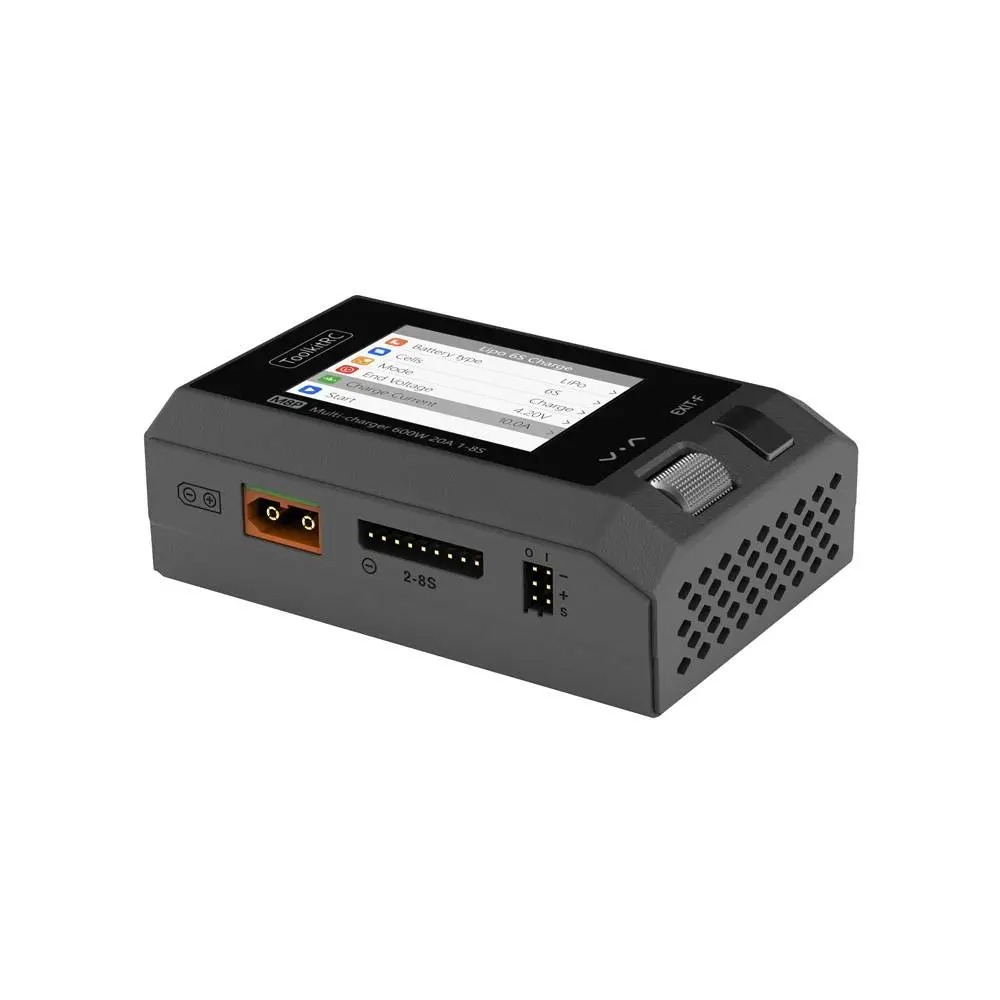

ToolKitRC M8P 1-8S 600W 20A DC Charger – XT60

Description

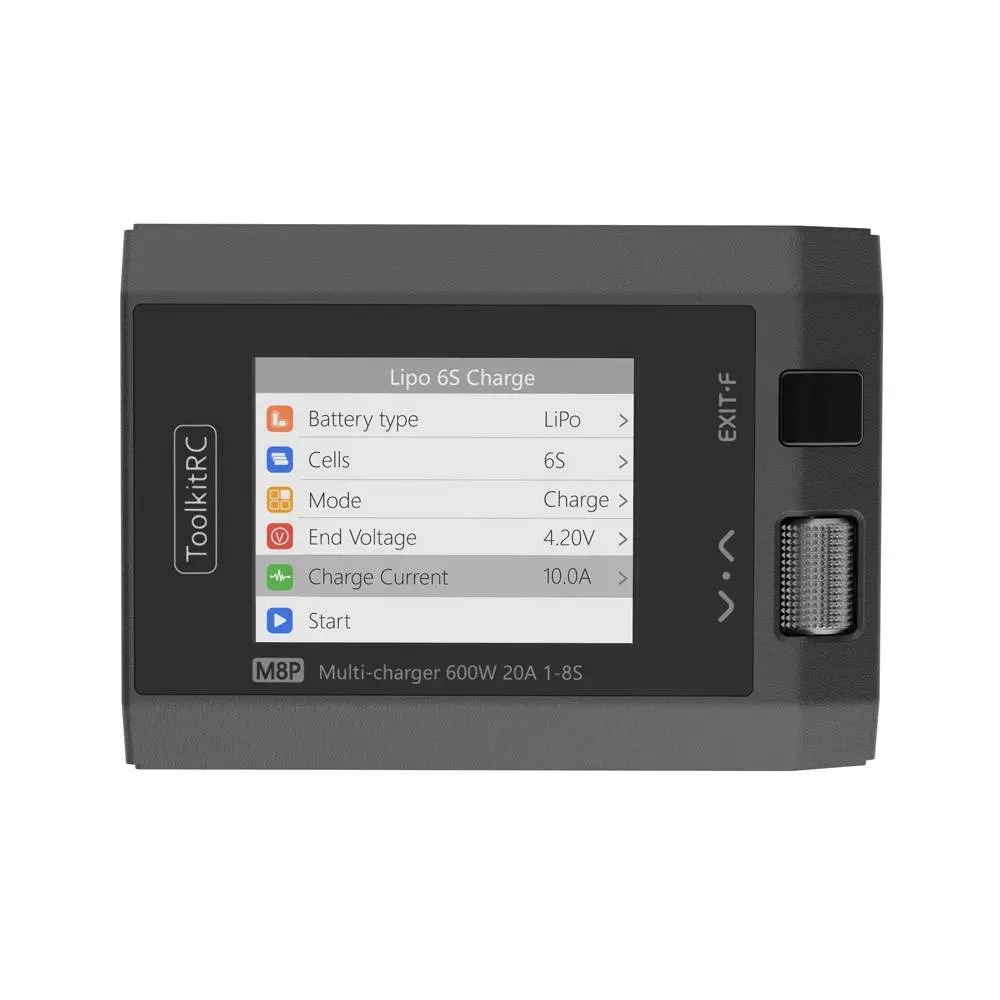

The ToolkitRC M8P Charger is a reliable and compact charging solution crafted for FPV drone and cinematography applications. Equipped with a vibrant touchscreen interface, it provides intuitive control over charging parameters, supporting a range of XT60 battery types for versatility. With its portable design, the M8P ensures convenient charging on the field, making it an essential tool for drone enthusiasts and cinematographers alike.

Features

• 600W DC Charger
• 1-8S Compatibility
• XT60 Connector

Specifications

• Product size 100x71x34mm
• Product weight 200g

CHARGING

• Input 7-35V: @MAX25A
• Battery Type: LiPo LiHV LiFe Lion LTO @ 1-8S NiMh @1-20S Pb @1-10S
• Charging Power: 0.1-20A@600W
• Discharging Power: 0.1-20A @ 600W Recycle External
• Discharging Power: 0.1-3A @ 20W Normal mode
• Balance current: [email protected]
• USB: 5.0V @ 2.1A upgrade

MEASURING

• PWM: 880us-2200us @20-400Hz
• PPM: 880us-2200us*8Ch @20-50hz
• SBUS: 880us-2200us*16ch @20-100Hz
• Voltage: 1.0V-5.0V @1-8S
• IR: 1-99mR @1-8S
• ESC: 1-20A@1-35V MAX600W

OUTPUT

• PWM: 500us-2500us @20-1000Hz
• PPM: 880us-2200us*8ch @50hz
• SBUS: 880us-2200us*16ch @74Hz
• Power: 1-20A @ 1-35V Mode: CC+CV
• LCD Display: 2.4 IPS RGB 320×240 pixel

Manual: M8P+Manual+V1.0
