iFlight XING-E 2207 2-6S Brushless Motors

Description

XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.

This 2207 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.

Features

• High-strength 4mm Steel shaft
• N52H High-temperature magnets, NSK bearings
• 16x16mm hole pattern
• Single strand copper winding
• Hex bolt shaft set screw

Specifications

• Configuration: 12N14P
• Stator Diameter: 24mm
• Magnets: N52SH Curved
• Bearing Size: 9x4x4
• Shaft Diameter: 4mm / Steel
• Base Mounting Pattern: 16x16mm M3 Thread
• Motor Dimension: 28.5×19.7mm
• Weight: 33.8g (150mm wires)
• Idle Current @12.6v (Io): 1.2 A
• Cells (LiPo): 2-6S
• Max Burst Current <10s: 35.22A
• Max Power (W) 60s: 845W
• Internal Resistance (Rm): 81.5mΩ
• Motor Wire Length: 150mm / 20AWG

Includes

• 1x iFlight XING-E 2207 2-6s FPV Motor

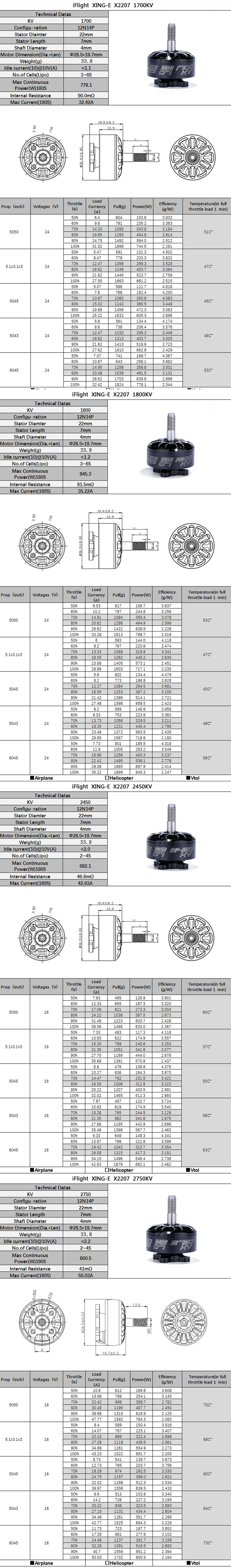

Link To Datasheet
