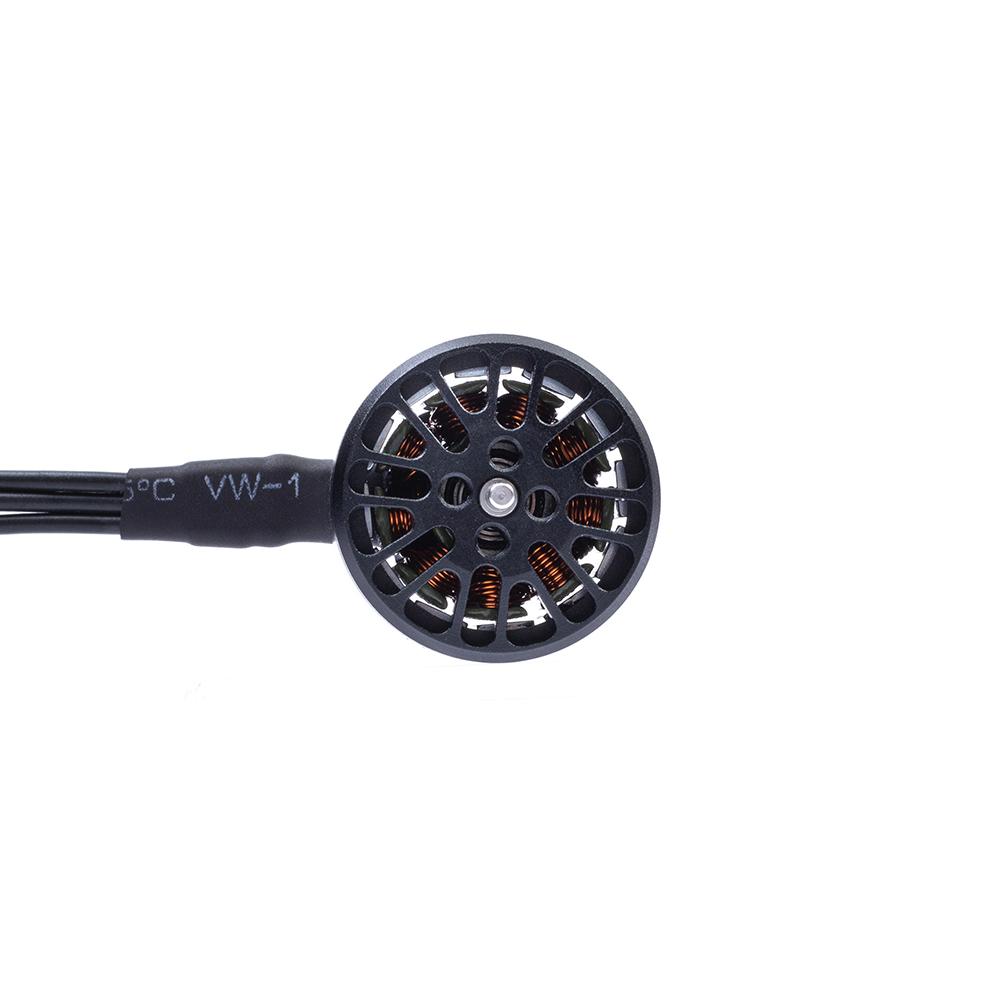

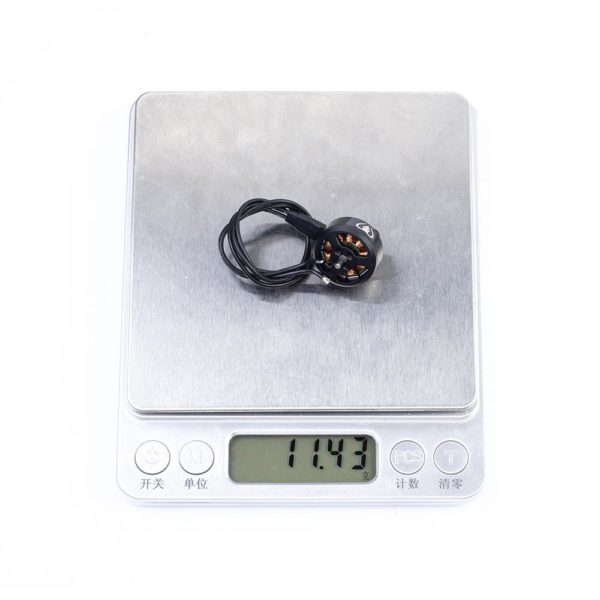

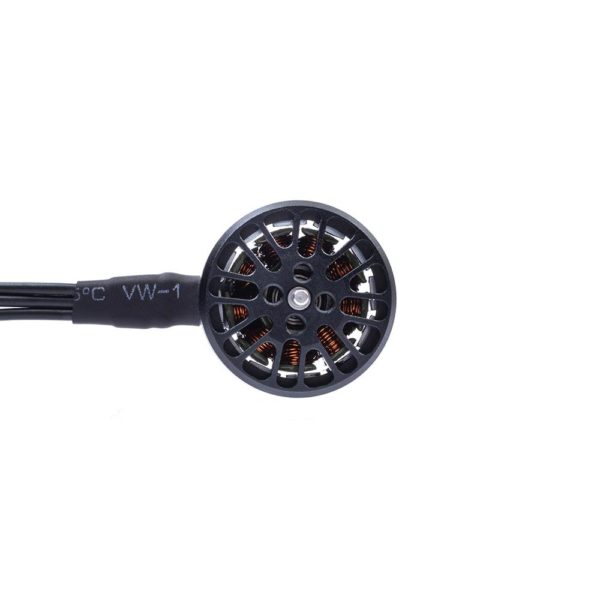

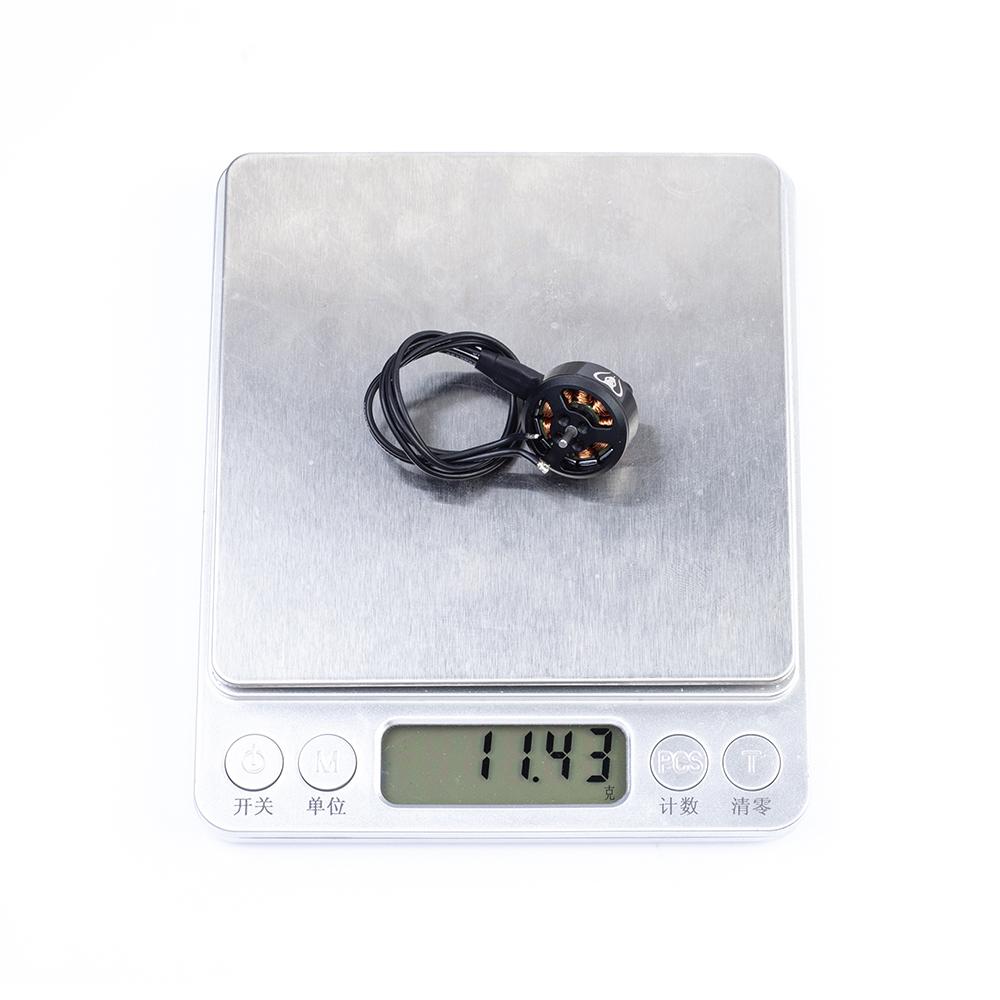

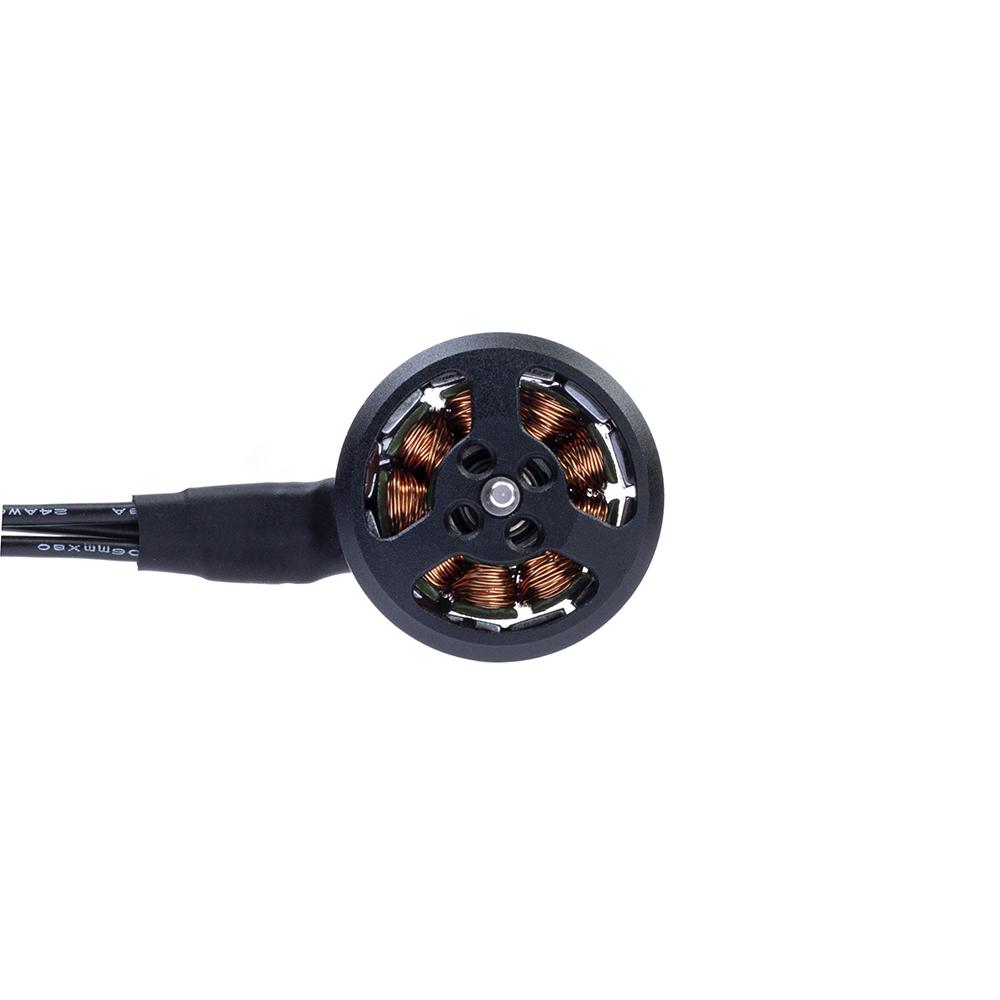

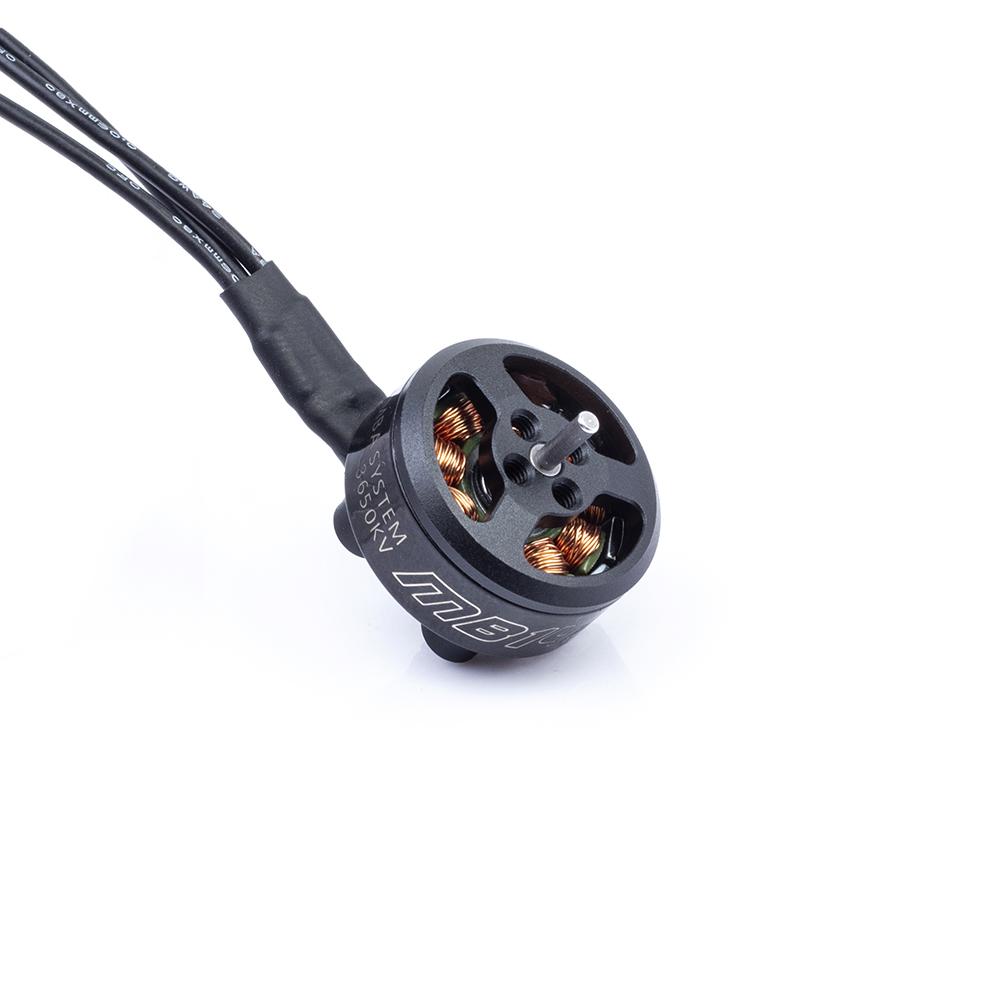

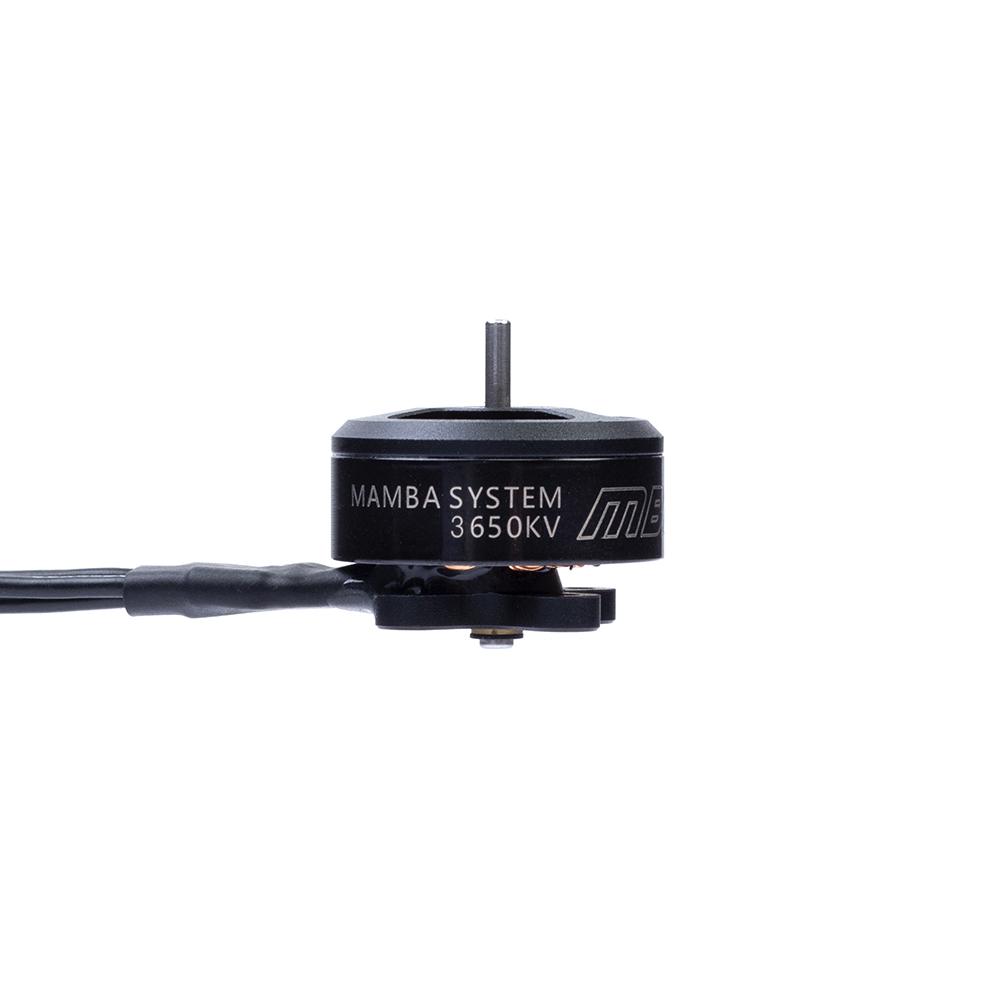

Diatone Mamba 1404 3-6S Brushless Motor

The Diatone Mamba 1404 is a great motor choice for ultralight 3-4″ builds where you need power and reliability! Select your KV rating for a 4S or 6S build.

$21.99

or 6 weekly interest free payments of NZD $3.66 with

Clear

SKU: N/A Category:

Description

Specifications:

1404 3000Kv (Best for 4S Long-range)

  • Overall Dimension:Φ19×12.5mm
  • Prop mounting shaft diameter :1.5mm
  • Installation hole position :12×12mm,M2
  • Prop: 2.5inch~4inch(Toothpick)
  • Bearing: 5*2*2.5
  • Shaft Diameter:2mm
  • Lead Wire Size:24AWG ×150mm
  • Configuration:9N12P
  • Magnet Wire: Class C,220℃ Enameled Wire
  • Stator Diamter:14mm
  • Stator Height:4mm
  • Rated Voltage: 3S~6S (12.6V~16.8V)
  • Peak Current: 12.32A
  • Maximum Power: 286.8W

1404 3650Kv (Best for 4S)

  • Overall Dimension: Φ19×12.5mm
  • Shaft Diameter:1.5mm
  • Installation hole position:12×12mm,M2
  • Prop: 2.5inch~3inch
  • Bearing:  5*2*2.5
  • Shaft Diameter:2mm
  • Lead Wire Size: 24AWG ×150mm
  • Configuration:9N12P
  • Magnet Wire: Class H,180℃ Enameled Wire
  • Stator Diameter: 14mm
  • Stator Height:4mm
  • Rated Voltage: 3~6S (12.6V~25.2V)
  • Peak Current: 17.6A
  • Maximum Power: 443.4W

1404 5000Kv (Best for 3-4S)

  • Overall Dimension: Φ19×12.5mm
  • Shaft Diameter:1.5mm
  • Installation hole position:12mm x 12mm M2
  • Prop: 2.5inch~3inch
  • Bearing: 5*2*2.5
  • Shaft Diameter:2mm
  • Lead Wire Size: 24AWG ×150mm
  • Configuration:9N12P
  • Magnet Wire: Class H,180℃ Enameled Wire
  • Stator Diameter: 14mm
  • Stator Height:4mm
  • Rated Voltage: 3~4S (12.6V~16.8V)
  • Peak Current: 19.4A
  • Maximum Power: 323.7W

T-Mount Propeller Mounting

This motor was designed for T-mounted propellers which use a 1.5mm shaft and are secured using 5-7mm M2 screws. Please ensure the securing screws are not too long! This will cause permanent damage to the motor.

Additional information

Brand

Motor Size

KV Rating

3000Kv, 3650Kv, 5000Kv
