FPV Equipment>Cameras

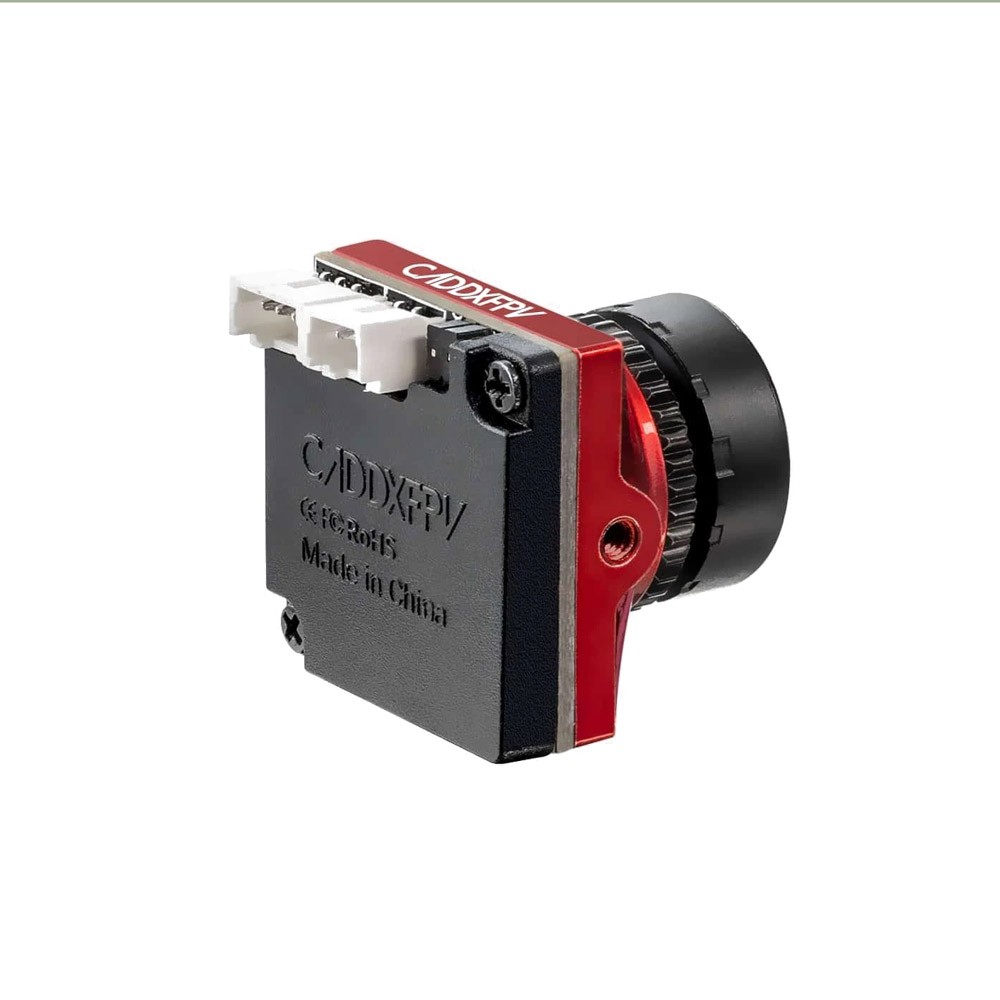

Caddx Ratel Starlight 1200TVL HDR Low-Light Micro FPV Camera

5.00 out of 5
(2 customer reviews)
The Caddx Ratel has superb night vision performance in addition to an excellent daytime image with ultra-low latency. Equipped with high quality 1/1.18″ Inch starlight HDR sensor, providing up to 0.0001 Sensitivity of lux.

$45.99$49.99

or 6 weekly interest free payments of NZD $7.66 with

Clear

We recommend including (for 2.1mm lens only)

Caddx ND16 Filter - 14mm

The Caddx ND16 Filter (14mm) helps clarify video on sunny days and also removes jello from your footage! This filter is suitable for the Ratel, Turtle V2 special, and any 2.1mm lens.

SKU: 1740 Category:

Description

It’s rare that an FPV camera works both as a low-light and daytime flying camera. You usually cannot have one with the other, but Caddx has made this possible with the Ratel! In addition to having different colour and lens sizes, there is also the choice of an ND8 filter to help with contrast and light filtering when flying in bright conditions and also reduce jello a small amount.

The Caddx Ratel has superb night vision performance in addition to an excellent daytime image with ultra-low latency. Equipped with high quality 1/1.18″ Inch starlight HDR sensor, providing up to 0.0001 Sensitivity of lux. With the OSD menu, you can switch between PAL and NTSC video standards, or between 4:3 and 16:9 video formats. Ultra-low latency of 8ms means you feel locked in with your video.

The 1.66mm lens option gives you a super wide FOV (180°) to see all around you.

Features

  • High quality 1/1.18″ Inch starlight HDR sensor
  • OSD menu
  • Switch between PAL and NTSC video standards or between 4:3 and 16:9 video formats
  • Ultra-low latency of 8ms
  • 1.6mm , 2.1mm, or 2.1mm+ND8 lens options

Specification

  • Brand Name: Caddx
  • Item Name: Ratel
  • Colour: Red, Yellow
  • Lens: 1.66mm, 2.1mm
  • Image Sensor: 1/1.8″ Inch starlight HDR sensor
  • Horizontal Resolution: 1200TVL
  • FOV: 180 Degree
  • Min. Latency: 8ms
  • TV System: NTSC & PAL (changeable)
  • Image: 16:9 & 4:3 (changeable)
  • WDR: Super WDR (HDR)
  • Min. Illumination: Starlight
  • Synchronization: Internal
  • Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
  • S/N Ratio: >60dB (AGC OFF)
  • Video Output: CVBS
  • Camera OSD: Separate OSD
  • DNR: 3-DNR
  • Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
  • Day/Night: Auto/Colour/B&W/EXT
  • Dimensions: 19mm*19mm*19mm
  • Wide Power Input: DC 5-40V
  • Work Temperature: -20~+60°C
  • Work Humidity: 20%~80%
  • Weight: 8g (N.W.)/ 40.5g (G.W.)

Includes

  • Camera x1
  • 5D-OSD menu board x1 pcs
  • 4pin FPV silicone cable A (extend into a 2pin joint for OSD board and a 3pin joint for FPV) x1
  • FPV silicone cable B (2-pin port for both side) x1
  • Internal hexagonal wrench x1
  • Screws set x1
  • Warranty card x1

Videos

Additional information

Brand

Colour

,

Camera Size

Camera Resolution

Lens Size

1.66mm, 2.1mm

2 reviews for Caddx Ratel Starlight 1200TVL HDR Low-Light Micro FPV Camera

  1. 5 out of 5

    Joshua Wongchiu (verified owner)

    Really really nice camera managed to shoehorn it into a daitone r349 fits but only just

  2. 5 out of 5

    Braden (verified owner)

    Very nice image.

Only logged in customers who have purchased this product may leave a review.
