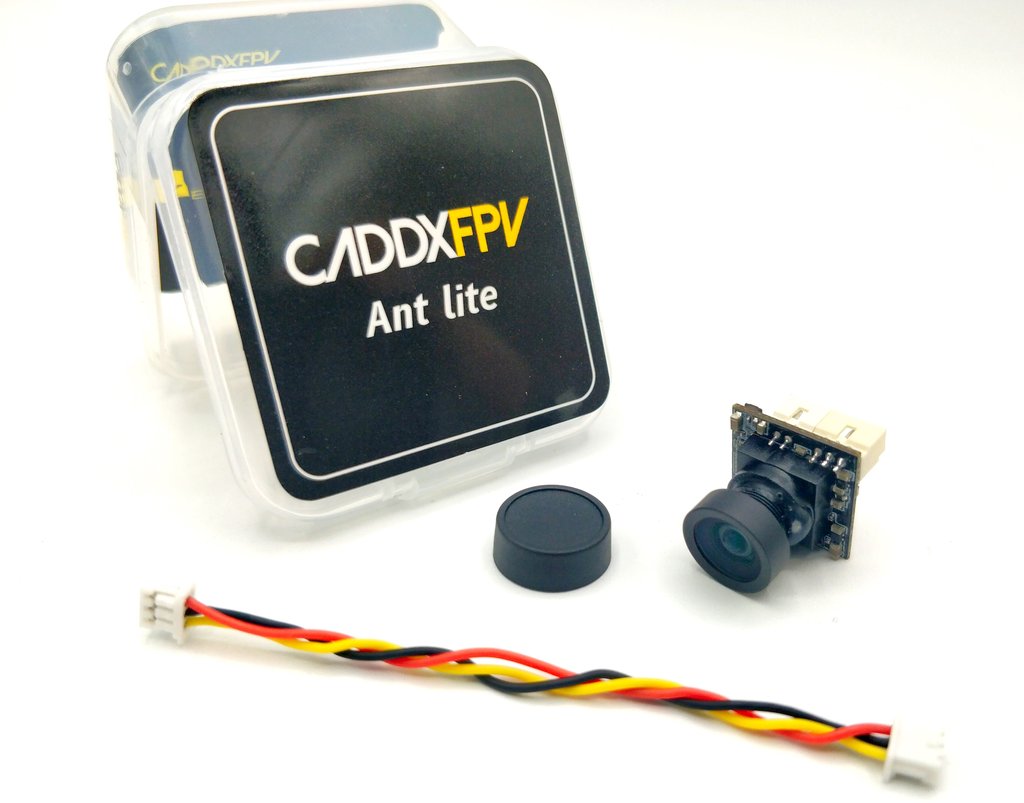

Caddx Ant lite 1.7g Ultra light 1200TVL Camera (FPVCycle edition)

Description

This camera was put together specifically for FPVCycle and as of September 2020, the best overall looking sub 2g camera we’ve seen.

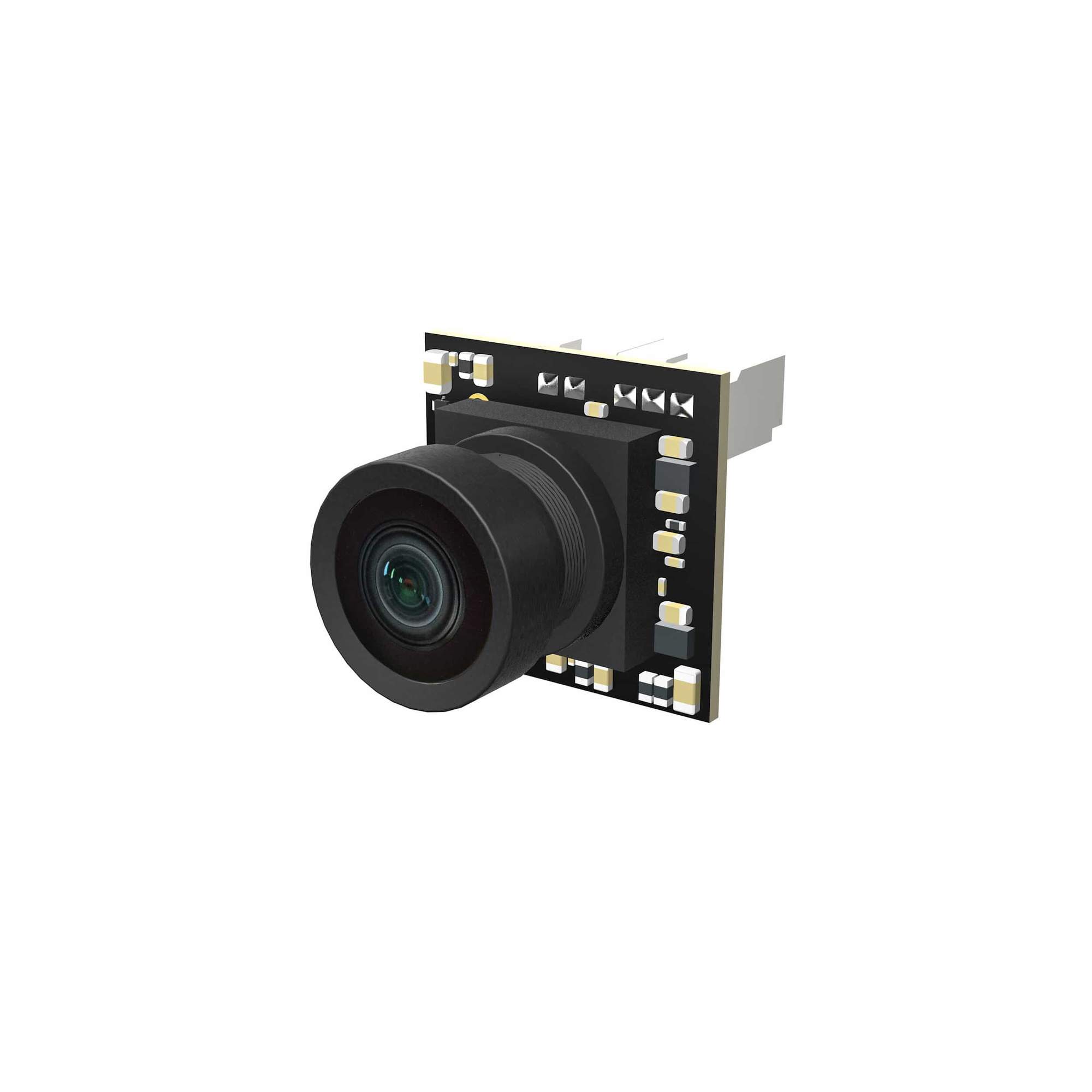

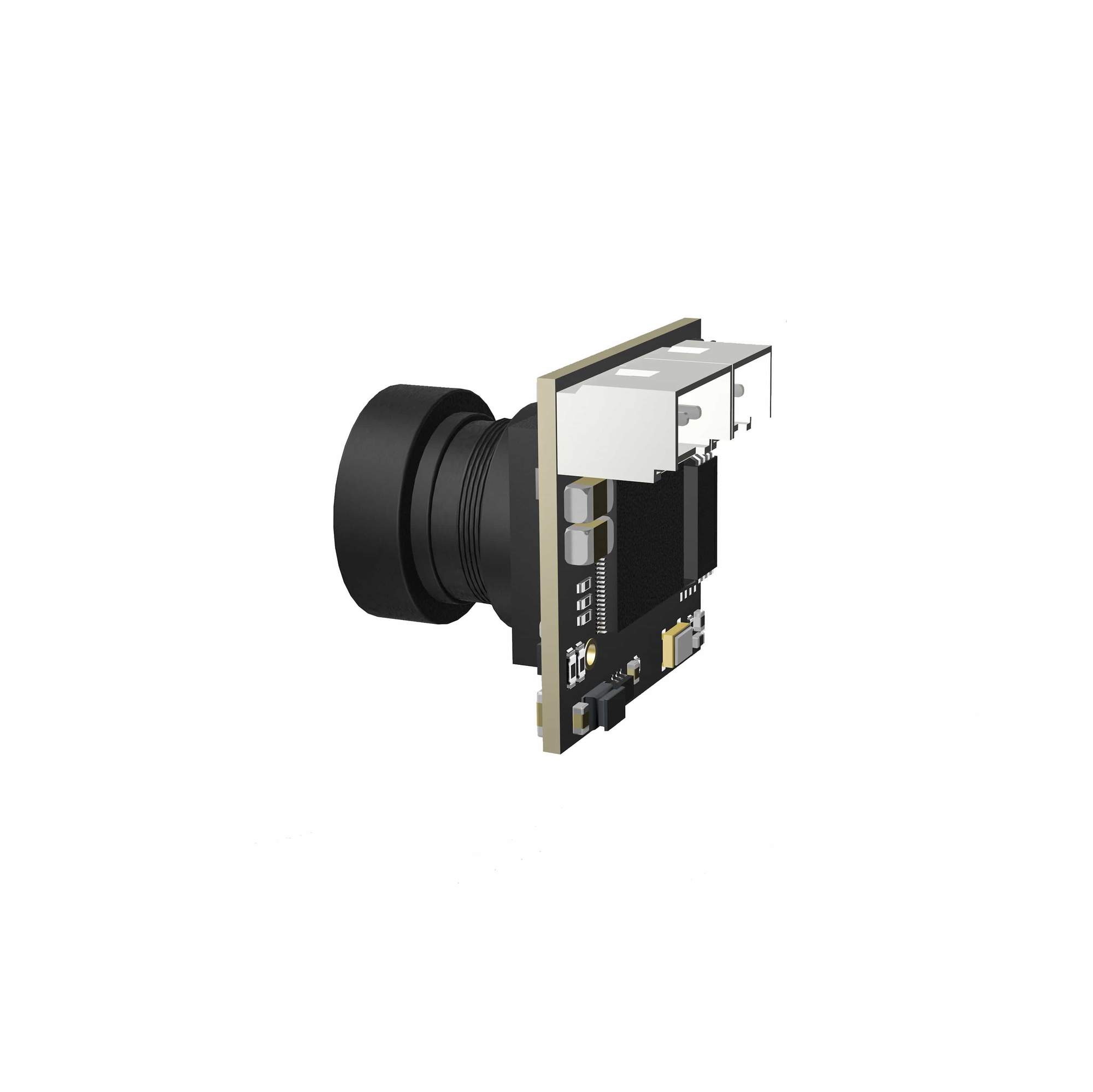

The Ant Lite 4:3 uses the same electronics and sensor as the standard Caddx Ant camera. The only difference between the standard Ant Lite and this camera is the lens and lens mounting apparatus. The lens selected for this was chosen among a dozen options and is slightly sharper than the standard Ant lens. This camera is ONLY 4:3.

Specifications:

• 1.68g
• Plug for wires and OSD settings
• 13x13mm PCB
• 13.5mm from back of PCB to end of lens (not including connectors)
• 10mm lens end diameter
• ~1.8mm lens
• NTSC and PAL
