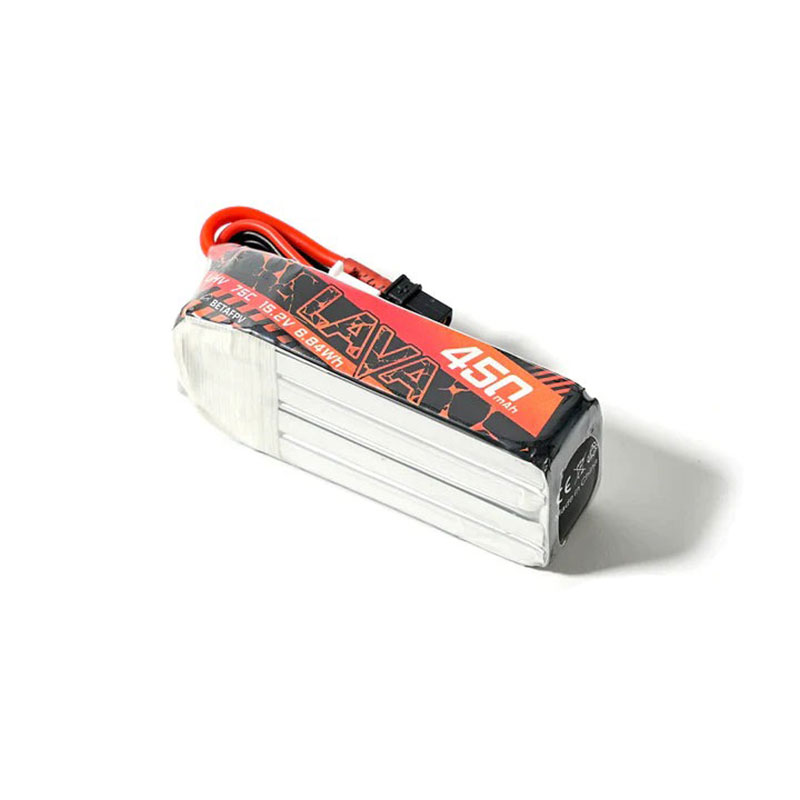

BetaFPV LAVA Battery 15.2V 75C 450mah 4S HV

Description

The BetaFPV LAVA Battery 15.2V 75C 450mAh 4S HV unleashes unparalleled power for your drone flights. Featuring the advanced Z-Folding Process, it delivers a 5% energy density upgrade and a 75C discharge rate for explosive performance. With an extended cycle life, it ensures sustained reliability, while its innovative design symbolizes molten lava’s raw power. Equipped with an XT30 connector, it’s the ultimate choice for high-performance flight enthusiasts seeking efficiency and control.

Features:

• Featuring the Z-Folding Process, it achieves a 5% energy density upgrade compared to the Winding Process, extending flight time and reducing battery replacement inconvenience.
• With a boosted discharge rate of 75C, it provides greater burst power for superior flight performance and maneuverability for unparalleled control.
• With an extended battery cycle life, it ensures prolonged power support, bringing users sustained and reliable performance.
• All-new LAVA Series Battery, featuring a new design that symbolizes explosive power akin to molten lava.

Specifications:

• Items: LAVA 2S/3S/4S 450mAh 75C Battery
• Capacity: 450mAh
• Dimension: 63*15.5*13.5mm(2S), 63*15.5*21mm(3S), 63*15.5*27mm(4S)
• Weight: 26.1g(2S), 37.8g(3S), 49.4g(4S)
• Power: 3.42Wh(2S), 5.13Wh(3S), 6.84Wh(4S)
• C-Rate: 75C
• Battery Type: LiHV
• Voltage: 7.6V(2S), 11.4V(3S), 15.2V(4S)
• Charge Plug: JST-XH2.54 Plug
• Connector: XT30 with 16AWG silicone wire

The below picture shows the dimensions of the 2S 450mAh 75C Battery.

The below picture shows the dimensions of the 3S 450mAh 75C Battery.

The below picture shows the dimensions of the 4S 450mAh 75C Battery.

The below picture shows the discharge report of the 3S 450mAh 75C Battery.

Z-Folding Process

The Z-Folding Process Battery demonstrates remarkable performance and versatile capabilities. Leveraging its low internal resistance, it enables efficient high-current discharge within shorter time frames, resulting in elevated discharge platforms. Compared to the Winding Process Battery, it achieves a 0.2V higher discharge platform under equivalent loads, ensuring consistent and robust power output, additionally, it boasts a 5% higher energy density within the same volume, accompanied by an extended cycle life. The Z-Folding Process allows precise customization of electrode sizes based on lithium battery dimensions, optimizing control over battery size and shape. Its battery performance is superior, with a wider range of options for appearance and shape, and its applicability is also broader compared to the Winding Process Battery.

Warning:

• Please fully charge the new battery before use.
• Only use a charger designed for lithium polymer/Li-ion battery, and never leave the battery unattended during the charging process.
• Always keep the battery away from flammable and explosive materials while charging.
• Never overcharge the battery. The maximum voltage for a LiPo battery is 4.2V per cell, and for a LiHV battery is 4.35V per cell.
• Never discharge the battery to a level below 3V per cell under load.
• Do not store fully charged batteries for more than 3 days. For long-term storage, maintain the voltage between 3.8V and 3.9V.
• Do not disassemble, crush, short circuit, or expose to flame or other sources of ignition.
• Do not use batteries that are deformed or swollen.

Package Includes

• 1 x BetaFPV LAVA Battery 15.2V 75C 450mah 4S HV
