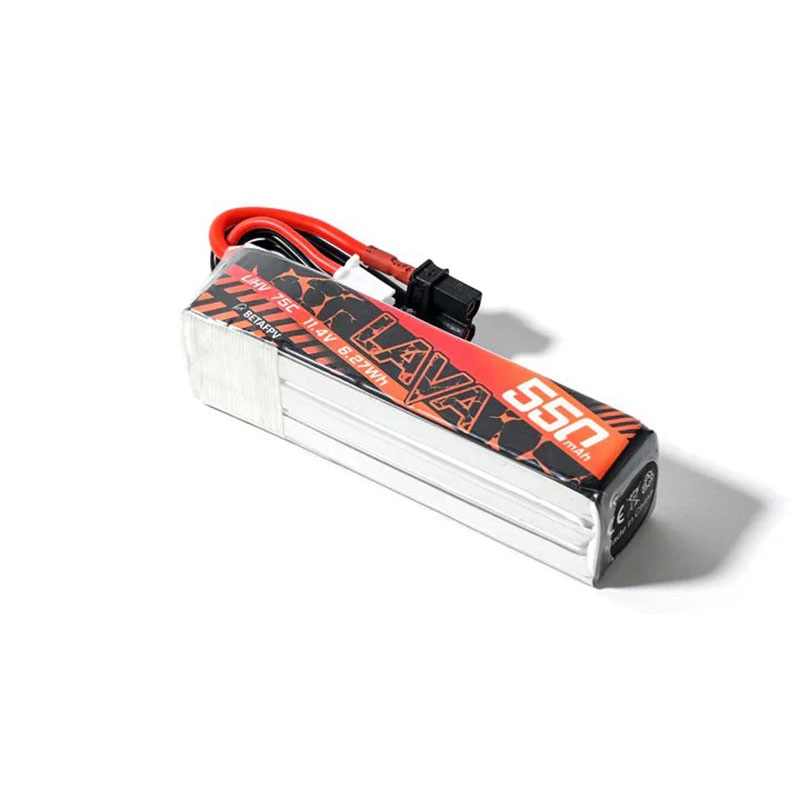

BetaFPV LAVA Battery 11.4V 75C 550mah 3S HV

Description

The BetaFPV LAVA Battery 11.4V 75C 550mAh 3S HV unleashes incredible power with its advanced Z-Folding Process, delivering 5% higher energy density and an impressive 75C discharge rate for explosive performance. Engineered for extended flight time and reliability, its robust design maximizes quadcopter potential while maintaining efficiency. Equipped with an XT30 connector, this lightweight, durable battery is the ultimate choice for pilots seeking unrivaled propulsion, enhanced maneuverability, and peak drone performance.

Features:

• Featuring the Z-Folding Process, it achieves a 5% energy density upgrade compared to the Winding Process, extending flight time and reducing battery replacement inconvenience.
• With a boosted discharge rate of 75C, it provides greater burst power for superior flight performance and maneuverability for unparalleled control.
• With an extended battery cycle life, it ensures prolonged power support, bringing users sustained and reliable performance.
• All-new LAVA Series Battery, featuring a new design that symbolizes explosive power akin to molten lava.

Specifications:

• Items: LAVA 2S/3S/4S 550mAh 75C Battery
• Capacity: 550mAh
• Dimension: 67*15.5*13.5mm(2S), 67*15.5*20mm(3S), 67*15.5*26mm(4S)
• Weight: 29.5g(2S), 43.2g(3S), 56.5g(4S)
• Power: 4.18Wh(2S), 6.27Wh(3S), 8.36Wh(4S)
• C-Rate: 75C
• Battery Type: LiHV
• Voltage: 7.6V(2S), 11.4V(3S), 15.2V(4S)
• Charge Plug: JST-XH2.54 Plug
• Connector: XT30 with 16AWG silicone wire

The below picture shows the dimensions of the 2S 550mAh 75C Battery.

The below picture shows the dimensions of the 3S 550mAh 75C Battery.

The below picture shows the dimensions of the 4S 550mAh 75C Battery.

The below picture shows the discharge report of the 3S 550mAh 75C Battery.

Z-Folding Process

The Z-Folding Process Battery demonstrates remarkable performance and versatile capabilities. Leveraging its low internal resistance, it enables efficient high-current discharge within shorter time frames, resulting in elevated discharge platforms. Compared to the Winding Process Battery, it achieves a 0.2V higher discharge platform under equivalent loads, ensuring consistent and robust power output, additionally, it boasts a 5% higher energy density within the same volume, accompanied by an extended cycle life. The Z-Folding Process allows precise customization of electrode sizes based on lithium battery dimensions, optimizing control over battery size and shape. Its battery performance is superior, with a wider range of options for appearance and shape, and its applicability is also broader compared to the Winding Process Battery.

Warning:

• Please fully charge the new battery before use.
• Only use a charger designed for lithium polymer/Li-ion battery, and never leave the battery unattended during the charging process.
• Always keep the battery away from flammable and explosive materials while charging.
• Never overcharge the battery. The maximum voltage for a LiPo battery is 4.2V per cell, and for a LiHV battery is 4.35V per cell.
• Never discharge the battery to a level below 3V per cell under load.
• Do not store fully charged batteries for more than 3 days. For long-term storage, maintain the voltage between 3.8V and 3.9V.
• Do not disassemble, crush, short circuit, or expose to flame or other sources of ignition.
• Do not use batteries that are deformed or swollen.

Package Includes

• 1 x BetaFPV LAVA Battery 11.4V 75C 550mah 3S HV
