TS101 Mini Soldering Iron (USB-C Cable)

4.78 out of 5
(18 customer reviews)

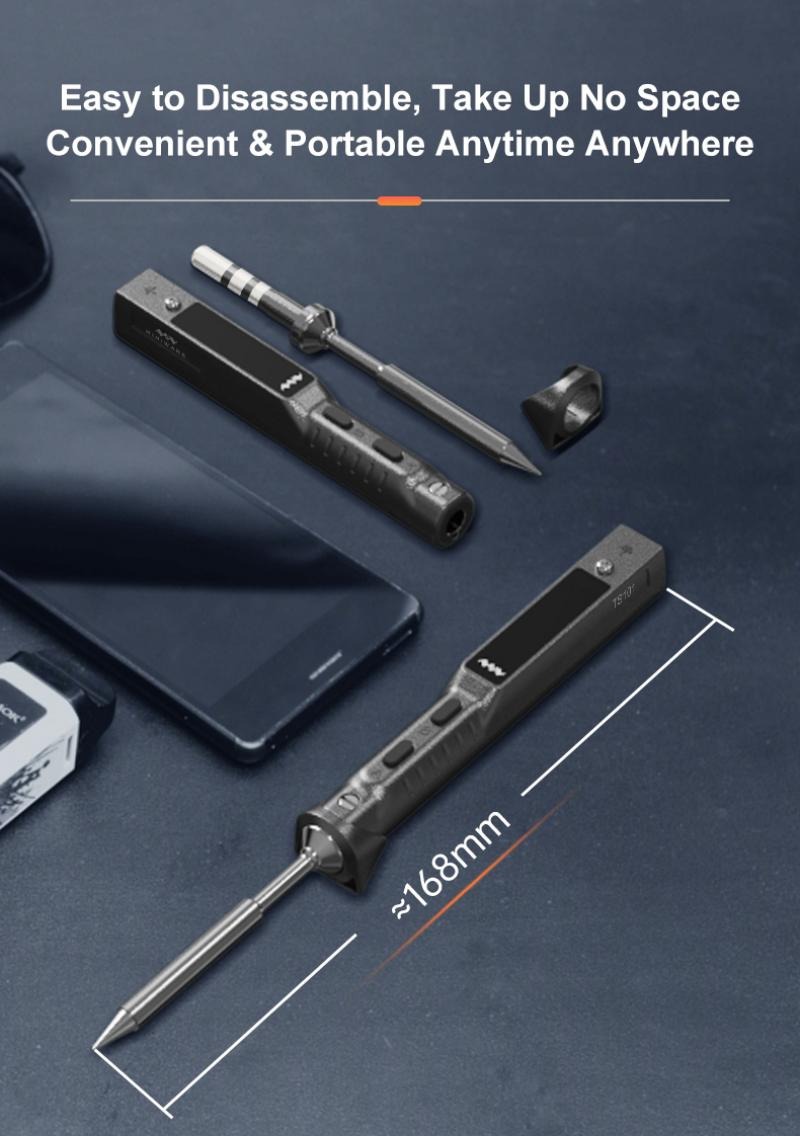

The perfect travel sized soldering iron for building on the go or at home, now powered by USB-C This incredible soldering iron is the last you will ever need.


or 6 weekly interest free payments of NZD $19.16 with

SKU: 1730 Category: Tags: ,

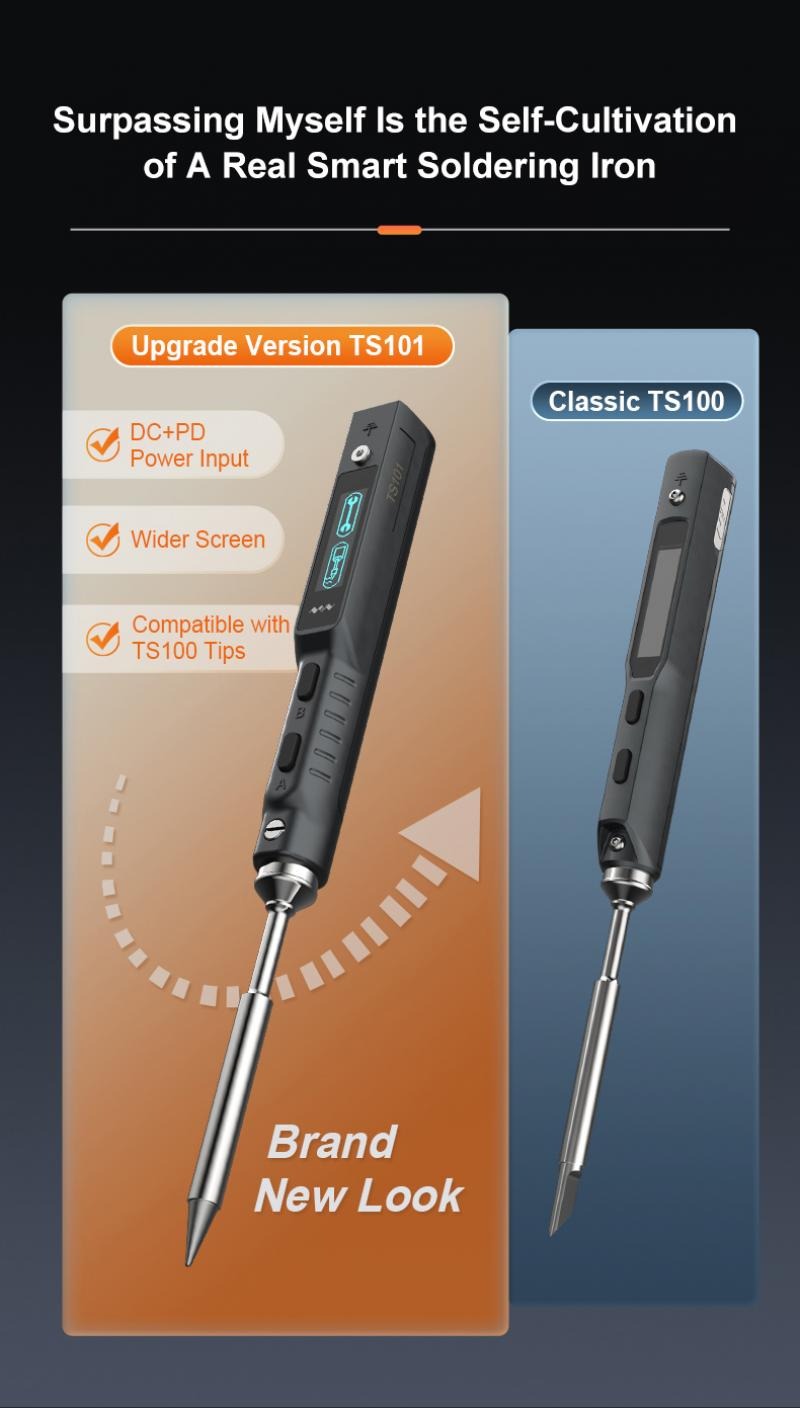

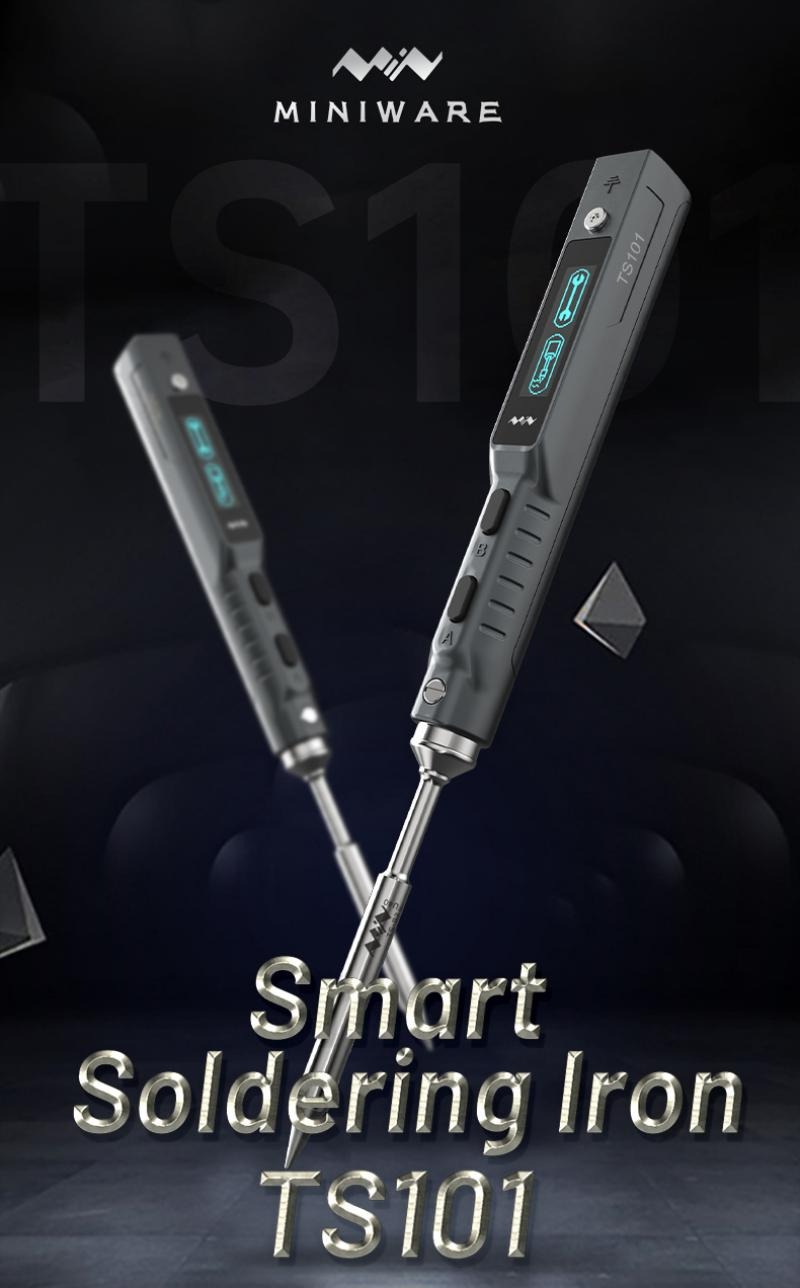

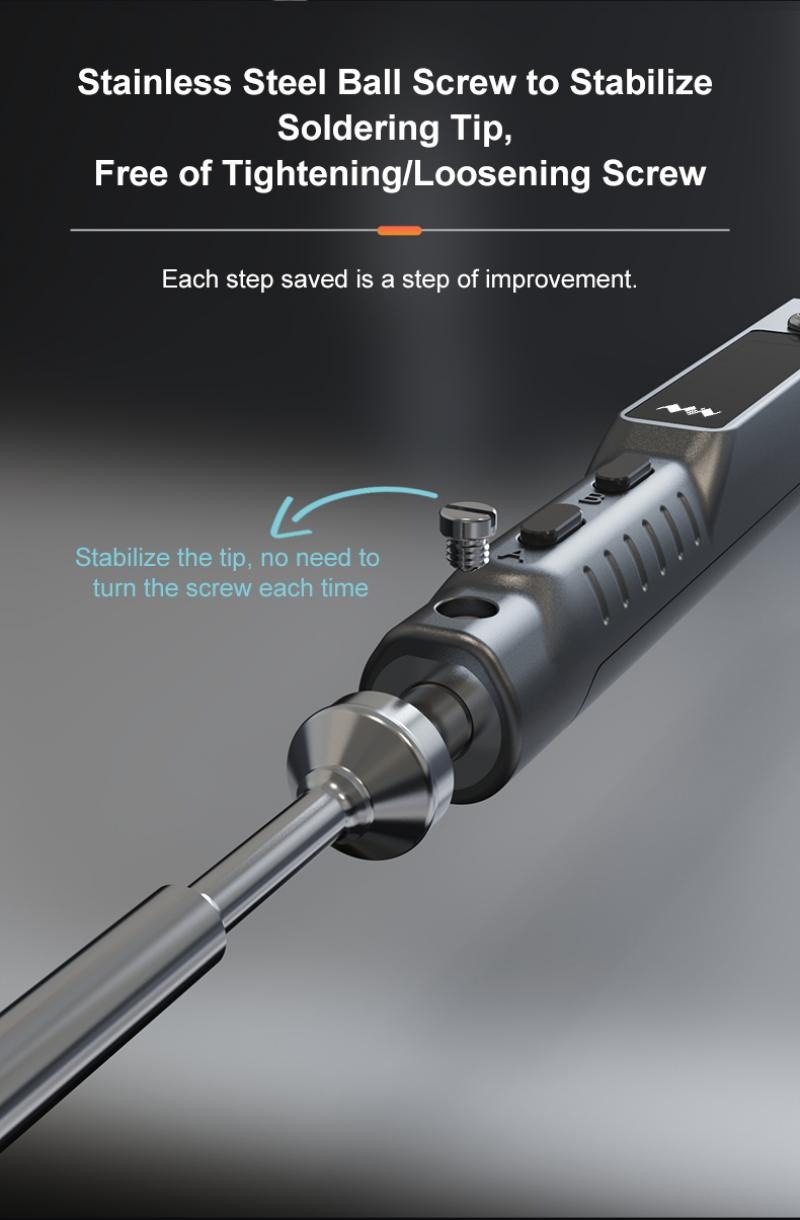

MINIWARE Smart Soldering Iron TS101 is an upgraded version of Mini Soldering Iron TS100. Based on TS100, TS101 has been upgraded and optimized in performance and function,to improve user experience. TS101 controller has a sharp and toughoverall appearance, and uses a larger 128*32 pixel OLED screen to display more heating data. The classic A-B button operation continues the TS100 operation habit and reduces user’s learning cost. The tip insertion end of controller fixesthe soldering tip with a ball screw, no hex screw to loosen before inserting and removing a tip. A newconvenient and practicalaccessory–an anti-slip cap, looking like the head of a cat, can not only be used as a simple stand to support the iron and prevent it from rolling, but also be used for finger anti-slipping and removing the soldering tip.

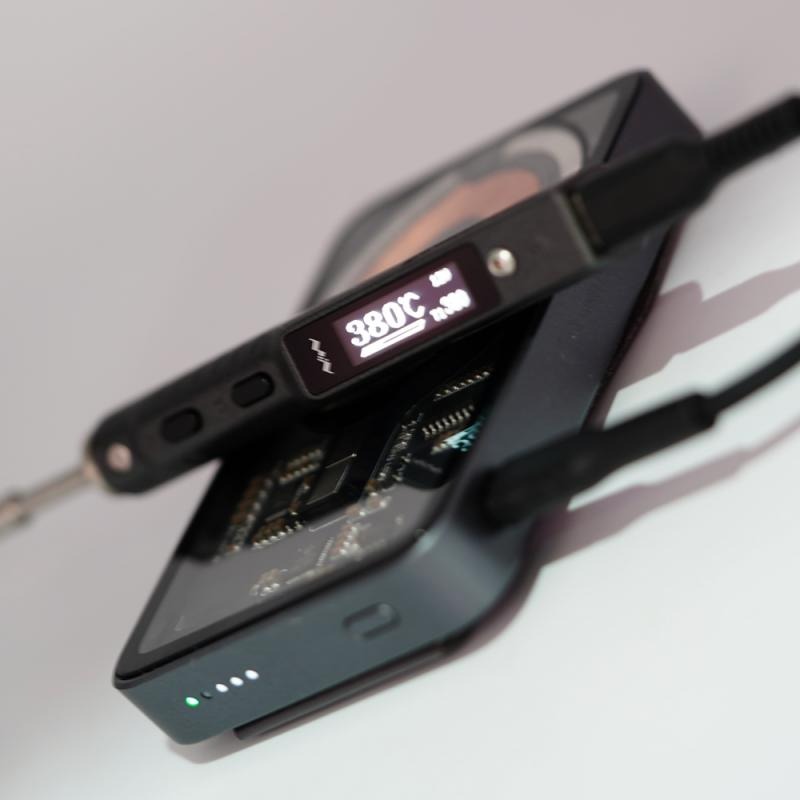

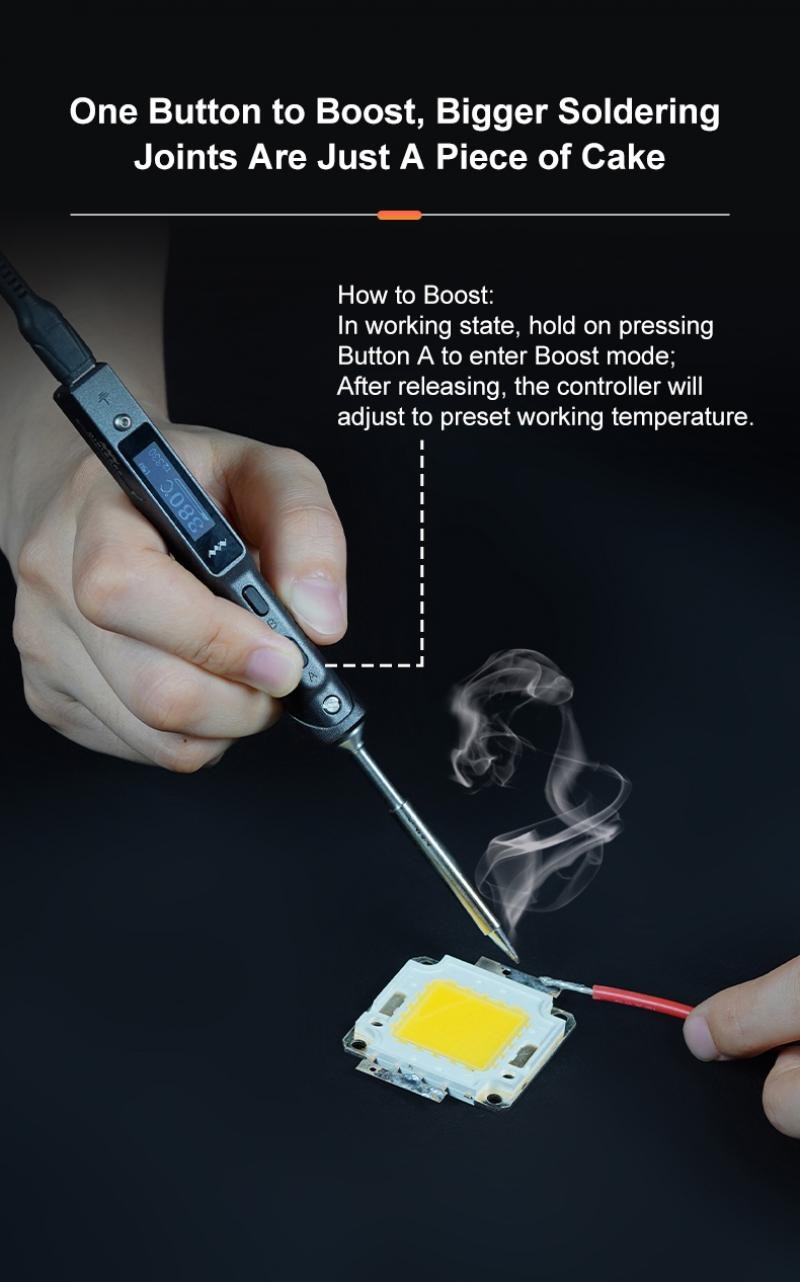

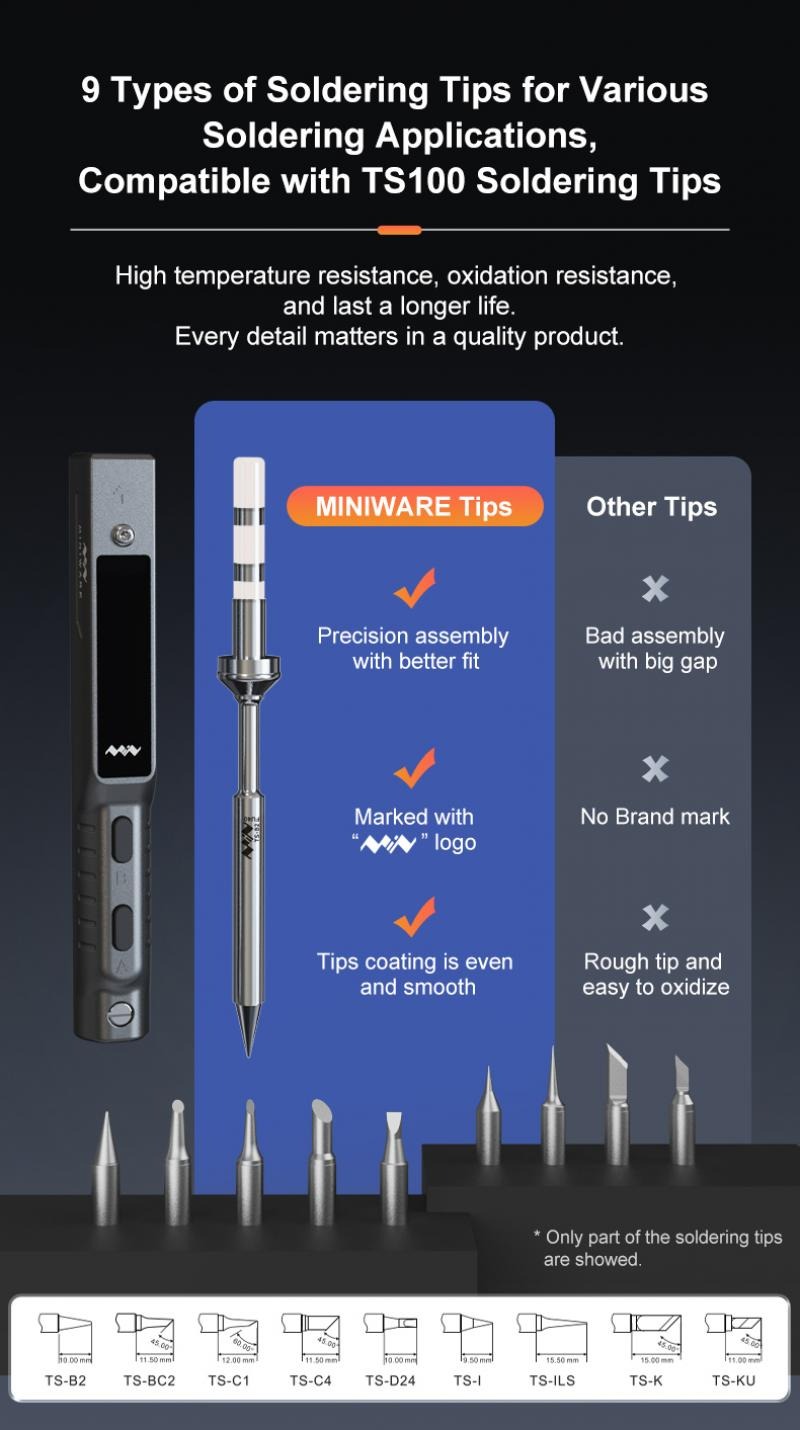

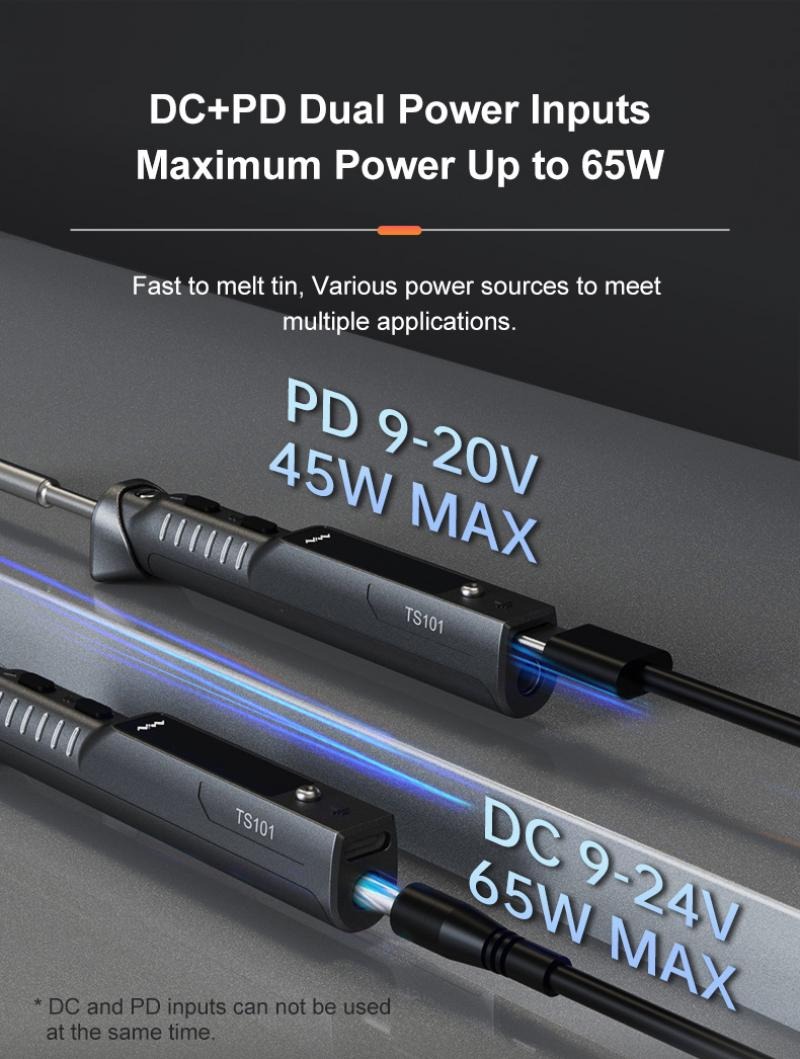

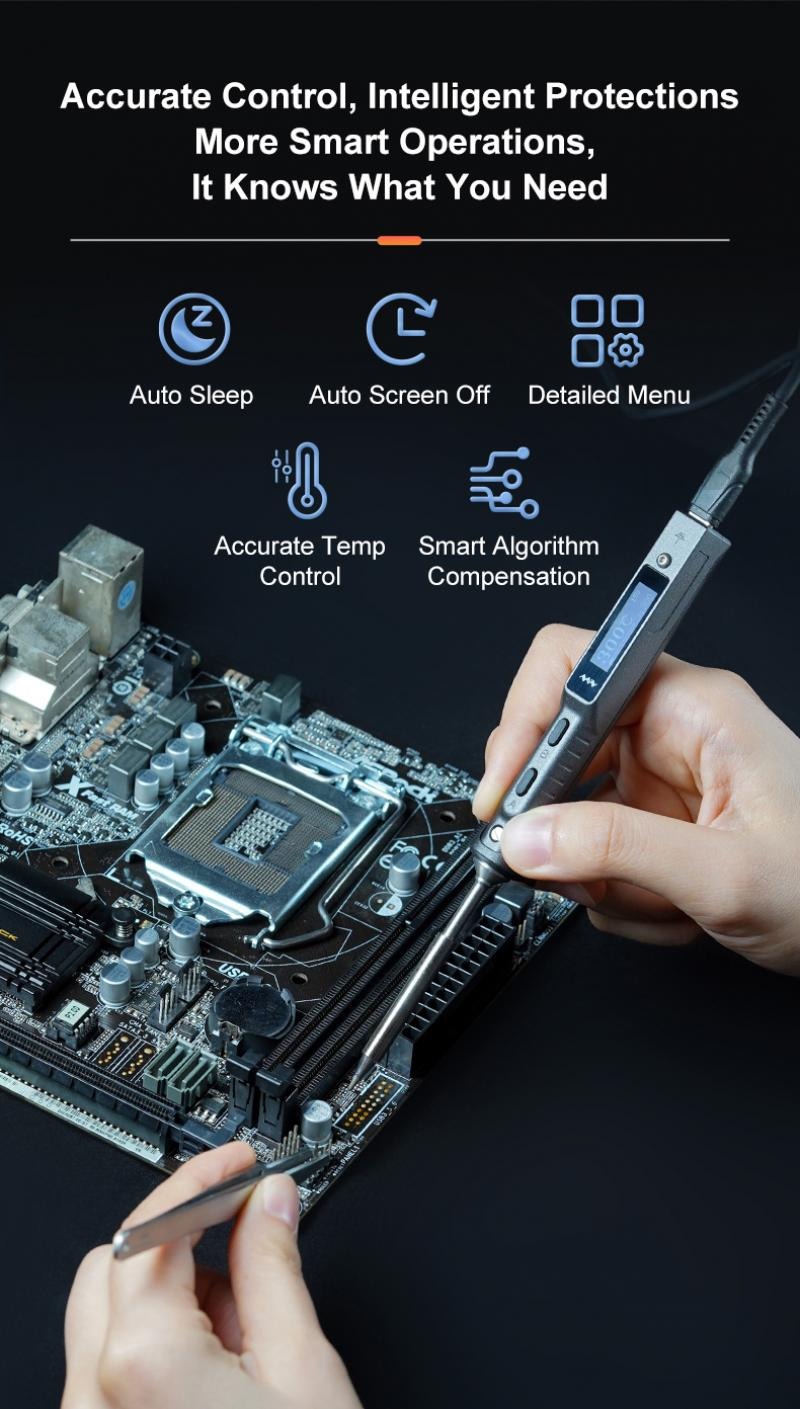

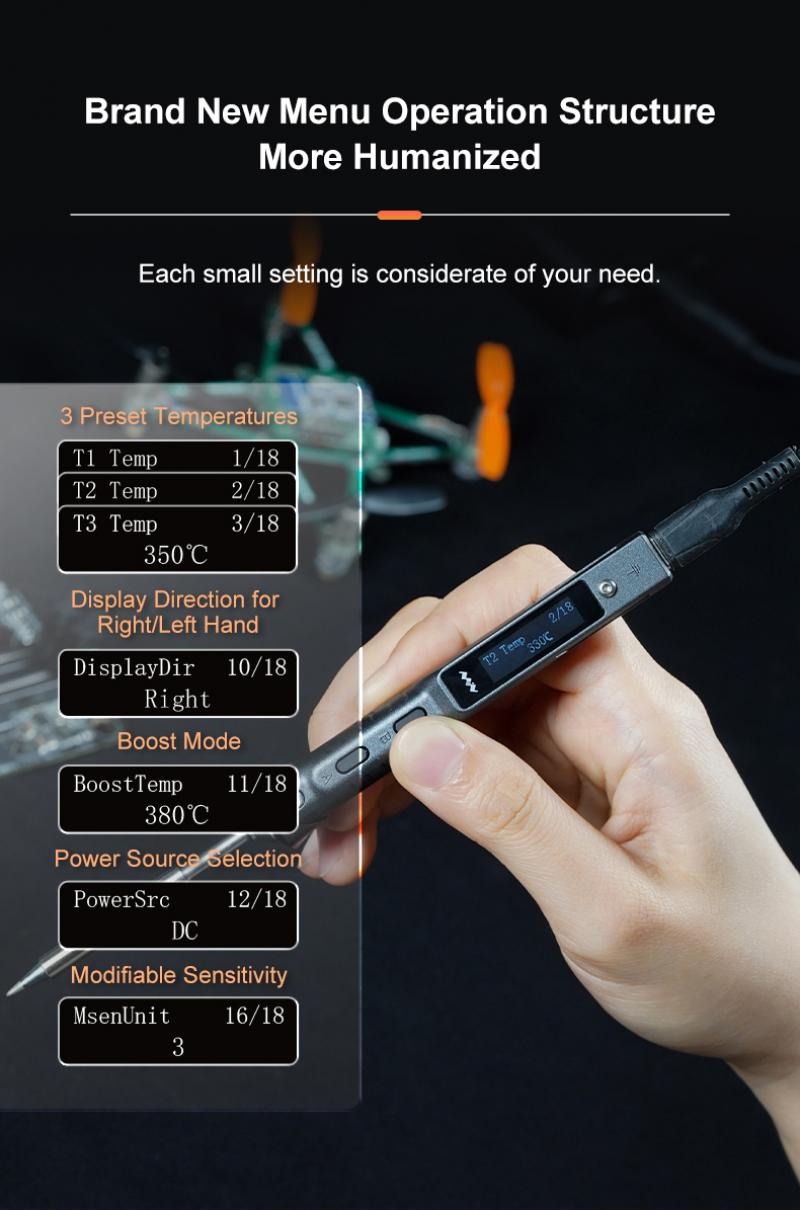

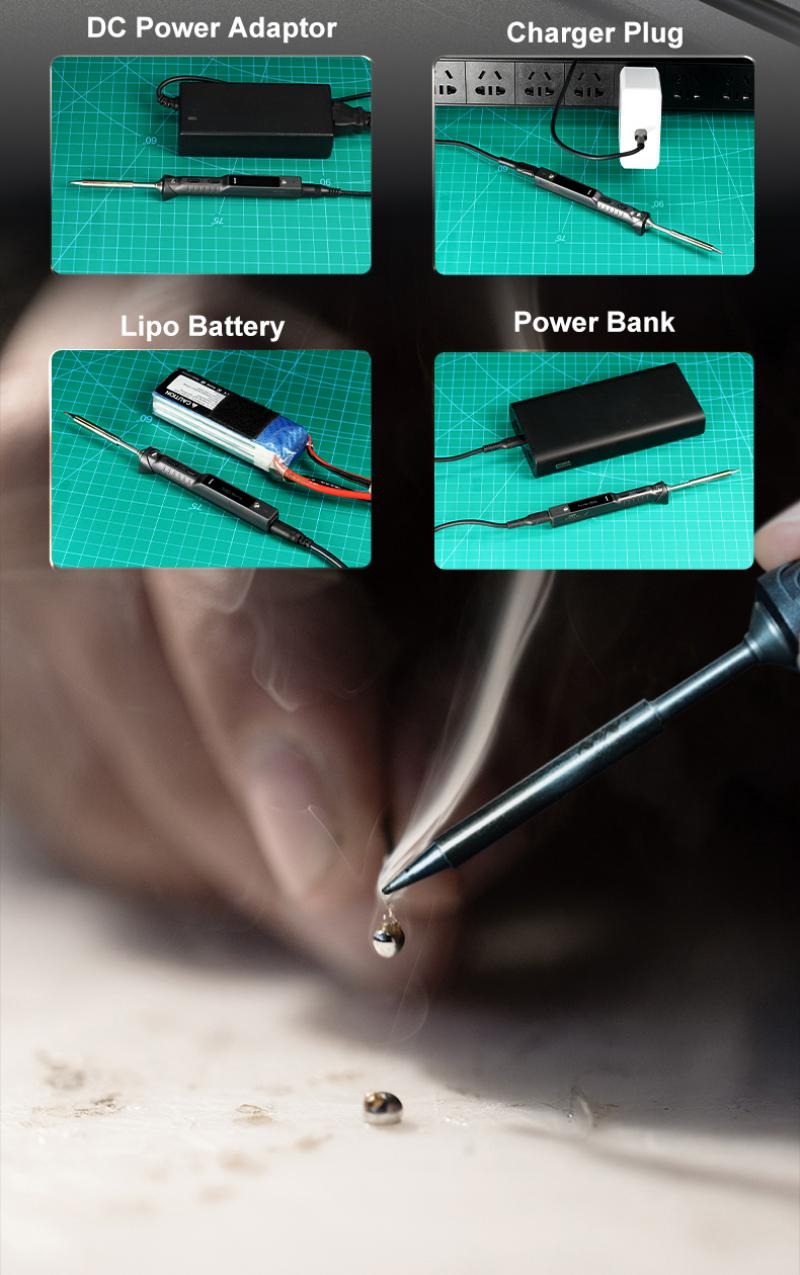

Smart Soldering Iron TS101 uses DC and PD dual power input. The power range of the popular DC5525 interface has been extended to DC 9-24V (up to 65W). A USB-C interface replaces the original Micro USB interface, which serves for firmware upgrade, and a standard PD power input up to 45W. The temperature adjustment range has also been optimized to 50-400℃ for more application scenarios. In terms of intelligent operation, TS101 has more detailed menu setting items, and the newly added “Boost” heating function can quickly heat up in a short time to meet the welding needs of special scenes. TS101 and TS100 use the same soldering iron tips, so your existing TS100 soldering tips can continue to be used to this upgrade version iron.

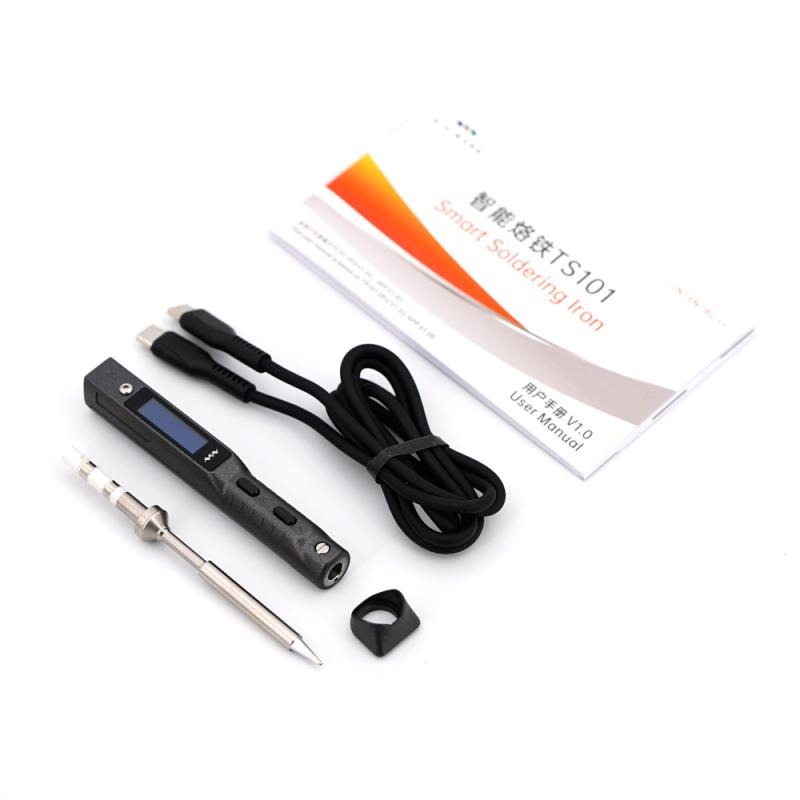

  • 1 x TS101 Soldering Iron

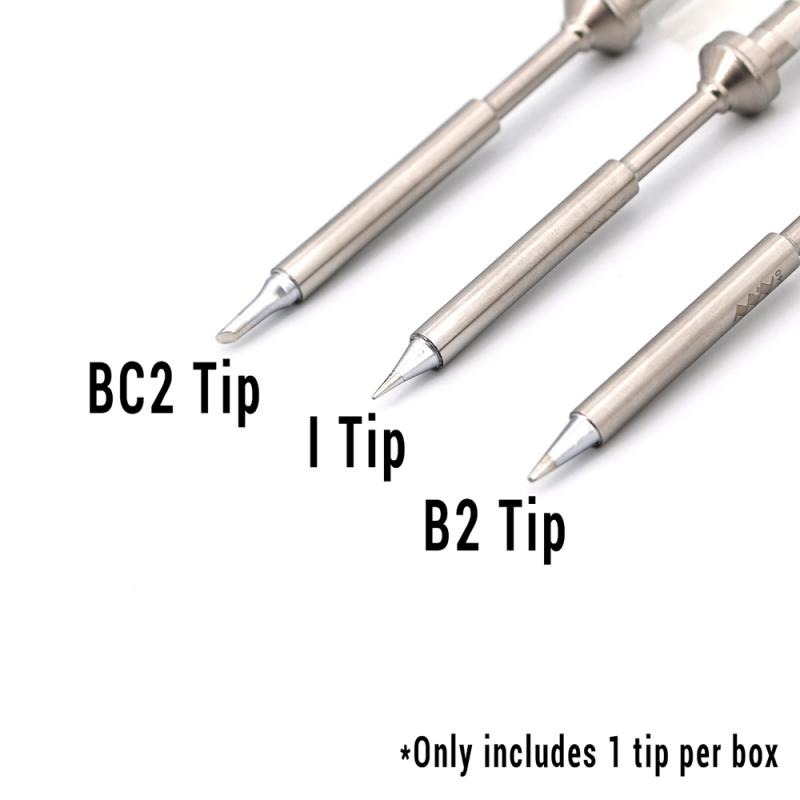

  • 1 x Soldering iron tip (TS- B2 / TS – BC2 / TS – I)
  • 1 x USB-C Silicone Cable (For data transfer & PD input)
  • 1 x Anti-Slip Cap
  • 1 x Manual

Reccomended Accesories


Additional information


Tip Variation

Tip B2 (Pencil tip), Tip I (Sharp Pencil Tip)

18 reviews for TS101 Mini Soldering Iron (USB-C Cable)

  1. 5 out of 5

    Blake (verified owner)

    Great tool so good for on the go

  2. 5 out of 5

    colintitahi (verified owner)

    Tiny but mighty – just makes soldering so much easier and the small size really helps with those fiddly bits.
    Super fast warm up using the AC power supply.
