Description

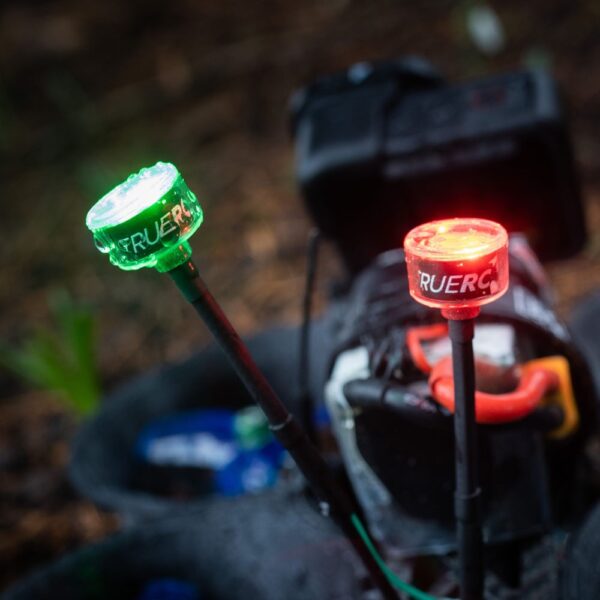

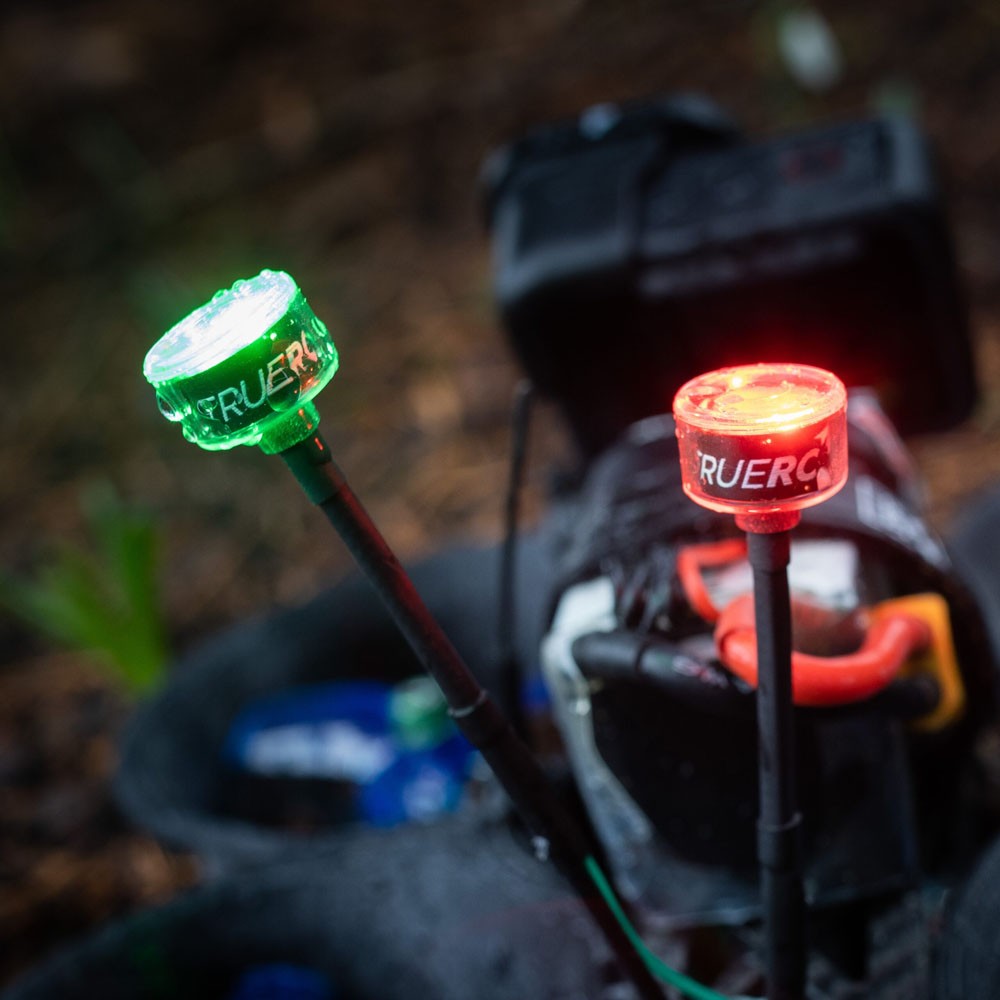

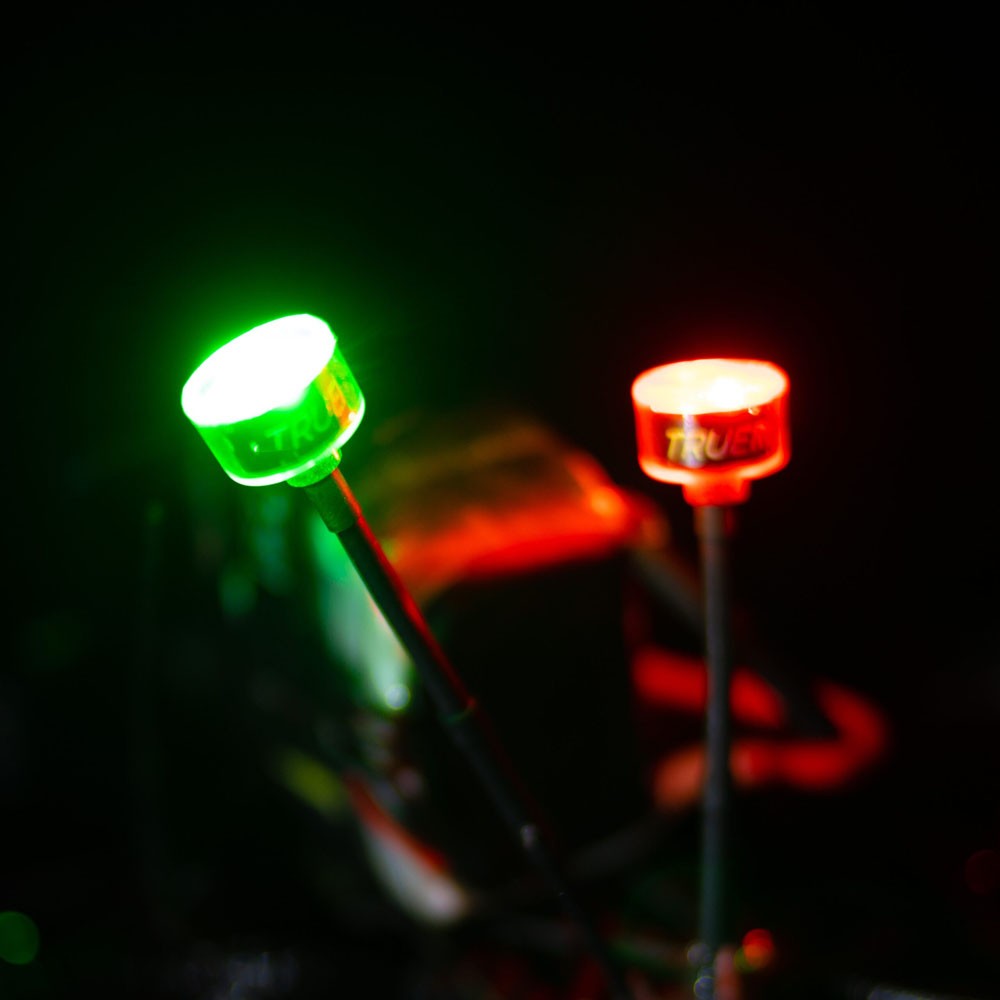

The Blaze 5.8GHz features TrueRC’s latest high-fidelity-circular-polarized-antenna-design plus the CREE™ XQ-E high-intensity LED! This antenna is like no other – it features high-performance CP Omni doubling as a powerful LED light, advanced RF design, and heat management.
This antenna possibly outshines anything in both the 5.8GHz and visible spectrum!
Features
- Durable polycarbonate, Injection Molded, ultra-sonically welded Housing.
- CREE™ XQ-E high intensity LED.
- Wider Bandwidth (5.4-6.3GHz).
- *Pattern stays true even in harsh/sub-optimal installations.
- Single wire 5V LED power hookup with micro connector.

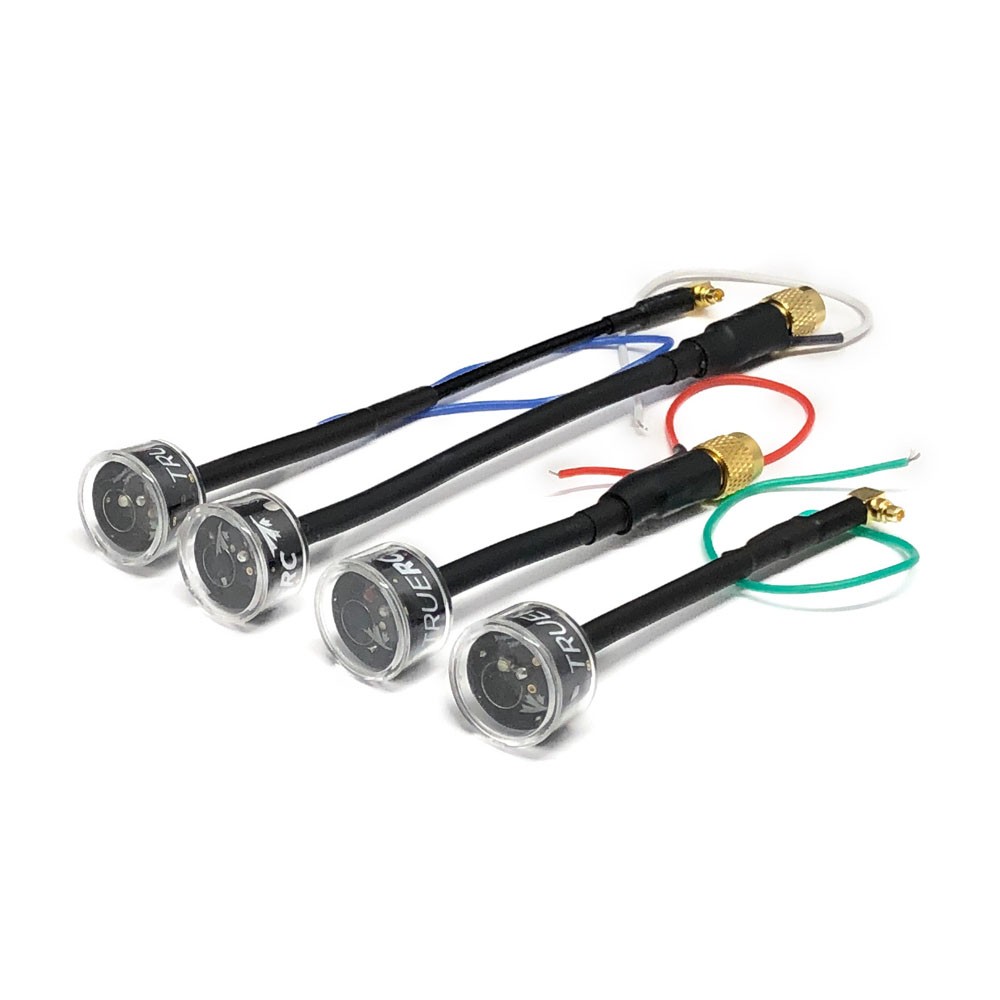

- Available in red, green, blue, and white.
- Available with True-SMA connector.
- Available with high-quality DJI compatible MMCX.
- Available with support tube and U.fl pigtail (vista).
Specifications
- Gain: 1.9dBic
- Polarization: RHCP or LHCP
- Cross-Polar Rejection: -15 to -30dB, (1.9%)
- Bandwidth: 5.4GHz-6.3GHz
- Radiation Efficiency: 99%
- SWR: <=1.2:1
- Weight: 7.9 g
- Dimensions(head): 16.5mm dia. X 10.7mm height.
- Length: 80mm to 125mm (Long).
- Cable: Heavy-duty semi-rigid RG402 coax or custom RG316S.
- Connector: True-SMA, MMCX90 or U.fl w/support tube (Vista)
- Current draw: 100-110mA with an included resistor.
- Max current: 400mA.
- Supply voltage: 5V with an included resistor.
- l Approx luminous flux @100mA: 20 to 50 Lumen depending on color.
Installation Video
Manual

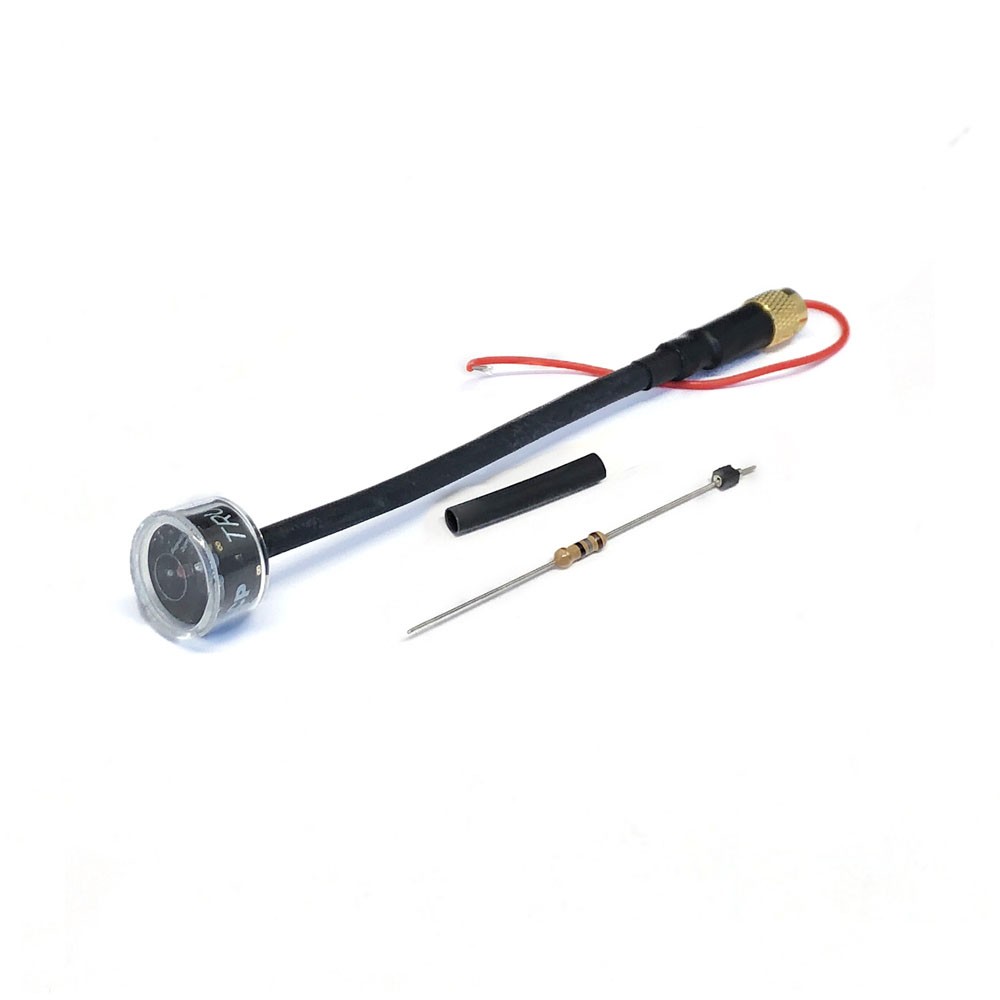

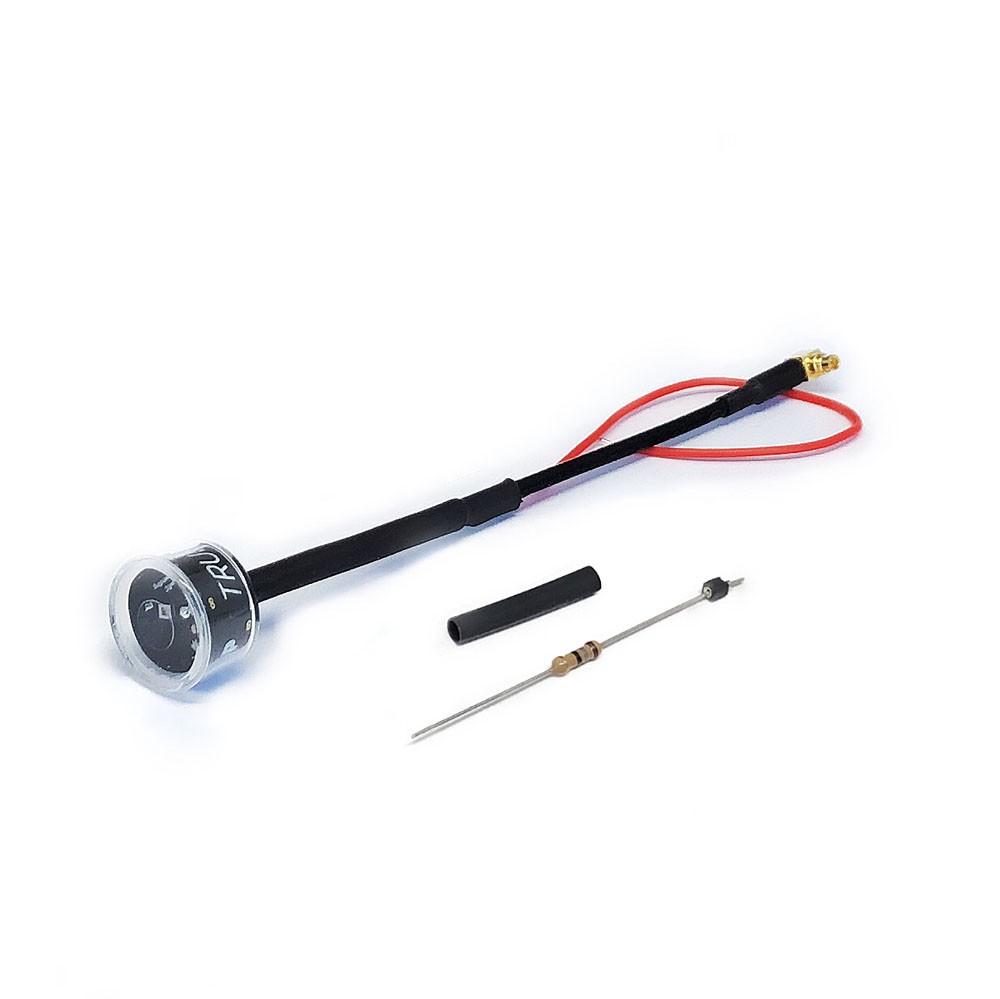

Includes
- 1 x Antenna
- 12 or 18ohms resistor (depending on the color)
- Micropower connector
- Heat shrink
