Description
Features
- Innovative Slider Output Control
- One-Touch Battery Balancer
- PWM/PPM/SBUS Readout

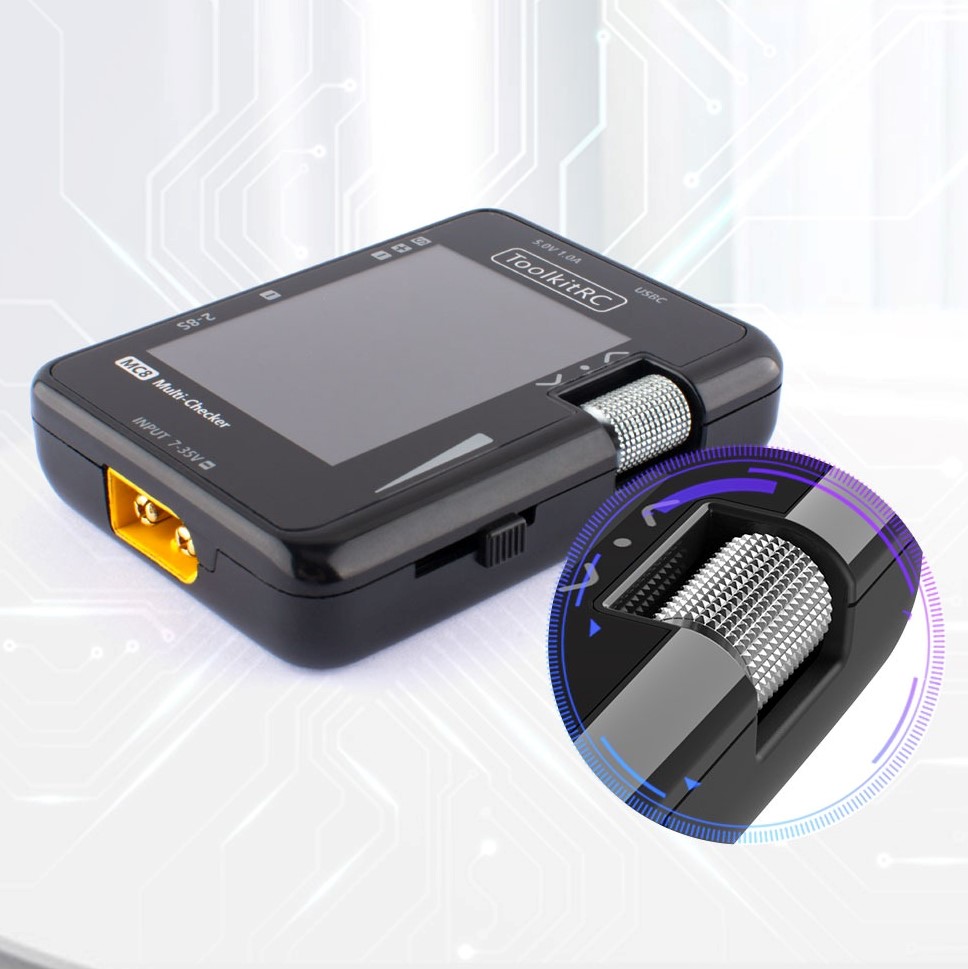

- Metal Roller UI Control
- Battery Status Display
- Large Color Screen

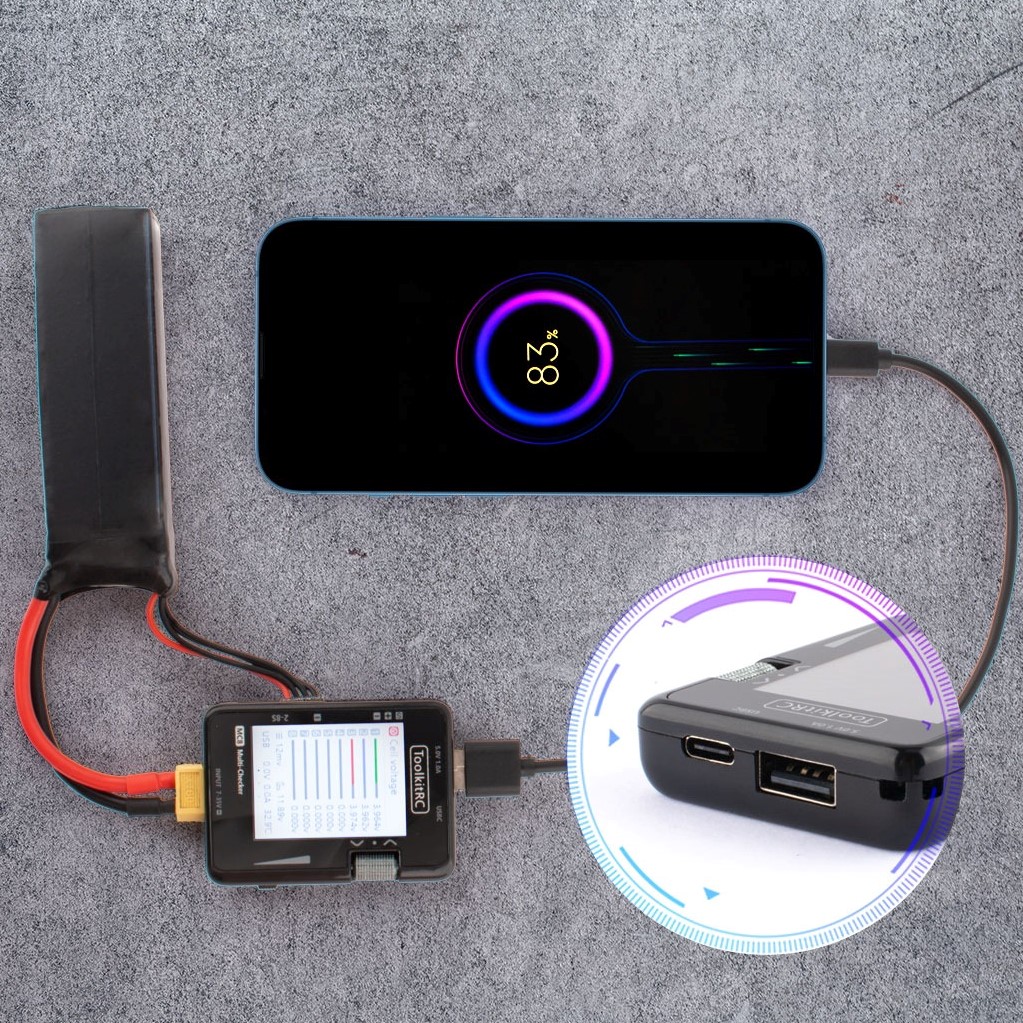

- PD Fast Charging
- PWM Output
Specifications
- Dimensions: 68x50x15mm
- LCD: 2″ IPS 320×240
- Weight: 50g
CHECKER
- USB-C protocol: PD3.0 QC3.0 AFC SCP FCP
- USB-A output: [email protected] firmware upgrade
- USB-C output: 5.0V-12.0V @MAX 20W
- Balance current: MAX 60mA @2-8S
- Balance accuracy: <0.005V @ 4.2V
- Balance input: 0.5V-5.0V Lixx 2-8S
- Main Input port: XT60 7.0-35.0V
- Signal port input: <6.0V
MEASURER
- SBUS: 880-2200us*16CH @20-100Hz
- PPM: 880-2200us*8CH @20-50Hz
- PWM: 880-2200us @20-400Hz
OUTPUT
- SBUS: 880-2200us*16CH @20-100Hz
- PPM: 880-2200us*8CH @20-50Hz
- PWM: 1000-2000us @20-1000Hz
Package includes: 1x ToolkitRC M6DAC 200w AC/DC Smart Charger
Glenn H. (verified owner) –
Fast delivery and great product
Aaron (verified owner) –
Thus is a great wee battery tester.
It also has pwm and and SBus out put testing which is one of the reasons I brought this model.
It’s very small so takes up next to no room in your Drone bag.
I recommend this product.
Richard G. (verified owner) –
The Toolkitrc MC8 works weii. Great colour screen.
Outstanding service from KiwiQuads as per normal,
Bryan (verified owner) –
Excellent service as usual
Anonymous (verified owner) –
Excellent product, service and delivery time
