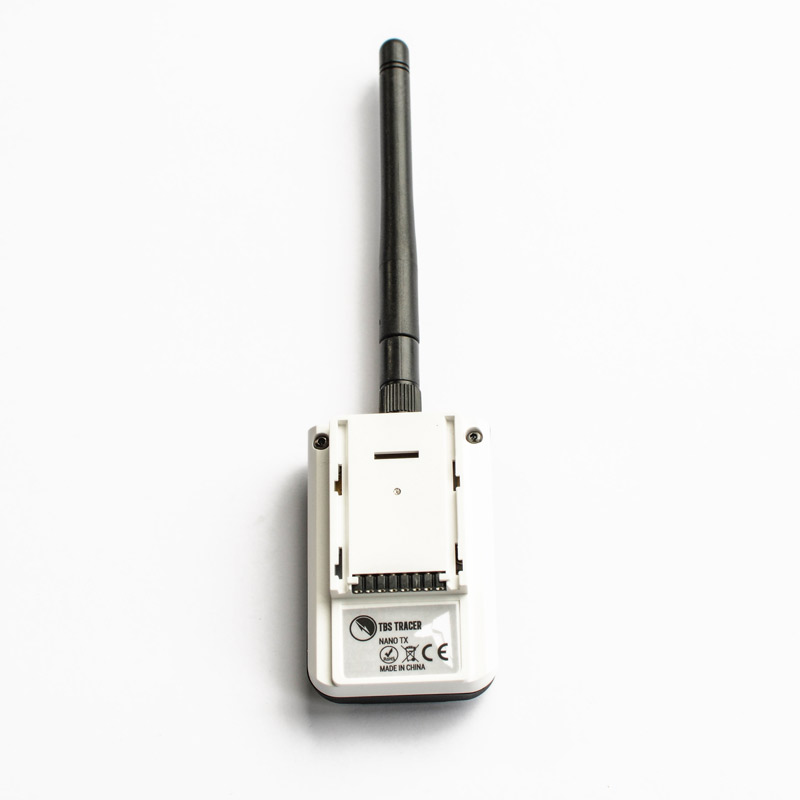

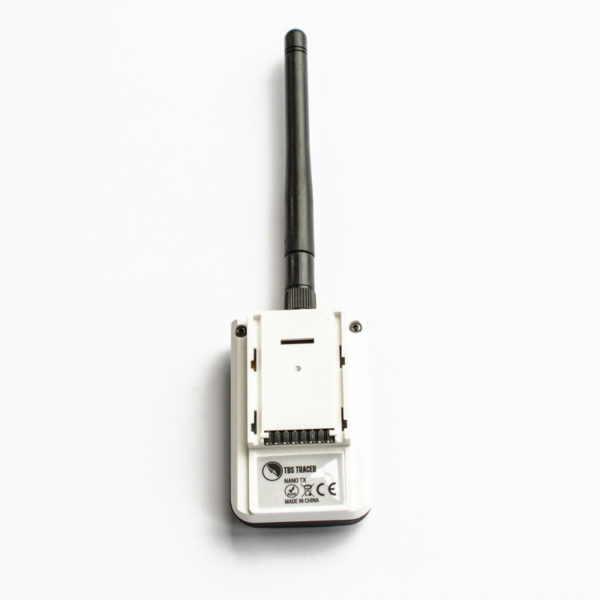

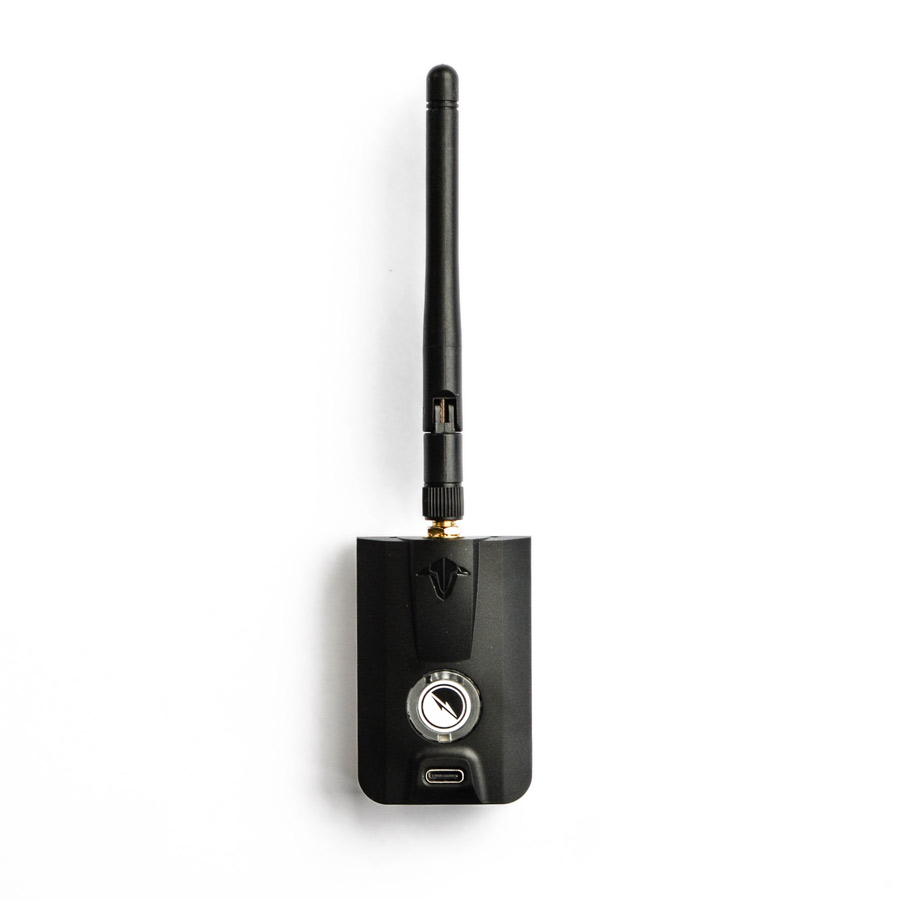

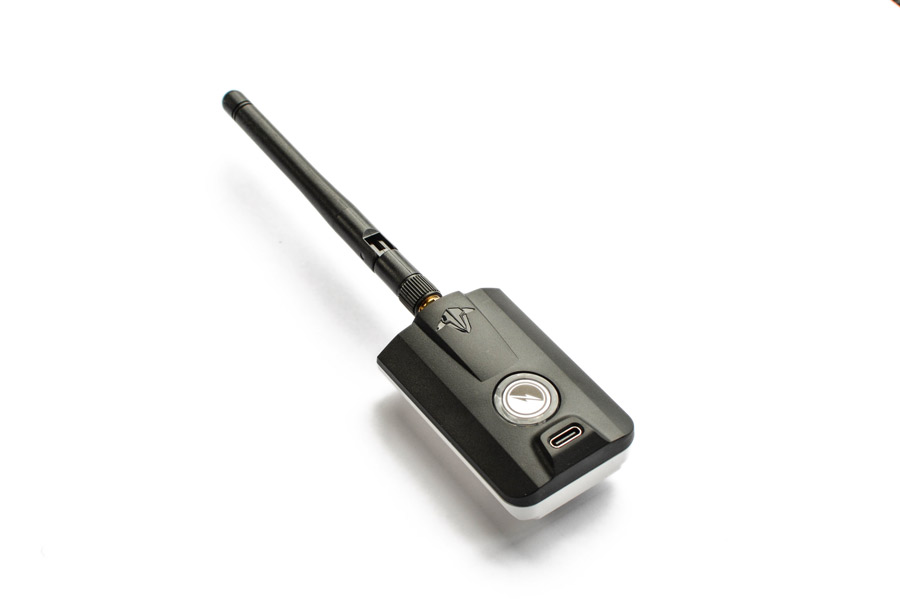

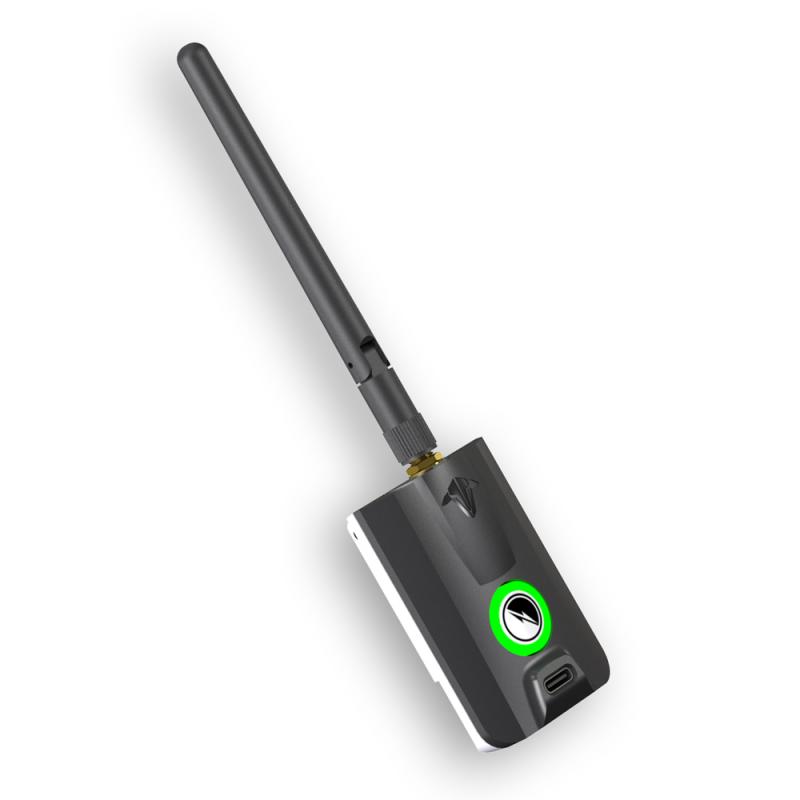

TBS Tracer Nano Tx Module

by Team BlackSheep
3.00 out of 5
(1 customer review)

In a race, microseconds count. Goggles down, thumbs up – are you ready for a true 250Hz radio link? End to end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, range for days.

$119.99

or 6 weekly interest free payments of NZD $19.99 with

Hurry! Only 2 left in stock

Ships from our Tauranga warehouse
SKU: 1901 Categories: , Tag:

Description

TBS Tracer Nano Tx Module Features

  • 250Hz: Fastest available radio and telemetry link
  • Brand new 2.4GHz technology not found in any other radio link
  • 3ms end to end latency
  • Crossfire engine for ultimate compatibility and functionality
  • “JR” and “LITE” form factor transmitters
  • Nano-sized receiver with antenna diversity
  • 15mi+/25km+ range
  • For drones, planes, helicopters, cars and boats

TBS Tracer Nano Tx Module Specifications:

  • Latency & Refresh Rate: 3ms, 250Hz
  • Output power: 25mW / 100mW
  • Frequency Bands: 2.4GHz ISM
  • Input Voltage: 5V – 9V
  • Connector: USB-C
  • Power consumption: 1.1W (@10mW) – 2W (@100mW)
  • Dimensions: 65 x 48 x 22 mm (JR module size)
  • Radio Compatibility: Lite module bay (e.g. TBS Tango 2, Taranis X-Lite, X9 Lite), OpenTX V2.1+. The TBS Tracer Nano TX is suggested for use in Futaba and Spektrum remotes that do not have a JR-module bay

* output power modes may not be available due to local regulation limitations

Additional information

Brand

1 review for TBS Tracer Nano Tx Module

  1. 3 out of 5

    Blake V. (verified owner) –

    it dose not fit.. posible mistake on my end.. didnt see description on module bay

Only logged in customers who have purchased this product may leave a review.
