Description

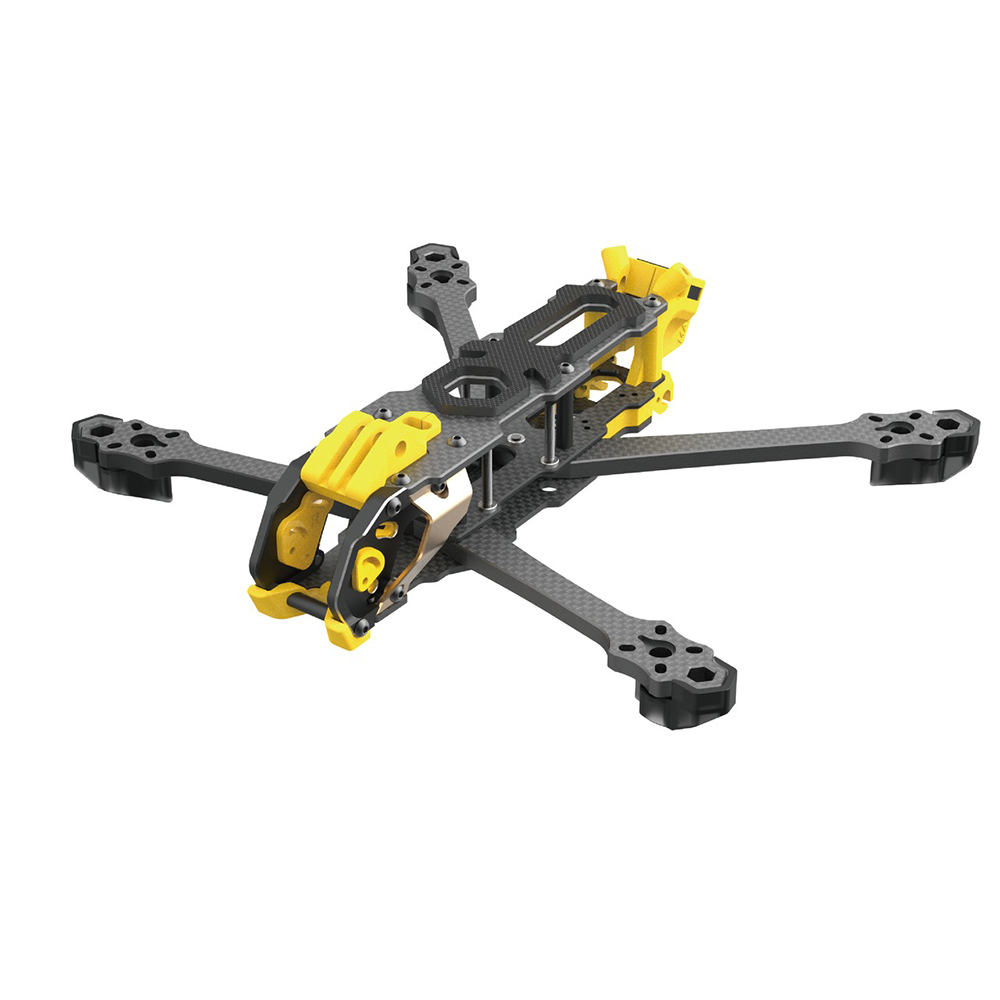

The SpeedyBee Mario 5 O4 DC Advanced Edition is a powerhouse drone frame engineered for high-performance FPV racing. Crafted from premium T300 3K carbon fiber with a robust 6mm arm thickness, it delivers exceptional durability and stability. Its aviation aluminum alloy head and 7075 aluminum columns enhance structural integrity, while versatile mounting options support a range of components. Designed for precision and speed, this frame is built for serious pilots.

Specifications:

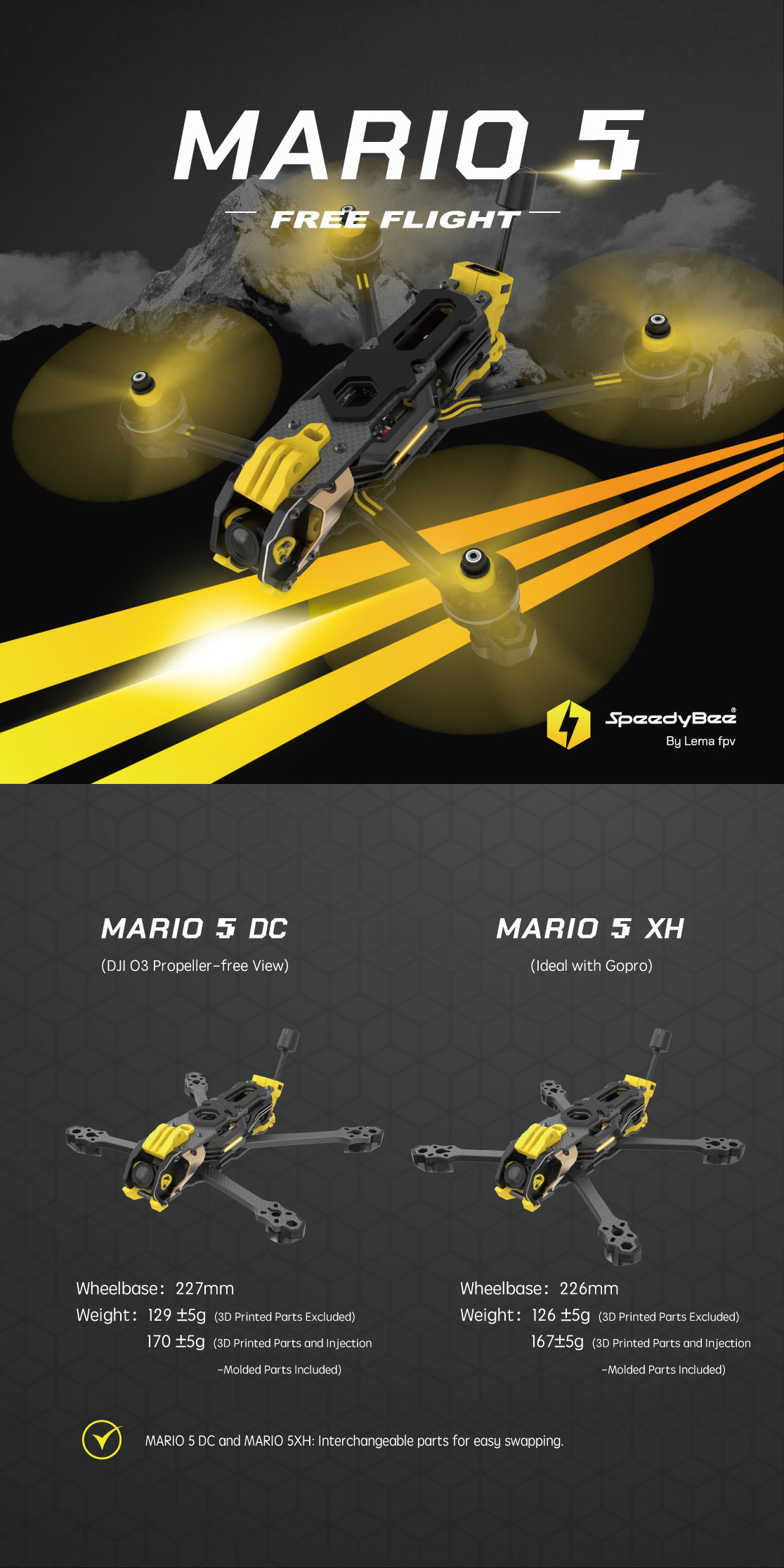

• Mario 5 DC

  • Wheelbase: 227mm
  • Weight:
    • 129 ±5g (3D Printed Parts Excluded)
    • 170 ±5g (3D Printed Parts and Injection)

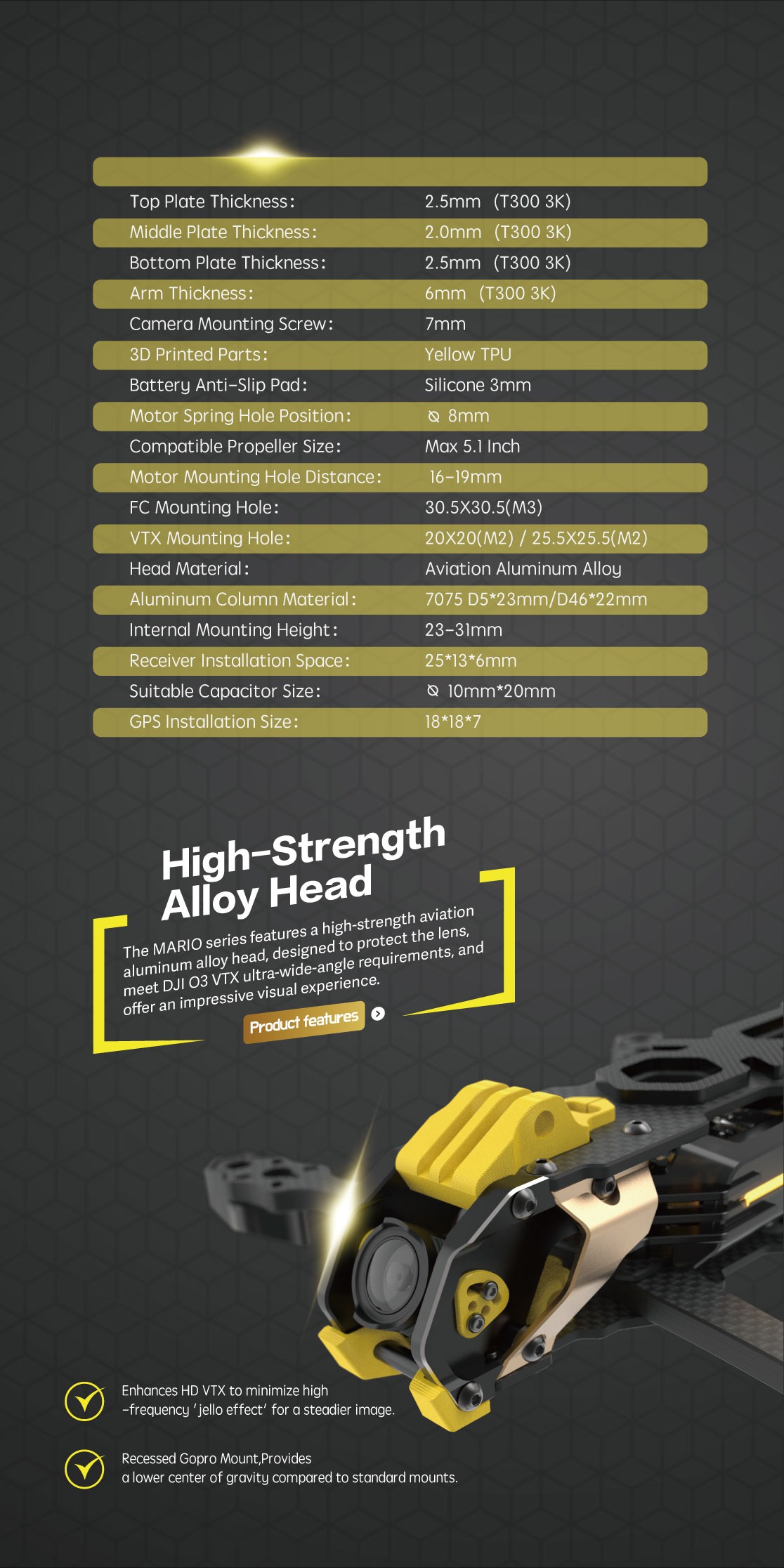

• Frame Thickness:

  • Top Plate: 2.5mm (T300 3K)
  • Middle Plate: 2.0mm (T300 3K)
  • Bottom Plate: 2.5mm (T300 3K)
  • Arm: 6mm (T300 3K)

• Mounting & Compatibility:

  • Camera Mounting Screw: 7mm
  • 3D Printed Parts: Yellow TPU
  • Battery Anti-Slip Pad: Silicone 3mm
  • Motor Spring Hole Position: Φ8mm
  • Compatible Propeller Size: Max 5.1 Inch
  • Motor Mounting Hole Distance: 16-19mm
  • FC Mounting Hole: 30.5×30.5mm (M3)
  • VTX Mounting Hole: 20x20mm (M2) / 25.5×25.5mm (M2)

• Materials:

  • Head Material: Aviation Aluminum Alloy
  • Aluminum Column Material: 7075 D523mm / D4622mm

• Internal & Installation Specs:

  • Internal Mounting Height: 23-31mm

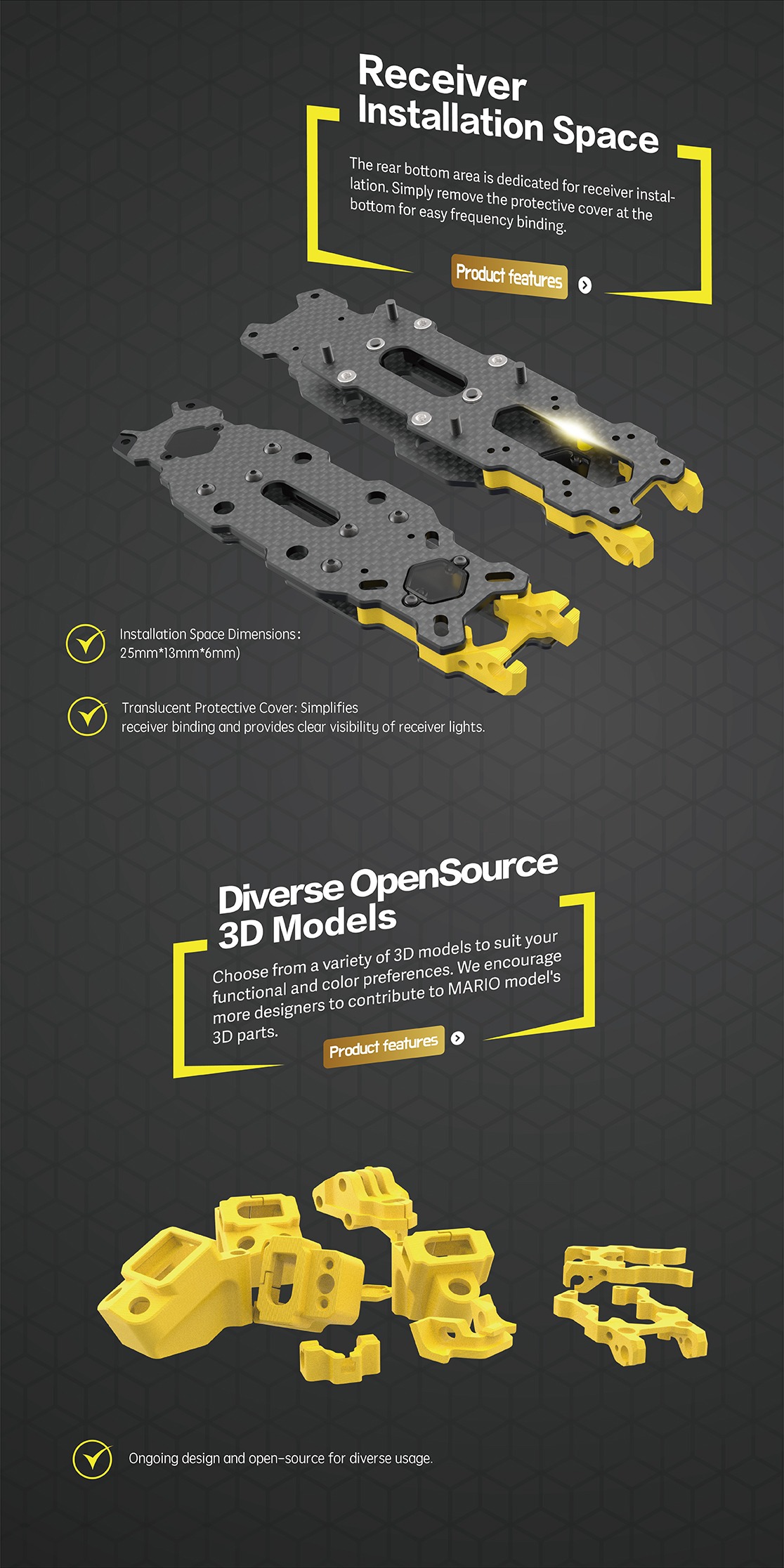

  • Receiver Installation Space: 25136mm

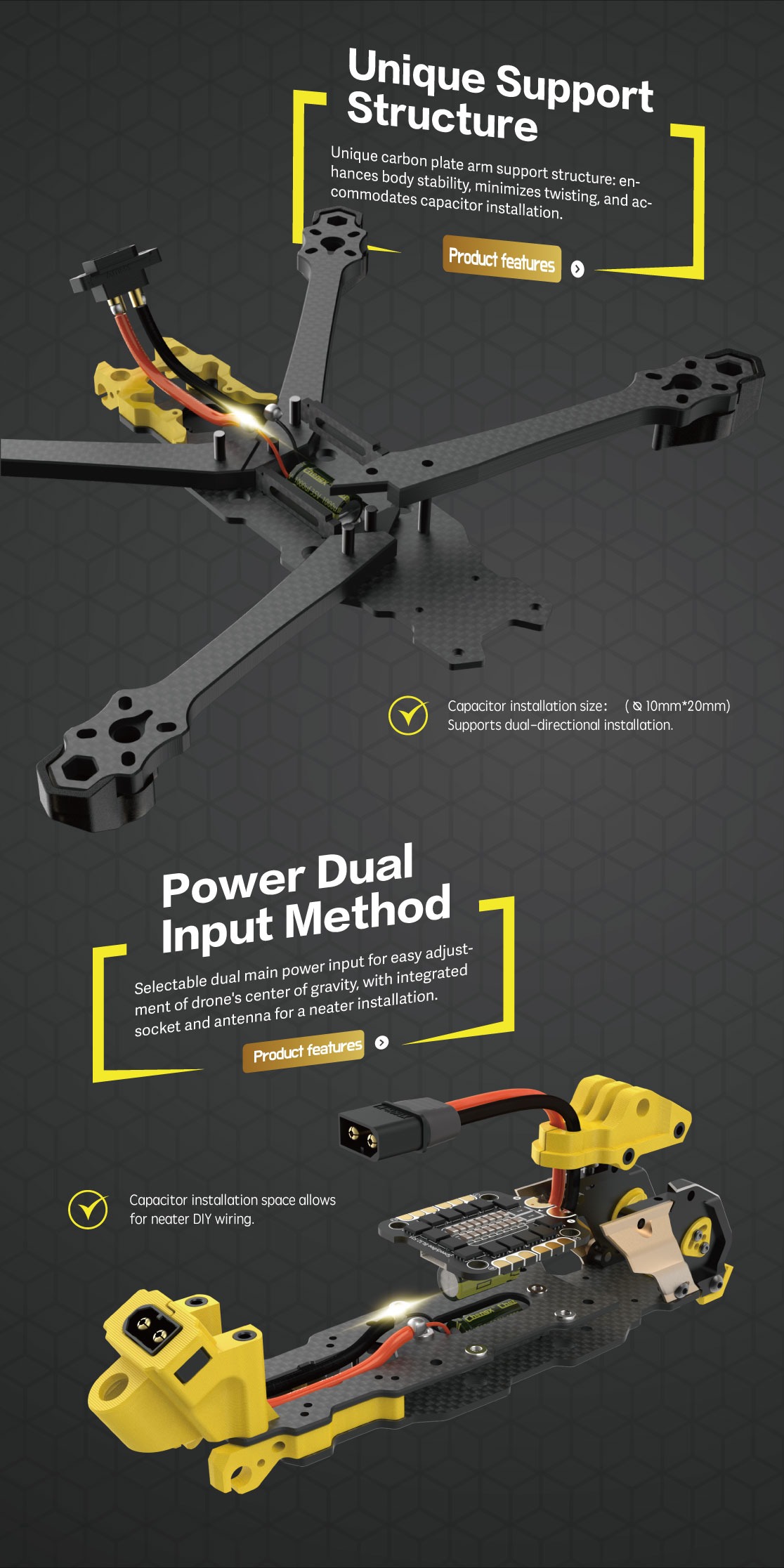

  • Suitable Capacitor Size: Φ10mm*20mm
  • GPS Installation Size: 18187mm
  • Camera Compatibility: 19mm / 20mm

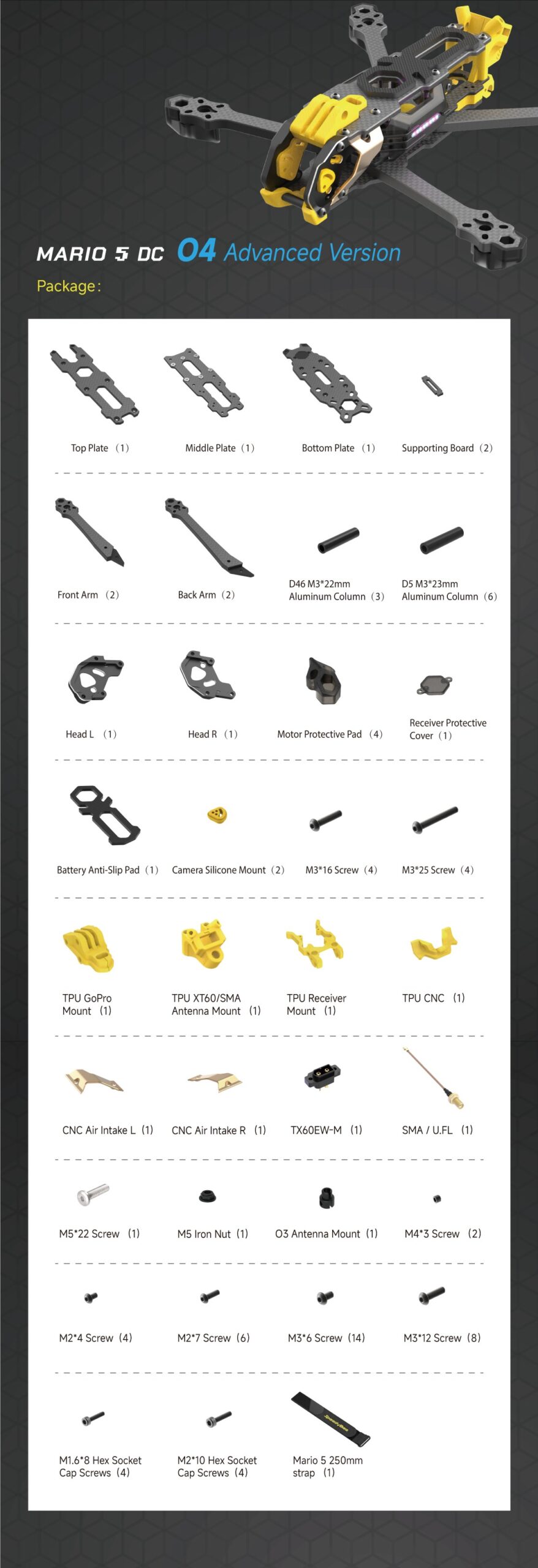

Package Includes:

• 1 x SpeedyBee Mario 5 O4 DC Advanced Edition
