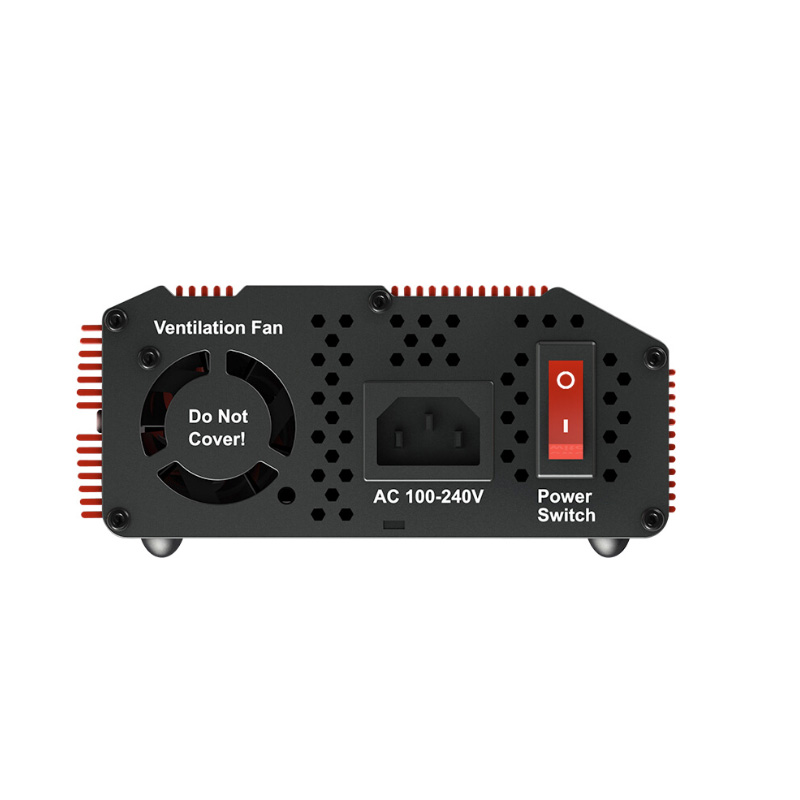

SkyRC eFUEL 540W/30A Regulated Power Supply

Description

• Active PFC (power factor correction) consists of active PFC and negative PFC. Active PFC, which is integrated into SkyRC 1200W/50A regulated power supply, can provide higher power utilization.  Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. It’s capable of correction on AC input voltage and universal on a global basis.
• Output Voltage Adjustable – selectable from 12V to 18V
• Dual DC Power Outputs – It supports powering two DC equipments simultaneously.

Specifications:

• Cooling Method – Cooling Fan
• Input AC Frequency: 50-60Hz
• Input Fuse: 10A Fuse
• LCD Display
  • Voltage Precision ±0.3V
  • Current Precision ±0.5A
• Operating Temperature: 0-40℃
• Output Current: 30A±1A
• Output Voltage: 12-18V DC±0.5V
• Output Voltage Ripple: < 9000mV
• Over Temperature Protection: < 65℃
• Power Efficiency: 89%
• Power Factor: > 0.98
• Voltage: 100-240V AC
• Weight: 1.62kg
• Size: 60mmH 218mmL Width 139mmL
• Manual: eFUEL 540W_Instruction_Manual_EN_V3.0
