Description

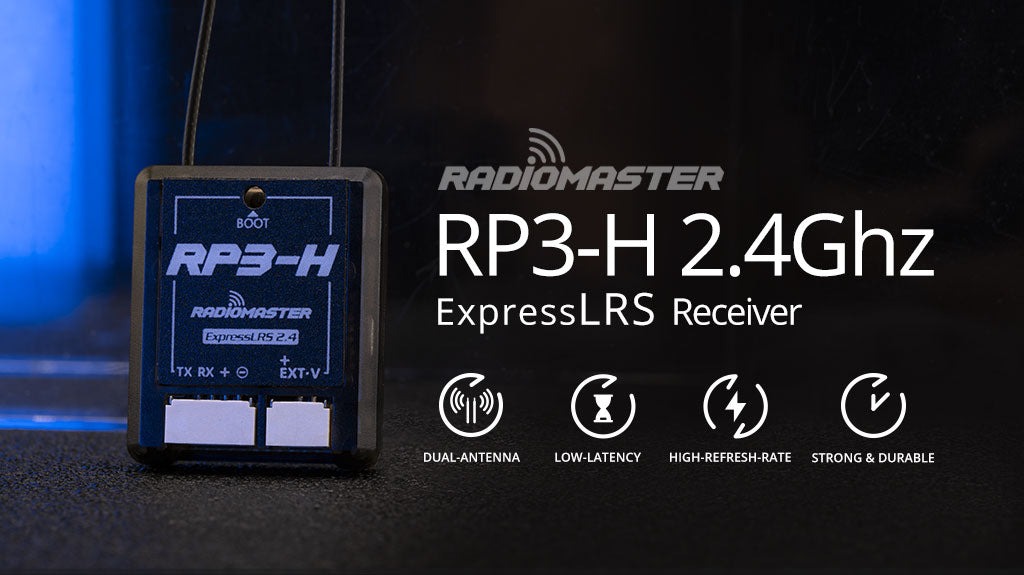

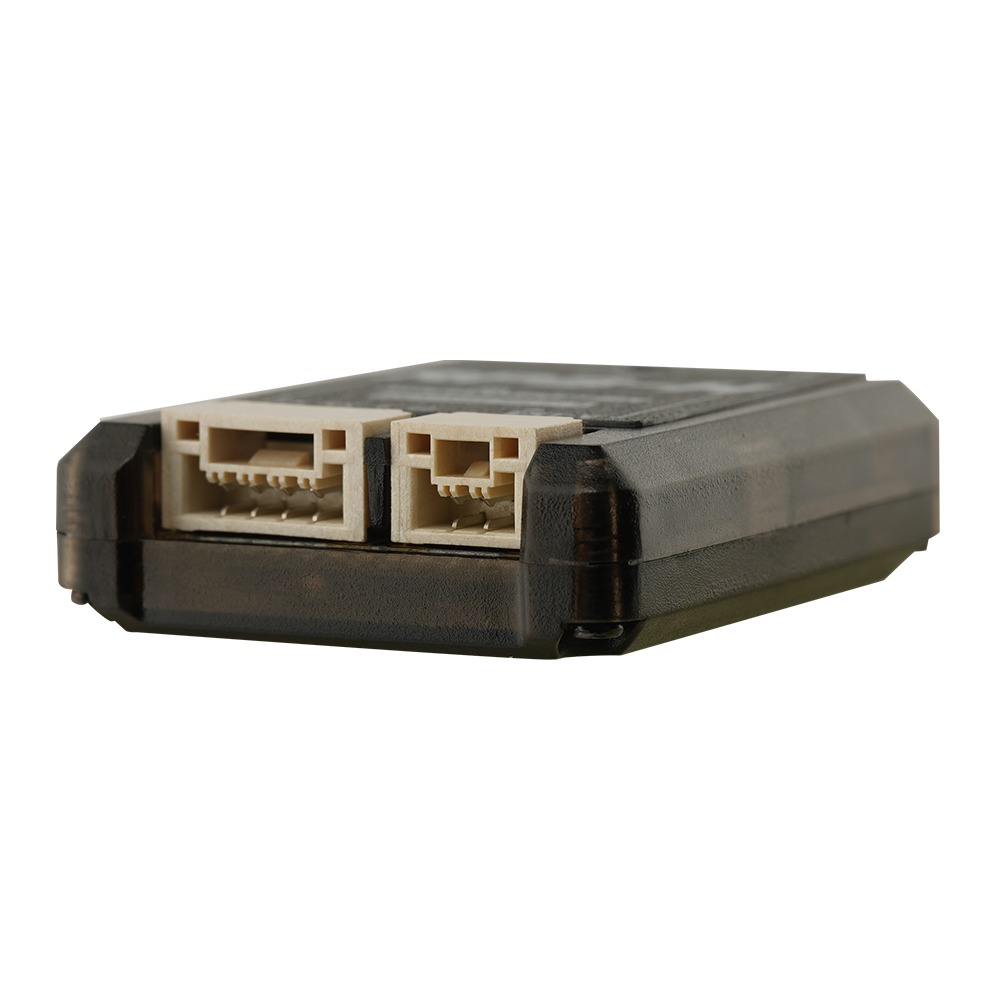

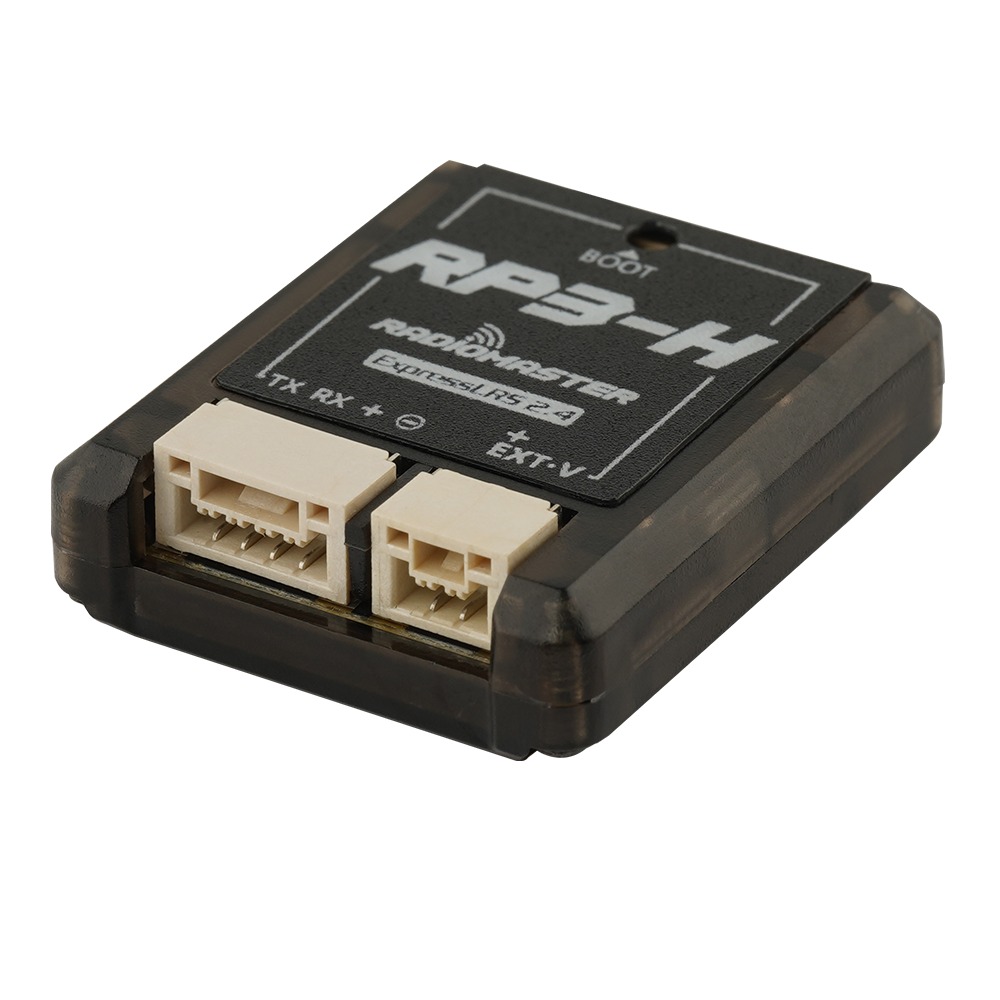

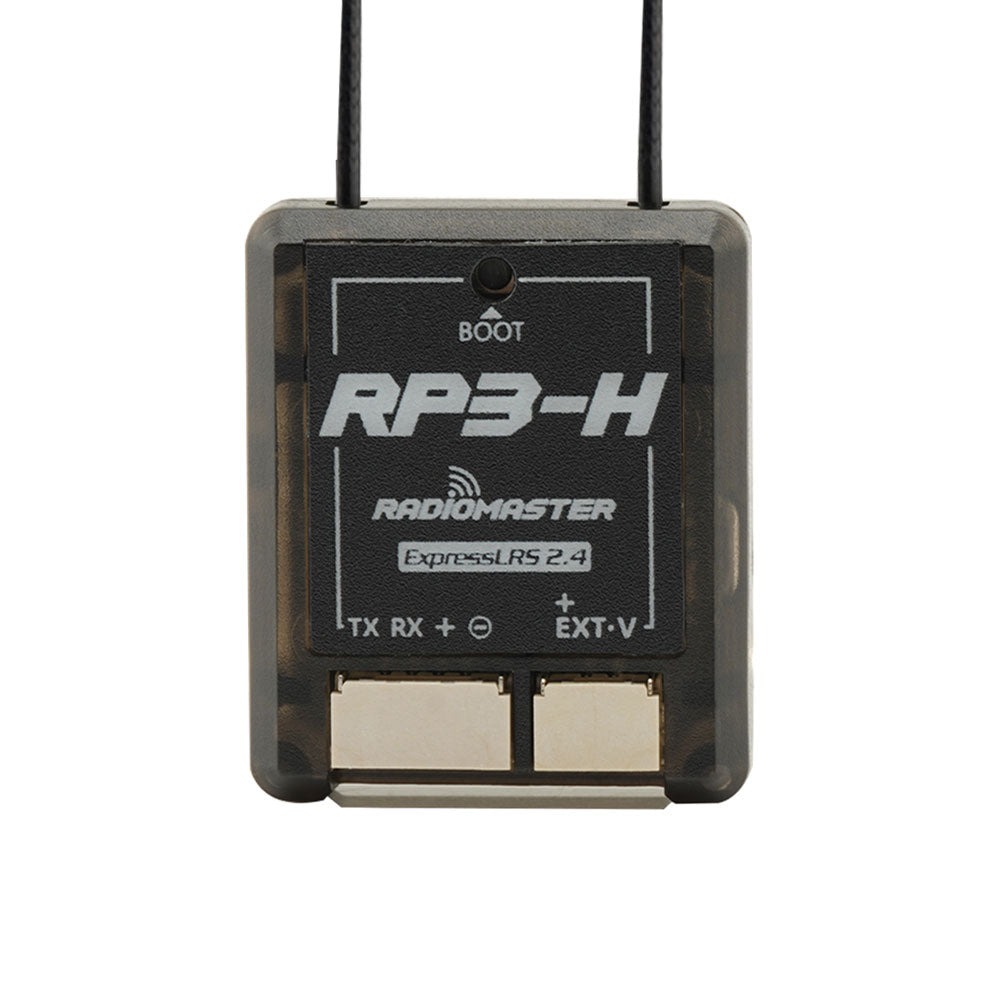

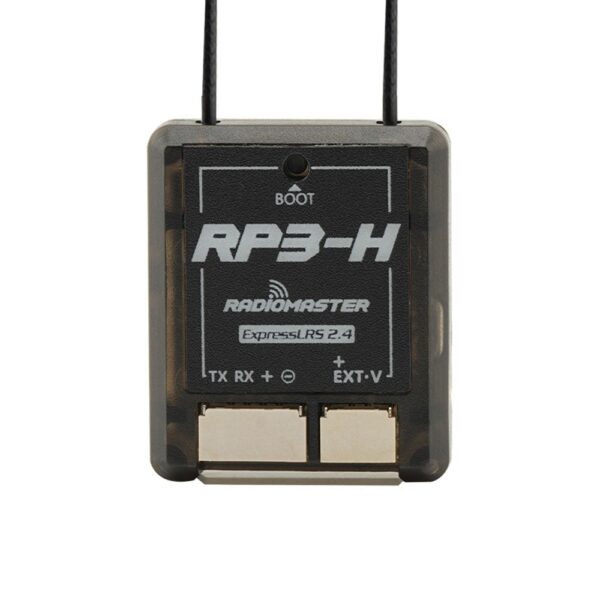

The RP3-H ExpressLRS Receiver comes with a built-in TCXO and an integrated housing design that makes the receiver tougher and ready to mount in modern helicopter frames. With the RP3-H receiver, you can get reliable, stable, and accurate signal reception, which enhances your flight experience and allows for superior performance even in demanding environments.
Features:

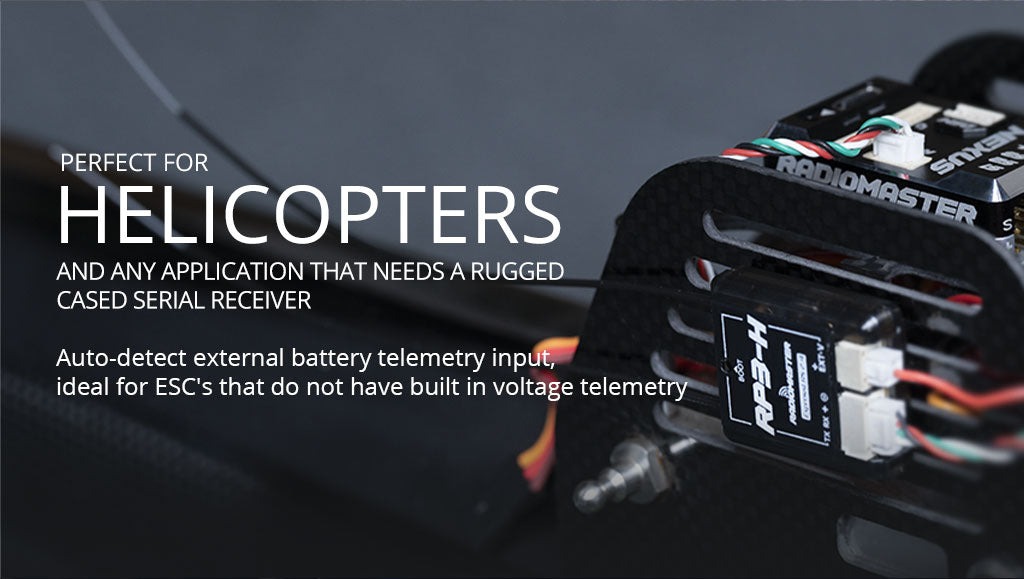

- Perfect for helicopters and any application that needs a rugged cased serial receiver

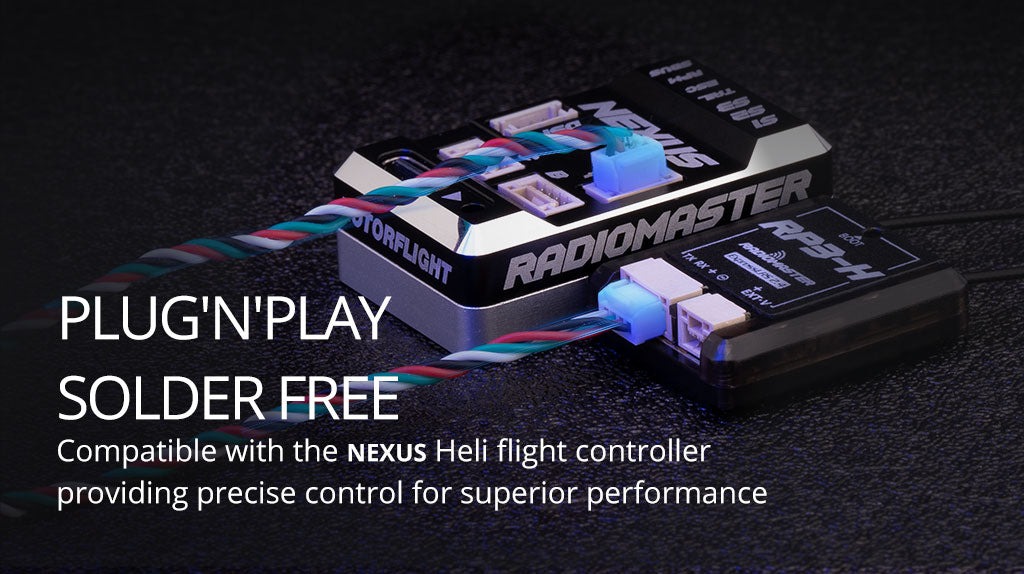

- Plug’n’play solder free RP3-H ExpressLRS receivers compatible with NEXUS Heli flight controller

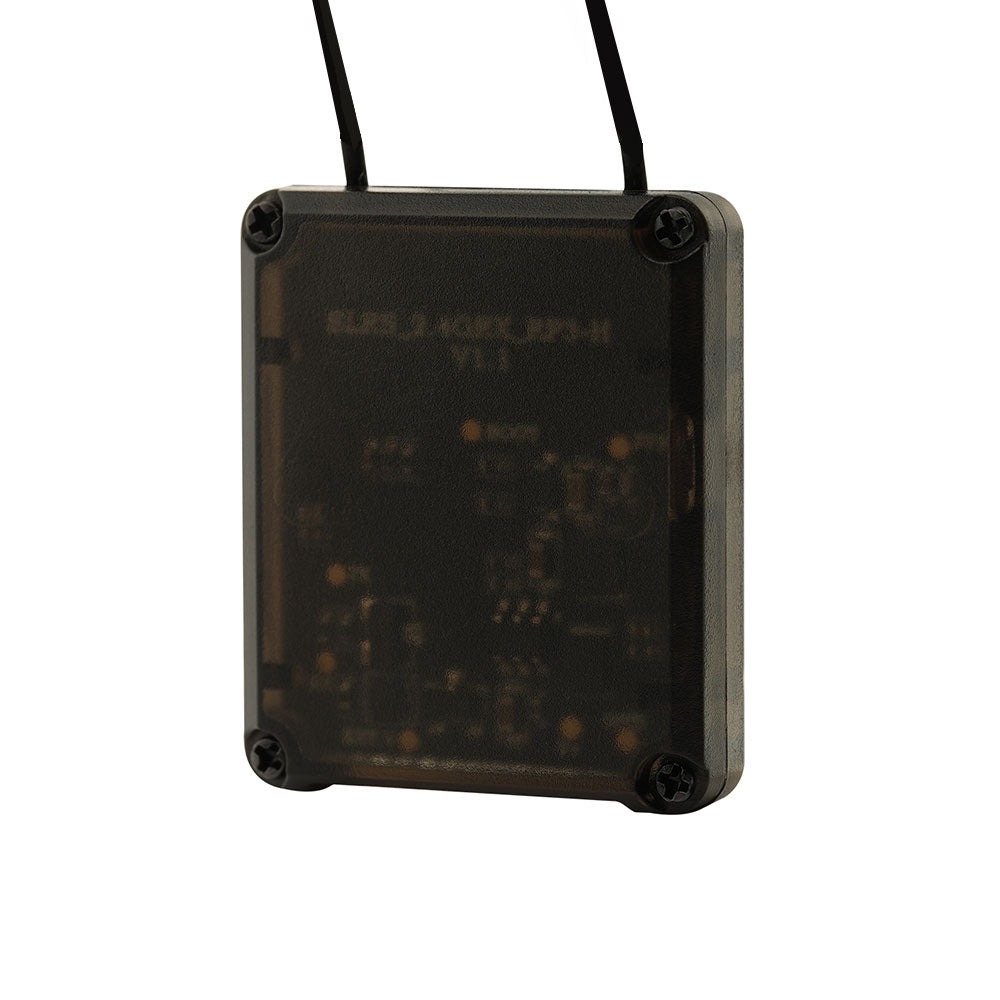

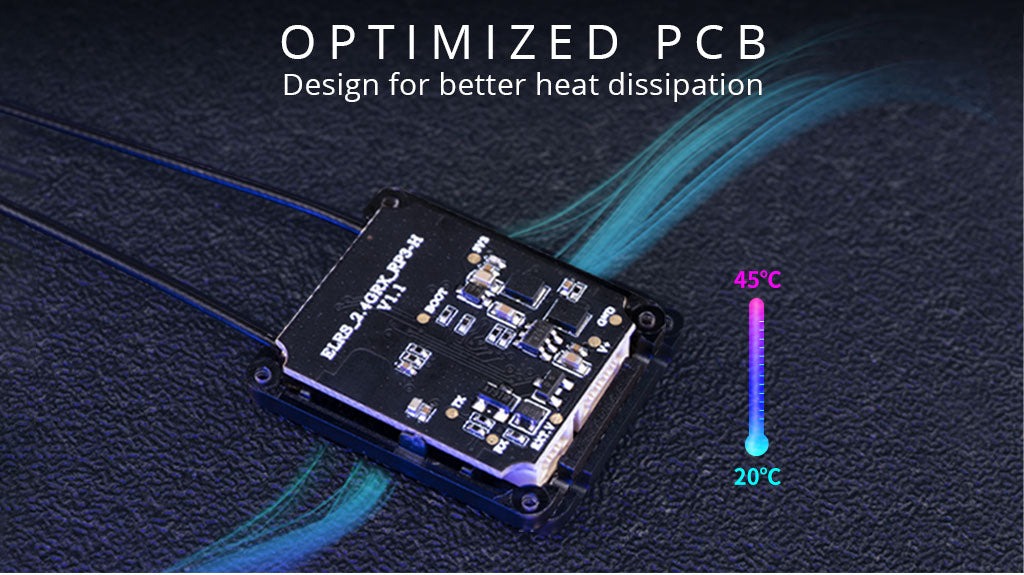

- Optimized PCB design for better heat dissipation

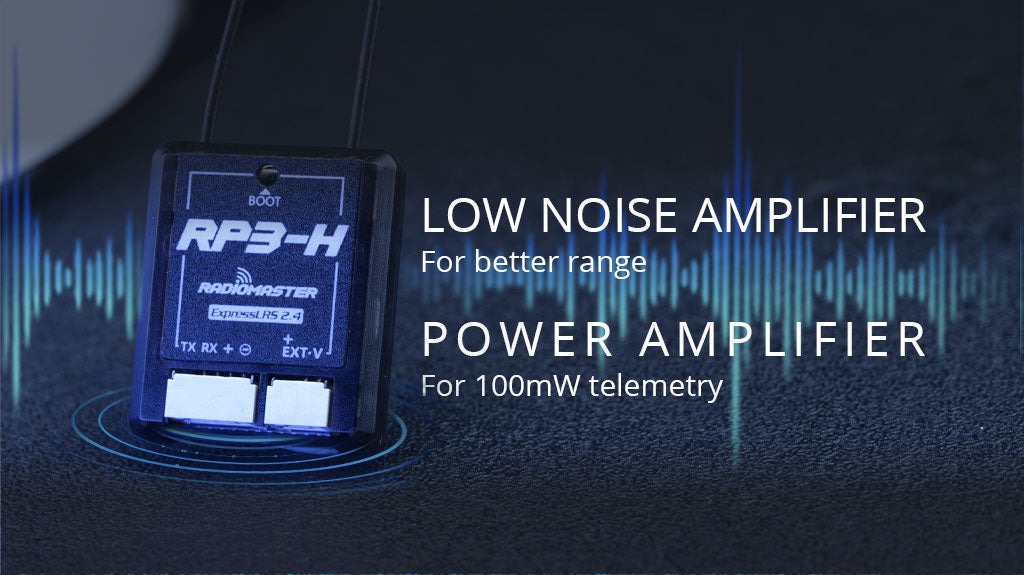

- LNA for better receiver range
- PA for better telemetry range

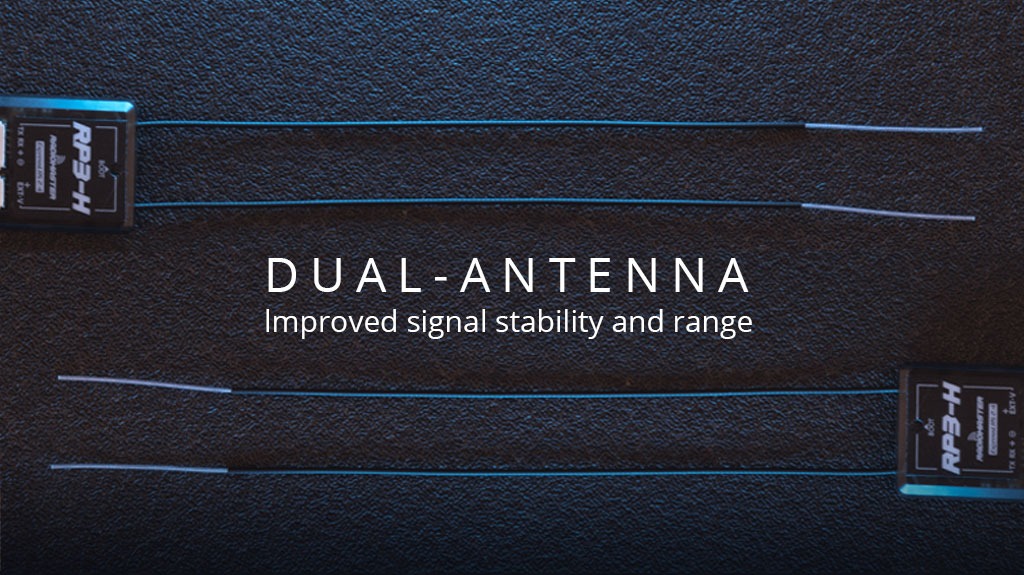

- Antenna Diversity for improved signal stability and range
- Built-in a TCXO (temperature compensated crystal oscillator)
- Automatically detects voltage telemetry of external battery voltage or receiver battery/ESC BEC voltage
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specifications:

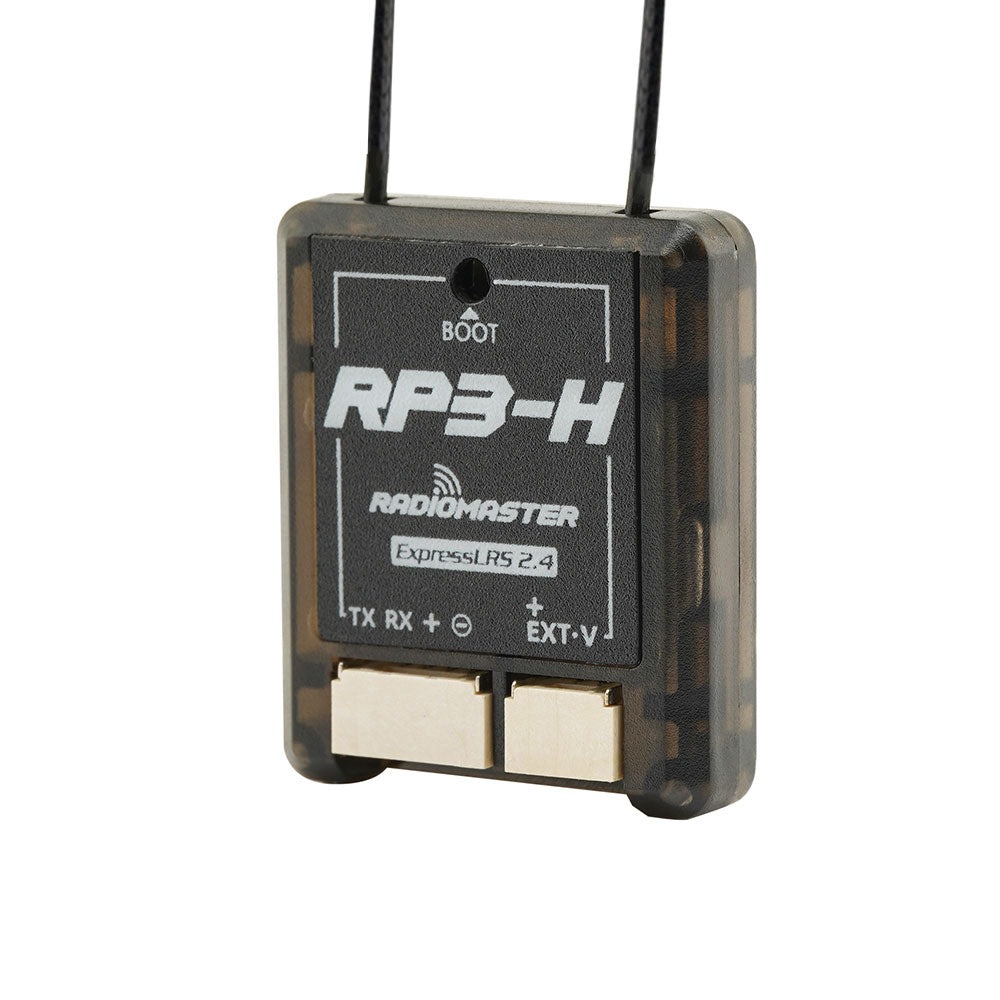

- Item: RP3-H ExpressLRS 2.4GHz Nano Receiver
- Type: ISM
- MCU: ESP8285
- RF Chip: SX1281
- Telemetry RF power: Max 100mW
- Antenna: 150mm 2.4GHz Antenna x2
- Frequency Range: 2.404 – 2.479 GHz
- Maximum receive refresh rate: 500Hz / F1000Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: DC 4.5 – 8.4V
- Battery voltage detection range: DC 4.0 – 35V
- Weight: 5.1g (Including two antenna)

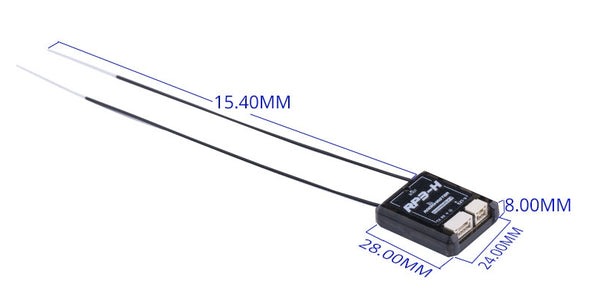

- Dimension: 28mm*24mm*8mm
- Firmware Version: ExpressLRS v3.3.1 pre-installed
- FW Target: RadioMaster RP3-H Diversity 2400 RX
- Bus interface: CRSF/S.Bus
Package Includes:
- 1 x RP3-H ExpressLRS 2.4GHz Nano Receiver
- 2 x 150mm IPX1 2.4GHz T Antenna (installed)
- 1 x JST-GH CRSF 4 wire Pigtail
- 1 x JST-GH 4 wire to JST-GH CRSF cable
- 1 x JST-GH 4 wire to single Servo pin (single dupont connectors)
- 1 x Voltage telemetry wire
- 1 x Quick start guide
