Description

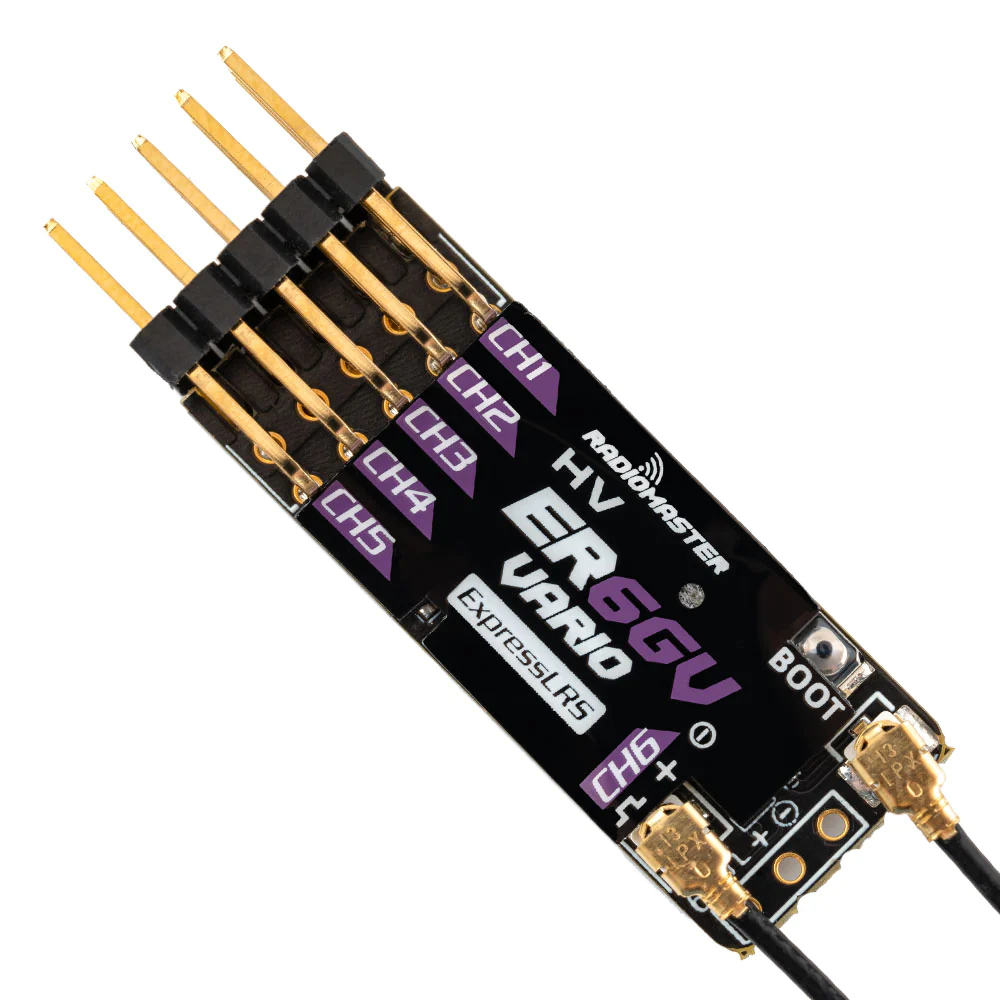

Note: both the ER6G and ER6GV are pictured in this listing but this is for the ER6GV with vario version.
The ER6G & ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.
The ER6G Receiver has the same functionality as the ER6GV only without a built in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a vario on their receiver.
Launch video
Features
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 6 PWM Channels
- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
- Supports Wi-Fi updates and WEBUI configuration

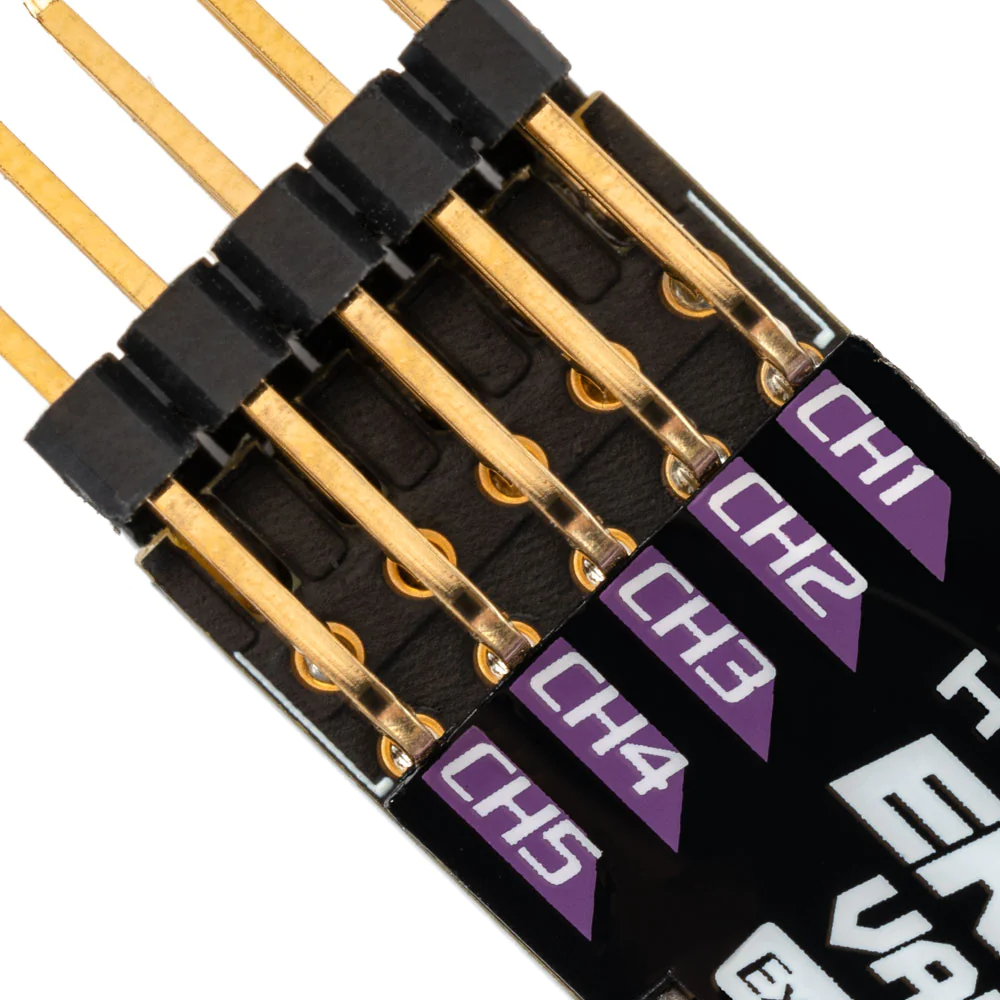

- High quality 2.54 mm connector
- Standard 15 cm High Sensitivity Antenna
- For fixed-wing aircraft and gliders
Specification (ER6GV)
- Item: ER6GV 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 – 8.4V
- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.2 pre-installed
- Output channel: 6CH PWM
- Return power: maximum 50mw (LUA Adjustable)
- Built-in high-precision air pressure sensor (Vario)
- Battery voltage detection range: DC 3.0 – 26V
- Weight: 5.0 grams

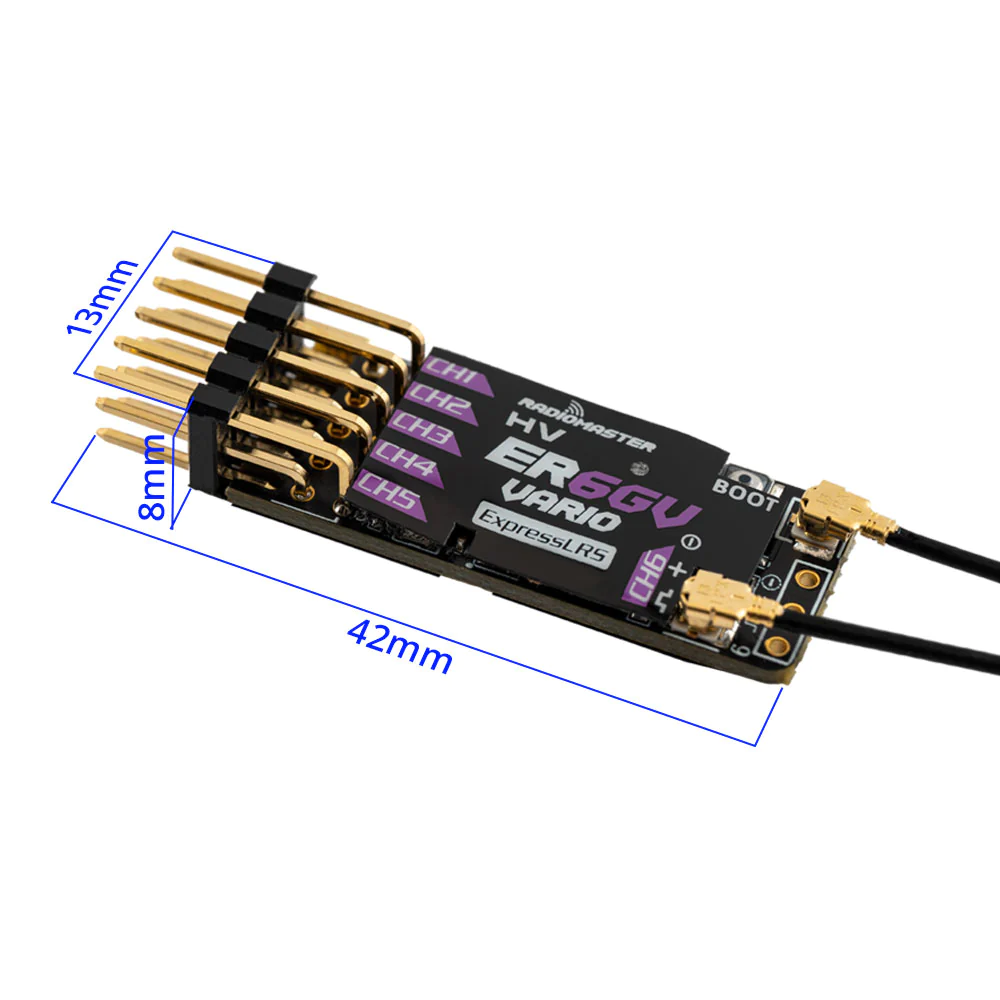

- Dimensions: 42*13*8mm
- Firmware:Â Device Category: Radiomaster 2.4Ghz /Â Device: Radiomaster ER6GV
Size
Package Includes
- 1 * ER6G or ER6GV 2.4GHz ELRS PWM Receiver
- 1 * Voltage telemetry wire (Type-A)
- 2 * Heat-shrink tube
- 1 * User Card
