Description

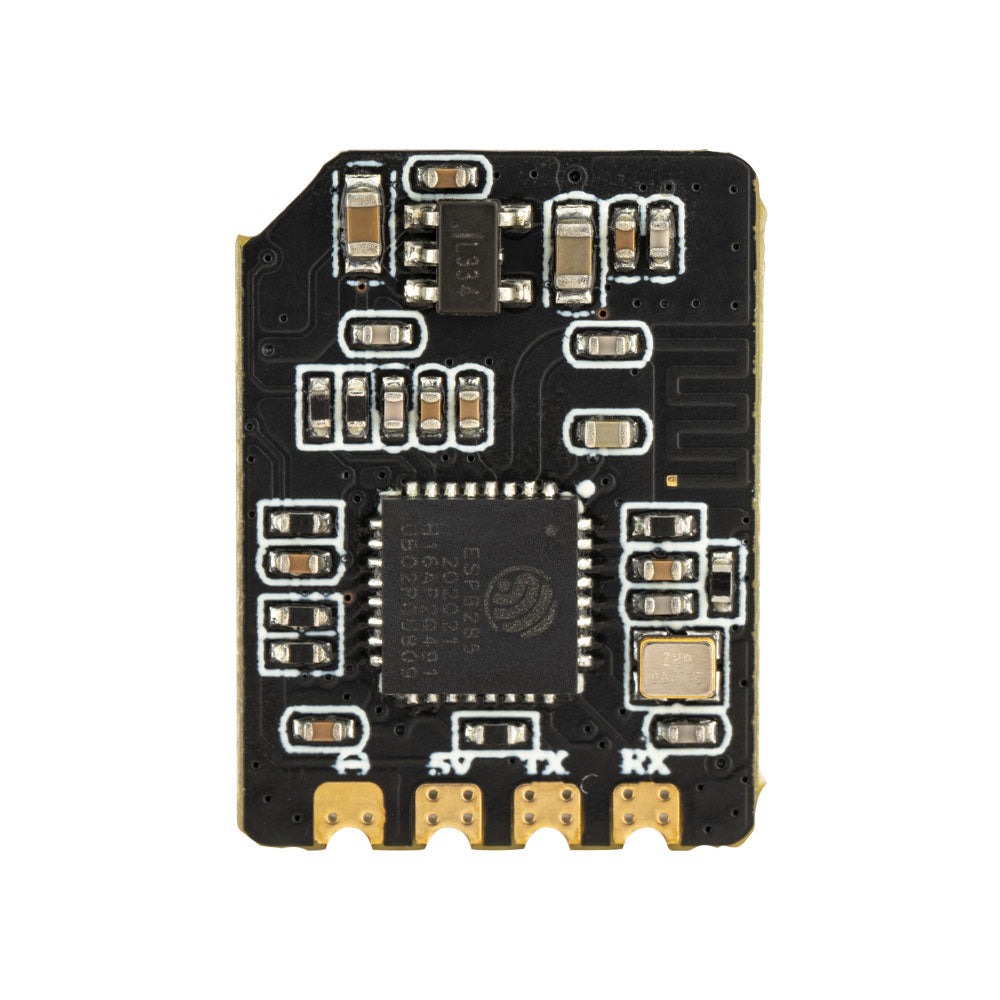

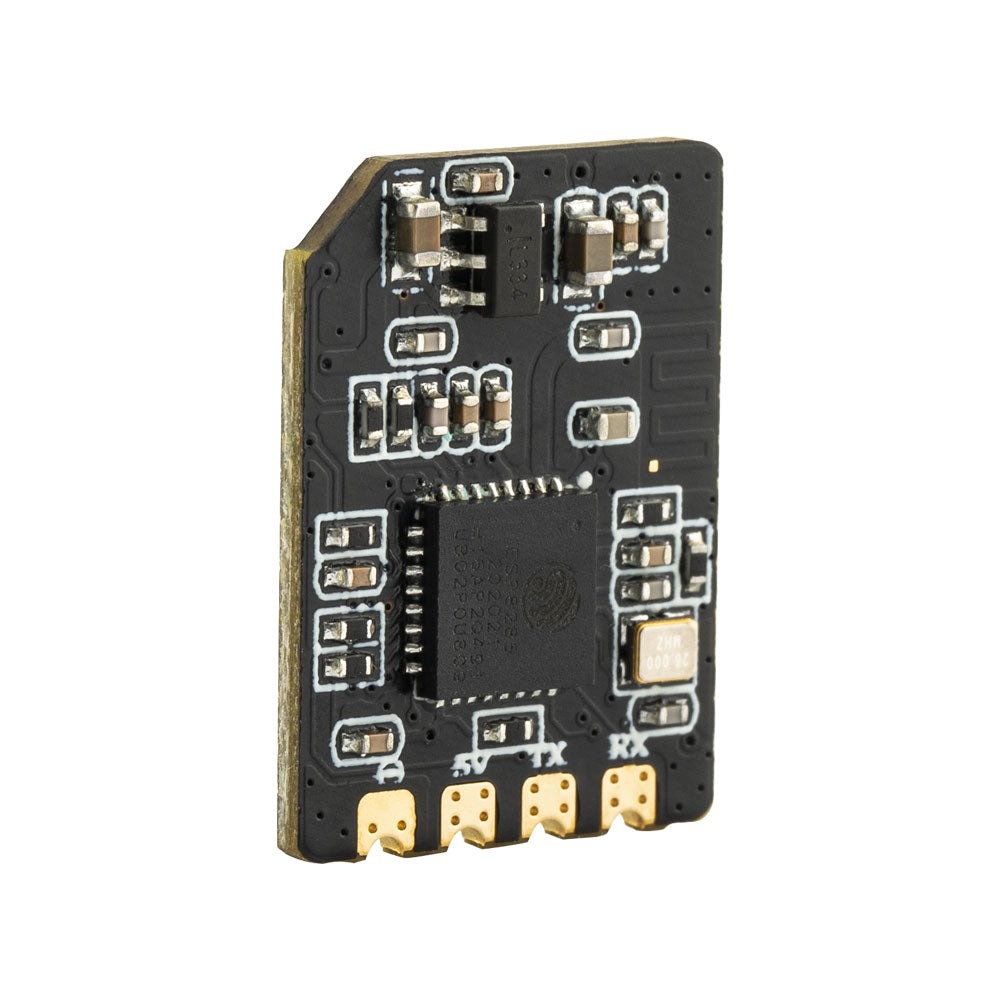

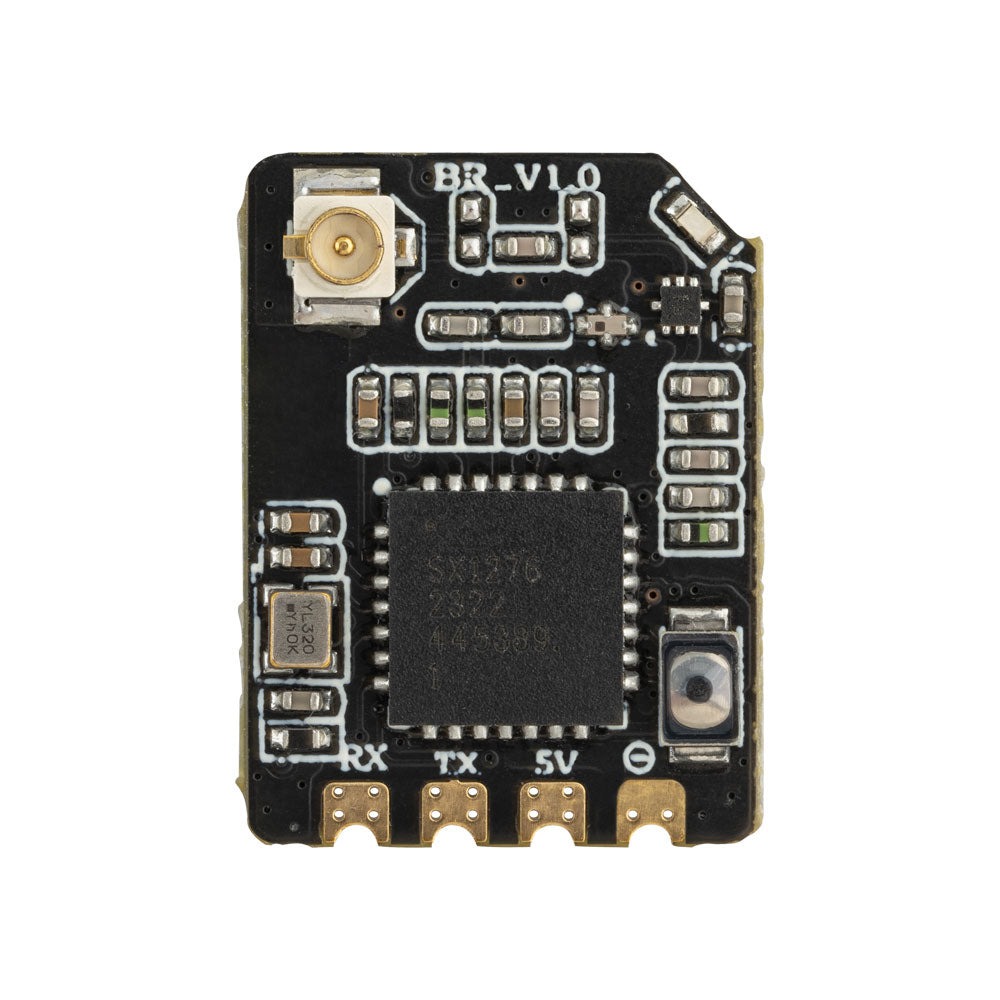

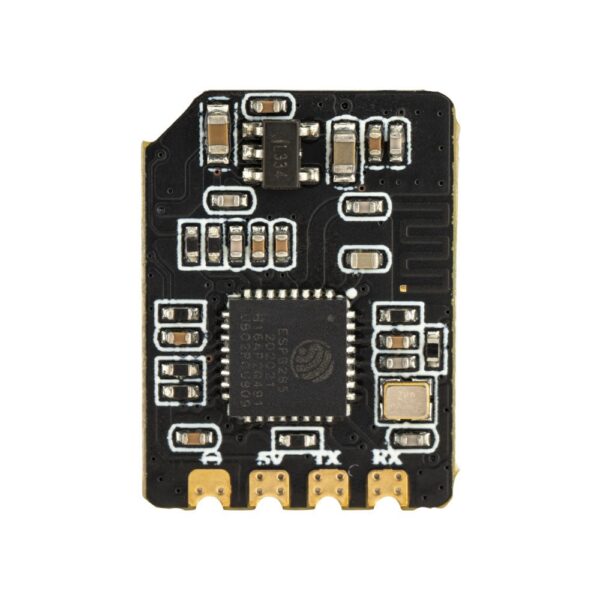

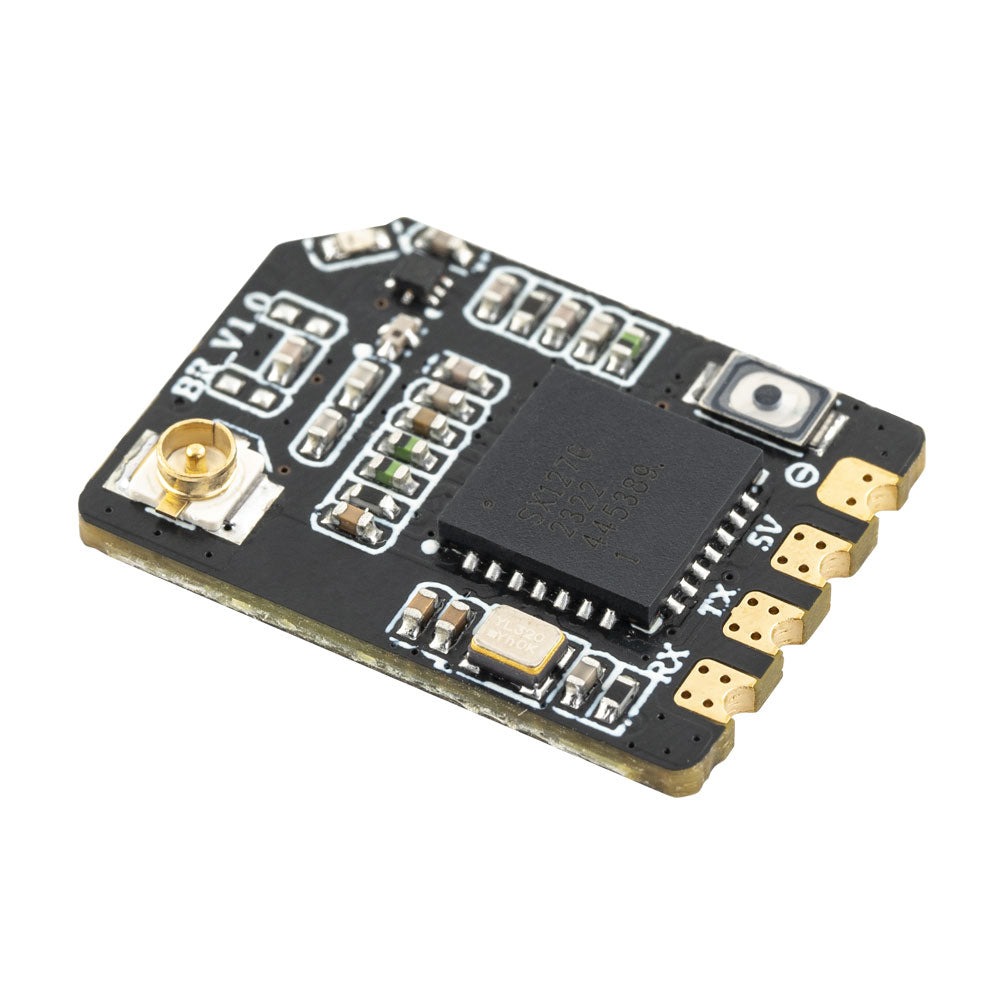

The RadioMaster BR1 915mHz ExpressLRS Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR1 ExpressLRS receiver also features superior resistance to vibration.

Features:

• Built-in TCXO oscillator
• Utilizing 0402 components, superior resistance to vibration
• Lightweight and compact design

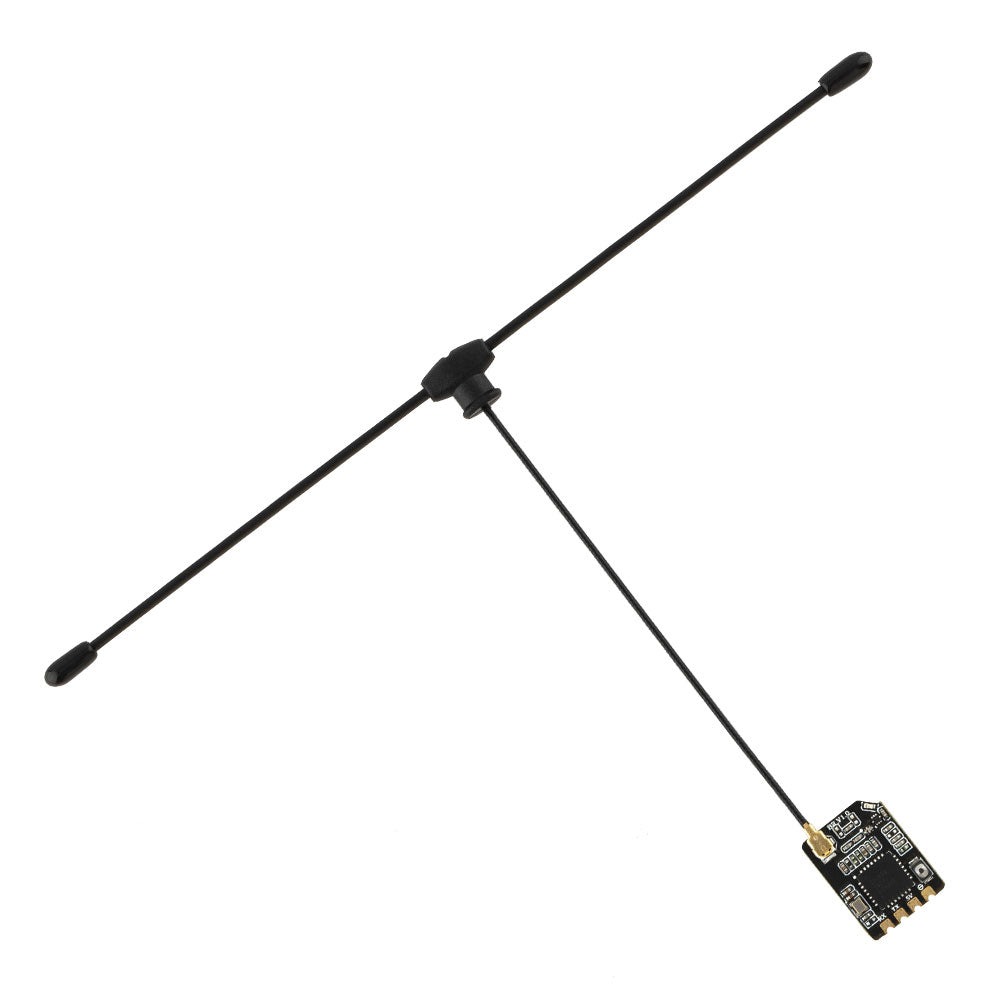

• High-sensitivity 915/868MHz T Antenna included

Specifications:

• Item: Bandit BR1 Expresslrs Receiver
• Regulatory Domain: FCC915
• MCU: ESP8285
• RF Chip: SEMTECH SX1276
• Telemetry RF Power: 50mw/17dbm
• Antenna: 915/868MHz T Antenna & Y Antenna
• Antenna Interface: IPEX1
• Bus Interface: CRSF
• Working Voltage: DC 5.0V
• Dimension: 18*13.8mm
• Weight: 2.9g (with T antenna)

Dimensons:

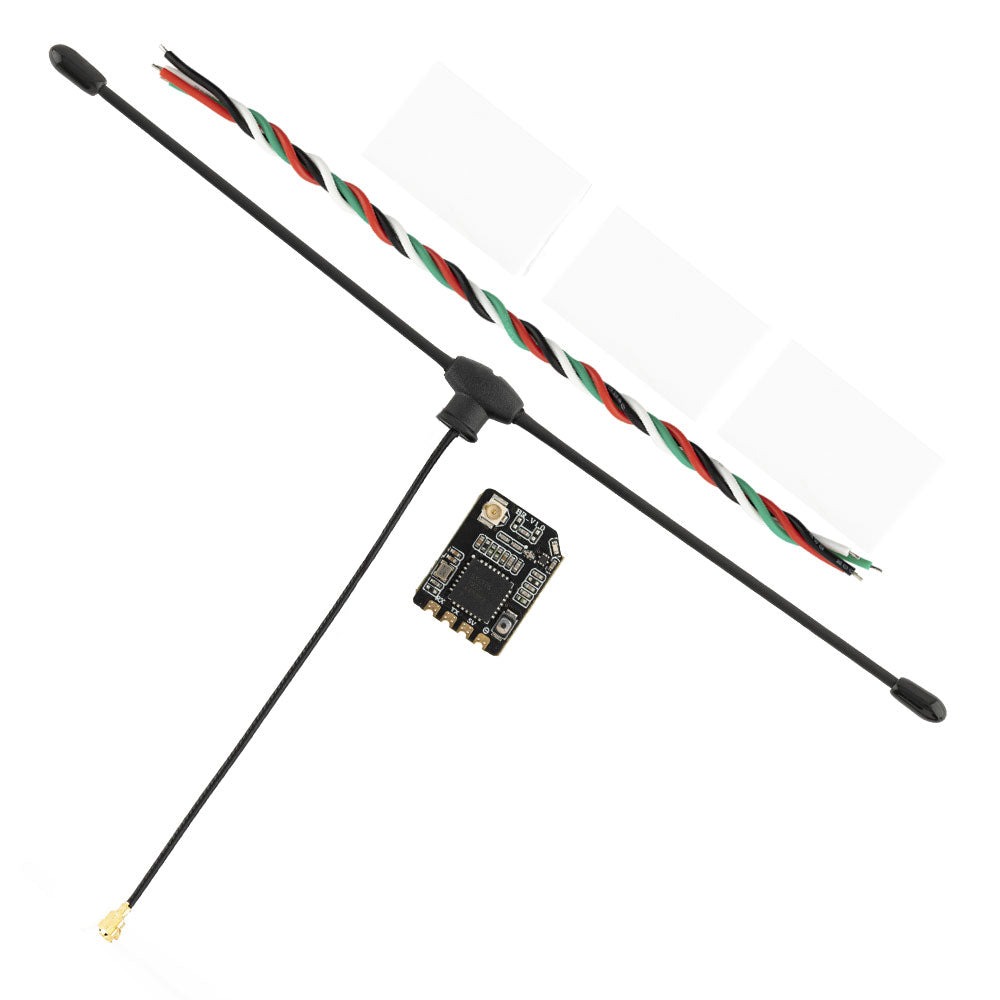

Package Includes:

• 1 * Bandit BR1 Expresslrs Receiver
• 3 * Receiver Shrink Tube Sleeves
• 1 * T Antenna
• 1 * CRSF Wire
• 1 * Manual
