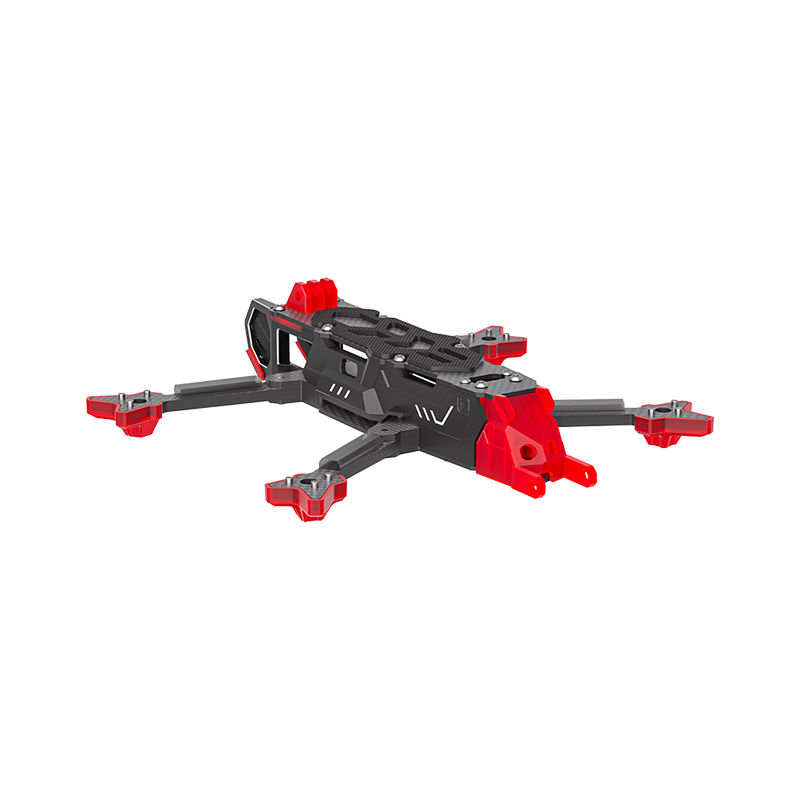

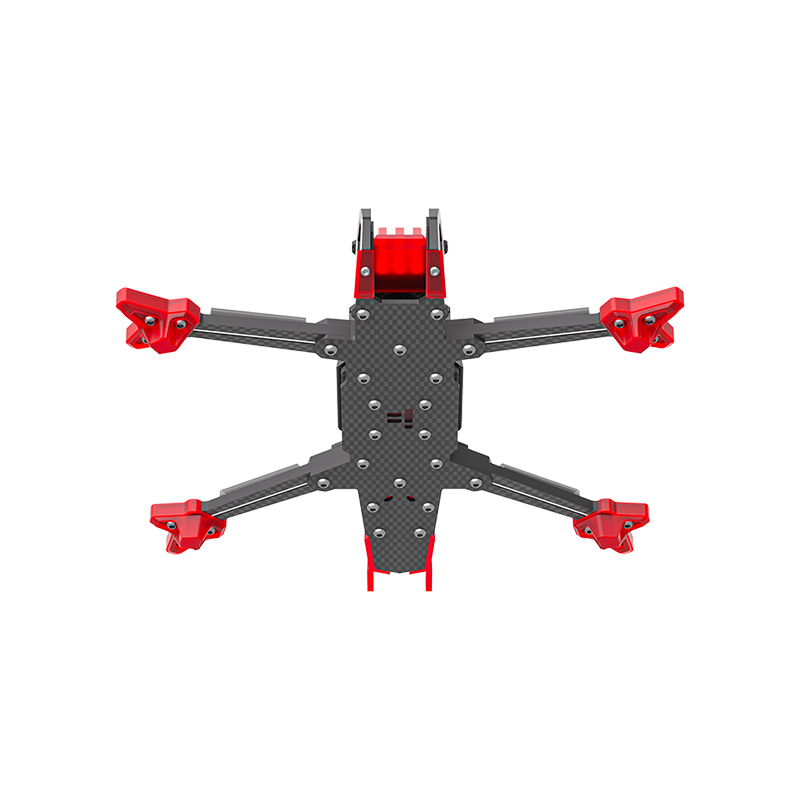

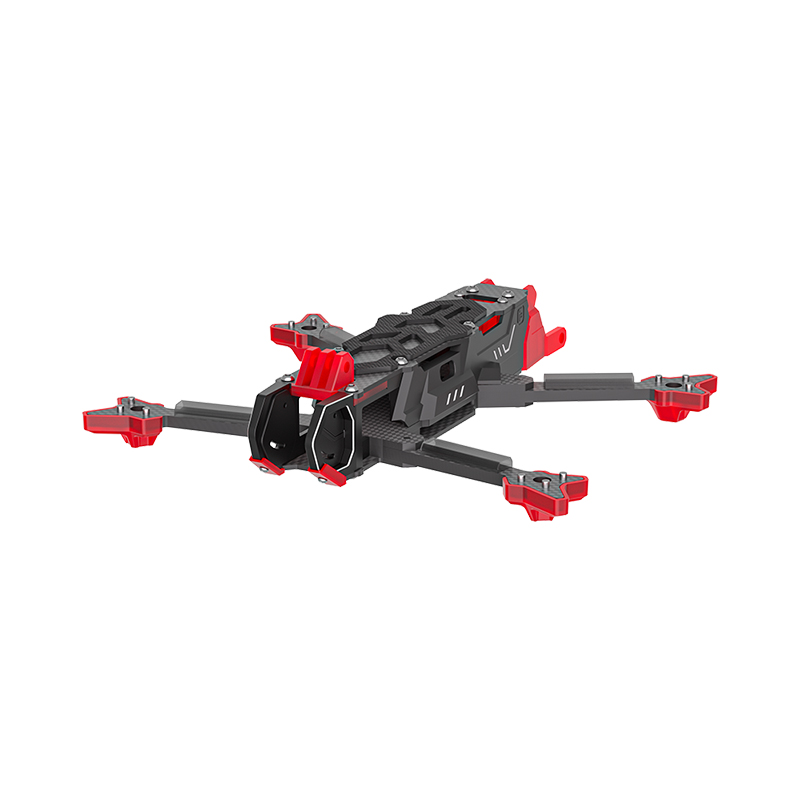

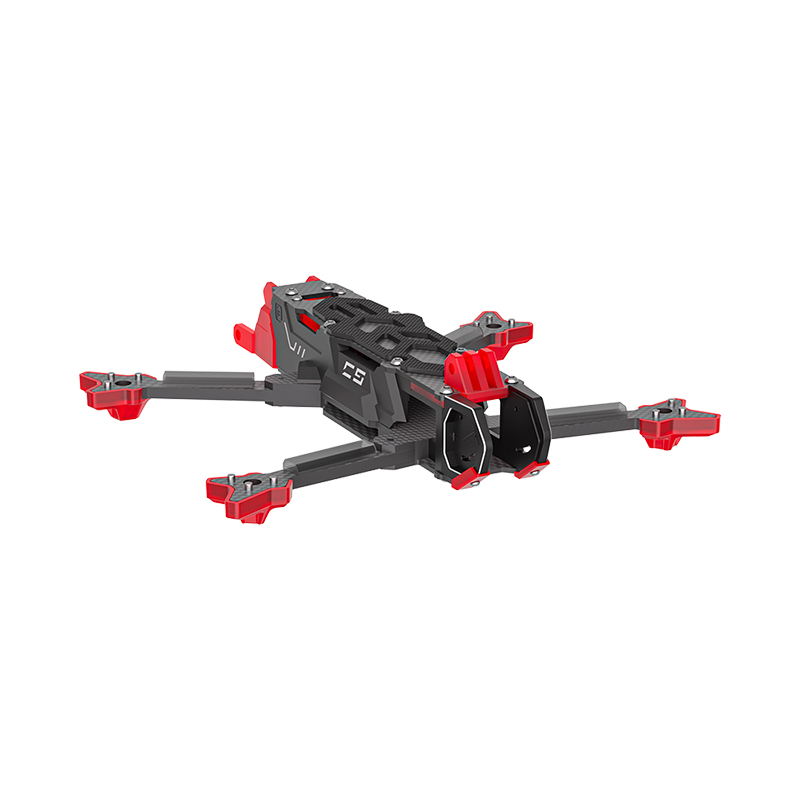

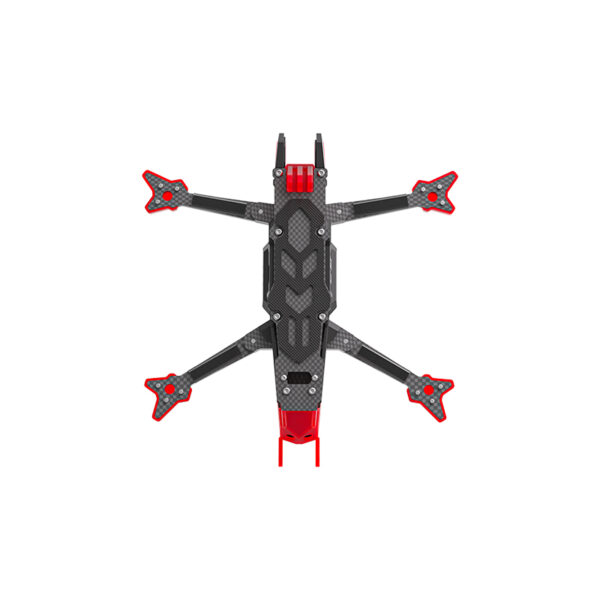

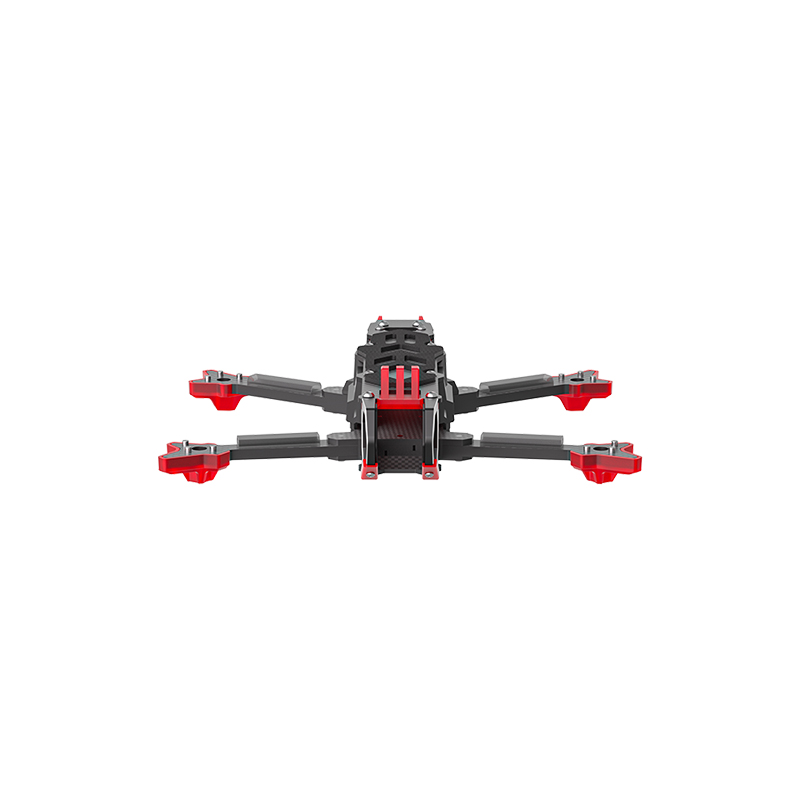

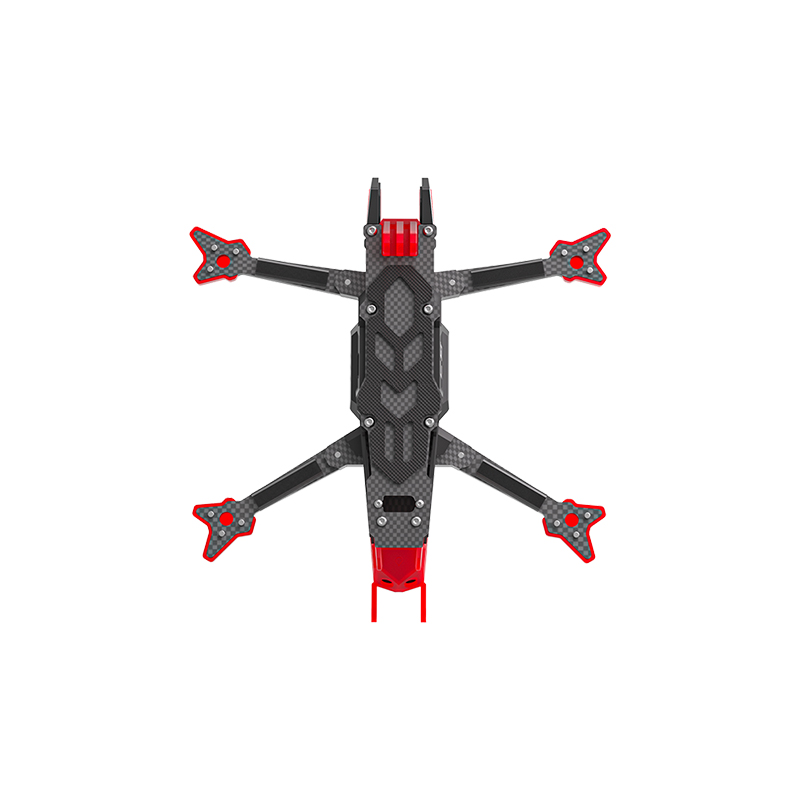

iFligjht SH CineFlow 5 O4 Frame Kit

(2 customer reviews)

Experience ultra-HD clarity, unmatched stability, and a prop-free view with this aerodynamic, precision-engineered frame built for limitless exploration.

$169.99

Out of stock

SKU: 9057

Description

The iFlight SH CineFlow 5 O4 Frame Kit redefines FPV with its prop-free view, optimized aerodynamics, and precision engineering. Featuring quick-release side panels for effortless maintenance, an integrated action camera mount for sleek aesthetics, and a rear-mounted power connector for superior weight distribution, it ensures maximum stability. Pair it with the DJI O4 Air Unit for ultra-HD visuals and an unrivaled flight experience across land, sea, and sky.

Features:

  • Quick-release side panels

Provide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.

  • Integrated Action Camera Base Mount

Sleek and integrated design, redefine aesthetics.

  • Rear-mounted Power Connector

Optimized weight distribution for improved flight stability and precision.

  • Reinforced Arm Base

Strengthened the connection between the arm base and the drone to improve durability.

Specifications:

  • Product Name:SH CineFlow 5 O4 Frame Kit
  • Wheelbase: 222mm
  • Frame Dimension: L182*W133*H42 mm
  • Arm Thickness: 5mm
  • Bottom Plate Thickness: 2mm
  • Top Plate Thickness: 2mm
  • Upper Plate Thickness: 3mm
  • Mid-Lower Plate Thickness: 5mm
  • Max Flight Stack Height: 20mm
  • Max VTX Height: 22mm
  • Flight Stack Mounting: 20*20/Φ3mm
  • Motor Mounting: 16*16/Φ3mm
  • VTX Mounting: 25.5*25.5/Φ2mm
  • Weight: 220g±5g
  • Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit

Package Includes:

  • 1 x SH CineFlow 5 Frame Kit
  • 2x IPEX to RP-SMA Antenna Pigtails
  • 1 x TPU Set
  • 1 x GoPro TPU Base Mount
  • 1 x Screw Bag
  • 2 x Anti-slip Battery Pad
  • 2 x Battery Strap
