Description

Special Order: Please email us for details [email protected]

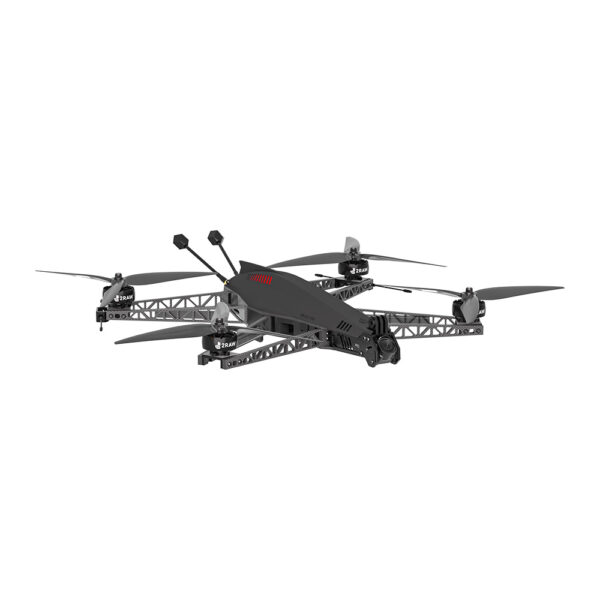

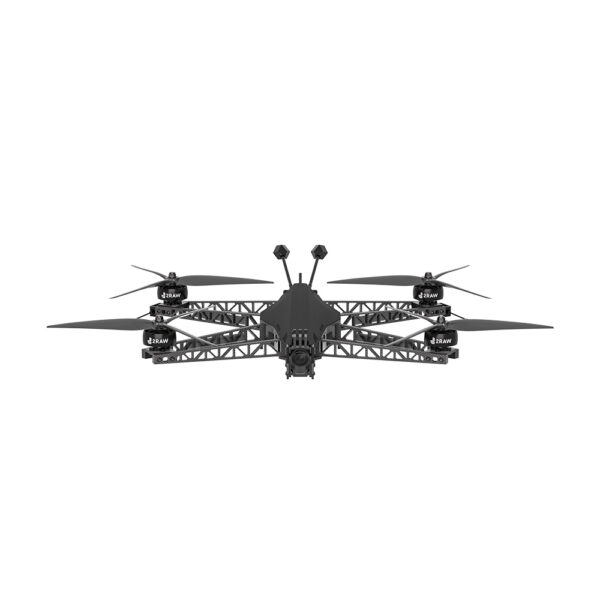

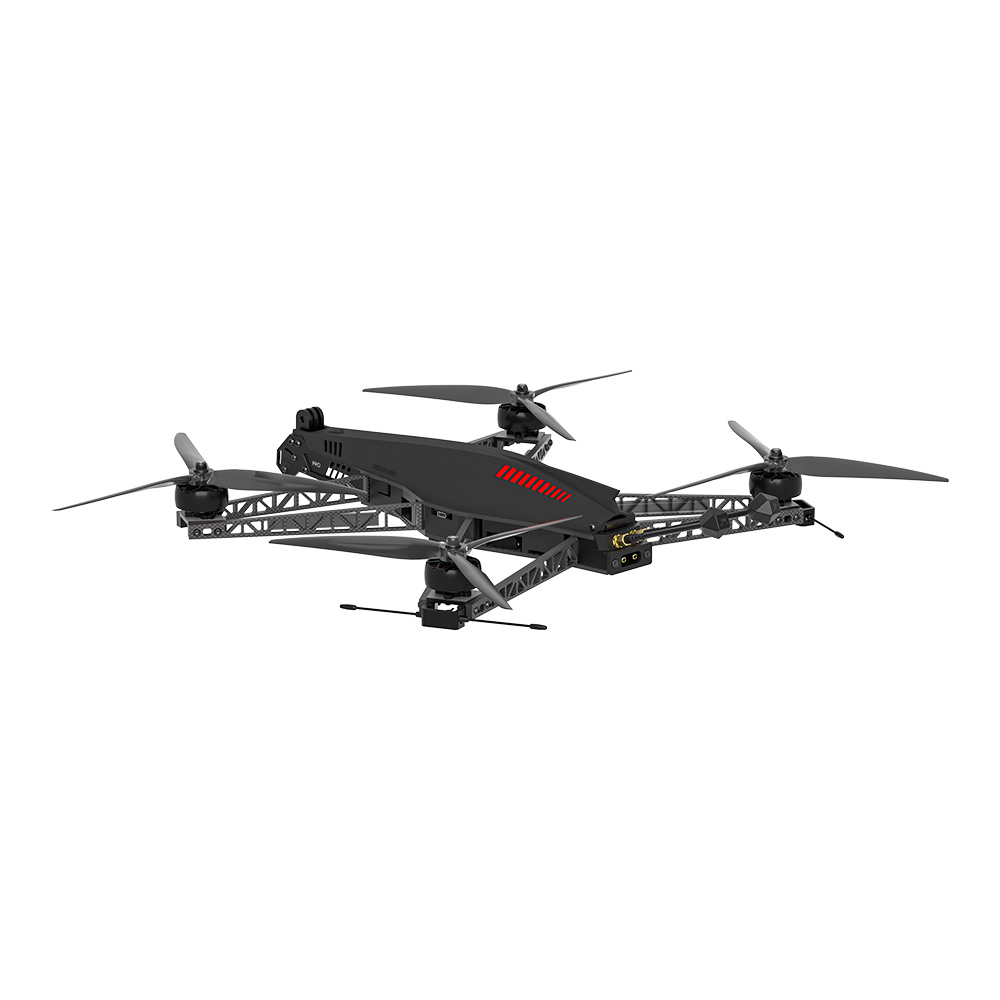

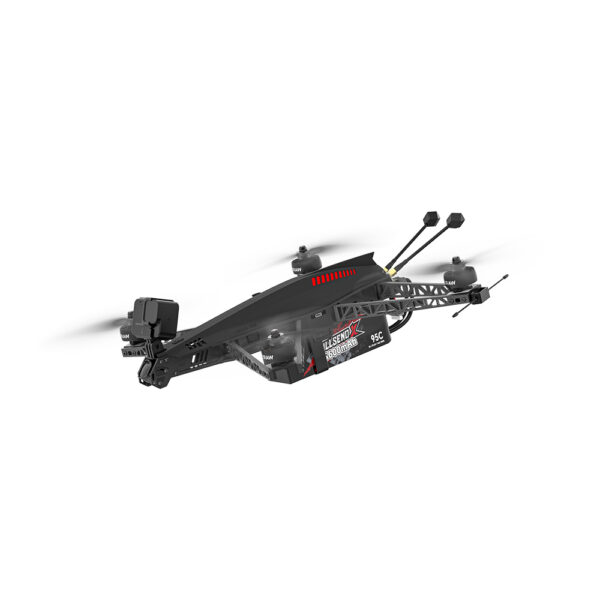

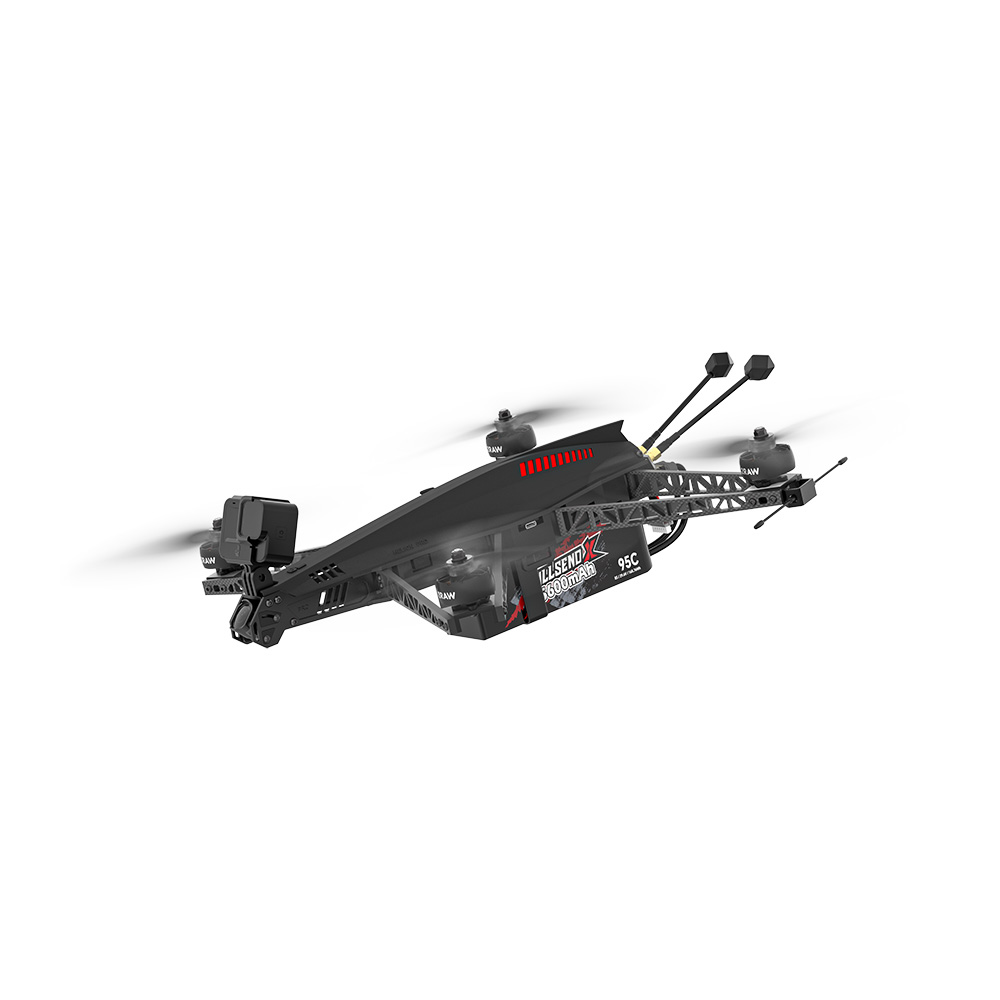

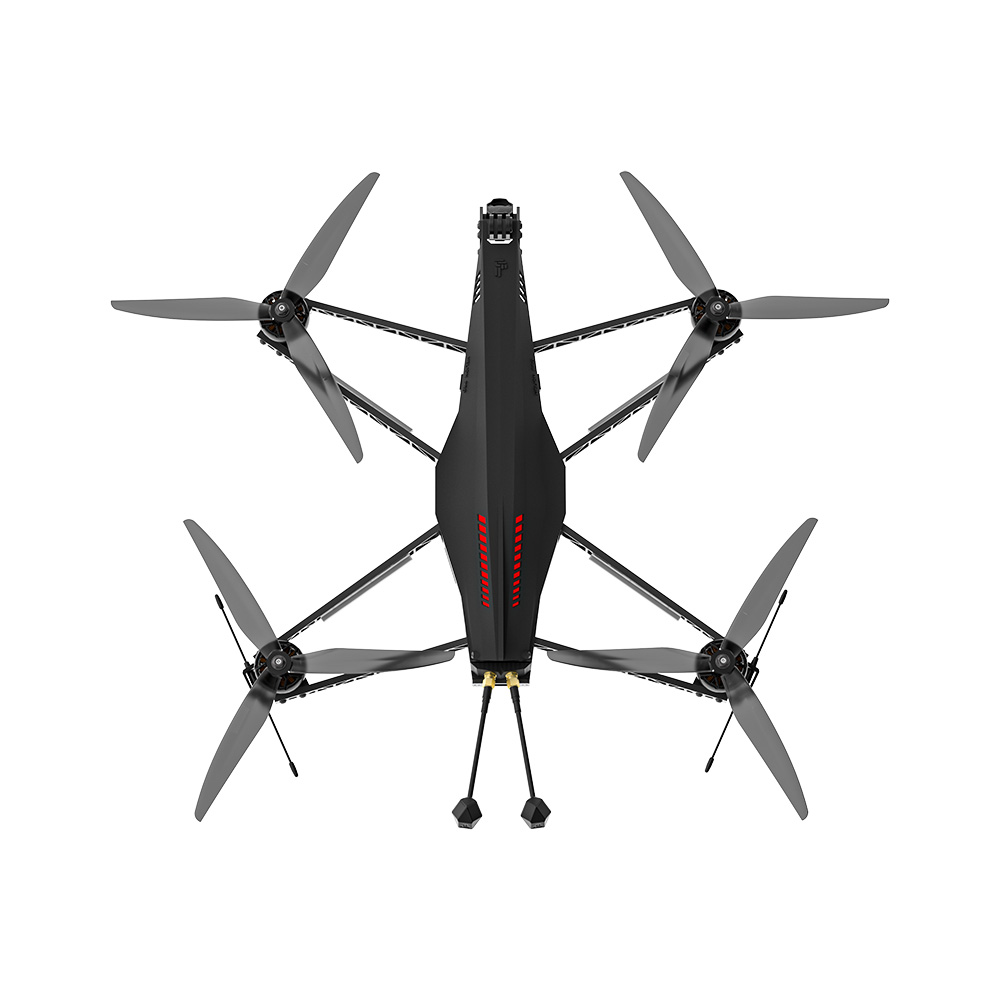

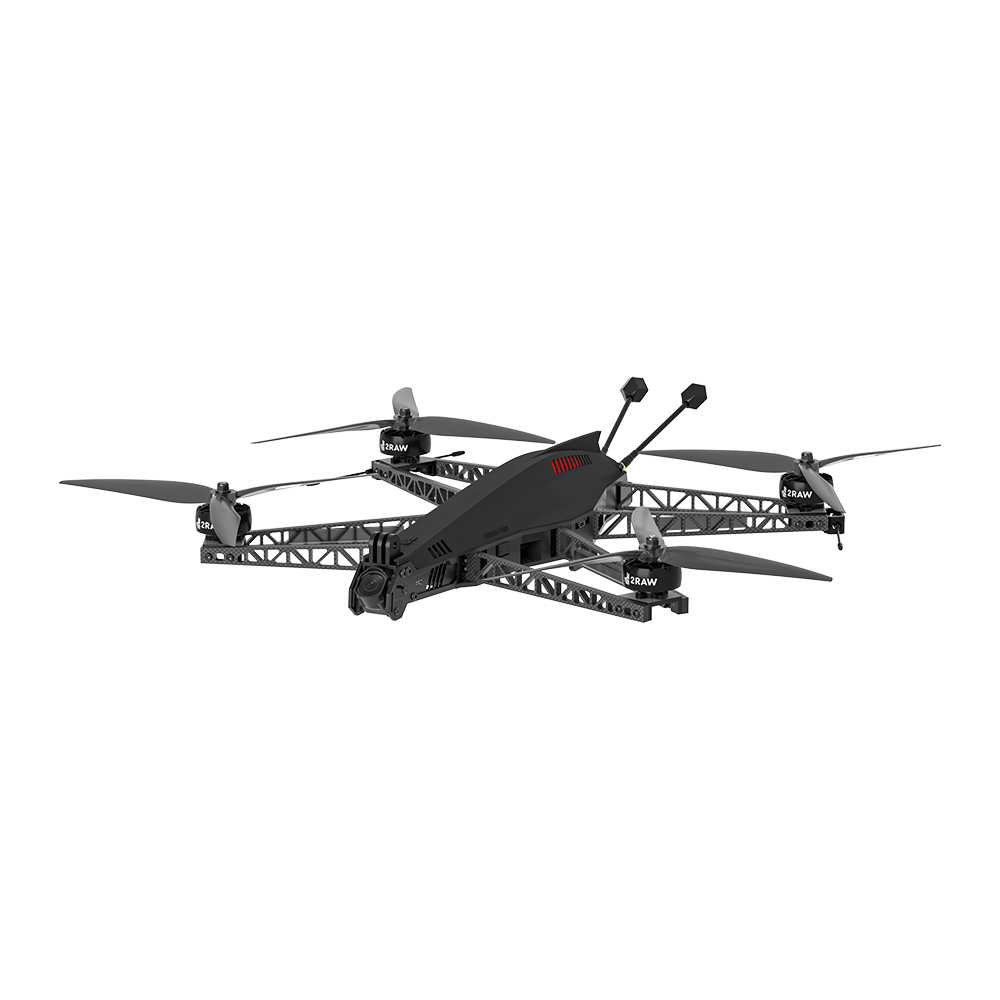

The iFlight Helion Pro O4 6S HD is the ultimate long-range FPV drone built for uncompromising power, range, and control. With a 10-inch prop system, optimized XING motors, aerodynamic shell, and premium electronics, it delivers unmatched stability, better dive recovery, and 4K stabilized video — all while flying farther, longer, and smarter with low-latency DJI O4 transmission, USB-C power, and GPS safety features designed for high-altitude, high-performance missions.

Features

• Optimized Motors & Propellers

  • Latest XING motor fine-tuned for a perfect balance between thrust and efficiency

  • Matched precisely with 10-inch Gemfan propellers

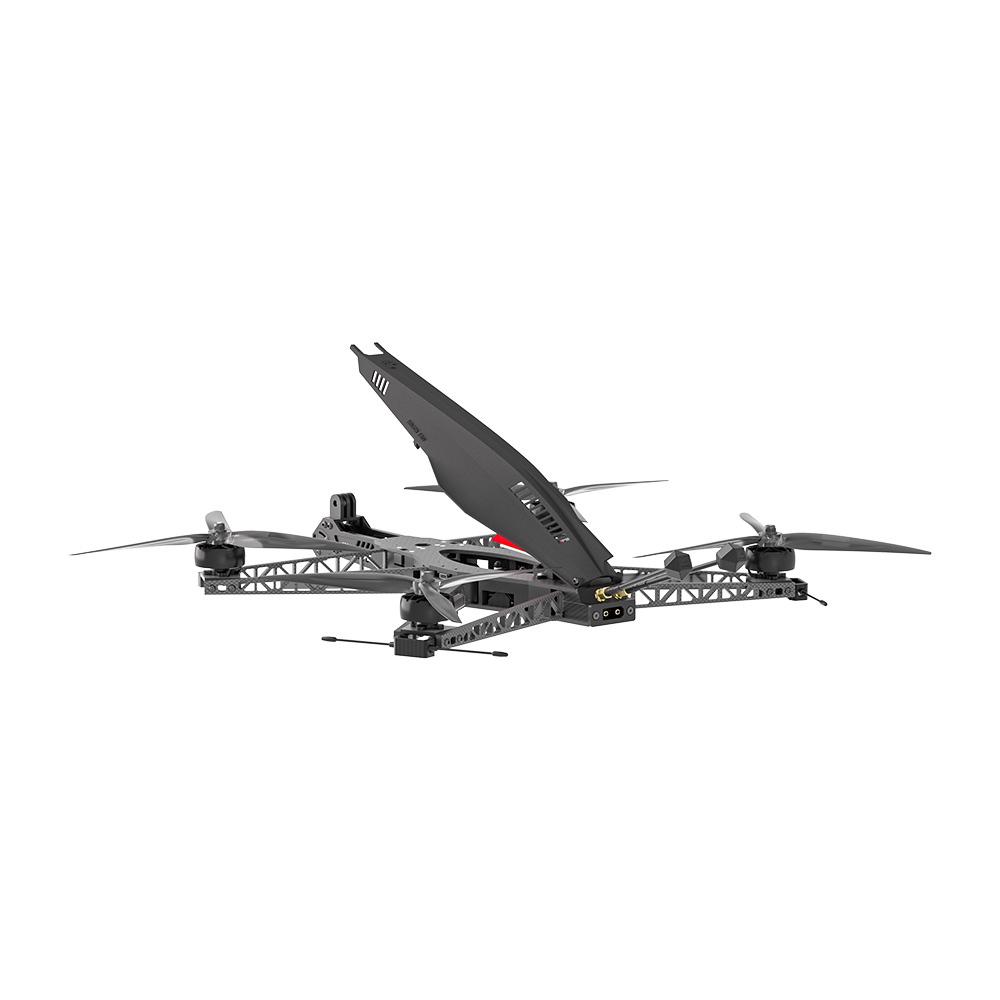

• Aero-Shell Design

  • Unique aerodynamic shell protects core components

  • Easy to open and close for convenient maintenance access

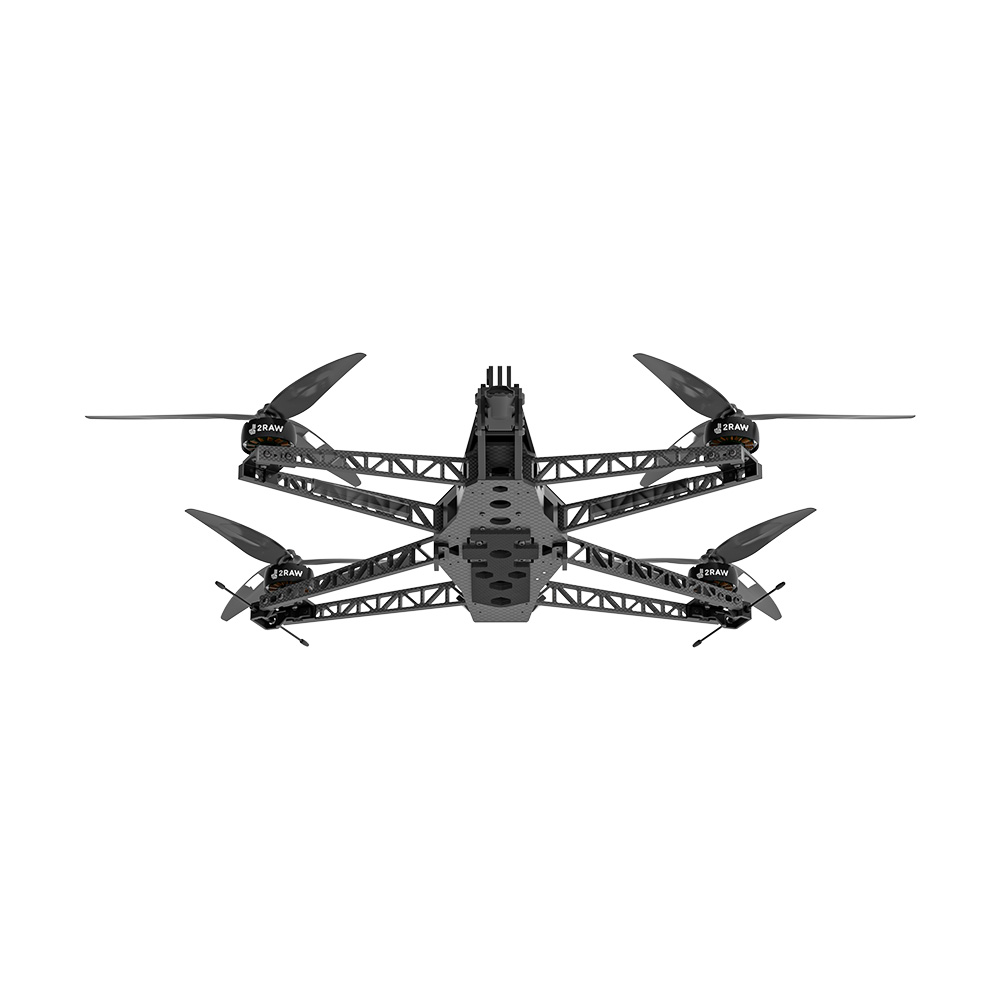

• Advanced Truss Arms

  • 2RAW truss arm design ensures high strength-to-weight ratio

  • Exceptional torsional resistance for enhanced durability

• Premium Electronics Package

  • Equipped with 2RAW H7 Thunder flight controller and BLITZ E55 ESC

  • Minimizes electrical noise for ultra-smooth flight performance

• USB-C Power Integration

  • Built-in USB-C plug to power action cameras

  • Future-proof for compatibility with upcoming camera systems

• DJI O4 Air Unit Pro

  • Low-latency digital transmission with up to 15 km range

  • Crisp, stable real-time FPV even in high-interference environments

• 4K Stabilized Video with 155° Ultra-Wide Angle

  • Delivers high-grade imaging for immersive visuals

  • Ideal for content creation with stunning field of view

• Pre-Installed GPS for Long-Range Safety

  • GPS Rescue mode ready (default OFF, instructions included)

  • Custom iFlight 100mm LR antenna for optimal long-range signal coverage

Specifications

• Flight Controller (FC): Thunder H7 Flight Controller

• ESC: BLITZ E55 4-IN-1 2–6S 55A ESC

• Video Transmission: DJI O4 Air Unit Pro

• Frame Wheelbase: 414 mm

• Motors: Helion 10 3110 900KV

• Propellers: GEMFAN 1050 (10-inch)

• Weight (Dry): 1070g ± 20g

• Takeoff Weight: Approx. 1903g ± 20g (with 6S 5600mAh battery)

• Dimensions (L × W × H): 374 × 362 × 70 mm

• Max Speed: 140 km/h

• Max Takeoff Altitude: 7000 m

• Max Hover Time: Approx. 26–27 mins (with 6S 5600mAh battery)

• Max Cruising Time: Approx. 8–9 mins at 80 km/h (with 6S 5600mAh battery)

• Operating Temperature: -20°C to 40°C

• Antennas: Dual antennas

• GNSS System: GPS + SBAS + Galileo + QZSS + GLONASS

Video Transmission

• Image Sensor: 1/1.3-inch

• Lens: FOV: 155°

• ISO Range: 100–25600

• Video Resolution: 1080p at 100fps, H.265

• Video Format: MP4

• Max Video Bitrate: 130 Mbps

• Color Modes: Normal Mode, D-Log M

• Stabilization: RockSteady 3.0+

  • Note: Stabilization function off; when RockSteady is enabled, only standard shooting angle is supported

• Live View Quality: 1080p @ 100fps

• Operating Frequency:

  • 5.170–5.250 GHz

  • 5.725–5.850 GHz

• Transmitter Power (EIRP):

  • 5.1GHz: <23dBm (CE)

  • 5.8GHz: <33dBm (FCC) / <14dBm (CE) / <30dBm (SRRC)

• Max Video Transmission Range (with DJI Goggles 3/N3):

  • 15 km (FCC)

  • 8 km (CE/SRRC)

• Communication Bandwidth: Max 60 MHz

• Antenna: Dual antennas

• Built-in Storage: 4GB

• Supported microSD Cards: Up to 512GB

• Operating Temperature: -10°C to 40°C

• Weight: Approx. 32g (with camera module)

• Dimensions (Transmission Module): 33.5 × 33.5 × 13 mm (L×W×H)

Package Includes

• 1 × Helion Pro O4 6S HD

• 1 × Battery Pad

• 2 × GEMFAN 1050 Propeller Pairs

• 2 × Battery Straps

• 1 × Screw Bag

• 1 × Amass XT90 to XT60 H Adapter Cable
