Description
Note: iFlight refer to 100mm also as 130mm in some listings

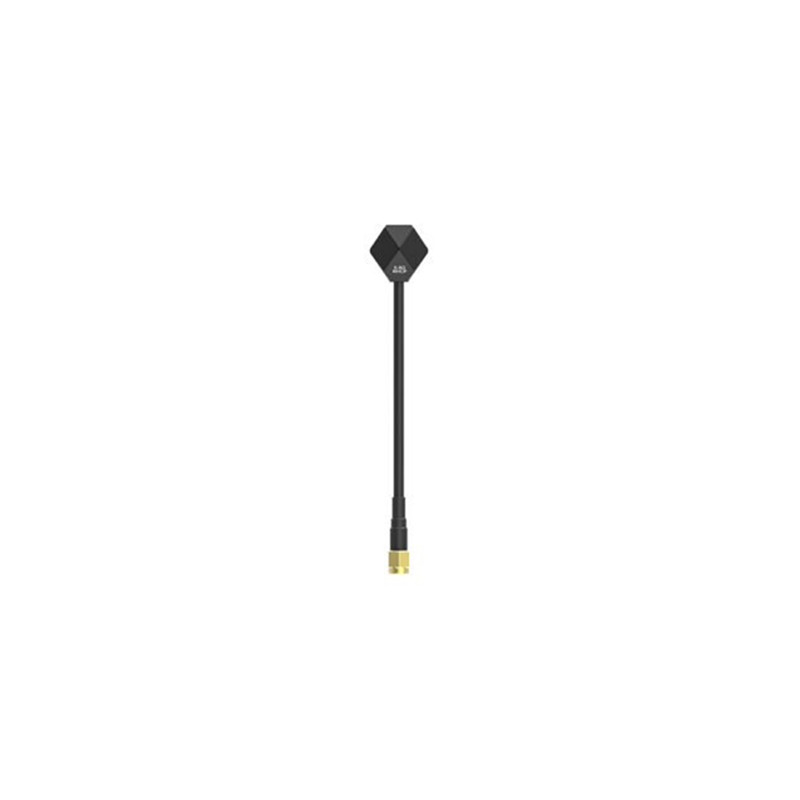

The iFlight Albatross V2 5.8GHz RHCP SMA Antenna 100mm has upgraded welding technology and a unique rugged design, this antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2 antenna.
Features:

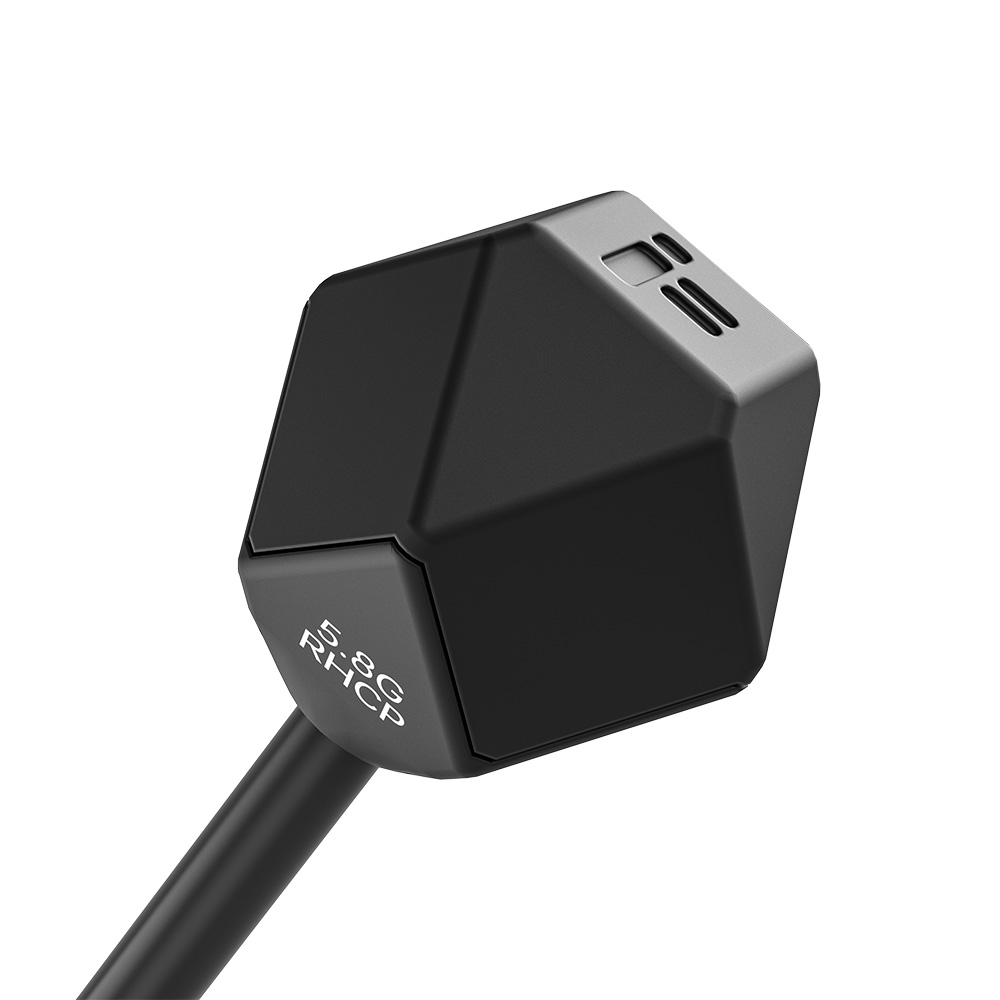

- A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
- Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
- Achieves higher consistency in antenna gain, thereby improving device performance and stability.
Specifications:
- Model: Albatross 5.8GHz RHCP SMA FPV Antenna

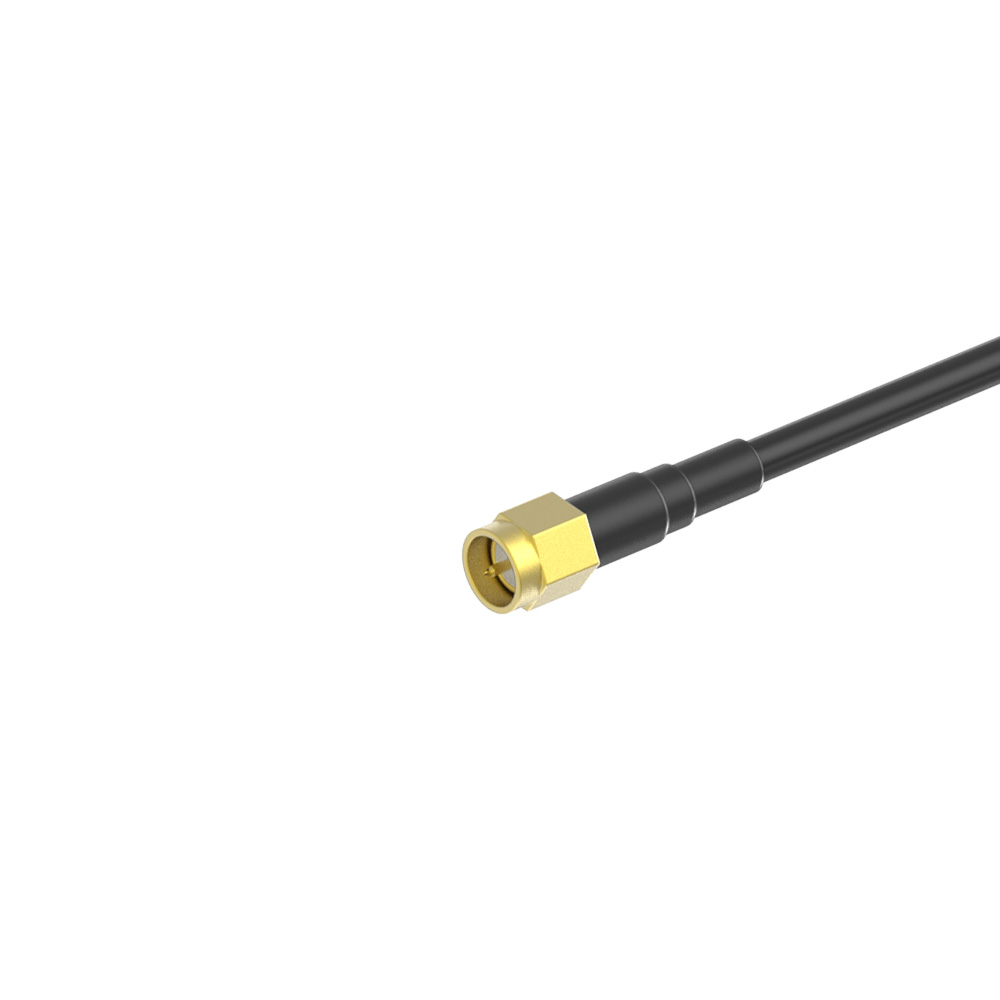

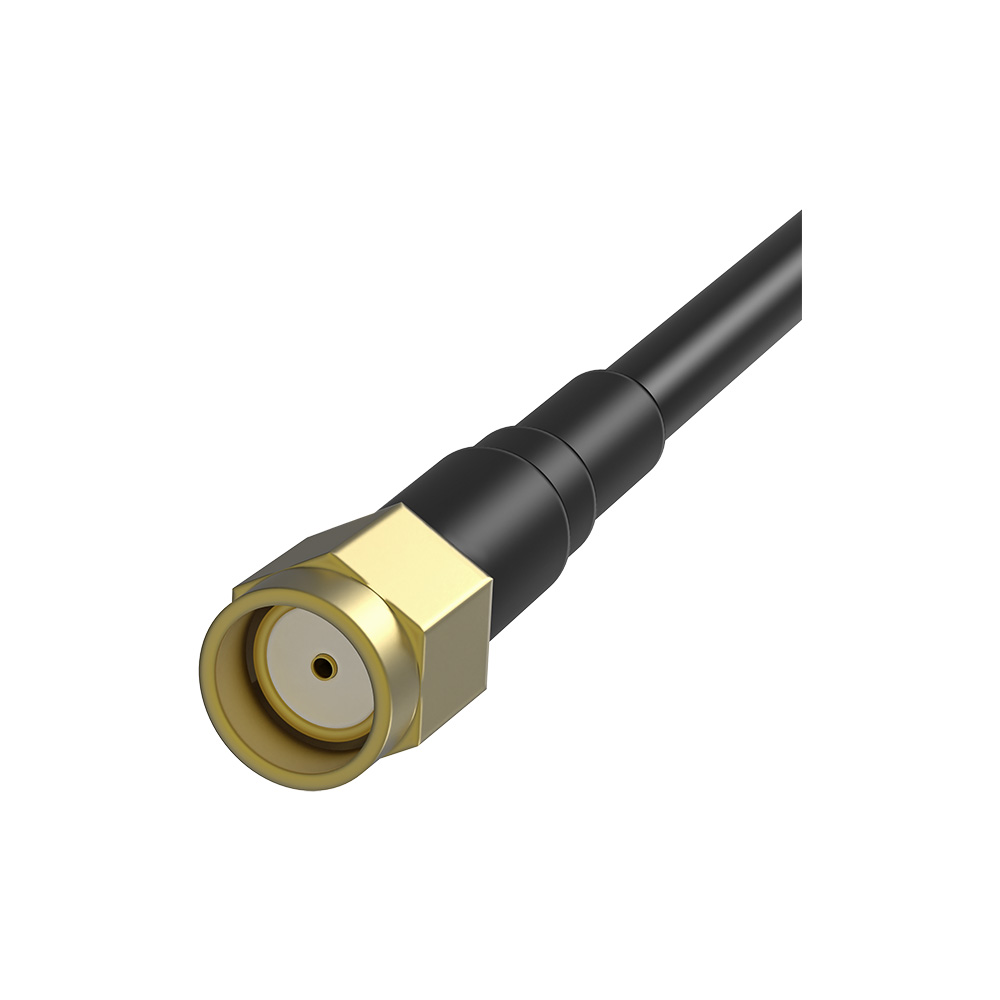

- Interface: RHCP SMA
- Frequency range: 5.3GHz-6GHz
- Max Gain: 2.65dBi (5695MHz)
- MIN Gain: 2.06dBi (5362MHz)
- AVG Gain: 2.4dBi
- MAX VSWR: 1.76(5917MHz)
- MIN VSWR: 1.46(5621MHz)
- AVG VSWR: 1.75
- MAX radiation efficiency: 86%(5436MHz)
- MIN radiation efficiency: 76%(5917MHz)
- AVG radiation efficiency: 83%
- Polarization: RHCP
- Cross polarization suppression: -25dB
- Axial Ratio:≤3
- Cable: RG141
- Weight: 9.5g
- Size: Total length: 125mm, cable length:100mm
Package Includes:
- 1 x Albatross V2 5.8GHz 100mm Antenna
