Description

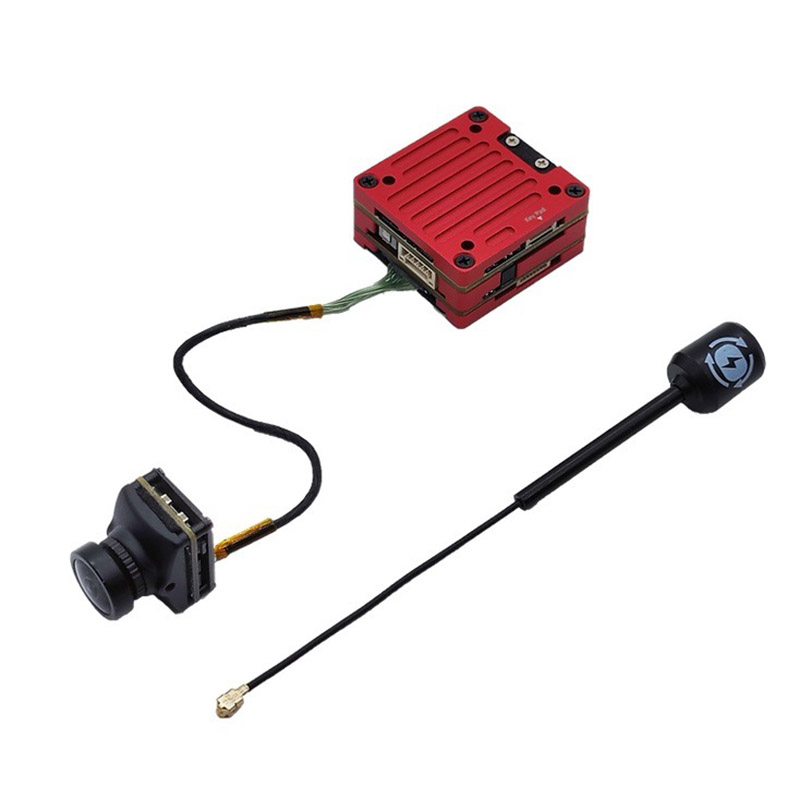

The HDZero Freestyle V2 Kit is the second-generation 5.8GHz digital video transmitter, designed for 3-5 inch HD drones. It features durable construction with a CNC-machined case, offering RF shielding and improved signal integrity. The VTX includes a wire harness for a solderless power and MSP UART connection. Both the antenna and MIPI cable are securely fastened with a retention bar and screws for added stability.
Features:
- Video Modes:Â 720p60, 1080p30, 540p60, 540p90
- Max RF Output:Â Up to 1W on R1 channel (with license/approval)
Specifications:
- Manufacturer:Â Divimath, Inc.
- Model:Â HDZero Freestyle V2 VTX
- Weight:Â 22.3g
- Dimensions:Â 29 x 30 x 14 mm
- Operating Frequency:Â 5.725-5.850 GHz
- Transmitter Power:Â 25mW, 200mW
- Mounting Pattern: 20×20 mm, M2 holes
- Antenna Interface:Â Secured U.FL
- Video In:Â Secured MIPI
- SmartAudio:Â Yes
- MSP Canvas Mode:Â Yes
- Input Power:Â 7-25V
- Operating Temperature: 32°F-104°F (0°C-40°C)
- Power Consumption:Â 6-15W
Package Includes:
- 1 x Freestyle V2 VTX
- 1 x Nano 90 Camera (with 19 x 19 mount)
- 1 x HDZero RHCP Antenna
- 1 x 120mm MIPI Cable
- 1 x Power Cable
- 1 x SmartAudio Cable
- 1 x Plastic bar for MIPI cable (with 3x M1.4 x 2mm screws)
- 1 x Plastic bar for U.FL (with 3x M1.4 x 8mm screws)
- 1 x Double-Sided Tape (29 x 30 x 1mm)
