HDZero AIO5 F4 5A ELRS2.4
HDZero AIO5 F4 5A ELRS2.4 - Image 2

HDZero AIO5 F4 5A ELRS2.4

Integrating digital video and ExpressLRS, this AIO delivers a lightweight, durable solution for unmatched FPV performance.

$199.99

Only 3 left in stock

SKU: 1302

Description

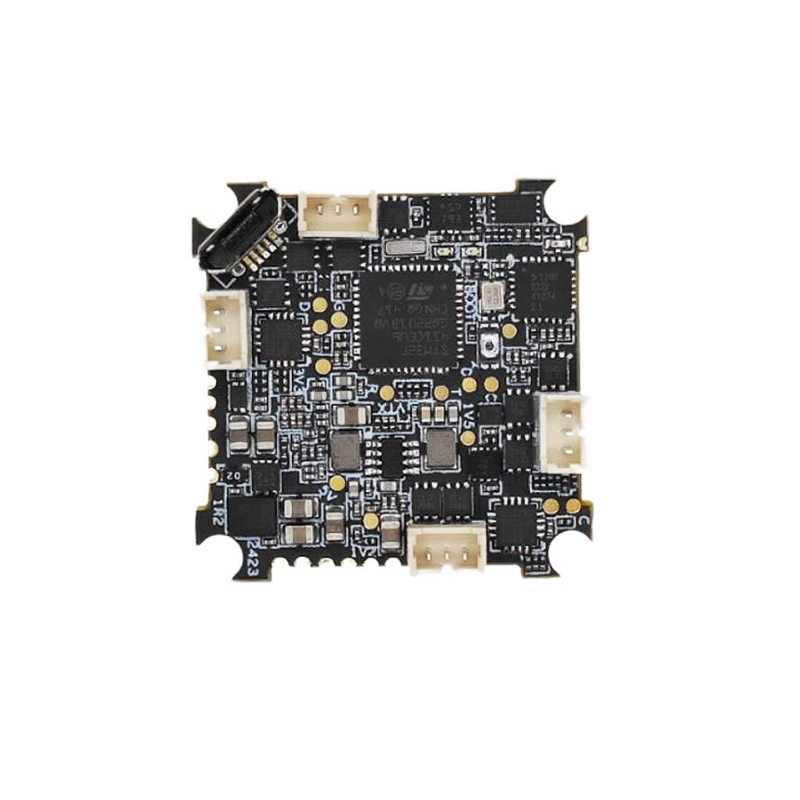

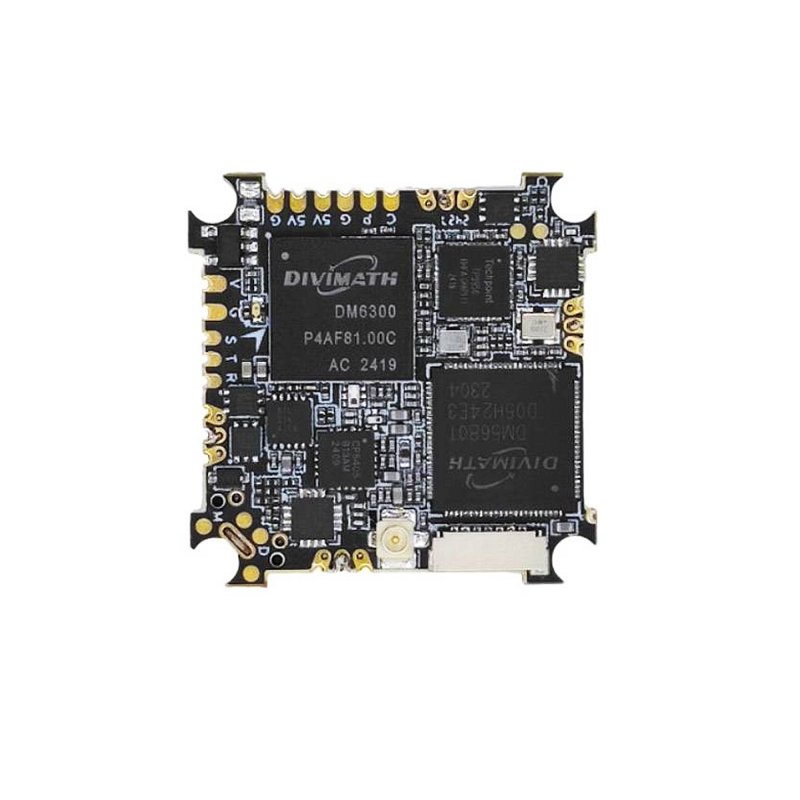

The HDZero AIO5 F4 5A ELRS2.4 revolutionizes tiny whoops with the world’s first digital video AIO, reducing the weight of bind-and-fly 65mm models to under 19.4g. It combines an F4 flight controller, HDZero digital video transmitter, SPI 2.4GHz ExpressLRS receiver, DSHOT 4-in-1 ESC, and a 5V BEC, delivering exceptional durability, performance, and simplicity in a single PCB for crystal-clear digital video and uncompromised flying experience.

Specifications:

  • MCU: STM32F411 (100MHz, 512K Flash)
  • Gyro: BMI270
  • On board voltage and amperage meters
  • Built-in 5A(each) BLHeli_S 4-in-1 ESC
    • MCU: EFM8BB21
    • HV Current: 5A continuous peak 6A (3 seconds)
    • Factory firmware: O_H_5_48_V0.19.2.HEX
    • Dshot600 ready
  • Built-in 5.8G HDZero VTX
    • RF output: 25mw/200mW
    • Supported channels: R1-R8, F2/F4, L1-L8
    • UFL connector (ultra-lite linear antenna included)
  • Built-in SPI ExpressLRS 2.4GHz receiver
    • Packet rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
    • Pre-soldered enamel wire antenna
    • Telemetry output power: <12dBm
  • Built-in 5V 1A BEC
  • Flight controller firmware target: CRAZYBEEF4SX1280
  • Power supply: 1S battery (2.5V – 4.35V)
  • Fully compatible with the popular whoop frames
    • Board size:28.5×28.5mm with a 25.5×25.5 mounting hole size
  • Weight: 5.7g(without motor plugs), 6.3g (with motor plugs)

Package Includes:

  • 1x HDZero AIO5 board
  • 1x Power cable with inverted angle A30 connector
  • 4x screws
  • 4x rubber grommets
  • 1x ultra-lite linear VTX antenna
