Happymodel 2.4GHz Antenna for ExpressLRS EP1 RX compatible with TBS Tracer
by HappyModel
5.00 out of 5
(8 customer reviews)

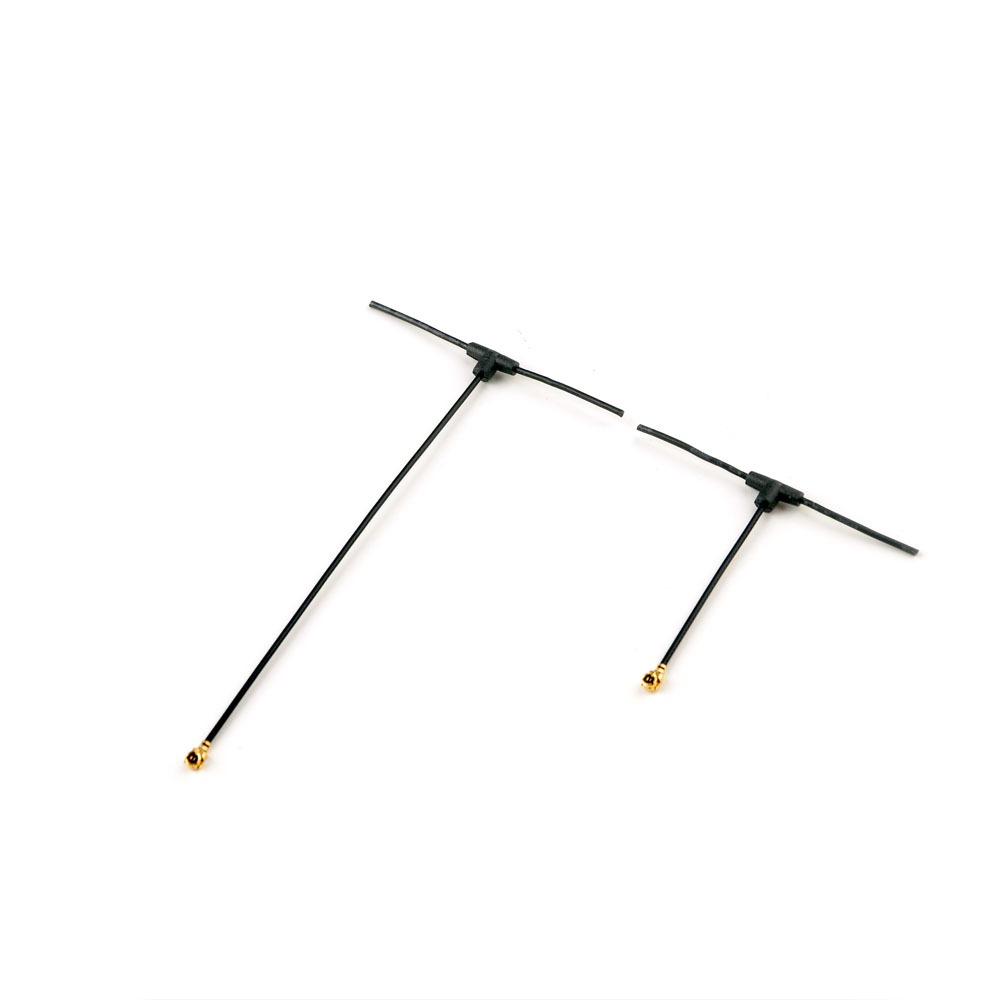

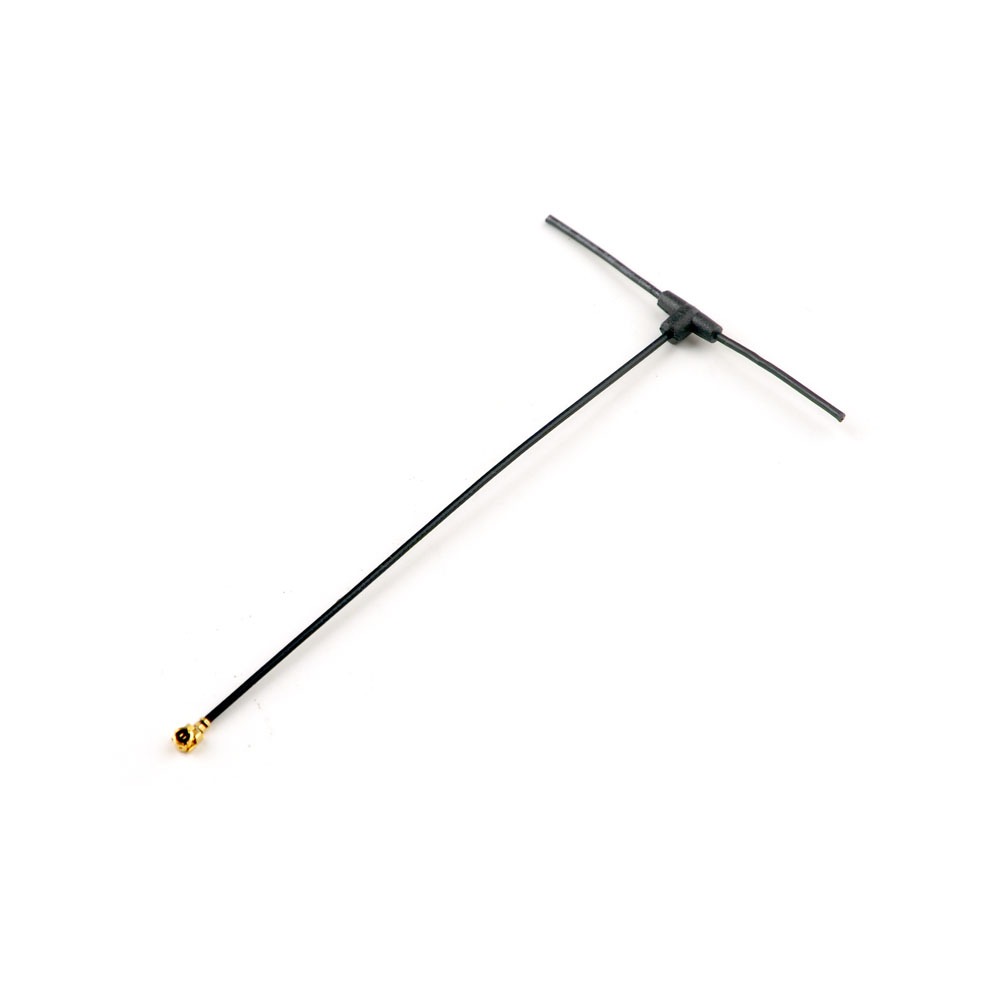

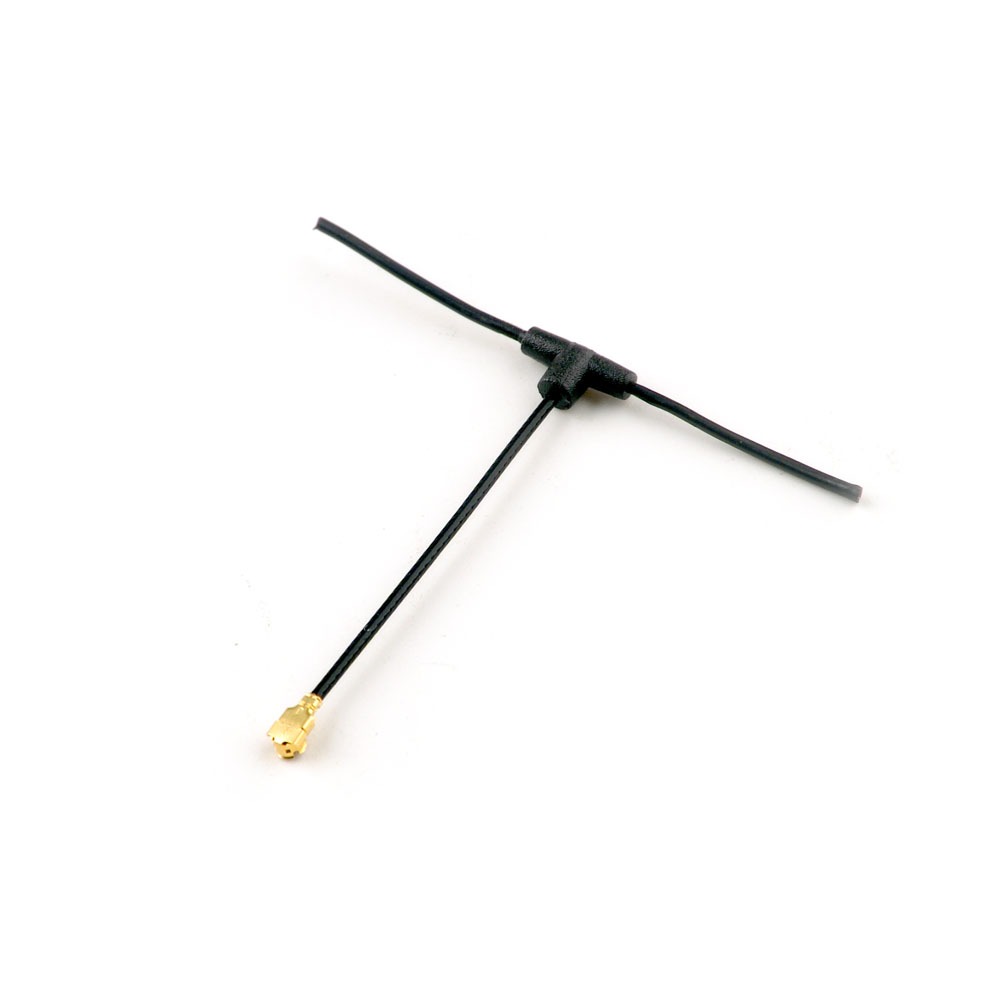

Happymodel 2.4g omnidirectional antenna for ELRS EP1 RX IPEX/IPX/U.FL compatible with TBS Tracer – 40mm or 90mm Long
$7.49
Description
Happymodel 2.4g omnidirectional antenna for ELRS EP1 RX IPEX/IPX/U.FL compatible with TBS Tracer
Frequency (MHz)     2400.0
Efficiency (dBi)Â Â Â -0.89
Gain (dBi)Â Â Â Â 2.23
Efficiency (%)Â Â Â Â Â Â 81.46
Directivity (dB)Â Â Â Â 5.12
Peak Gain Position (Theta)Â Â 180.00
Peak Gain Position (Phi)Â Â Â Â Â 330.00
Efficiency ThetaPol (%)Â Â Â Â Â Â 20.90
Efficiency PhiPol (%)Â Â 60.56
Upper Hem. Efficiency (%)Â 39.93
Lower Hem. Efficiency (%) 41.54
Connector IPEX/IPX/U.FL
Antenna width 52mm
Antenna length 40mm/90mm
Additional information
Brand | |
---|---|
Protocol | |
Size | 40mm, 90mm |
