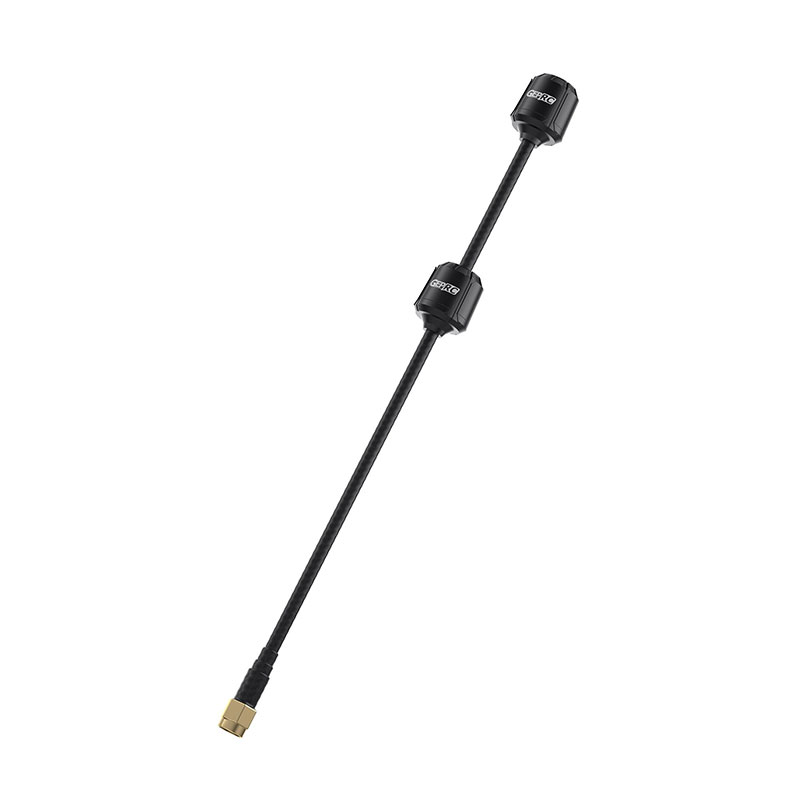

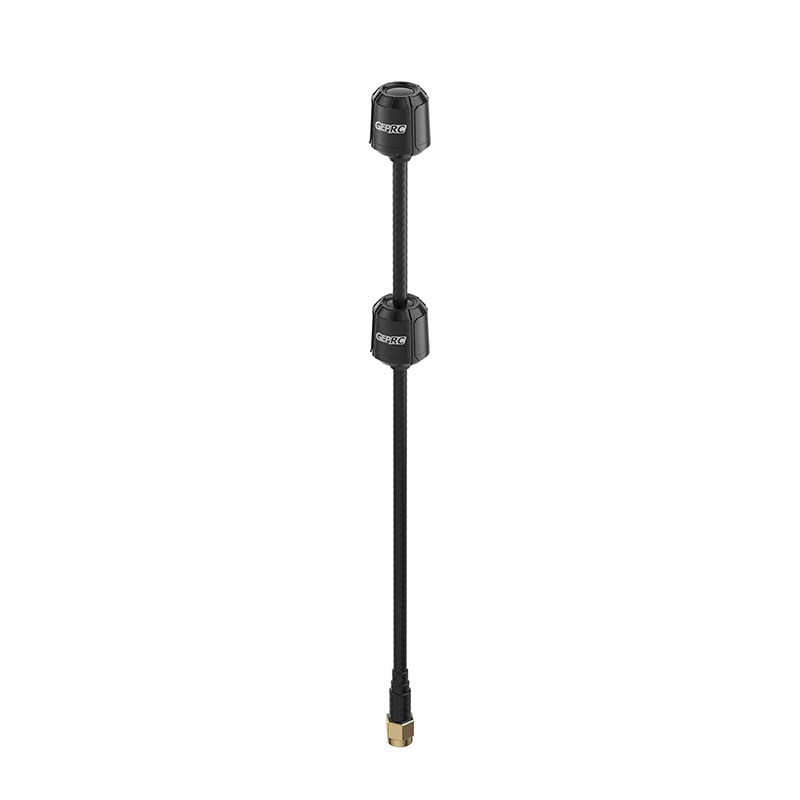

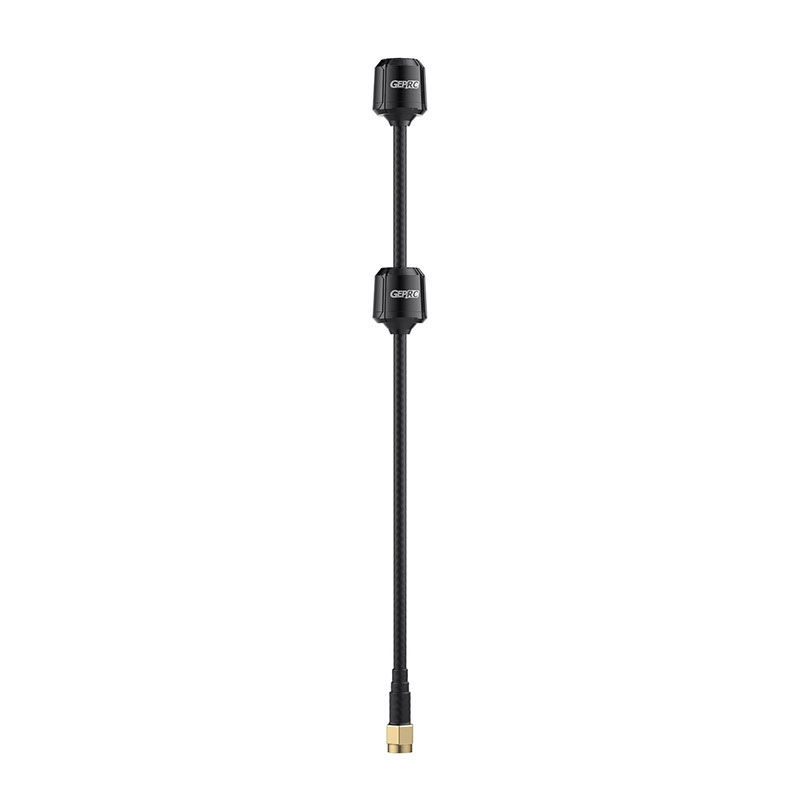

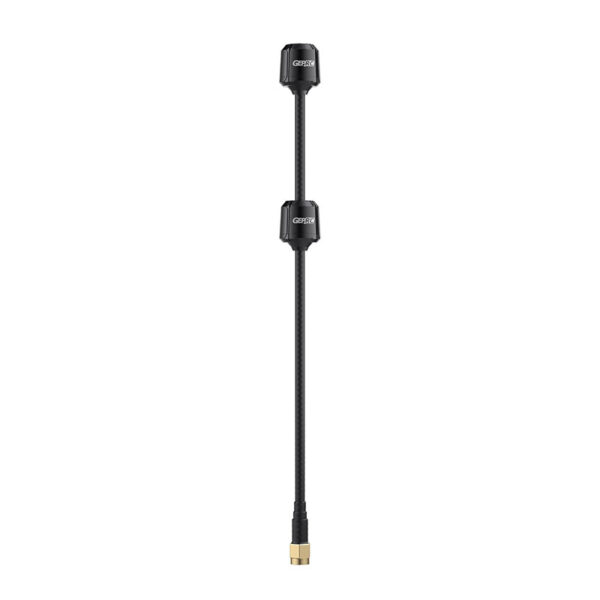

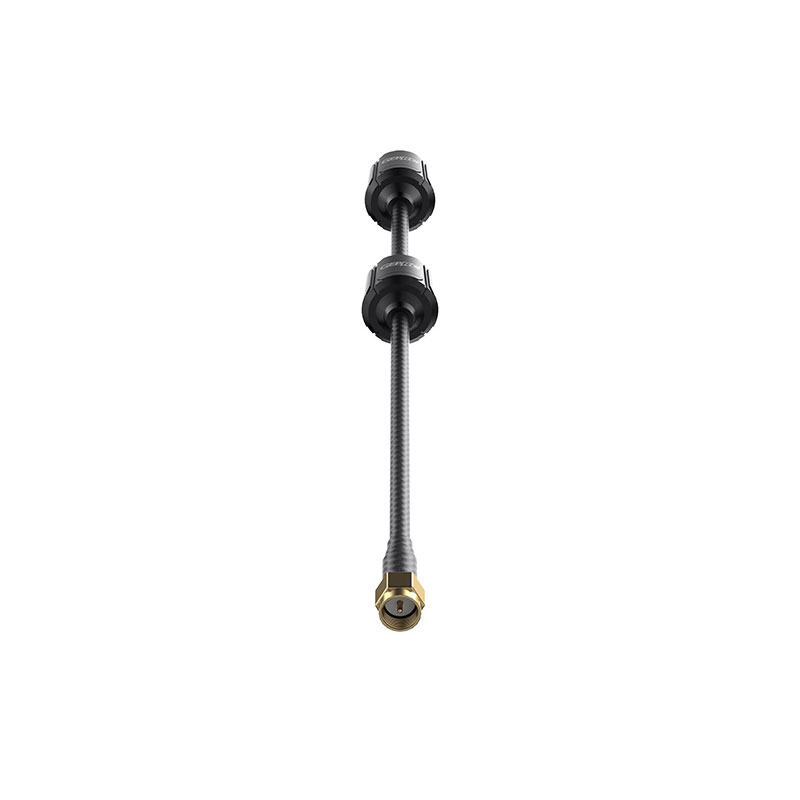

GepRC Momoda2 5.8G Dual LHCP SMA Antenna (2 Options)
by GEPRC
Elevate your FPV experience with stable image transmission, extended range, and exceptional efficiency from dual-core RF technology.
$22.99
Description
The GepRC Momoda2 5.8G Dual LHCP SMA Antenna redefines performance with dual-core RF technology, enhancing gain and expanding coverage. Precision-crafted for stability, it ensures reliable image transmission, extended range, and improved directional compatibility. Ultrasonic welding secures its premium design, while each antenna undergoes rigorous spectrum analysis for optimal VSWR compliance. With ultra-low VSWR and advanced materials, this lightweight antenna delivers exceptional radiation efficiency, making it a top choice for FPV enthusiasts.
Features:
- Enhanced gain with dual-core RF technology.
- Â Ultra-low VSWR for improved transmission efficiency
- Â Adopts premium antenna interface
- Â Ultrasonic welding for tight and secure assembly
- Â Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards
Specifications:
- Model: GEPRC Momoda2 5.8G DUAL antenna
- Center Frequency: 5.65GHz
- Bandwidth: 5.3GHz～6GHz
- Polarization: LHCP/RHCP
- Gain: 3.8dbi
- Axial Ratio: ≤3
- VSWR: ≤1.43
- Radiation Efficiency: 85%
- Cross Polarization Suppression: -25dB
- Length: 170mm+57mm
- Design Compostion: FPC+PCB
- Weight: 16.6g
- Enclosure Material: ABS
- Connector Type: SMA
Package Includes:
- 1 x GepRC Momoda2 5.8G Dual LHCP SMA Antenna
Additional information
| Brand | |
|---|---|
| Antenna Polarisation | LHCP |
| Size | 90mm, 170mm |
