Description

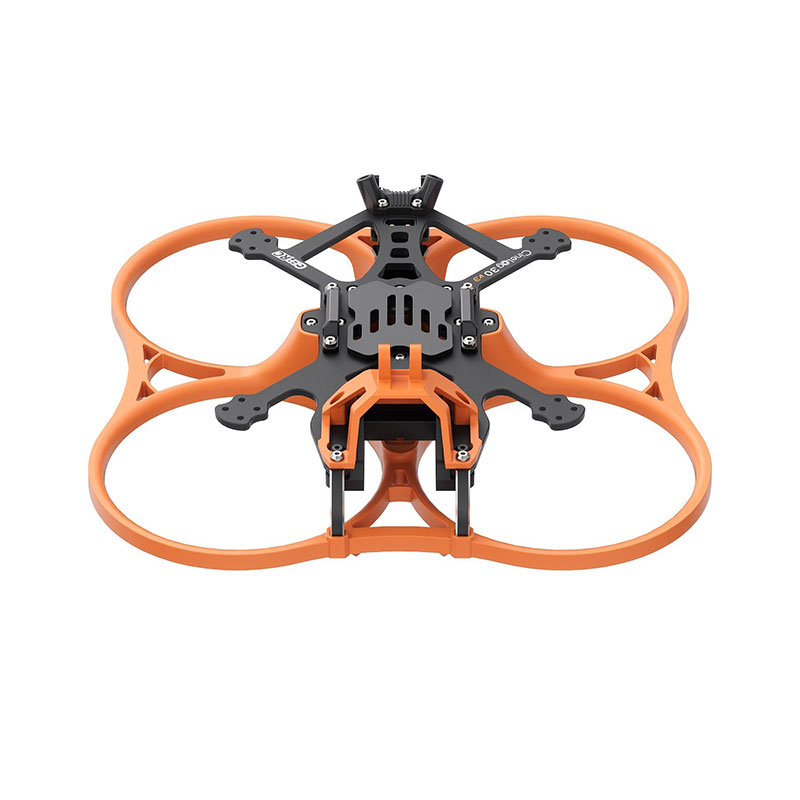

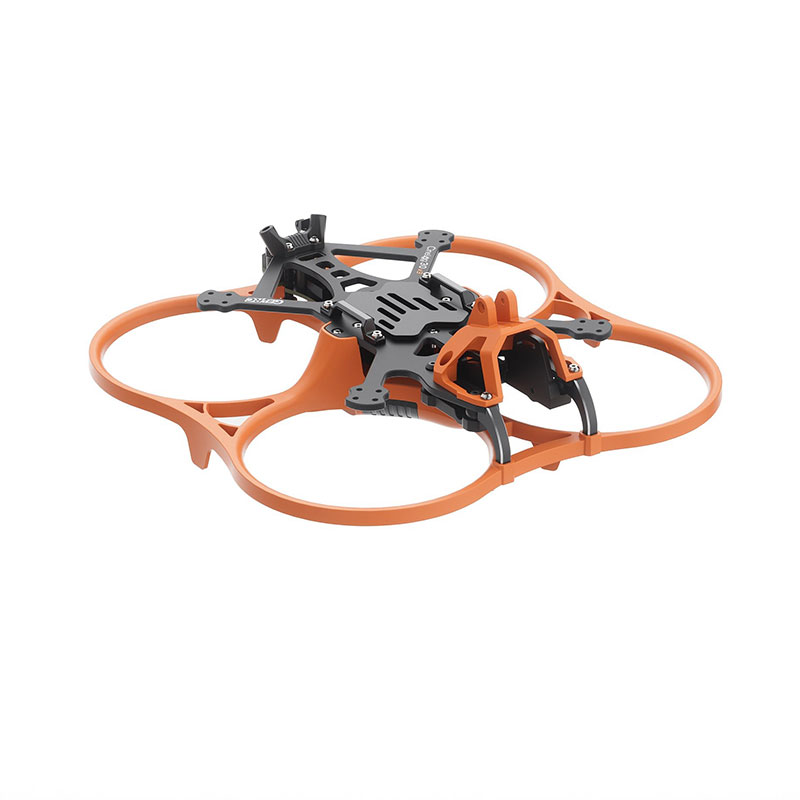

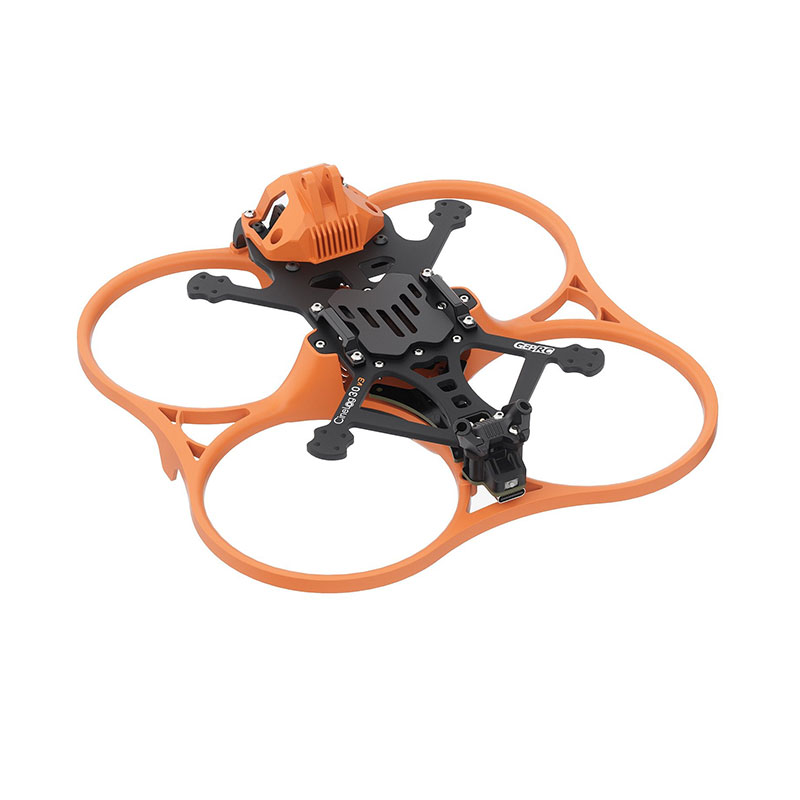

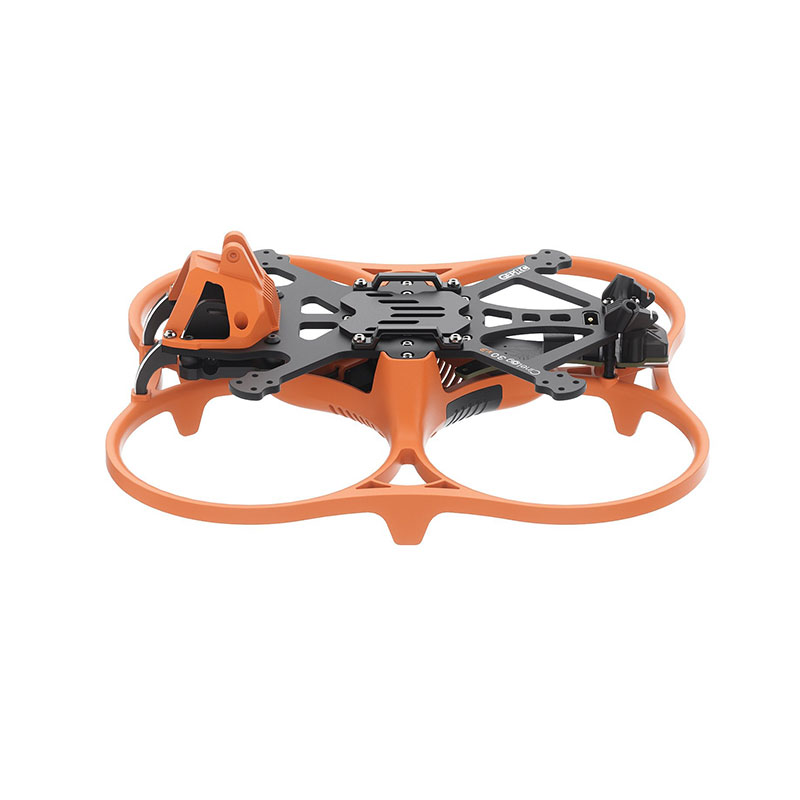

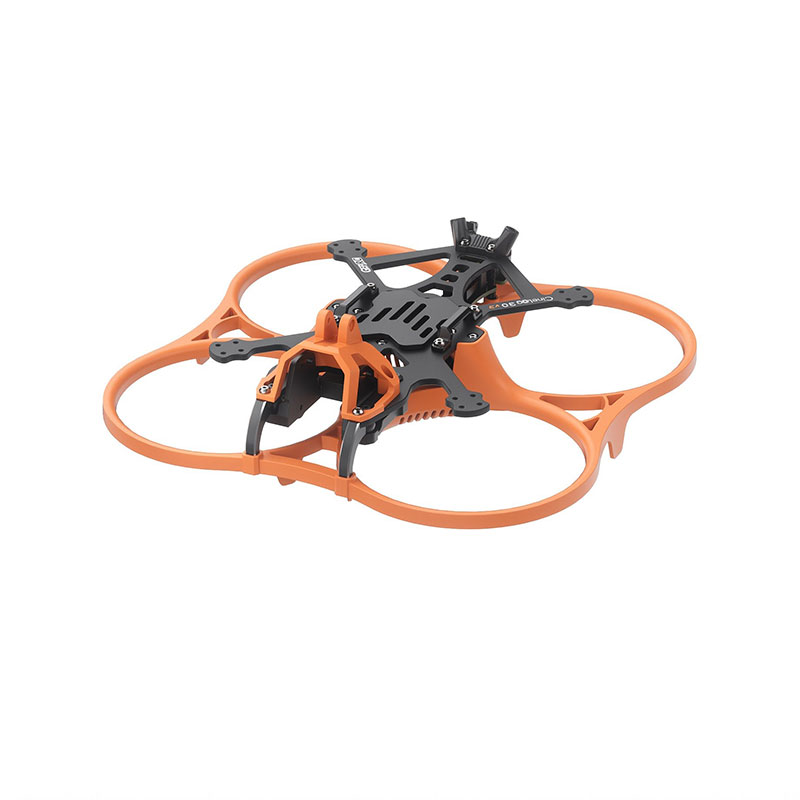

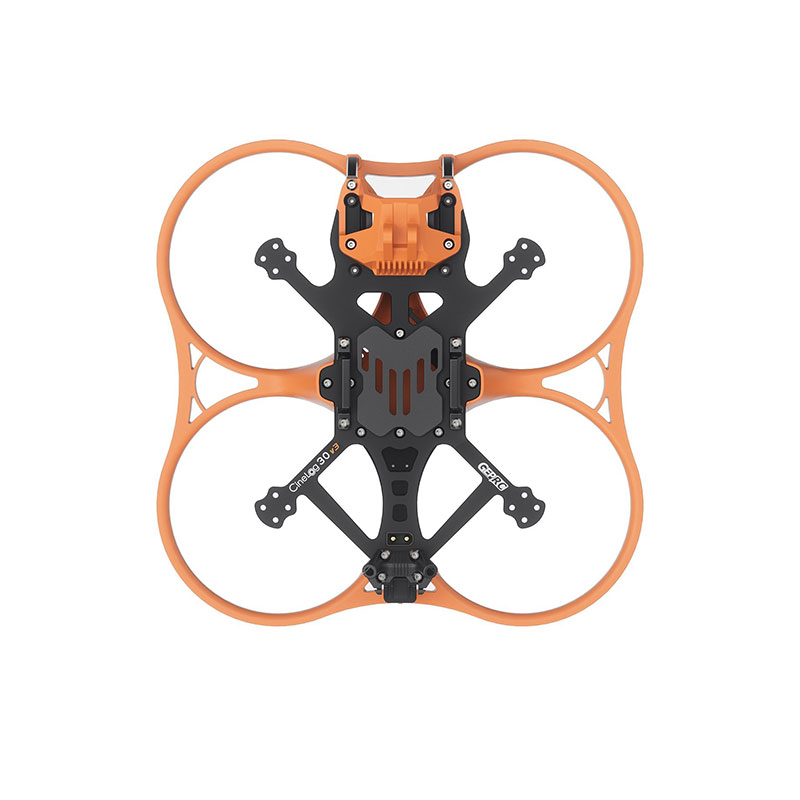

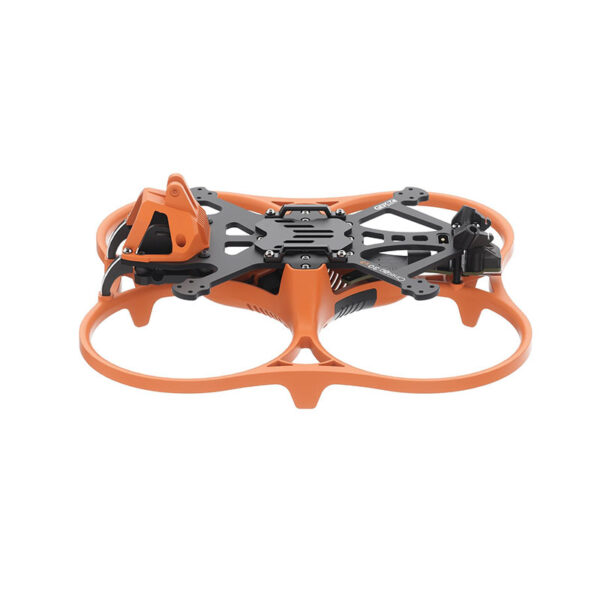

The GepRC GEP-CL30 V3 Frame delivers precision-engineered performance with a robust yet lightweight build, tailored for the O4 Air Unit Pro. With an underslung gimbal mount for buttery-smooth footage, easy-access dust plugs, tool-less disassembly, and a customizable canopy in bold colors, this frame is built for creators who demand strength, simplicity, and cinematic clarity in every flight.

Features:

• Cinelog series underslung gimbal mount for smooth footage with the O4 Air Unit PRO.
• Multiple color options to personalize your Cinelog30 V3.
• Aluminum reinforcement on the frame and cage for improved structural strength.
• Canopy design effectively protects the O4 Air Unit PRO.
• Data port dust plugs prevent dirt from blocking during takeoff and landing.
• Only 6 screws hold the frame together, making assembly easy.
• New 6-in-1 function board simplifies wiring and optimizes space inside.

Specifications:

• Model: GEP-CL30 V3 frame
• Frame Color: Black, Orange
• Canopy Color: Black, Orange, grey
• Frame Dimension: 3-inch
• Wheelbase Dimension: 128mm
• Carbon Fiber Plate Thickness: 2.5mm
• FC Mounting Pattern: 25.5*25.5mm
• VTX Mounting Pattern: 20*20mm/25.5*25.5mm
• Motor Mounting Pattern: 9*9mm
• Camera Mounting Pattern: 20mm
• Power Connector: XT30
• Compatible propellers: 3-inch
• Frame Weight: 78g±2

Package Includes:

• 1 x GepRC GEP-CL30 V3 Frame
