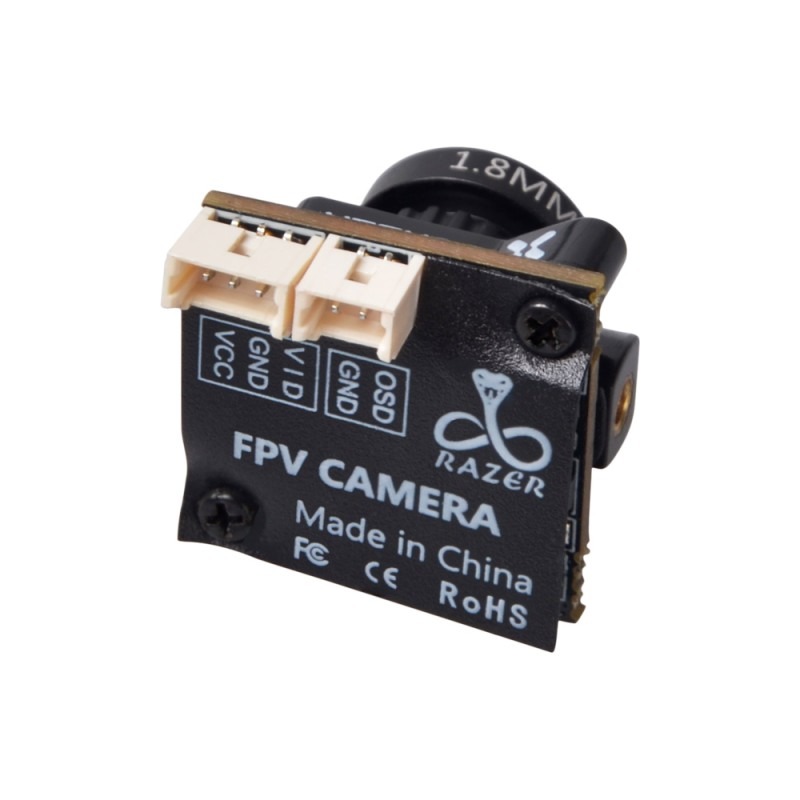

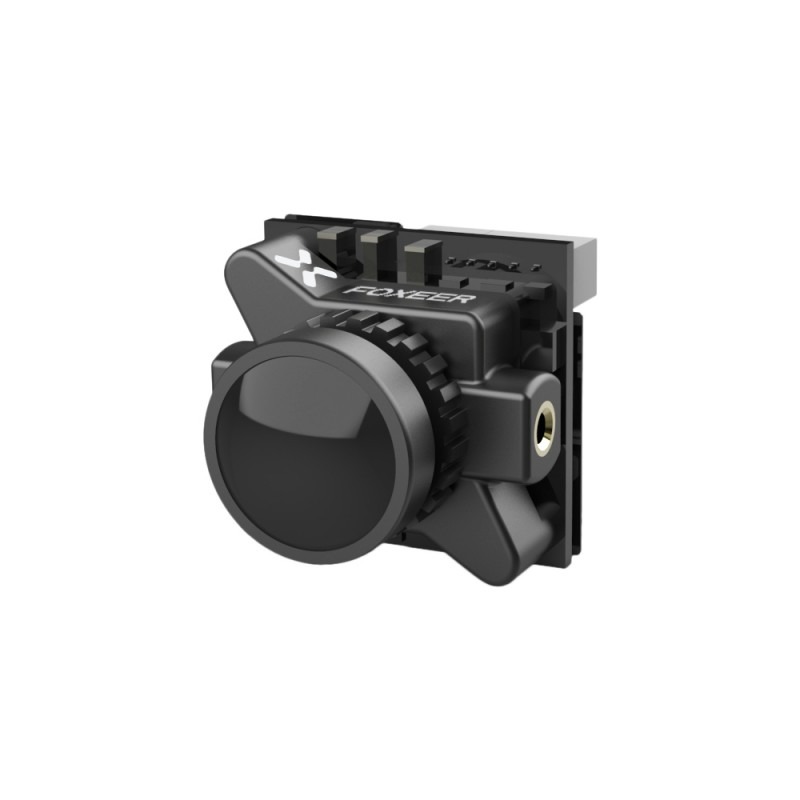

Foxeer Micro Razer 1200TVL FPV Camera PAL NTSC Switchable 1.8mm lens 4ms Latency

Colour: Black

Specifications:

• Sensor Type Sony 1/3″ CMOS Sensor
• Scale 4:3/16:9 Optional
• Tv System PAL/NTSC Switchable
• Resolution 1200TVL
• Shutter Speed PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
• Video Output CVBS Analog Signal

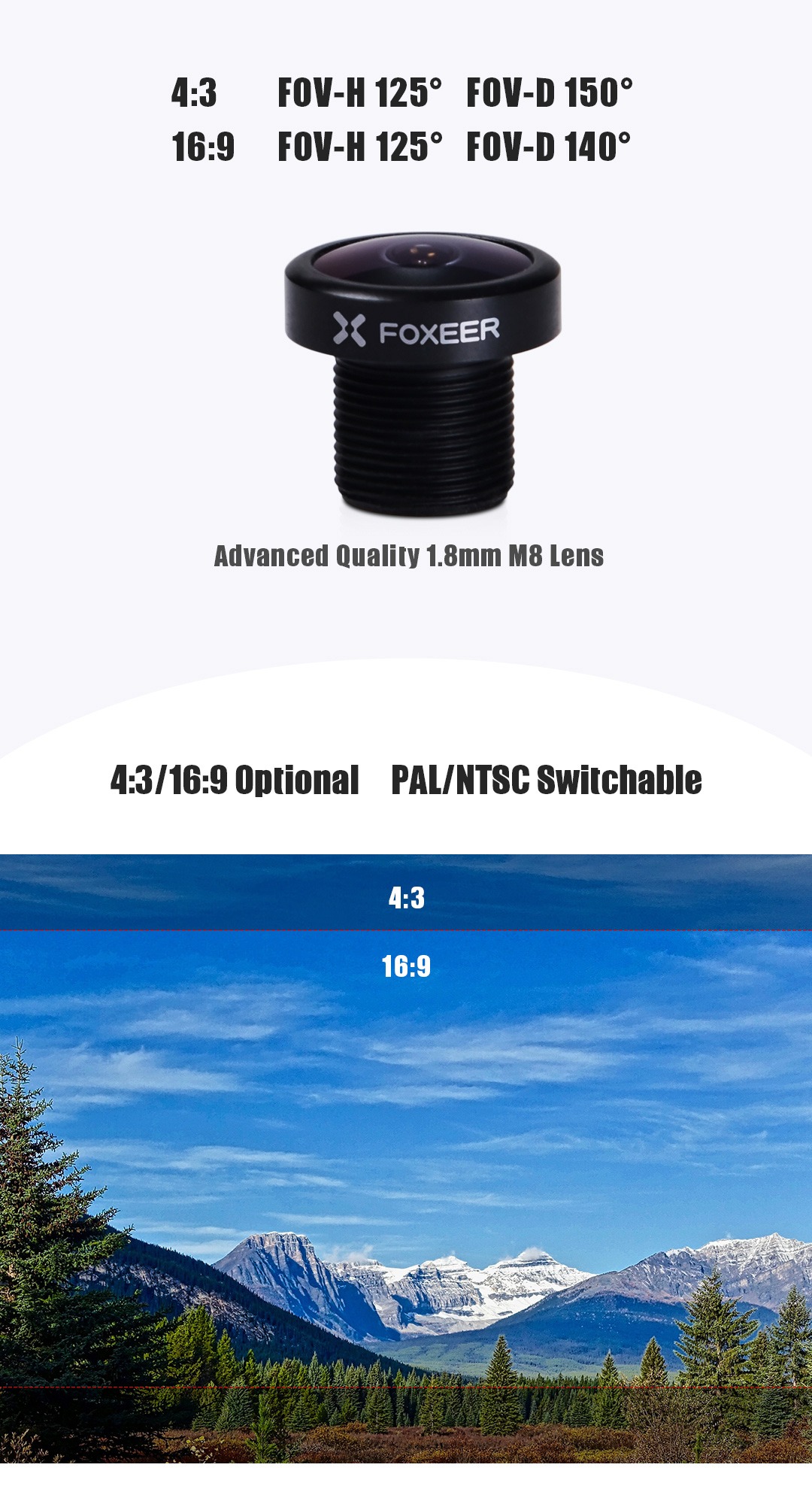

• FOV
  • 4:3 FOV-H:125° FOV-D: 155°
  • 16:9 FOV-H:125° FOV-D: 145°
• Shutter Speed Auto
• Minimum Illumination 0.01Lux
• White Balance Auto
• DNR 3DNR
• WDR 90dB
• DAY/NIGHT EXT/Auto/Color/B&W

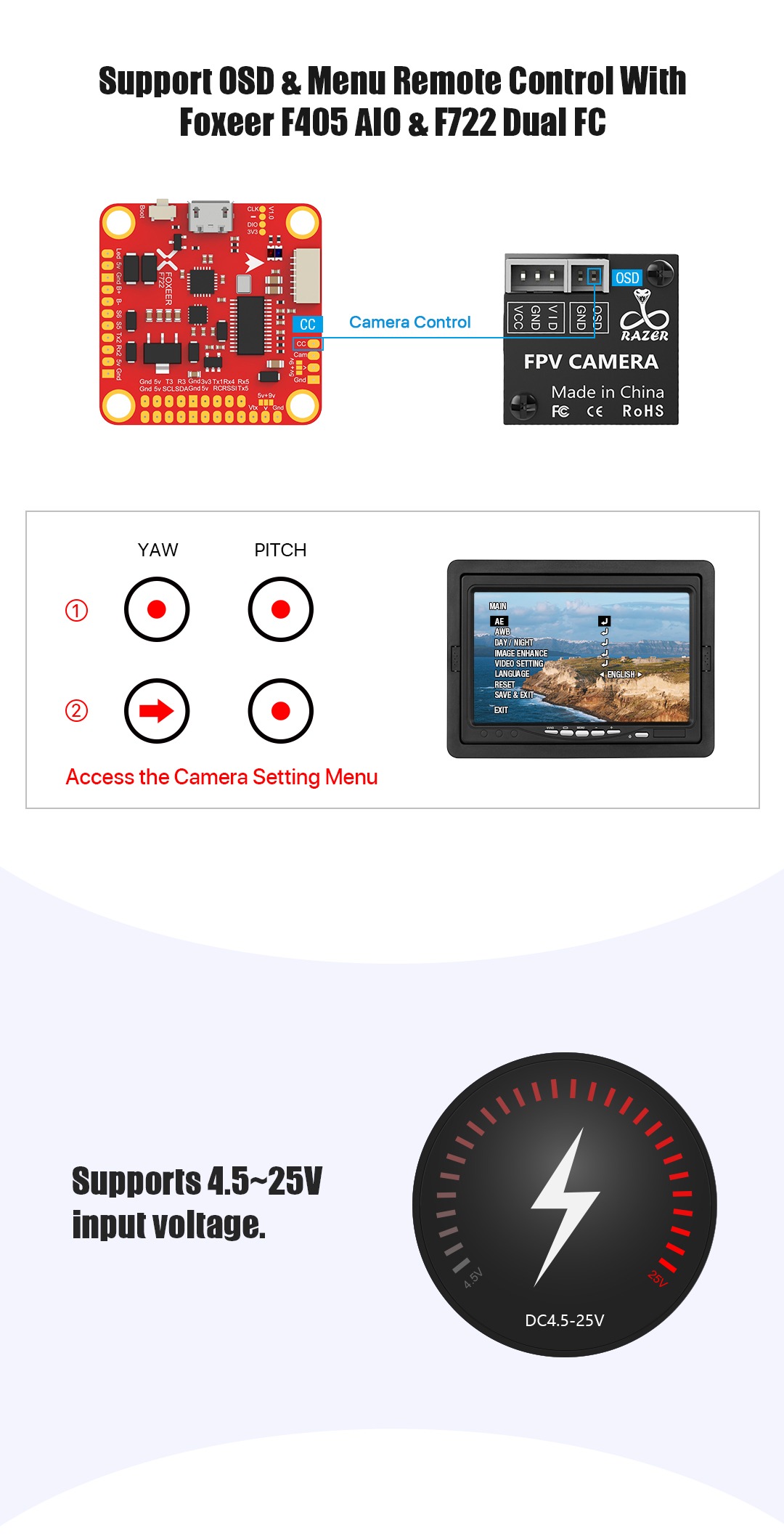

• Flight OSD No
• Input Voltage 4.5V~25V
• Language ENGLISH / 中文 / 繁体 / PYCCKNN / ESPANOL / FRANCAIS / POLSKI / ITALIANO / PORTUGUES / 日本语 / 한국어 / EAAHNIKA
• Working Temperature -10°~50°C RH90% MAX
• Working Humidity 20~80%
• Storage Temperature -20°~70°C

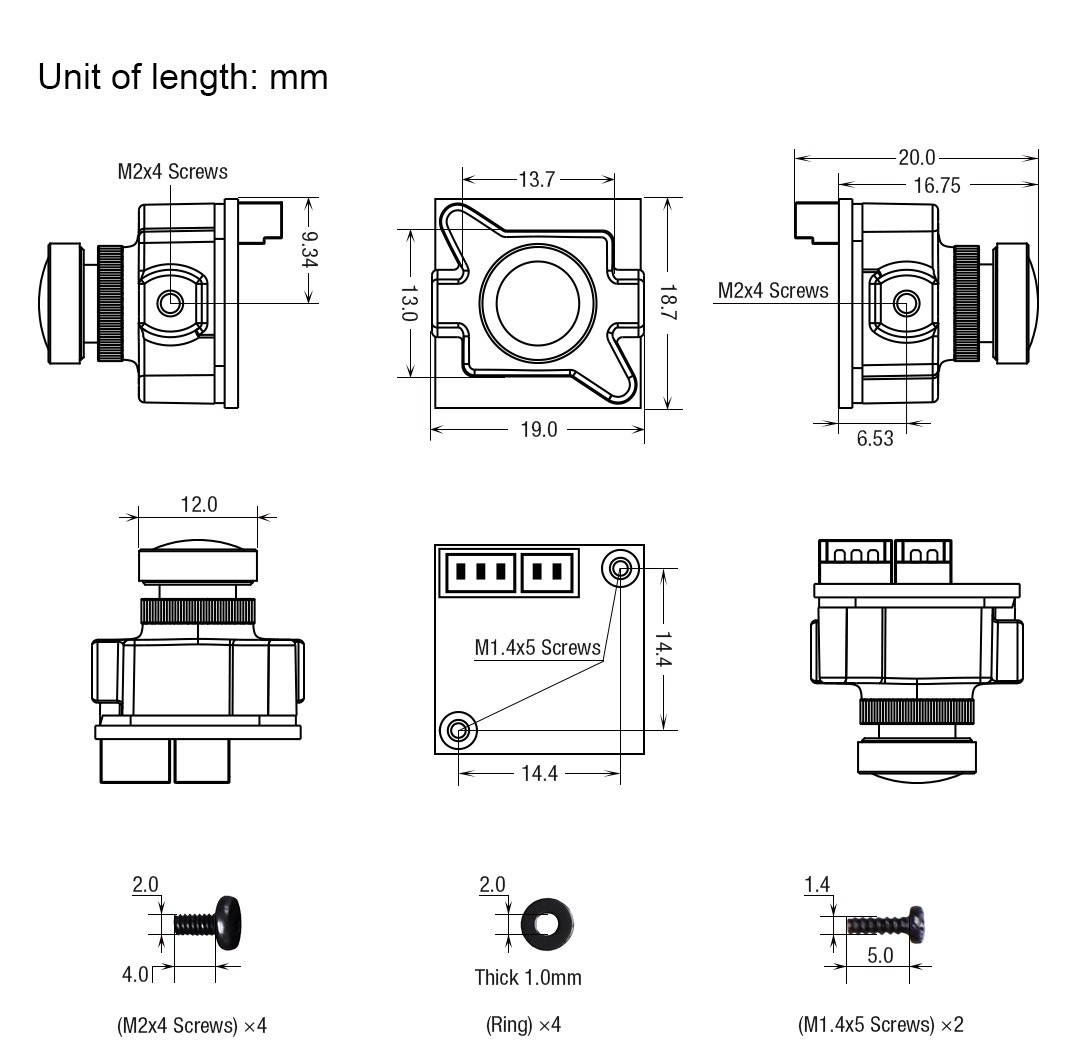

• Dimension 19*19mm
• Consumption 140mA@5V / 64mA@12V
• Weight 4.5g(Exclude cable)
