Description

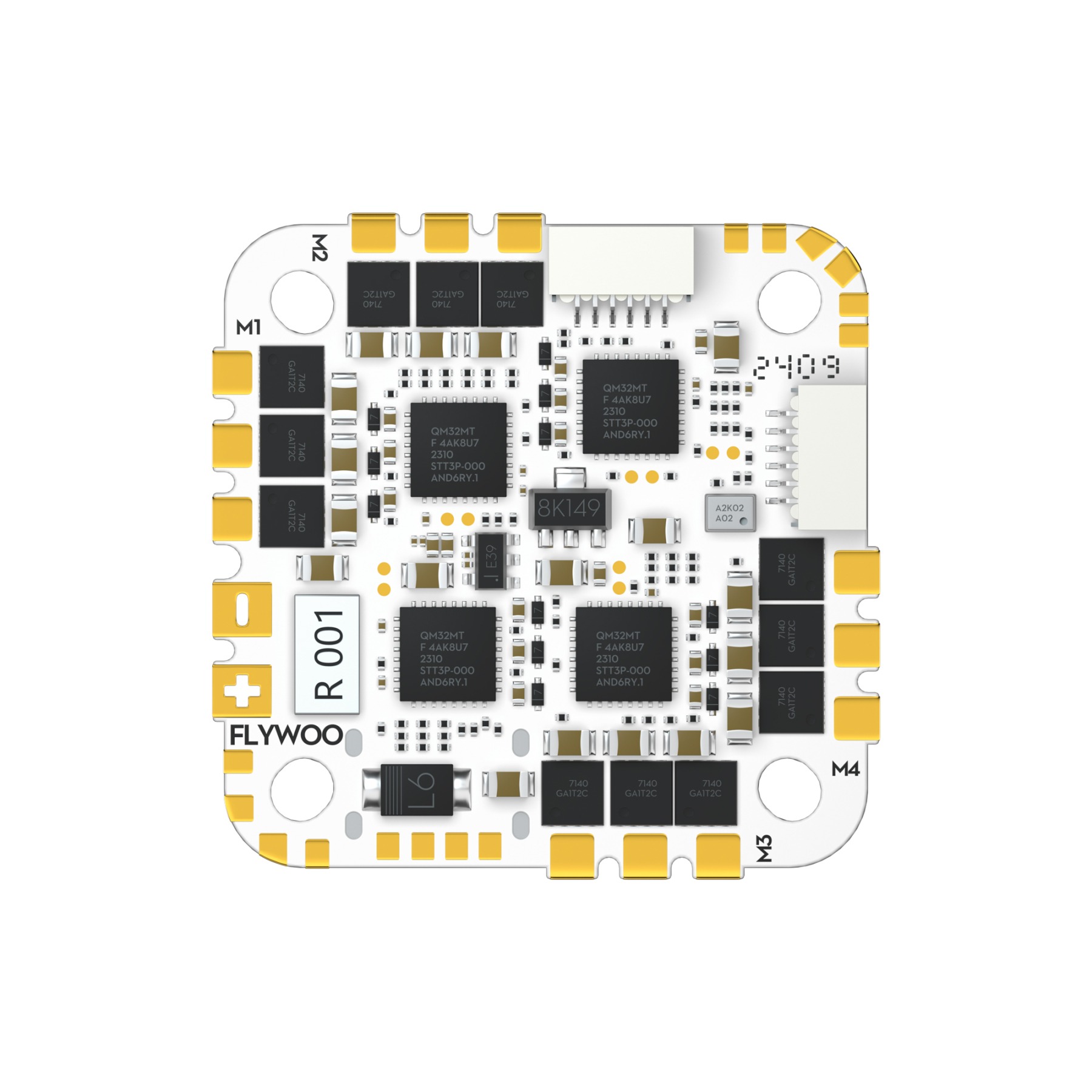

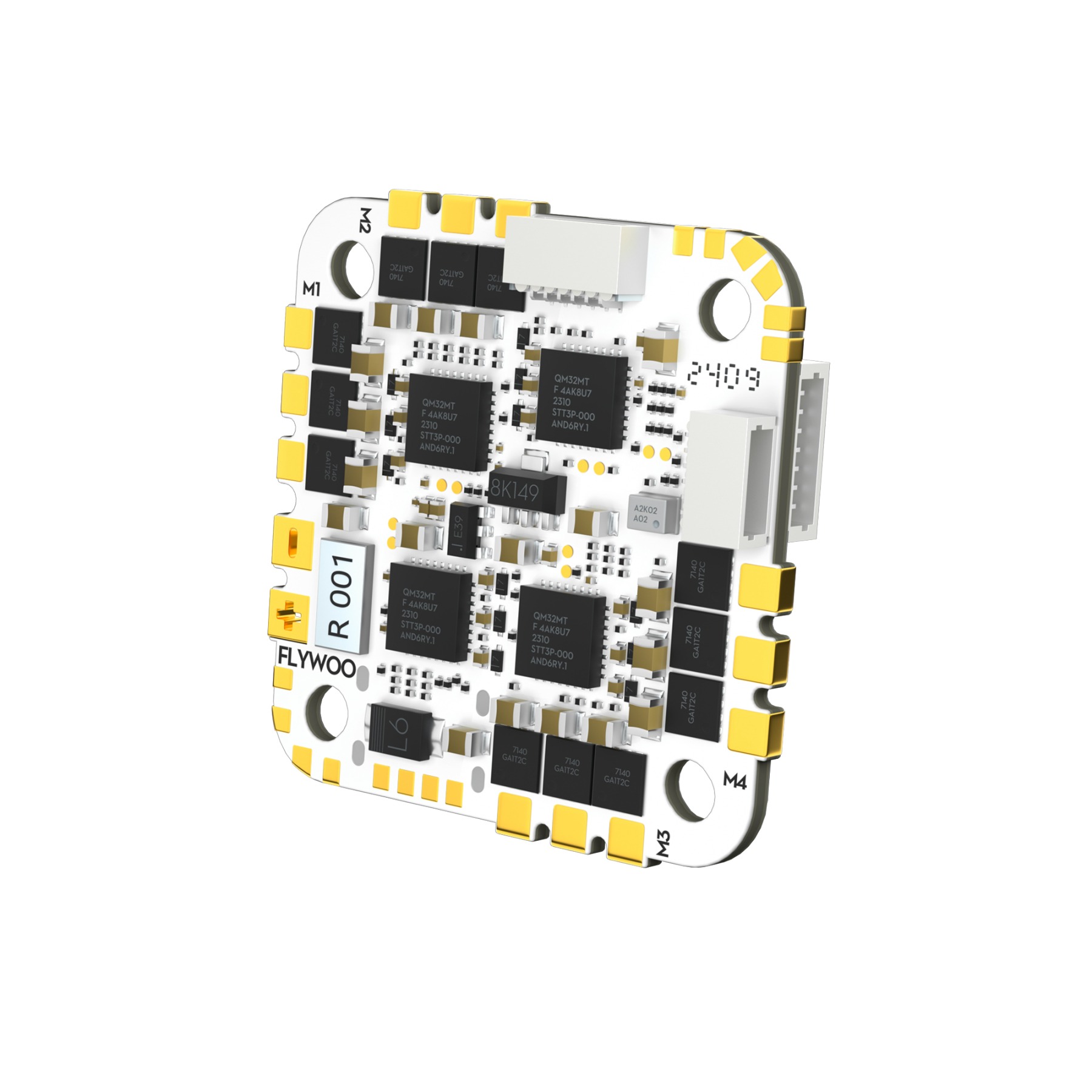

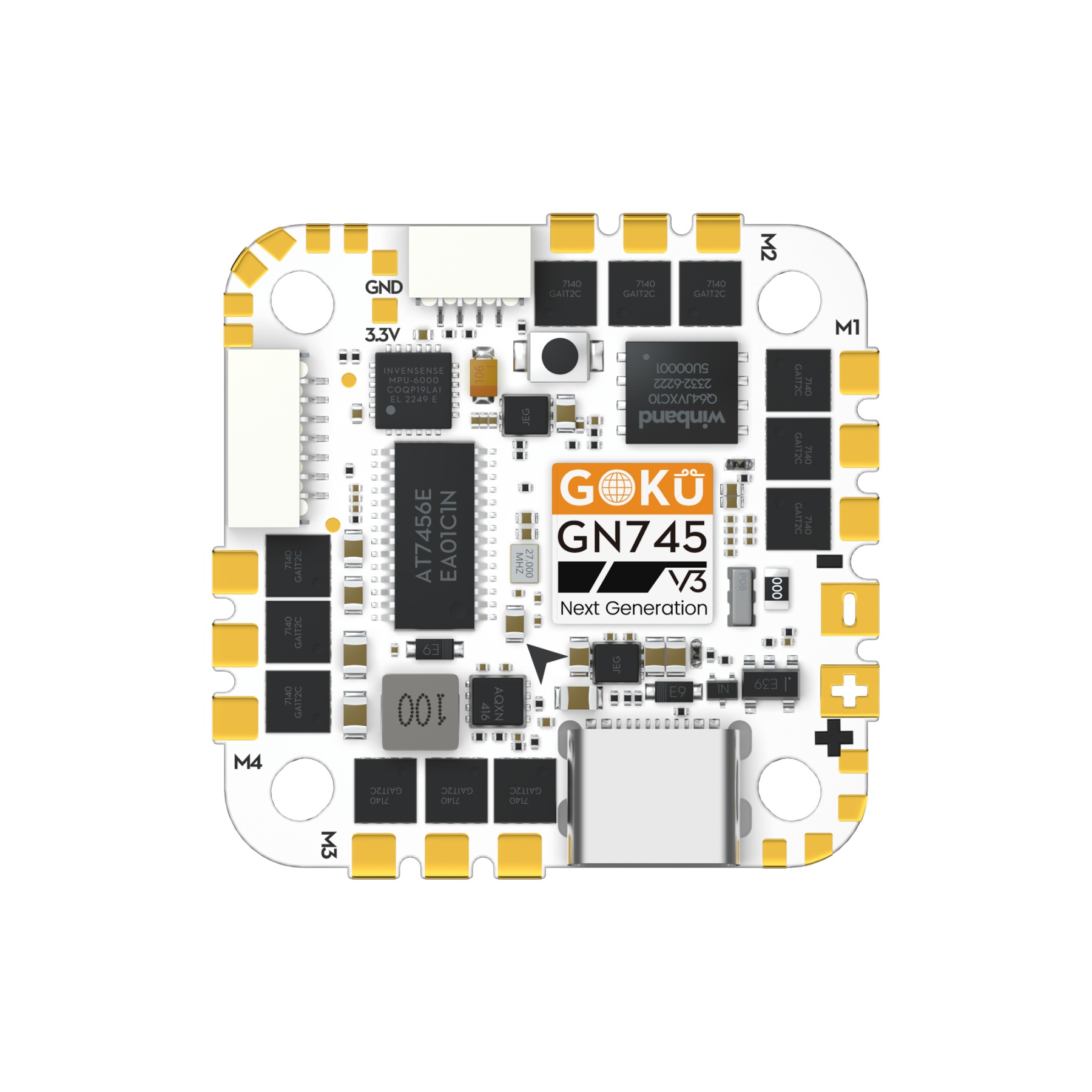

The Flywoo GOKU GN745 45A AIO 32bit (MPU6000) V3 delivers next-level performance with a robust 45A continuous current, thanks to its innovative ESC two-in-one drive solution. Designed for convenience, it features 4 direct-plug Uart ports and a user-friendly Type-C interface, supporting seamless compatibility with O3 air units, GPS, cameras, and receivers without soldering. Experience smoother operations with its enhanced motor pad protection, STM32F745 chip, and compatibility across Betaflight, INAV, and Ardupilot platforms.

Features:

• Performance: Utilizes STM32F745 chip, AM32 firmware, and MPU6000 gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C.
• Plug & Play: Compatible with O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering.
• Type-C Interface: Features a Type-C interface for improved compatibility and easier connection.
• Compatibility: Supports BF, INAV, and Ardupilot platforms.
• New Layout: New ESC two-in-one drive solution, with a continuous current up to 45A.
• Better Protection: Larger motor pad area with improved overcurrent protection.

Specifications:

• BF Flight Controller Firmware: FLYWOOF745AIO
• INAV Firmware: FLYWOOF745
• Ardupilot Firmware: FLYWOOF745
• MCU: STM32F745 32-bit processor,216MHz, 1MB Flash
• IMU: MPU6000 (SPI)
• Barometer: SPL06
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 7 hardware UARTS (UART1,2,3,4,5,6,7)
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• PPM and PWM receivers are not supported.
• Onbord 16Mbytes for Blackbox logging
• 5V Power Out: 2.0A max
• 3.3V Power Out: 0.5A max
• Dimensions: 33.5×33.5mm
• Mounting Holes: Standard 25.5/26.5mm square to center of holes
• Weight: 9.4g

Onboard 4in1 ESC

• Support AM32
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
• Input Voltage: 2-6S Lipo
• Continuous Current: 45A
• Firmware: GOKU_F4A32_PRO

Package Includes:

• 1x UNICON UPL Capacitor 25V 470UF
• 4x M2x6.6 Shock-Absoring Ball
• 4x M2 Rubber Ring
• 1x XT30 Power Cable
• 1x DJI O3 Connection Cable
• 1x VTX & Camera Connection Cable
• 1x Receiver Connection Cable
• 1x GPS Compass Connection Cable
