Flywoo GOKU GM10 Mini V3 GPS w/compass
The GOKU GM10 Mini V3 GPS w/compass weighing only 4.1g has a fast satellite search speed and maximum search for up to 32 satellites
$39.99
or 6 weekly interest free payments of NZD $6.66 with
Out of stock
Receive in-stock notifications for this.
Description

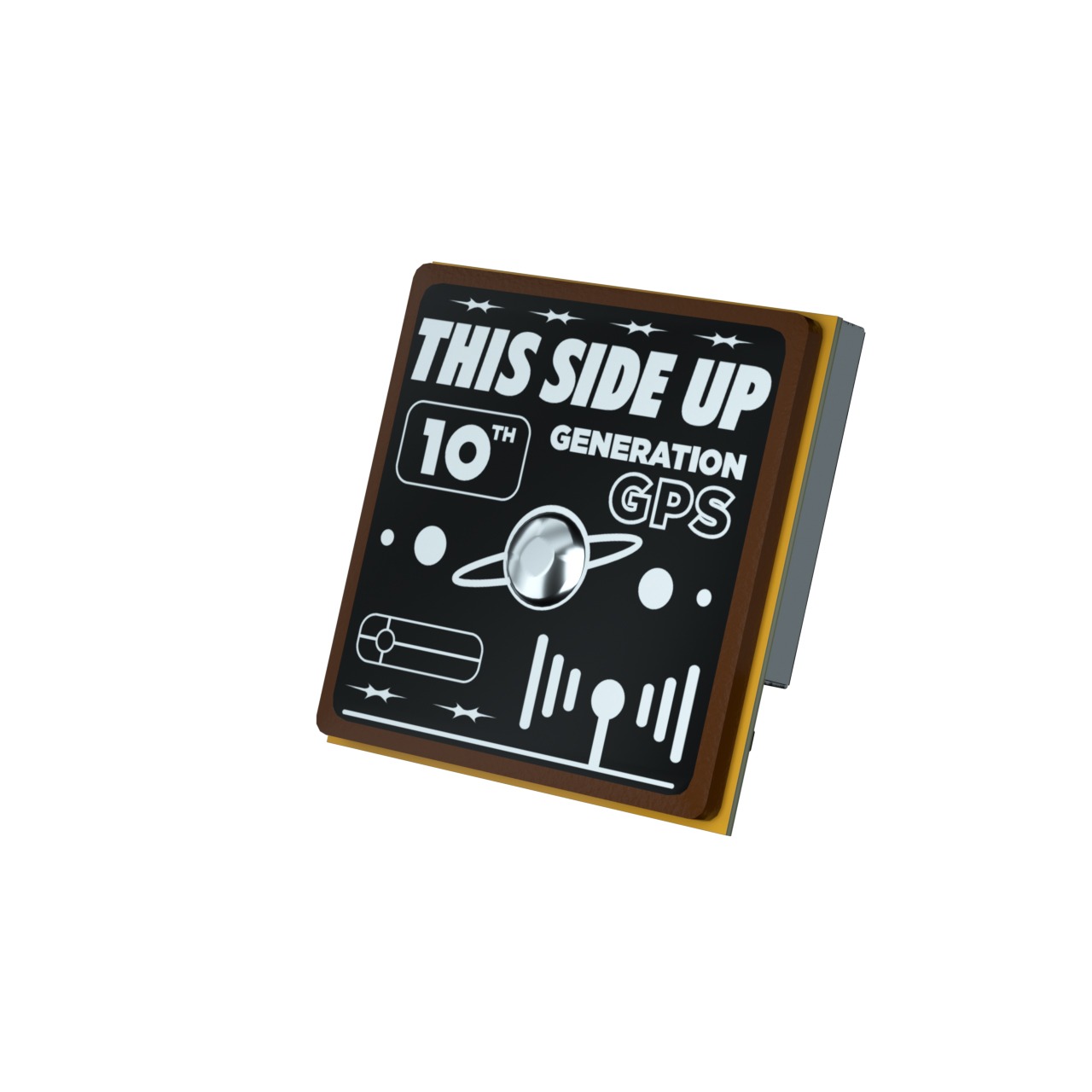

The GOKU GM10 Mini V3 GPS w/compass has the same size as the GOKU GM10 Mini V3 GPS, but with the addition of a compass. It is lightweight, weighing only 4.1g. The satellite search speed and maximum search for up to 32 satellites are the same as the GOKU GM10 Mini V3 GPS. If you need a compass function, then the GOKU GM10 Mini V3 GPS w/compass would be a better choice.
Description
Brand: FLYWOO
Model: GM10 MINI V3 GPS w/compass
Dimension :18mm*18mm*4.8mm
Weight : 4.1g
Connector : 1.00mm spacing between the 4pins patch seat
Features
1、GPS Module,Three Module Compass
2、With electronic compass IC QMC5883L
3、1.0mm spacing between the 6pins patch seat
Specification
- Electrical Characteristics
- Chipset : M10050(Tenth Generation Chip)
- Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
- Default Protocol : GPS,Galileo,BeiDou
- Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
- Channels : 72 Searching Channel
- Sensitivity
- Tracking : -162dBm
- Reacquisition : -160dBm
- Data and Update Rate
- Support Rate : 4800bps to 921600bps,Default 115200bps
- Data Level : TTL or RS-232,Default TTL level
- Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
- Output frequency : 1Hz-10Hz,Default 10Hz
- Operational Limits
- Altitude : 50,000m Max
- Velocity : 500m/s Max
- Acceleration : Less than 4g
- Power consumption
- VCC : DC Voltage :5V
- Operating temp : -40 °C ~ +85°C
- Storage Temp : -40°C ~ +105°C
- Indicator :
PPS LED: Yellow. The PPS LED remains unlit when the GPS signal has not been fixed, but starts flashing once the GPS signal has been successfully fixed.

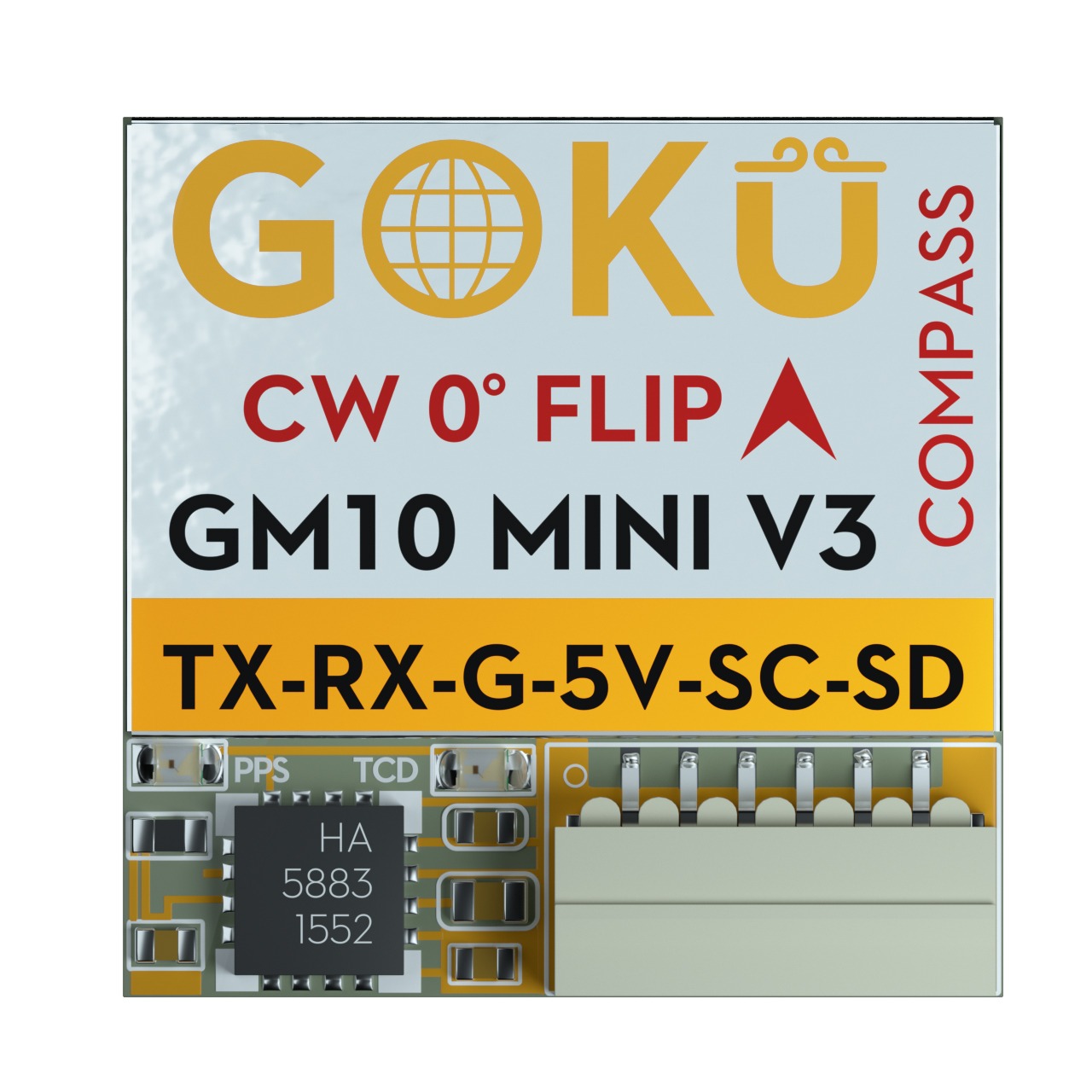

The Module’s Pins: TX RX GND 5V SCL SDA
Package Includes:
- 1x GM10 Mini V3 GPS w/ Compass
- 1x 150mm Cable
- 1x Copper Foil
Please note wiring diagram below is wrong swap the rx/tx wire at EITHER the FC or the GPS
