Description

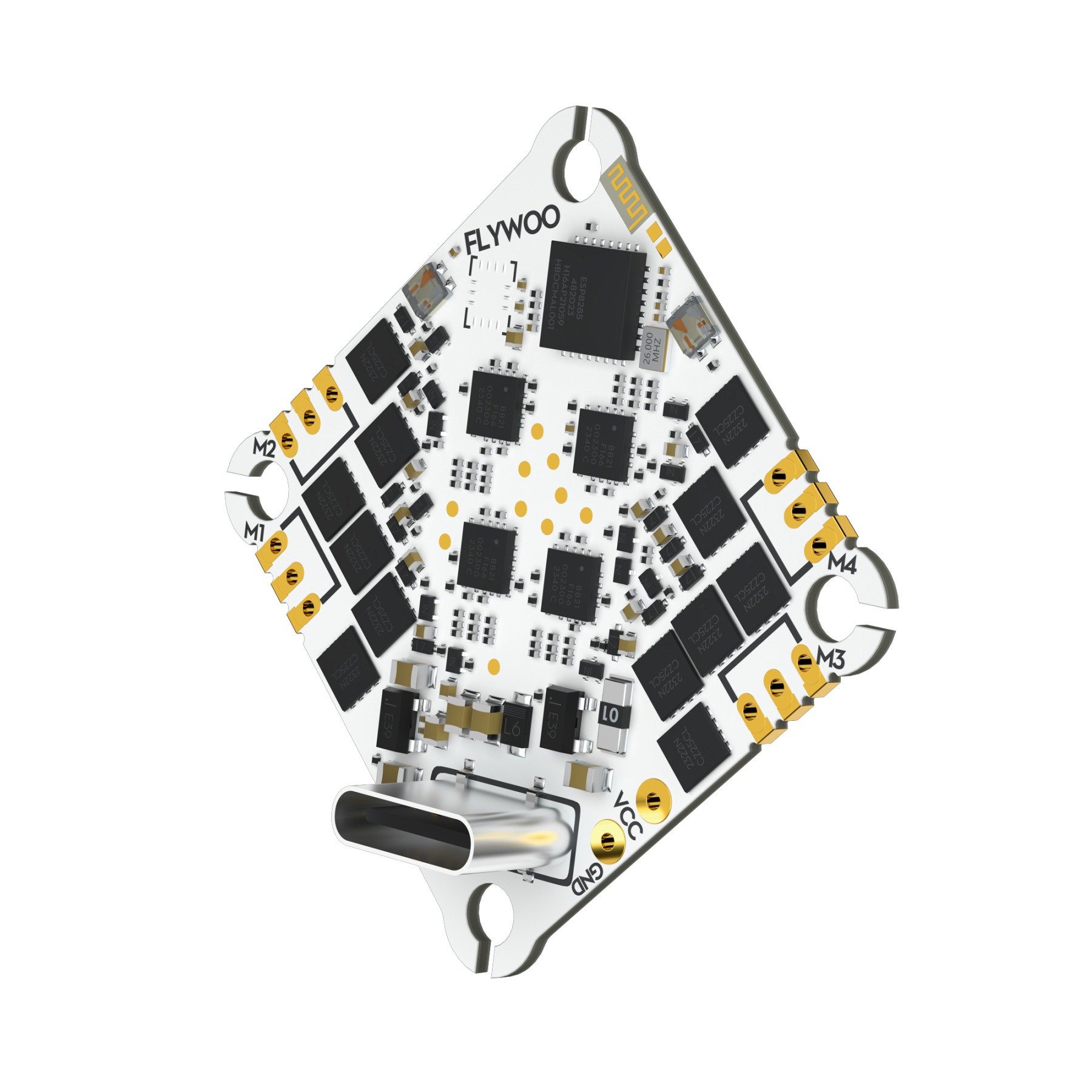

The Flywoo GOKU F405 HD 1-2S 12A AIO V2 Plug&Play O4 / O4 PRO is a cutting-edge flight controller designed for HD micro drones, offering unmatched ease and performance. With a Type-C interface, built-in 9V 2A BEC, ELRS 2.4G receiver, and plug-and-play O3 support, it ensures rock-solid power delivery, simplified installation, and seamless compatibility—empowering pilots with professional-grade features in a lightweight 4.9g AIO design.

Features

• Type-C Design: Utilizes Type-C , more convenient and reliable connections.
• New Power Supply : Features 9V 2A BEC , effectively preventing power outages in the O3 Air unit due to voltage dropping .
• Plug-and-Play O3 Port: Direct plug design for O3 air unit eliminates complex soldering steps
• Motor Socket Design: Adopts socket connections for motors to facilitate quick replacements and upgrades.
• Multifunctional Design: Integrates a serial ELRS 2.4G receiver, 8MB black box, barometer, and current sensor, reserves 2 full UARTs and 1 standard SBUS port, supporting connections with various devices like GPS, HD VTX, and external receivers.

Specifications

• BF Flight Controller Firmware: FLYWOOF405S_AIO
• INAV Firmware: FLYWOOF405HD
• MCU: STM32F405BGA
• BEC:  5V 2A/9V 2A
• Flash:  8M
• LED: 2*WS2812
• Barometer:  DPS310/SPL06
• Gyro:  ICM42688P / MPU6000
• Motor: M1-M4 OUTPUT I2C: SCL/SDA
• Uarts: 1,2,3,4,5,6
• Connector: Type-C
• OSD: NO
• Hole:  25.5*25.5-3mm
• Size:  30*30mm
• Weight: 4.9g

Dimensions

Package Includes

• 1 x Flywoo GOKU F405 HD 1-2S 12A AIO V2 Plug&Play O4 / O4 PRO
