DJI RC Pro 2

Description

The DJI RC Pro 2 is the ideal creative companion for the Mavic 4 Pro. Its ingenious integrated collapsible design eliminates control stick removal and makes powering on and off quick and easy. The controller also boasts a vibrant 7-inch high-bright Mini-LED screen, a built-in microphone, and direct compatibility with the DJI Mic series.

DJI RC Pro 2 remote controller puts professional-grade aerial filmmaking at your fingertips. Its powerful 7-inch high-bright Mini-LED display delivers stunning visuals, while the rotatable screen instantly syncs with the drone’s gimbal for vertical shooting ^[1]. The enterprise-level multibeam high-gain antennas ensures ultra-reliable video transmission. With its integrated collapsible design, the RC Pro 2 powers on when extended and automatically deploys its control sticks so you can start creating instantly. Plus, capture high-quality audio with the built-in mic or pair it with the DJI Mic series ^[2]. From design to experience, DJI RC Pro 2 is the ultimate companion for DJI camera drones.

Features:

• 7-inch High-Bright Mini-LED Display
• Collapsible Control Sticks With No Assembly Required
• Rotatable Display for Instant Vertical Shooting ^[1]
• Extend to Power On, Collapse to Turn Off the Screen
• Built-in Mic & Direct Connection to DJI Mic Series ^[2]
• 4-Hour Battery Life ^[3] & 128GB Storage

Flagship Display, Unforgettable Visuals

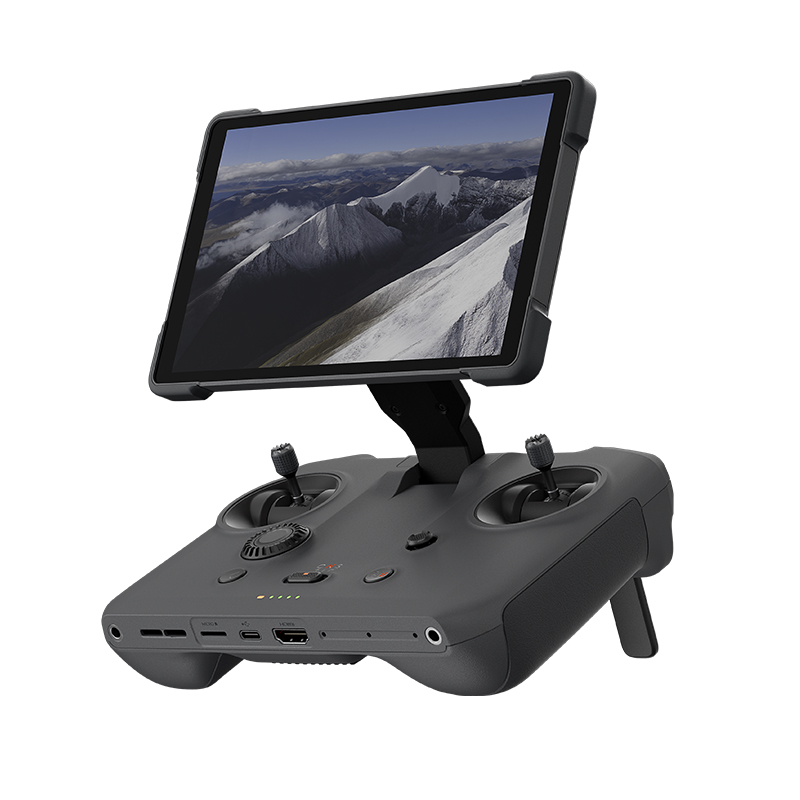

DJI RC Pro 2’s Mini-LED screen delivers flagship-monitor performance, featuring an ultra-high 2000-nit peak brightness, 1600-nit sustained brightness, and a 1,000,000:1 contrast ratio. It supports 10-bit color and covers 98% of the DCI-P3 color gamut, ensuring exceptional display quality. Not only does it display real-time HDR footage captured by the Mavic 4 Pro, it also accurately reproduces D-Log/D-Log M/HLG video through assistive display functions, giving you precise control over your visuals during creation.

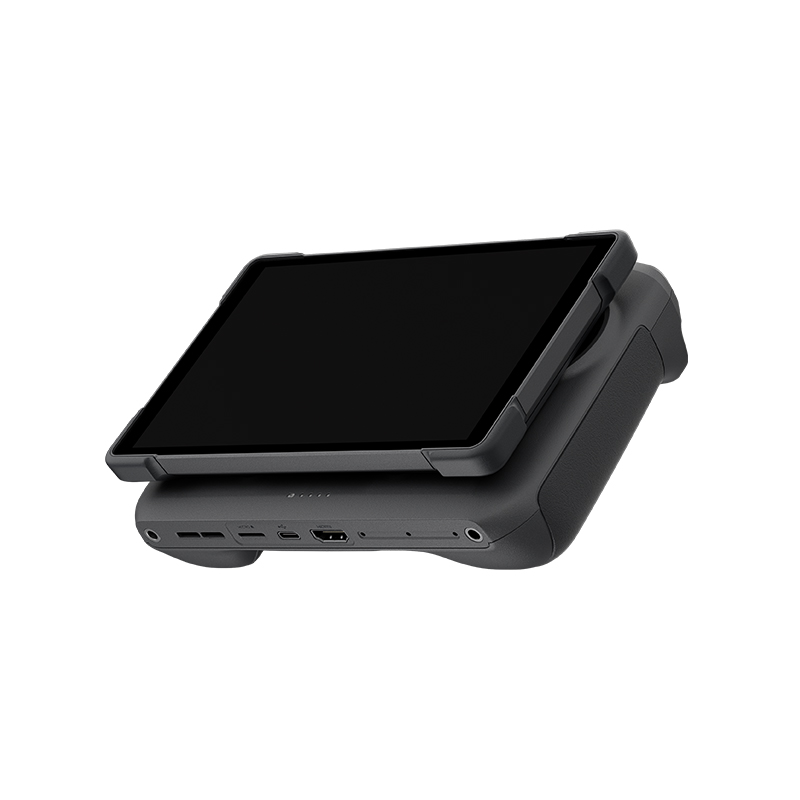

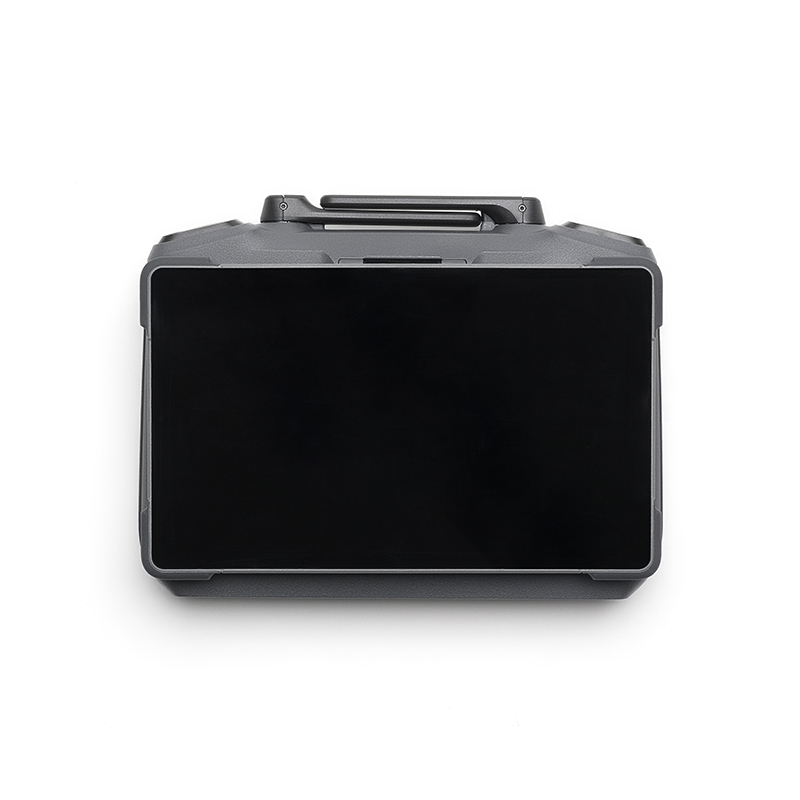

Collapsible Design, Extend and Start Creating

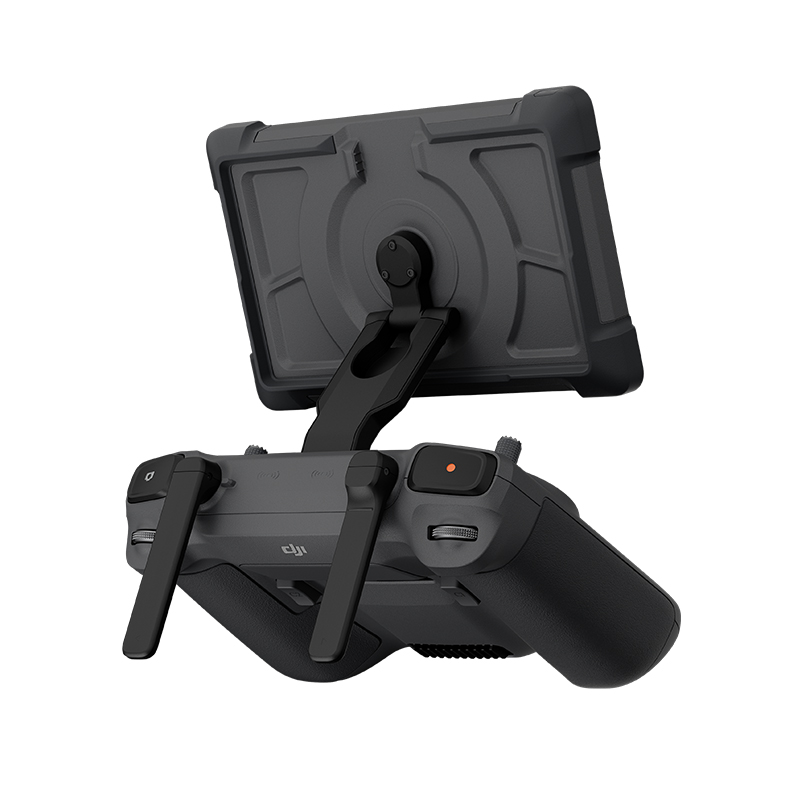

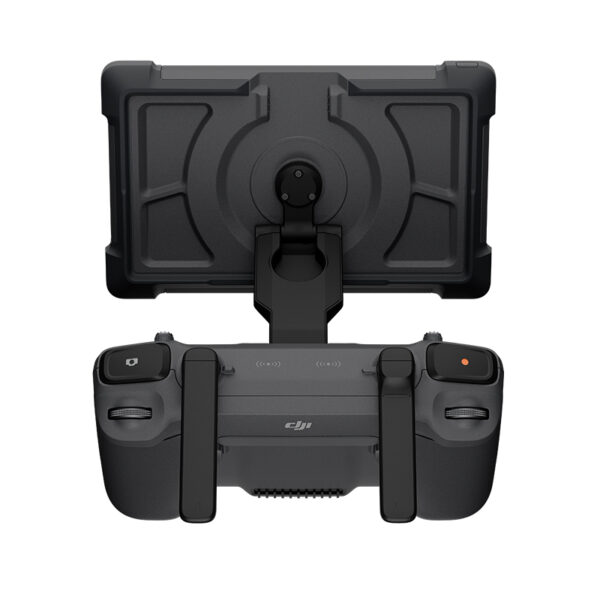

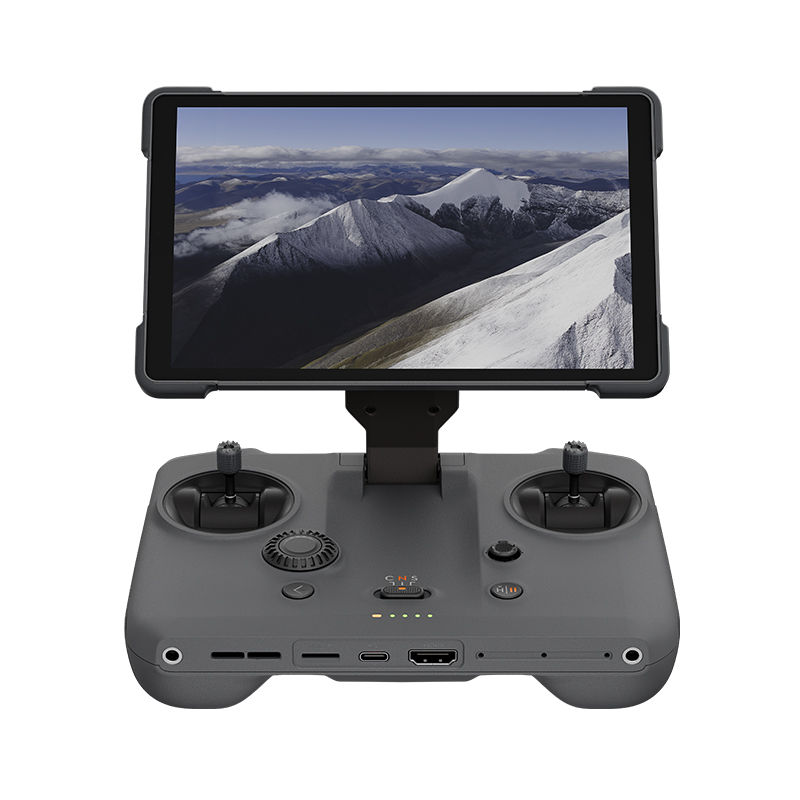

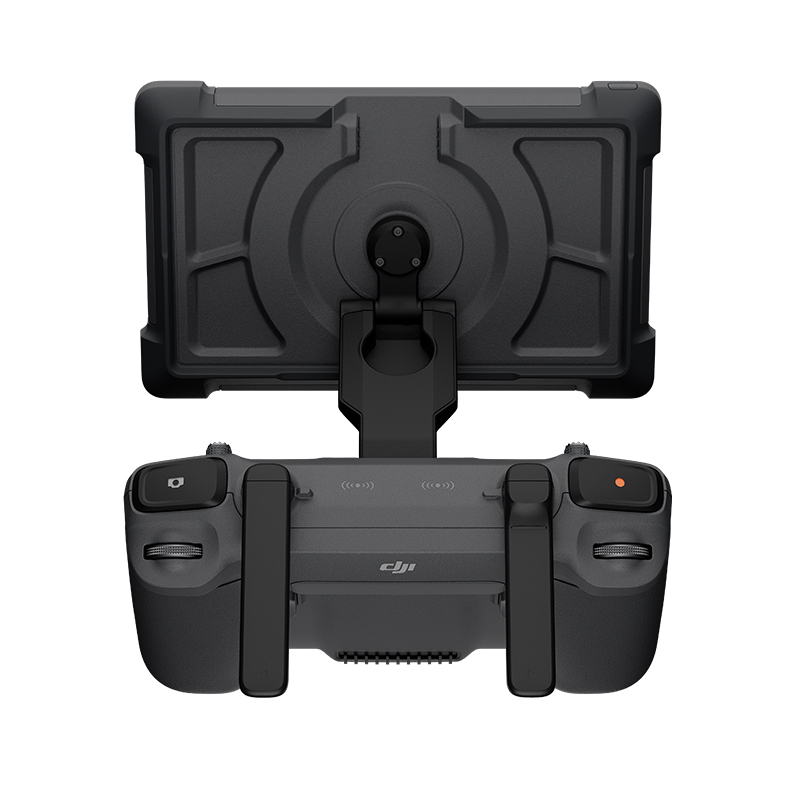

RC Pro 2 features a smart collapsible design that powers on when extended, with joysticks rising seamlessly alongside the screen for swift, smooth operation. Adjustable screen stands allow you to find the ideal angle, adding a masterful touch to elevate your creative flow.

Rotatable Screen for Instant Vertical Shooting

When used with Mavic 4 Pro or Mini 4 Pro, RC Pro 2 enables synchronized gimbal rotation, allowing instant vertical shooting when the screen is rotated. In portrait mode, the RC Pro 2 controller’s vertical content display area can be up to 5.5 times that of the RC 2 controller, allowing you to make full use of the large screen to view enhanced details.

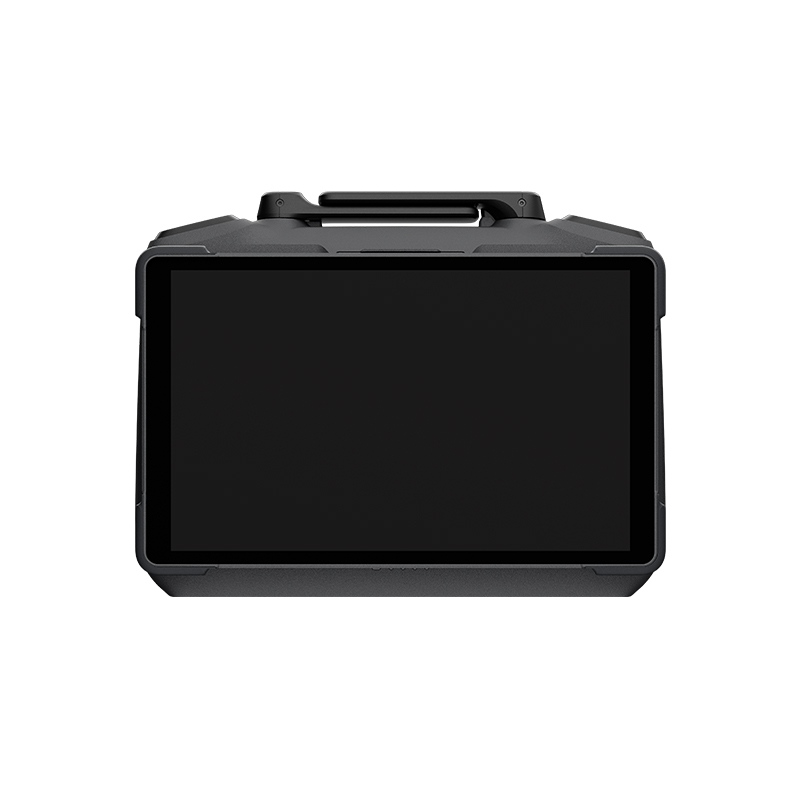

Quick Sleep and Wake

Collapsing the screen automatically puts RC Pro 2 into a low-power sleep mode, allowing for quick reactivation when needed. This allows you to seamlessly transition between locations without frequently powering the device on and off, significantly boosting efficiency.

Smart Features for Effortless Aerial Photography

• O4+ Transmission for a More Stable Signal

DJI RC Pro 2 is compatible with multiple drones, including the DJI Air 3S, DJI Air 3 and DJI Mini 4 Pro ^[4]. Equipped with enterprise-level high-gain multibeam antennas, it offers a transmission distance of up to 30 km ^[5] when used with the Mavic 4 Pro, delivering 10-bit HDR transmission for lifelike visuals and an exceptionally stable signal.

• Dynamic Home Point Support for Convenient Vehicle Filming

When controlling the drone from a moving vehicle, RC Pro 2 dynamically updates the home point location in real-time, ensuring Mavic 4 Pro can return safely and quickly to a location near your vehicle.

• Built-in Simulator and Tutorials

The remote controller includes a built-in flight simulator that replicates real-world flying conditions, operating interfaces, dynamic objects, and even transmission interference, helping beginners quickly learn flight maneuvers.

Powerful Performance for High-Quality Live Streaming

• Third-Party Live Streaming App Support

RC Pro 2’s powerful hardware delivers a smooth, flagship-tablet-like experience. Third-party app support enables projection livestreaming and allows you to directly edit downloaded footage and share it to social media from the remote controller—no computer needed.

• Improved Livestreaming

• New Dial for Efficient Parameter Adjustment and Image Selection

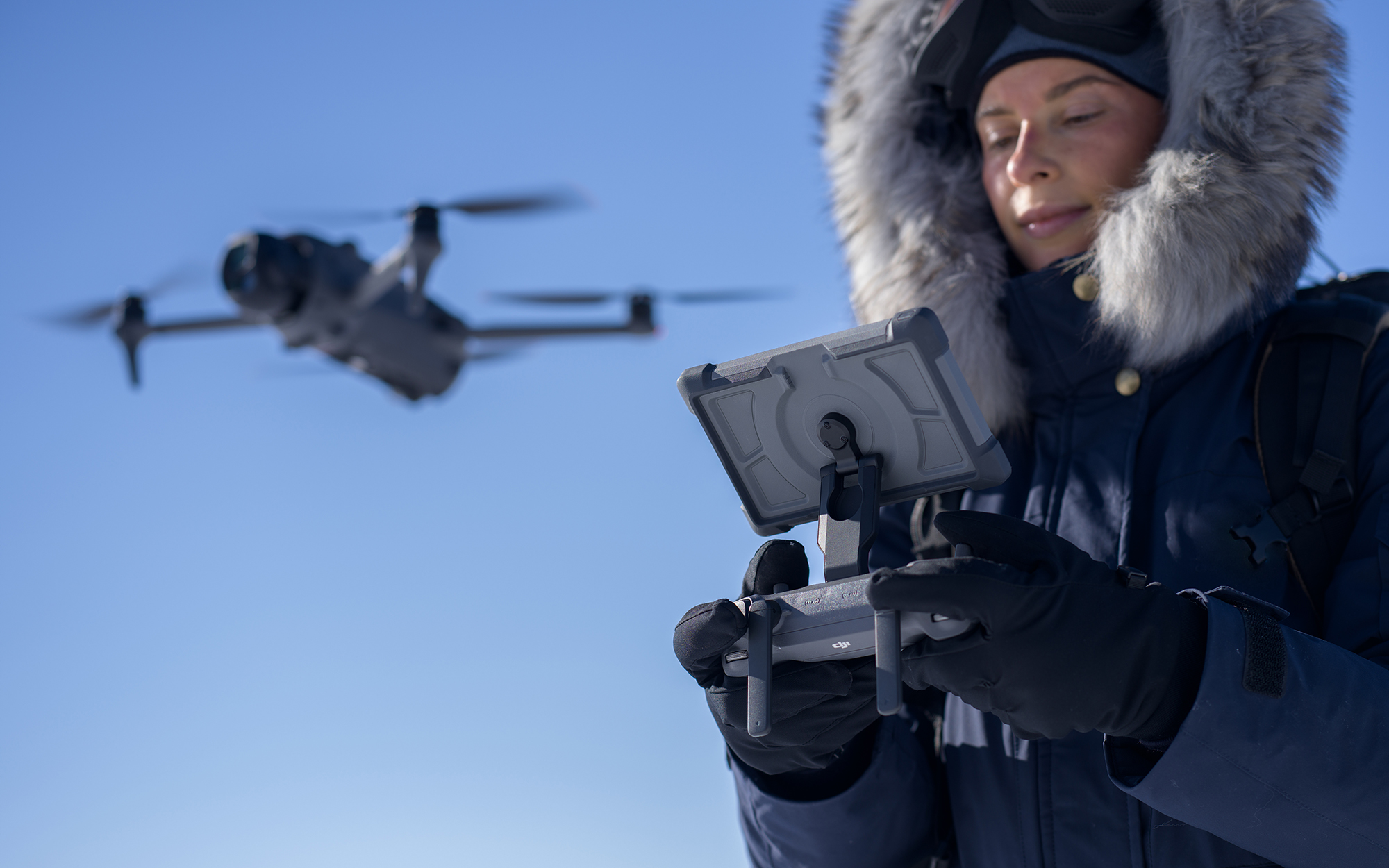

The new dial, paired with five-dimensional buttons, is positioned on both sides of the controller for easy thumb control even when wearing gloves, so you can quickly and easily adjust parameters (including aperture, shutter speed, and ISO) ^[7] and select footage.

• 4-Hour Battery Life, 128GB Large Capacity

RC Pro 2 offers 4 hours of battery life ^[3], equivalent to flying through four Mavic 4 Pro batteries, making it ideal for shooting and live streaming. It also features 128GB of built-in storage ^[8] with support for further expansion via microSD card.

Specifications:

Video Transmission

• System: O4 / O4+ (Reverts to drone-specific transmission when connected to non-Mavic 4 Pro models)

• Operating Frequency: 2.4000–2.4835 GHz, 5.170–5.250 GHz, 5.725–5.850 GHz (Frequencies may vary by region)

• Antenna: Enterprise-level multibeam high-gain antennas, 2T4R

• Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC); 5.1 GHz: <23 dBm (CE); 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)

Wi-Fi

• Protocol: IEEE 802.11 a/b/g/n/ac/ax

• Operating Frequency: 2.4000–2.4835 GHz, 5.150–5.250 GHz, 5.725–5.850 GHz (Subject to regional restrictions)

• Transmitter Power (EIRP): 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC); 5.1 GHz: <23 dBm (FCC/CE/SRRC/MIC); 5.8 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)

Bluetooth

• Protocol: Bluetooth 5.2

• Operating Frequency: 2.400–2.4835 GHz

• Transmitter Power (EIRP): <10 dBm

Screen

• Resolution: 1920×1200

• Size: 7.02 inches

• Frame Rate: 60 fps

• Brightness: 2000 nits (peak @ APL 10%), 1600 nits (sustained)

• Touch Control: 10-point multi-touch

General Specifications

• Battery: Dual 18650 Li-ion (44.64Wh, 3100mAh×2)

• Charging Type: PD Protocol, up to 65W fast charging (20V/3.25A)

• Charging Time: 1.5 hours (with DJI 65W Portable Charger)

• Operating Time: ~4 hours (Tested with DJI Mavic 4 Pro at 1080p/60fps recording)

• Video Output Port: HDMI

• Operating Temperature: -10°C to 40°C (14°F to 104°F)

• Charging Temperature: 5°C to 40°C (41°F to 104°F)

• Storage Temperature: <1 month: -30°C to 60°C; 1–3 months: -30°C to 45°C; 3–6 months: -30°C to 35°C; >6 months: -30°C to 25°C

• GNSS: GPS + BeiDou + Galileo

• Supported Aircraft Models: DJI Mavic 4 Pro, DJI Mini 4 Pro, DJI Air 3S, DJI Air 3 (Future updates may add more models)

• Dimensions (Folded): 182×139×61 mm (L×W×H)

• Weight: ~750 g

• Model: RC520

Storage

• Internal Storage: 128 GB (Approx. 100 GB usable)

• Expandable Storage: microSD card slot

• Supported SD Cards: UHS-I Speed Grade 3 or higher

• Recommended microSD Cards: Lexar 1066x: 64GB / 128GB / 256GB / 512GB U3 A2 V30 microSDXC; Kingston Canvas Go Plus: 64GB / 128GB / 256GB / 512GB U3 A2 V30 microSDXC

Notes:

* DJI RC Pro 2 is currently compatible with DJI Mavic 4 Pro, DJI Air 3S, DJI Air 3 and DJI Mini 4 Pro.

1. Requires a drone capable of vertical shooting.
2. Sold separately.
3. Tested in a 25°C (77°F) laboratory environment with DJI RC Pro 2 connected to DJI Mavic 4 Pro in normal flight status and recording 1080p/60fps video.
4. When connected to drones other than Mavic 4 Pro, DJI RC Pro 2’s video transmission technology will switch to the video transmission specifications of the connected drone. The video transmission distance will also be adjusted accordingly.
5. Measured in an outdoor, open environment, without interference, and with FCC compliance. The 30 km transmission distance is only achievable under FCC standards; in mainland China, the SRRC standard is adopted, with a maximum transmission distance of 15 km. The above data shows the farthest communication range for one-way, non-return flights. Always pay attention to reminders in the app during your flight.
6. The HDMI port on the body can only transmit video, not audio.
7. The camera needs to be switched to Pro mode.
8. Actual available storage space is approximately 100 GB.

Related Products (Not Included)

• Drone: DJI Mavic 4 Pro (DJI RC 2)
• Combo: DJI Mavic 4 Pro Fly More Combo (DJI RC 2)
• Creator Combo: DJI Mavic 4 Pro 512GB Creator Combo (DJI RC Pro 2)
• Charging Hub: DJI Mavic 4 Pro Parallel Charging Hub
• Propeller Guard: DJI Mavic 4 Pro Propeller Guard
• Power Adapter: DJI 240W Power Adapter (AU)
• Propellers: DJI Mavic 4 Pro Propellers
• Battery: DJI Mavic 4 Pro Intelligent Flight Battery

Package Includes:

• 1 x DJI RC Pro 2
