Description

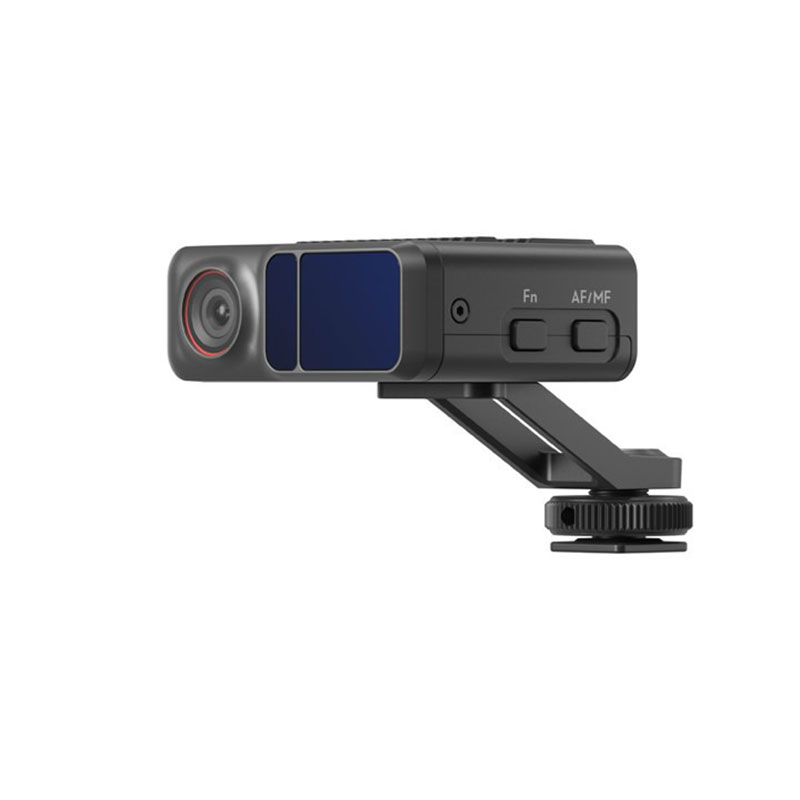

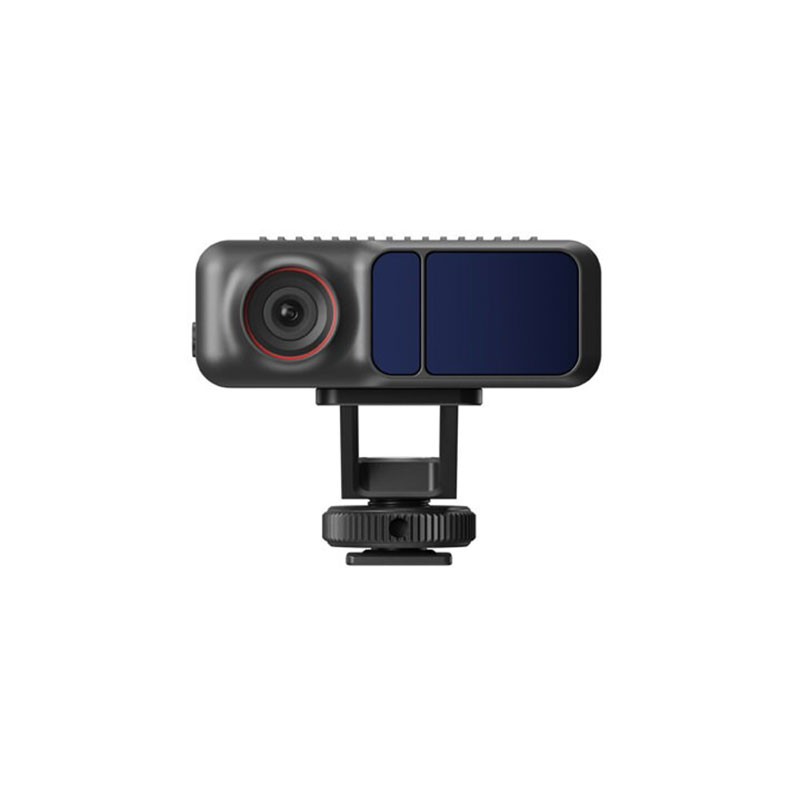

The DJI Focus Pro LiDAR redefines precision with an impressive 76,800 ranging points, allowing crisp human-subject edge detection and reducing focus hunting. With a remarkable 20-meter range and a broad 70° field of view, this LiDAR is perfect for edge compositions and dynamic close-ups. Paired with the DJI Focus Pro Motor, it transforms manual lenses by adding seamless autofocus, ideal for tracking moving subjects in high-stakes filming environments.
Features:
- High Precision Ranging: Equipped with 76,800 ranging points for sharp human-subject edge detection and reduced focus hunting.
- Extended Range: Offers a maximum focus distance of 20 meters, triple the previous generation’s range for human subjects.
- Wide Field of View: 70° FOV enables enhanced framing flexibility, ideal for edge compositions and close-up shots.
- Fast Refresh Rate: 30 Hz refresh rate ensures rapid subject tracking, ideal for moving subjects.
- Seamless Autofocus: When paired with the DJI Focus Pro Motor, enables autofocus for manual lenses.
- Versatile Compatibility: Designed for seamless integration with DJI RS 4 Pro, RS 3 Pro, and Focus Pro Grip.
- Temperature Resilient: Operates in extreme conditions, from -20° to 45° C.
- Energy Efficient: Average power consumption is approximately 6.3 W, with a max of 6.8 W.
Specifications:
- Ranging Points: 76,80
- Sensing Range:Â 0.5-20 m
- FOV:Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)
Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal) - Frame Rate: 30fps
- Equivalent Focal Length: 30 mm (wide-angle mode)
- Ranging Accuracy: ±1% to 3% (affected by the distance)
- Power Consumption: Average approx. 6.3 W, max 6.8 W
- Input Voltage: 6.6-17.2 V
- Operating Temperature: -20° to 45° C (-4° to 113° F)
- Main Body Dimensions: 68×25×57 mm (L×W×H)
- Weight:Â 140 g
Compatibility:
- DJI RS 4 Pro
- DJI RS 3 Pro
- DJI Focus Pro Grip
Tips:
- When the stabilizer’s screen is in 1x mode, the LiDAR’s ToF sensor operates within a 10-meter sensing range by default. To extend to a 20-meter focus distance, you can tap the + icon on the screen to enable 2x zoom display.

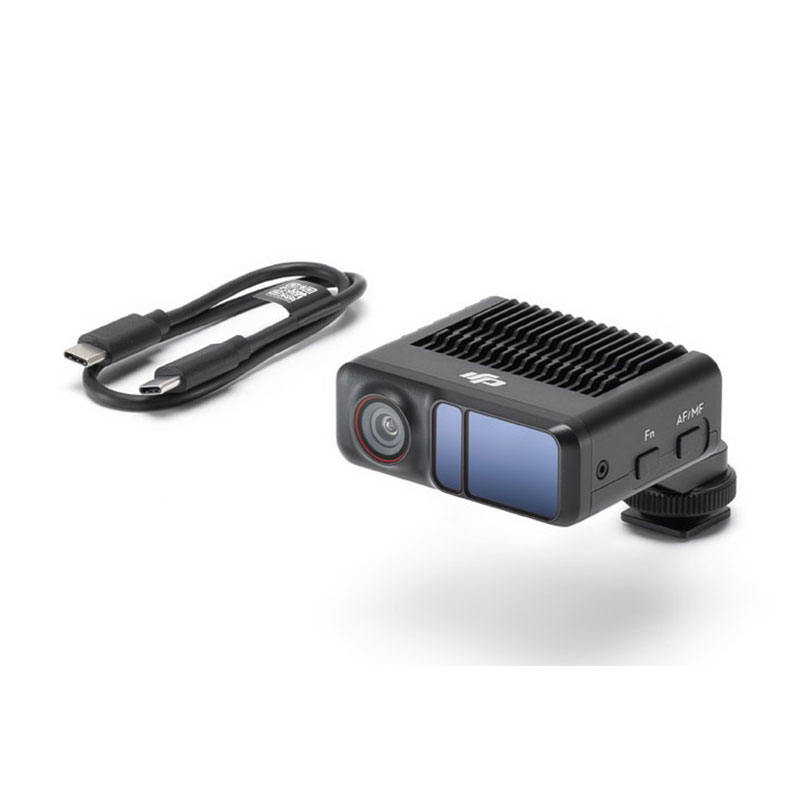

Package Includes:
- 1 x Focus Pro LiDAR
- 1 x Multi-Camera Control Cable (USB-C, 30 cm)
