Description
The DJI Focus Pro All-In-One Combo revolutionizes cinematic focus control with DJI’s first Automated Manual Focus (AMF) system, merging precision and human-machine collaboration. Designed for professional filmmakers, it features a powerful LiDAR focus system, intuitive touchscreen adjustments, and versatile Bluetooth connectivity, providing seamless control over focus, even during handheld or remote filming. The newly enhanced Grip ensures a robust 2.5-hour power supply and supports lens data storage for ultimate filming convenience.
Features:
- Feel the Focus AMF Lens Control System: DJI Focus Pro, DJI’s first independent Automated Manual Focus (AMF) lens control system, provides cinematographers with a robust and comprehensive focus solution, ushering in a new era of human-machine collaborative focus control.

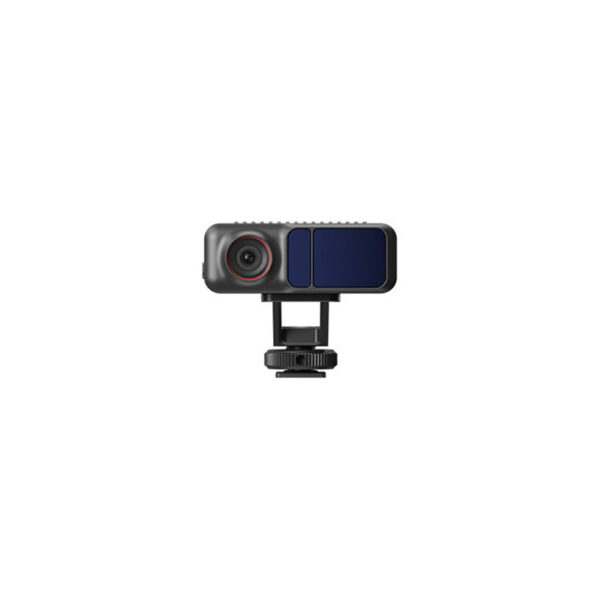

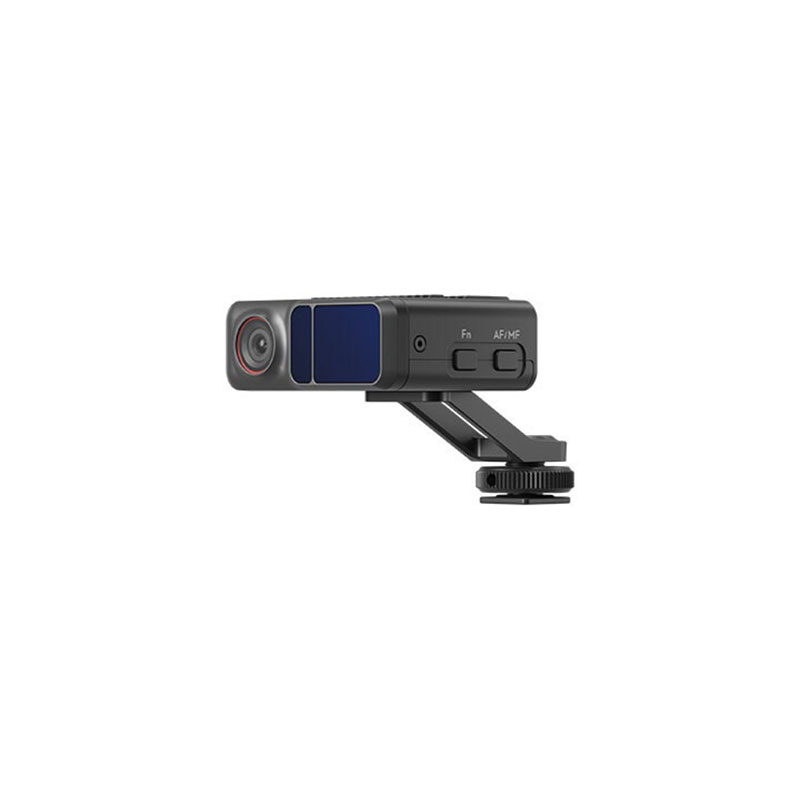

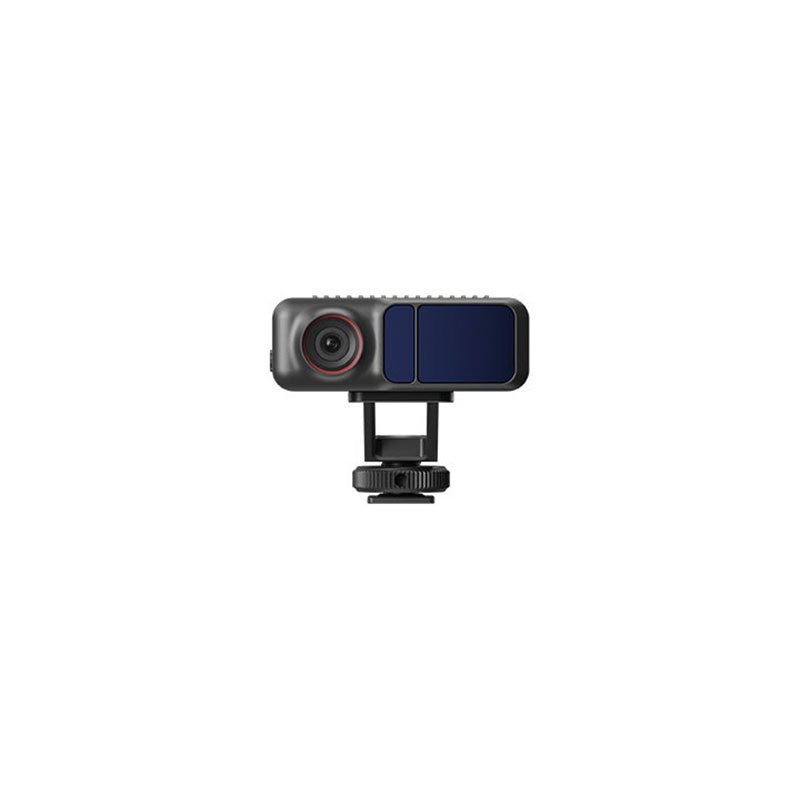

- LiDAR Focusing, Now Accessible to All: For the first time, DJI introduces a LiDAR focus system as an independent product, allowing an extensive user base to experience the freedom of creative focusing possibilities.

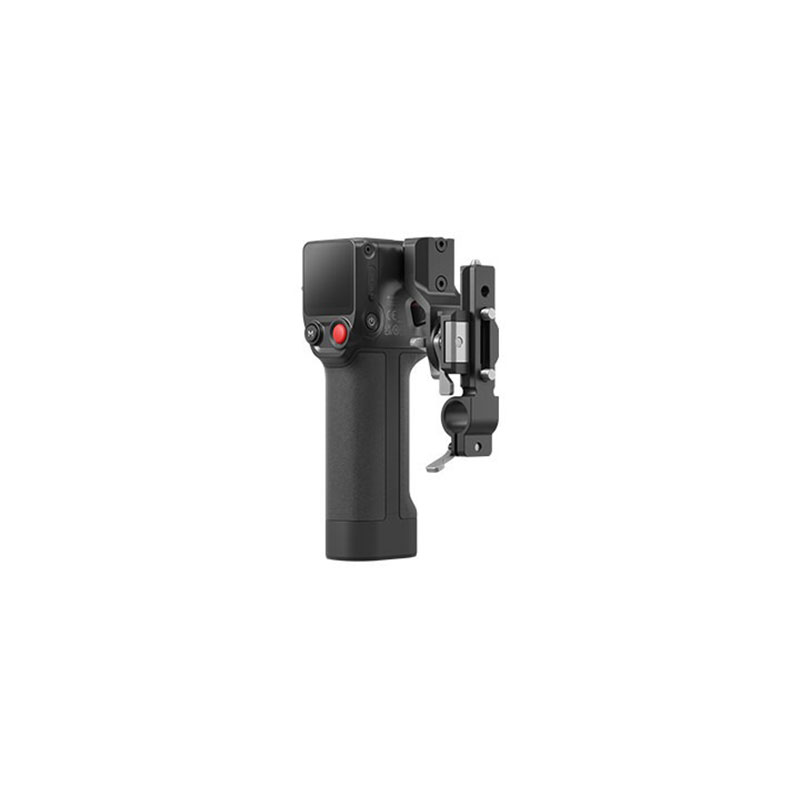

- All-New Grip, All-Around Capability: The newly designed DJI Focus Pro Grip features a 2.5-hour system power supply, intuitive screen operations, auto-calibration and data storage for 15 lenses, Bluetooth start/stop recording, and handheld shooting capabilities, offering an exceptional LiDAR focusing experience, even without a Ronin stabiliser.
- Touchscreen Parameter Adjustments, LiDAR View Synchronisation: The Grip, equipped with a full-colour touchscreen, supports the adjustment of LiDAR and motor parameters and can present a real-time view from the LiDAR’s perspective, granting operators complete awareness during use.
- Auto Calibration, Efficient and Convenient: The DJI Ronin app features built-in lens data that can be imported into the Focus Pro Motor via Bluetooth connection to the Grip. A single Motor can store data for up to 15 lenses.
- Bluetooth Connectivity, Wireless Control: The Grip can directly connect to mirrorless cameras via Bluetooth for wireless start/stop recording. It can also pair with the DJI Ronin app over Bluetooth to complete the calibration of manual lenses. [1]
- 2.5-Hour Operating Time, Use While Charging: The Grip supports a 2.5-hour power supply for both the LiDAR and focus motor. It also allows for continuous use while charging through third-party PD fast-charging batteries.
Specifications:
- Accessory Port: Cold Shoe
1/4″-20 Threaded Hole
USB-C Firmware Update Port (Power/USB)
USB-C Data Port (Power/CVBS/CAN) - Image Sensor: Resolution: 1920×1440
- FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
- Frame Rate: 30fps
- Equivalent Focal Length: 30 mm
- ToF Sensor: Ranging Points: 76,800
- Sensing Range: 0.5-20 m
- FOV: Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)
- Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)
- Frame Rate: 30fps
- Equivalent Focal Length: 30 mm (wide-angle mode)
- Ranging Accuracy: ±1% to 3% (affected by the distance)
- Machine Learning: Tracking Subject: Can recognize up to five subjects at the same time, and choose one to follow
- Smart Object Identification: Human, vehicle
- Focus Area: Flex Spot (activate focus lock by framing the subject and pressing the trigger; supports autofocus only, not ActiveTrack); Wide (when subject-locked on human, supports both autofocus and ActiveTrack*; when subject-locked on vehicle, supports autofocus only, not ActiveTrack) * ActiveTrack is available only when used in conjunction with DJI RS 4 Pro or DJI RS 3 Pro.
- Electrical Properties: Power Consumption: Average approx. 6.3 W, max 6.8 W
Input Voltage: 6.6-17.2 V
Operating Temperature: -20° to 45° C (-4° to 113° F)
Mechanical Properties: Main Body Dimensions: Approx. 68×25×57 mm (L×W×H)
Weight: Approx. 140 g (0.31 lbs)
Mounting Method and Position: Can be mounted directly via cold shoe or using the 1/4″ threaded hole It is recommended to mount the DJI Focus Pro LiDAR close to the camera’s optical axis.

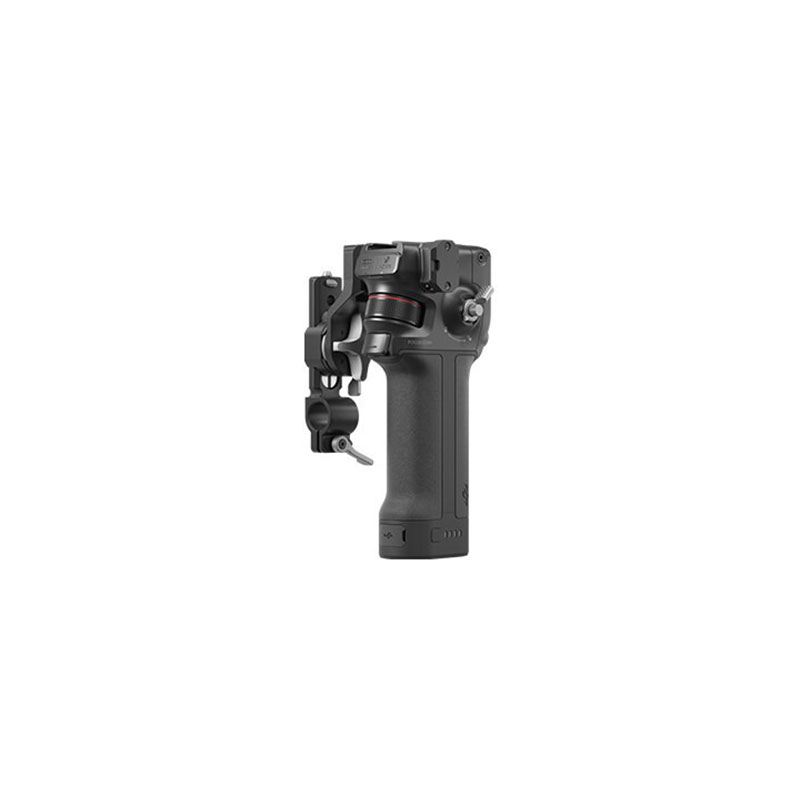

Grip
- Operating Frequency: 2.400-2.4835 GHz
- Bluetooth Transmitter Power: < 8 dBm
- Mechanical Properties: Main Body Dimensions: Approx. 59×73×162 mm (L×W×H)
Main Body Weight: Approx. 482 g (1.06 lbs) - Mounting Method: Flexible mounting on either left or right side of the cage via NATO port
- Screen: 1.8-inch full-color touchscreen
- Port: USB-C Port (DJI Focus Pro LiDAR)
USB-C Port (DJI Focus Pro Motor)
USB-C Port (Camera Control Port)
USB-C Port (Battery Charging Port) - Operating Time: Approx. 2.5 hours
Measured in a 25° C (77° F) environment while simultaneously powering the grip, LiDAR, and a focus motor, with AF continuously on, and paired with a manual lens. - Charging Power: Supports 18W PD fast charging
- Battery Model: BHX711-3000-7.2V
- Power Supply Voltage: 6.6-8.4 V
- Operating Temperature: -20° to 45° C (-4° to 113° F)

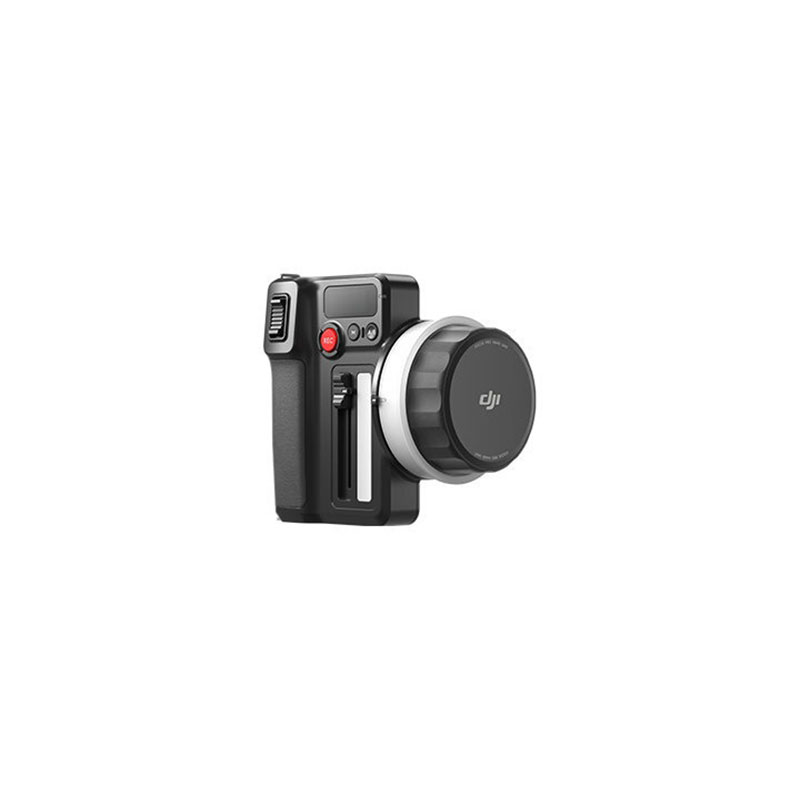

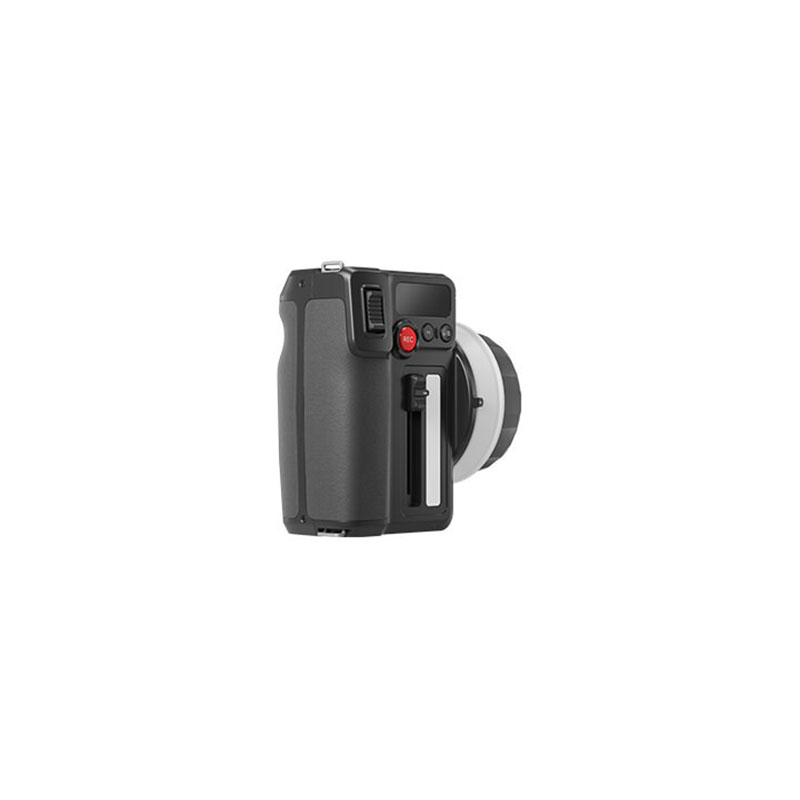

Hand Unit
- Operating Frequency: 2.400-2.4835 GHz
- Bluetooth Transmitter Power: < 8 dBm
- 2.4GHz Transmitter Power (EIRP): < 20 dBm (CE/SRRC/MIC)
< 26 dBm (FCC) - 2.4GHz Transmission Distance: 160 m*
100 m**
* Measured under FCC standard in an unobstructed environment free of interference.
** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference. - Mechanical Properties: Dimensions: Approx. 128×87×87 mm (L×W×H)
- Weight: Approx. 555 g (1.22 lbs) (without battery)
- Battery: Model: NP-F550
- Input: 6.3-8.4 V
- Dimensions: 71×38.6×21.1 mm (L×W×H)
- Screen: 1.09-inch full-color touchscreen
- Static Power Consumption: 0.83 W
- Operating Temperature: -20° to 45° C (-4° to 113° F) (excluding battery temperature)

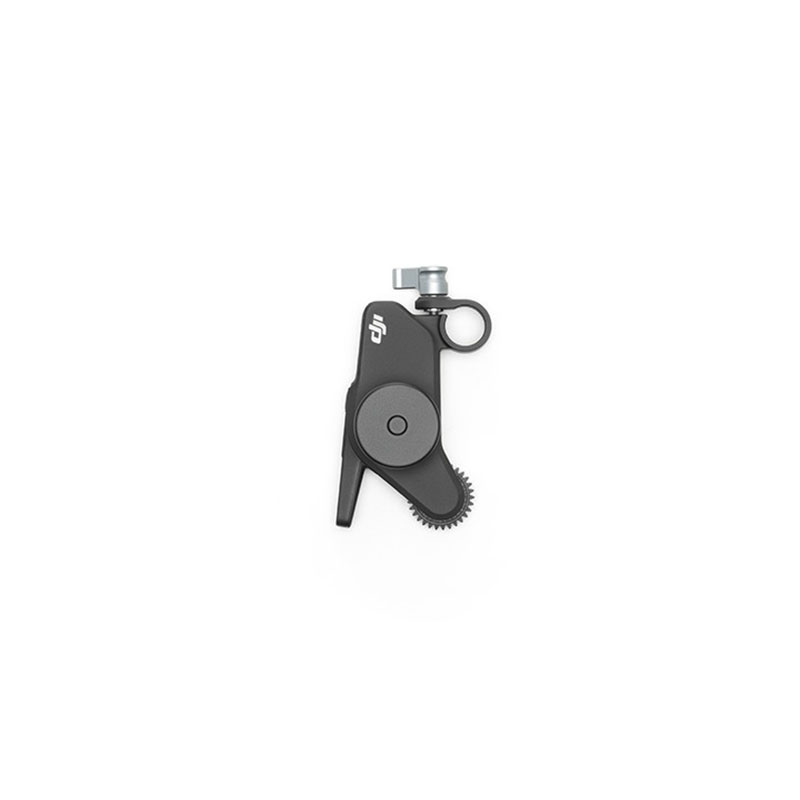

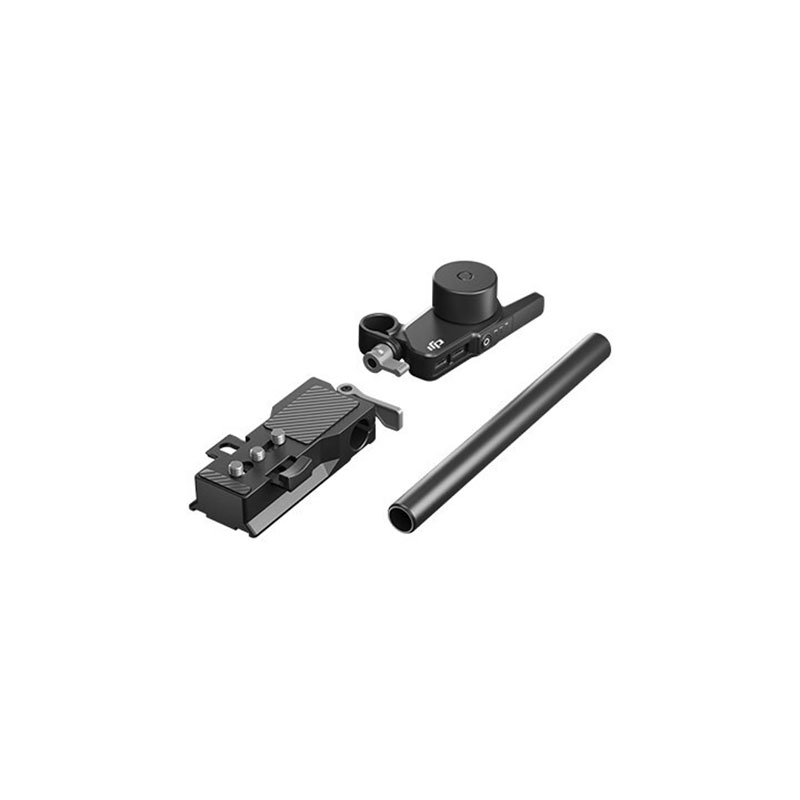

Motor
- 2.4GHz Transmitter Power (EIRP): < 20 dBm (CE/SRRC/MIC)
< 26 dBm (FCC) - 2.4GHz Transmission Distance: 160 m*
100 m**
* Measured under FCC standard in an unobstructed environment free of interference.
** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference. - Mechanical Properties: Dimensions: Approx. 100×61×34 mm (L×W×H)
- Weight: Approx. 123 g (0.27 lbs)
- Rod Diameter: 15 mm
- Output Gear Teeth: 30
- Output Gear Module: 0.8
- Performance: Max Torque: 0.6 N·m (8 V)
- Max Speed: 300 rpm (8 V)
- Power Supply Voltage: 6.6-17.2 V
- Stall Current: 2 A, 8 V
- Free Current: 60 mA, 8 V
- Operating Temperature: -20° to 45° C (-4° to 113° F)
- Output Voltage: 6.6-17.2 V

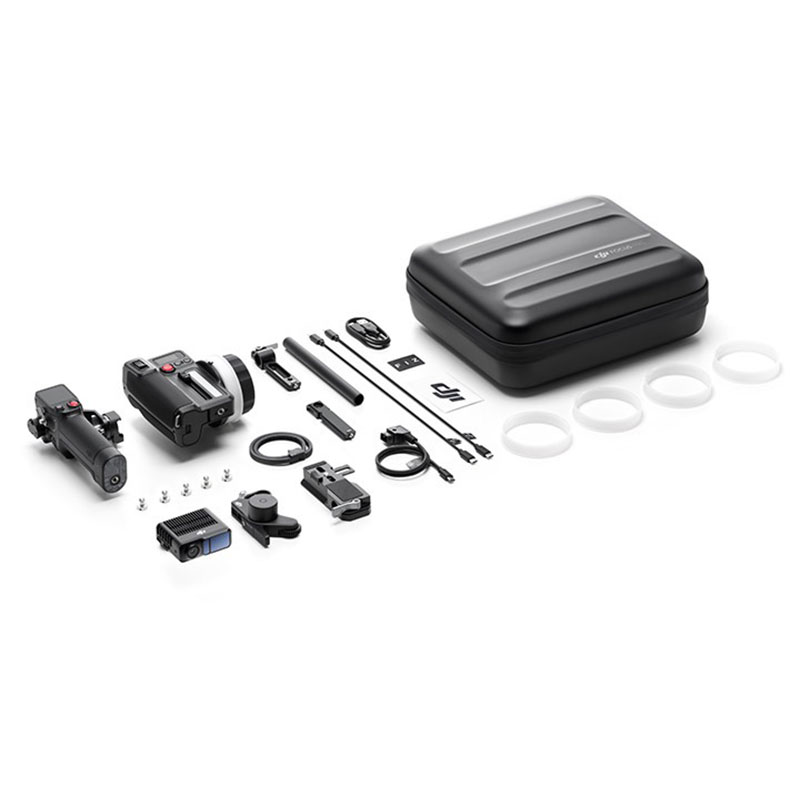

Package Includes:
- 1 x DJI Focus Pro LiDAR
- 1 x DJI Focus Pro Grip
- 1 x DJI Focus Pro Motor
- 1 x DJI Focus Pro Hand Unit
- 1 x DJI Focus Pro Carrying Case
